Description

This product only includes an Air Handler (Indoor Unit).

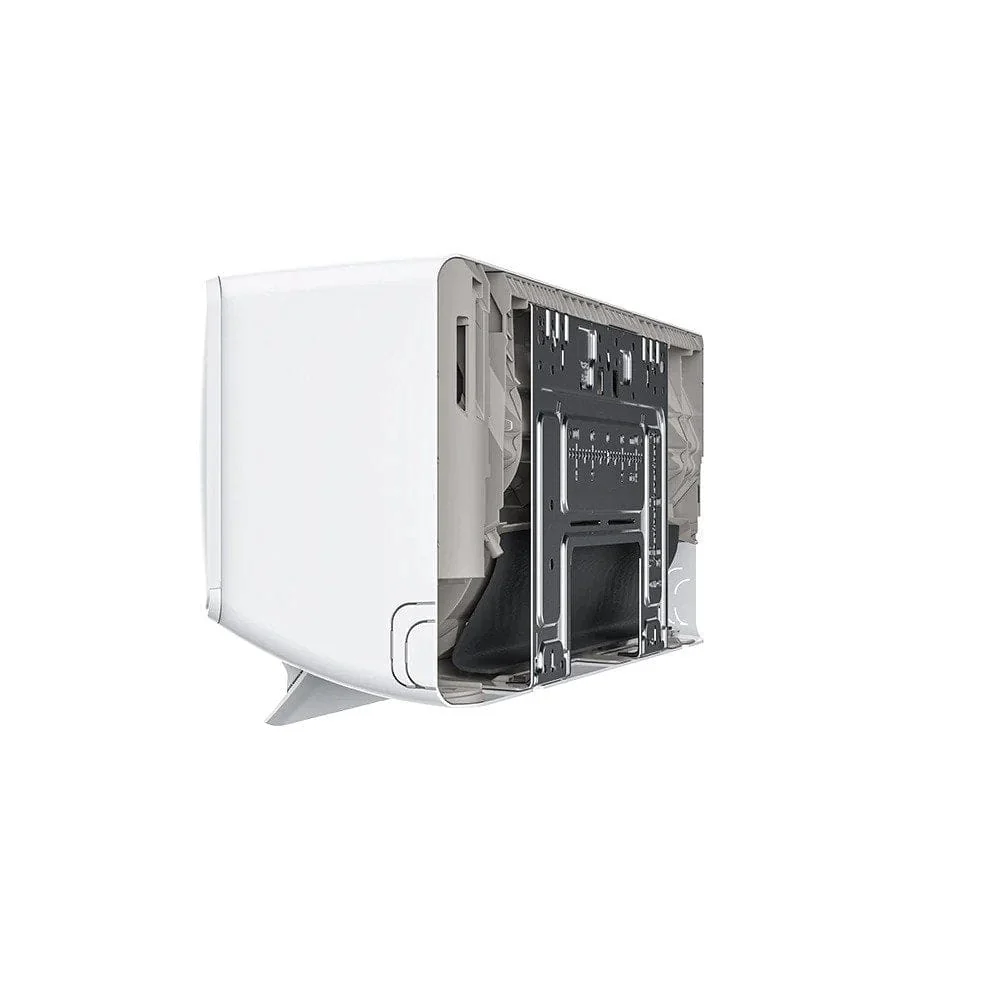

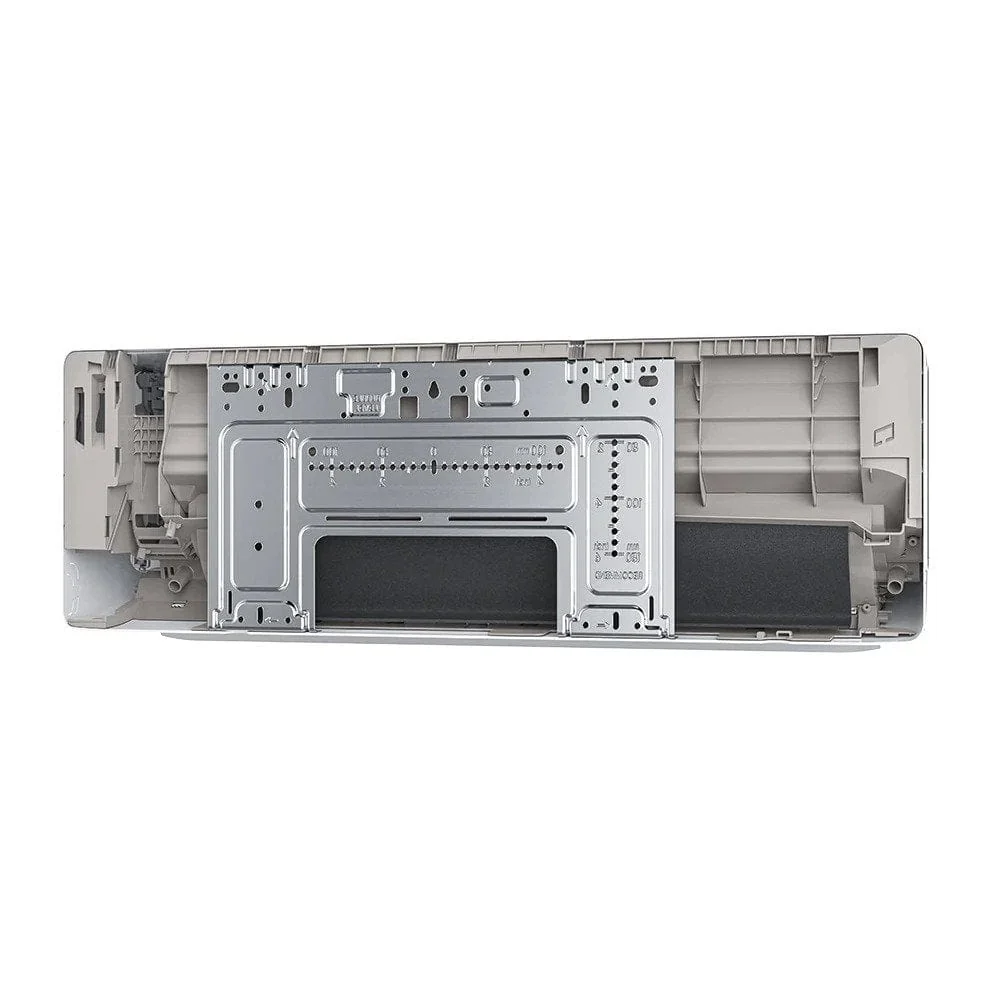

The MRCOOL® 4th Generation DIY 36K BTU Ductless Wall Mounted Air Handler is the highest capacity air handler in the DIY series and has the ability to cover an area up to 1,500 sq. ft. Even with that level of performance, it can still deliver an impressive 18 SEER efficiency rating when connected to a MRCOOL® Condenser. It also features multiple operating modes which include HEAT, COOL, AUTO, DRY (dehumidify), and SLEEP. To take the functionality even further, this unit can also be operated by your Apple or Android smartphone with use of our convenient Smart HVAC app. This air handler has a compact design which makes it easier to mount to most interior walls when using the included mounting plate. This air handler is also designed to be installed using MRCOOL's patented Pre-Charged Quick Connect Line Set. The quick connectors allow the line set to be installed in a few simple steps with two wrenches. It comes precharged with R-410A refrigerant, so no vacuuming or charging of the system is required once installed. Let the MrCool 4th Generation DIY 36K BTU Ductless Wall Mounted Air Handler take care of the heating and cooling of your home.

• SmartHVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
• Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
• Compatible with Amazon Alexa and Google Assistant
• Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements

Product Specifications

MRCOOL® E Star DIY 4th Gen 36k BTU 208-230V/60Hz Ductless Mini-Split Air Handler  Product Specifications

COOLING CAPACITY	36000 BTU
HEATING CAPACITY	36000 BTU
VOLTAGE	208-230 V
PHASE	1
CYCLE	60 Hz
MOUNT TYPE	Wall
COLOR	White
COLOR FAMILY	White
MAX COVERAGE AREA	Up to 1500 sqft
REFRIGERANT TYPE	R-410A
DECIBEL RATING	52/45/34
DECIBEL RATING LOW	34 dBA
DECIBEL RATING HIGH	52 dBA
INVERTER	Yes
MAX LINESET LENGTH	213.25 ft
LIQUID LINE SIZE	3/8 in
SUCTION LINE SIZE	5/8 in
BLOWER MOTOR RPM	1200/950/750
FAN ONLY OPTION	Yes
QUIET MODE	Yes
AUTO COOL	yes
WIFI COMPATIBILITY	Yes
APP COMPATIBILITY	Yes
WORKS WITH IOS	Yes
WORKS WITH ANDROID	Yes
REMOTE CONTROL INCLUDED	Yes
ENERGY STAR CERTIFIED	No
AHRI CERTIFIED	Yes
REGISTERED WARRANTY	Limited Lifetime Compressor
BASE WARRANTY	5-year Parts/7-year Compressor
BASE PARTS WARRANTY	5-year Parts
REGISTERED COMPRESSOR WARRANTY	Limited Lifetime Compressor
BASE COMPRESSOR WARRANTY	7-year Compressor
HAS BATTERIES	Yes
CONTAINS ELECTRONICS	Yes
CONTAINS CHEMICALS	Yes
CONTAINS AEROSOL	Yes
CONTAINS COMPRESSED GAS	Yes
PROPOSITION 65 WARNING	Yes
RESTRICTED STATES	GU;PR;VI
NET DEPTH	11.10 in
NET HEIGHT	14.25 in
NET WIDTH	49.57 in
NET WEIGHT	47.84 lbs
GROSS DEPTH	21.26 in
GROSS HEIGHT	19.69 in
GROSS WIDTH	56.69 in
GROSS WEIGHT	78.26 lbs
