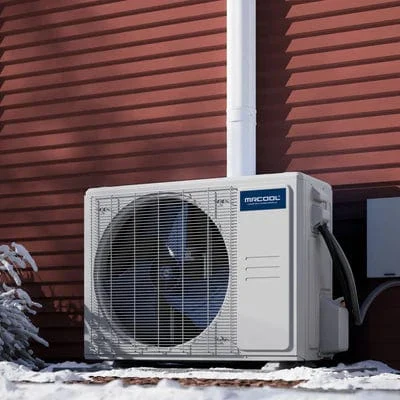

MRCOOL DIY® 5th Gen E Star 36,000 BTU Single Zone Mini Split Condenser 230V (DIY-36-HP-C-230D25-O)

MRCOOL DIY® 5th Gen E Star 36,000 BTU Single Zone Mini Split Condenser 230V (DIY-36-HP-C-230D25-O)

Description

The 5th Generation MRCOOL® DIY® 36k BTU 18 SEER Ductless Heat Pump Single Zone Mini Split Condenser makes it easy to stay comfortable year-round. Designed for straightforward installation, this system requires no special tools or professional expertise, making it a great choice for spaces between 1,000-1,500 sq. ft. Installation is hassle-free thanks to the pre-charged 25-foot QuickConnect® line set, which comes filled with R-454B refrigerant, eliminating the need for vacuuming. The DIYPRO® cable adds extra durability, replacing traditional electrical conduit to safeguard against weather, animals, and yardwork damage. Multiple control options let you adjust settings with ease.

Use the included remote, the SmartHVAC app on Apple or Android devices, or voice commands via Amazon Alexa and Google Assistant. If you live near the coast, the Gold Fin Condenser offers excellent corrosion resistance, ensuring long-lasting performance. This system includes features that enhance both comfort and efficiency. The Timer function helps manage energy use, while Auto mode keeps your space at your preferred temperature without manual adjustments. After a power outage, the system automatically restores its previous settings. Plus, the anti-mildew function prevents excess condensation buildup inside the air handler.

Designed for reliability, the 5th Generation MRCOOL® DIY® Mini Split comes with an industry-leading limited lifetime warranty, along with a 7-year compressor and 5-year parts warranty. With innovative technology, easy setup, and long-term dependability, this system delivers efficient climate control without the stress.

Features

• NEEP ccASHP Listed
• Intertek listed 5031495
• Easy DIY installation
• Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
• Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
• The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.

Product Specifications

MRCOOL DIY® 5th Gen E Star 36,000 BTU Single Zone Mini Split Condenser 230V (DIY-36-HP-C-230D25-O) Product Specifications

Dimensions	16.14" D x 31.89" H x 37.24" w
SEER2	18
EER2	8.5
HSPF2-4	8.5
HSPF2-5	6.5
Tonnage	3
Cooling Capacity (BTU)	36000
Heating Capacity (BTU)	36000
Voltage (V)	208/230
Phase	1
Cycle	60
Max Fuse Breaker (A)	35
Min Circuit Ampacity (A)	33
Color	White
Zone Capacity	1
Refrigerant Type	R-454B
Refrigerant Volume (Oz)	109.7
Decibel Rating (DBA)	60.5
Inverter	DC
Line Set Length	25
Max Lineset Length (FT)	213.2
Liquid Line Size	3/8
Suction Line Size	5/8
Compressor Motor Type	Rotary
Auxiliary Heater Included	No
Auxiliary Heater Available	No
Fan Only Option	Yes
Quiet Mode	Yes
Auto Cool	Yes
WIFI Compatibility	Yes
APP Compatibility	Yes
Works with IOS	Yes
Works with Android	Yes
UL Listed	Yes
ETL Listed	Yes
Energy Star Certified	Yes
AHRI Certified	Yes
Registered Warranty	Extended Limited Lifetime*
Base Parts Warranty	5
Base Compressor Warranty	7
Has Batteries	Yes
Contains Electronics	Yes
Contains Chemicals	Yes
Contains Aerosol	Yes
Contains Compressed Gas	Yes
Proposition 65 Warning	Yes
Net Weight (Lbs)	152.12
Gross Depth (In)	19.88
Gross Height (In)	37.01
Gross Width (In)	42.91
Gross Weight (Lbs)	183.42

Product Manual

Product Warranty

MRCOOL Limited Lifetime Warranty

LIMITATIONS OF WARRANTIES

Q1 How do I register my warranty?

Answer: Go to here to file your warranty.

Q2 How do I find the AHRI number of my unit?

Answer: You can find links to the AHRI certificates on the documentation page at mrcool.com/documentation.
