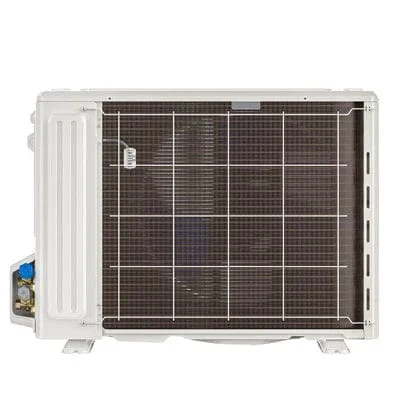

MRCOOL VersaPro 2nd Gen 36K BTU, 3 Ton, 16.1 SEER2 Central Ducted Heat Pump Condenser (MVP-36-HP-C-230A00-O)

MRCOOL VersaPro 2nd Gen 36K BTU, 3 Ton, 16.1 SEER2 Central Ducted Heat Pump Condenser (MVP-36-HP-C-230A00-O)

MRCOOL VersaPro 2nd Gen 36K BTU, 3 Ton, 16.1 SEER2 Central Ducted Heat Pump Condenser (MVP-36-HP-C-230A00-O)

Description

This product only includes a condenser.

The 3 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser offers a reliable and cost-effective solution for heating and cooling your home throughout the year. This unit is built for durability and efficiency, providing dependable comfort in any season. With a variable-speed 36k capacity, the VersaPro® delivers solid performance with a SEER2 rating of 16.1 and an HSPF4 rating of 8.7. These efficiency levels ensure effective heating and cooling while keeping energy costs manageable. When paired with the MRCOOL® VersaPro® Central Ducted Air Handler, it forms a well-rounded system suited to your home’s needs. DC inverter technology ensures smooth operation and energy savings, making it a great choice for replacing older, less efficient systems. Included with the system is the MRCOOL® Smart thermostat,allowing for effortless temperature adjustments.

The VersaPro® condenser uses R-454B refrigerant, an eco-friendly option that helps reduce its environmental impact. Its durable painted galvanized steel construction is designed to last, while the compact side-discharge design simplifies installation in tighter spaces. The self-diagnostic system makes maintenance easier, helping to reduce the need for service calls. For added peace of mind, the 3 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser comes with a 10-year warranty that covers the compressor and parts. This warranty ensures long-term reliability and protection for your investment.

Product Specifications

MRCOOL VersaPro 2nd Gen 36K BTU, 3 Ton, 16.1 SEER2 Central Ducted Heat Pump Condenser (MVP-36-HP-C-230A00-O) Product Specifications

Dimensions

16.14" D x 31.89" H x 37.24" W

SEER2

16.1

EER2

10

HSPF-4

8.7

HSPF-5

7

CFM

2413.2

TONNAGE

3

Cooling Capacity (BTU)

36000

Heating Capacity (BTU)

36000

Voltage (V)

208-230

Phase

1

Cycle

60

Max Fuse Breaker (A)

30

Min Circuit Ampacity (A)

24

Color

gray

Refrigerant Type

R454B

Refrigerant Volume (OZ)

116.4

Decibel Rating (DBA)

63
Liquid Line Size

Suction Line Size

3/4

WIFI Compatibility

Yes

APP Compatibility

Yes

ETL Certified

Yes

Energy Star Certified

Yes

AHRI Certified

Yes

Base Parts Warranty

10 Years

Base Compressor Warranty

10 Years

Contains Electronics

Yes

Contains Chemicals

Yes

Contains Compressed Gas

Yes

Net Weight (Lbs)

153.22

Gross Depth (In)

19.68

Gross Height (In)

34.84

Gross Width (In)

42.91

Gross Weight (Lbs)

163.58

Product Manual

Installation Manual
Brochure
AHRI Cert
Energy Guide

Product Warranty

MRCOOL Limited Lifetime Warranty

MRCOOL distributor (hereinafter “Company”) warrants this product against failure due to defect in materials or workmanship under normal use and maintenance as follows.

All warranty periods begin on the date of original installation. If the date cannot be verified, the warranty period begins one hundred twenty (120) days from date of manufacture. If a part fails due to defect during the applicable warranty period Company will provide a new or remanufactured part, at Company’s option, to replace the failed defective part at no charge for the part.

This limited warranty is subject to all provisions, conditions, limitations and exclusions listed on the right side.

LIMITATIONS OF WARRANTIES

ALL IMPLIED WARRANTIES AND/OR CONDITIONS (INCLUDING IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR USE OR PURPOSE) ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY, SOME STATES OR PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY OR CONDITION LASTS, SO THE ABOVE MAY NOT APPLY TO YOU.

THE EXPRESS WARRANTIES MADE IN THIS WARRANTY ARE EXCLUSIVE AND MAY NOT BE ALTERED, ENLARGED, OR CHANGED BY ANY DISTRIBUTOR, DEALER, OR OTHER PERSON, WHAT SO EVER.

Product FAQs

Q1 How do I register my warranty?

Answer: Go to here to file your warranty.

Q2 How do I find the AHRI number of my unit?

Answer: You can find links to the AHRI certificates on the documentation page at mrcool.com/documentation.
