MRCOOL VersaPro 2nd Gen 36K BTU, 3 Ton Central Ducted Air Handler (MVP-36-HP-MUAH-230A00-O)

MRCOOL VersaPro 2nd Gen 36K BTU, 3 Ton Central Ducted Air Handler (MVP-36-HP-MUAH-230A00-O)

MRCOOL VersaPro 2nd Gen 36K BTU, 3 Ton Central Ducted Air Handler (MVP-36-HP-MUAH-230A00-O)

Description

This product only includes an air handler.

The 3 Ton MRCOOL® VersaPro® Central Ducted Air Handler offers a reliable and efficient solution for heating and cooling your home throughout the year. With a SEER2 rating of up to 17.4, it is designed to cover up to 1,500 square feet, making it an ideal upgrade for older HVAC systems that need improved efficiency. Built for long-term durability, this air handler features a robust painted galvanized steel exterior that withstands everyday wear. Its self-diagnostics panel simplifies maintenance by quickly identifying any issues, minimizing downtime.

This unit is designed for flexible installation, offering options for upflow, downflow, and horizontal left or right configurations to suit various home layouts. It uses eco-friendly R-454B refrigerant to help reduce its environmental impact, and an optional heat kit is available for added functionality.

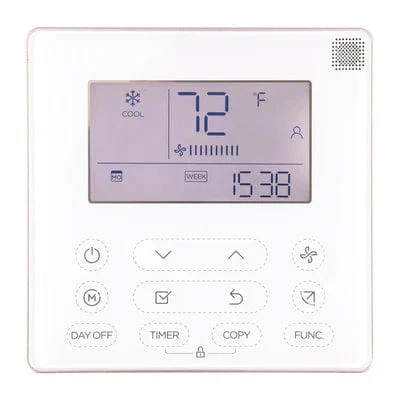

 The included MRCOOL® Smart Thermostat provides easy and precise temperature control for your home, making it simple to set and adjust the temperature to your preferred comfort level. It’s also compatible with the MRCOOL® SmartHVAC app for convenient remote access. Compatible with our Central Ducted Hyper Heat system, this air handler ensures top-tier performance and comfort. Backed by a 10-year warranty, the 3 Ton MRCOOL® VersaPro® Central Ducted Air Handler offers a combination of performance, reliability, and convenience, providing a long-lasting and efficient solution for your home’s climate control.

Product Specifications

MRCOOL VersaPro 2nd Gen 36K BTU, 3 Ton Central Ducted Air Handler (MVP-36-HP-MUAH-230A00-O) Product Specifications

Dimensions

21.02" D x 49.02" H x 21.02" W

CFM

1188.97/1083.02/971.19/865.24

Tonnage

3

Cooling Capacity (BTU)

36000

Heating Capacity (BTU)

36000

Voltage (V)

115/208-230

Phase

1

Cycle

60

Max Fuse Breaker (A)

15

Min Circuit Ampacity (A)

8.0/6.0

Color

gray

Decibel Rating Low (DBA)

28

Decibel Rating High (DBA)

48

Number of Speeds

3

Max Lineset Length (FT)

246 ft

Liquid Line Size

3/8

Suction Line Size

3/4

Filter Type

Replaceable

Filter Size

19x20x1

Auxiliary Heater Included

No

Auxiliary Heater Available

Yes

Auxiliary Heater Sizes

5kW/8kW/10kW/15kW/20kW

Adjustable Thermostat

Yes

WIFI Compatibility

Yes

APP Compatibility

Yes

ETL Certified

Yes

Energy Star Certified

Yes

AHRI Certified

Yes

Base Parts Warranty

10 Years

Base Compressor Warranty

10 Years

Contains Electronics

Yes
Contains Chemicals

Yes

Contains Compressed gas

Yes

Net Weight (Lbs)

129.41

Gross Depth (In)

24.41

Gross Height (In)

52.56

Gross Width (In)

26.57

Gross Weight (Lbs)

153.88

Product Manual

Installation Manual
Warranty

Product Warranty

MRCOOL Limited Lifetime Warranty

MRCOOL distributor (hereinafter “Company”) warrants this product against failure due to defect in materials or workmanship under normal use and maintenance as follows.

All warranty periods begin on the date of original installation. If the date cannot be verified, the warranty period begins one hundred twenty (120) days from date of manufacture. If a part fails due to defect during the applicable warranty period Company will provide a new or remanufactured part, at Company’s option, to replace the failed defective part at no charge for the part.

This limited warranty is subject to all provisions, conditions, limitations and exclusions listed on the right side.

LIMITATIONS OF WARRANTIES

ALL IMPLIED WARRANTIES AND/OR CONDITIONS (INCLUDING IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR USE OR PURPOSE) ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY, SOME STATES OR PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY OR CONDITION LASTS, SO THE ABOVE MAY NOT APPLY TO YOU.

THE EXPRESS WARRANTIES MADE IN THIS WARRANTY ARE EXCLUSIVE AND MAY NOT BE ALTERED, ENLARGED, OR CHANGED BY ANY DISTRIBUTOR, DEALER, OR OTHER PERSON, WHAT SO EVER.

Product FAQs

Q1 How do I register my warranty?

Answer: Go to here to file your warranty.

Q2 How do I find the AHRI number of my unit?

Answer: You can find links to the AHRI certificates on the documentation page at mrcool.com/documentation.
