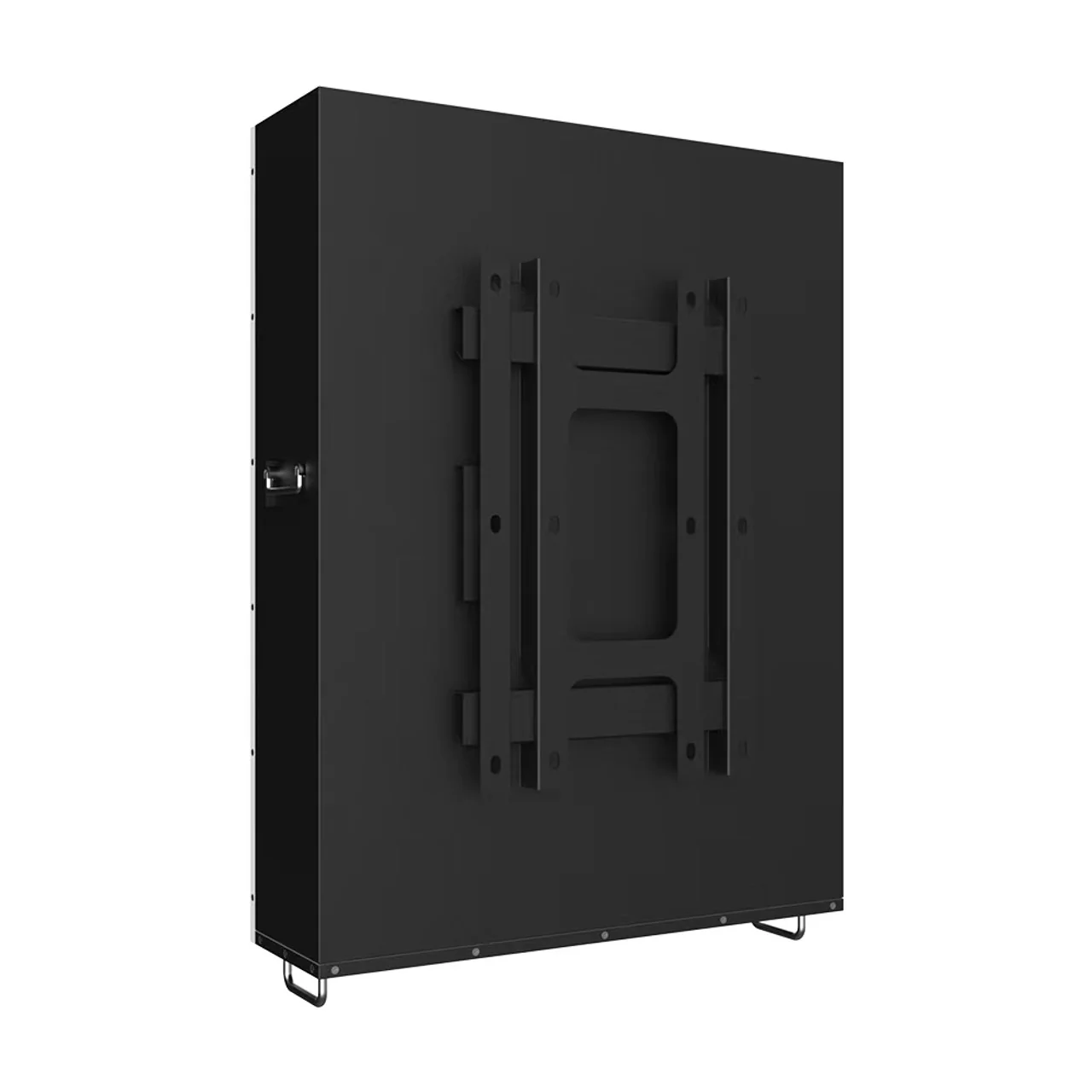

LINIOTECH 14.33 kWh 48V 280ah UL9540A / UL1973 CE-EMC Power Storage Wall-Mount Battery

LINIOTECH 14.33 kWh 48V 280ah UL9540A / UL1973 CE-EMC Power Storage Wall-Mount Battery

LINIOTECH 14.33 kWh 48V 280ah UL9540A / UL1973 CE-EMC Power Storage Wall-Mount Battery

Description

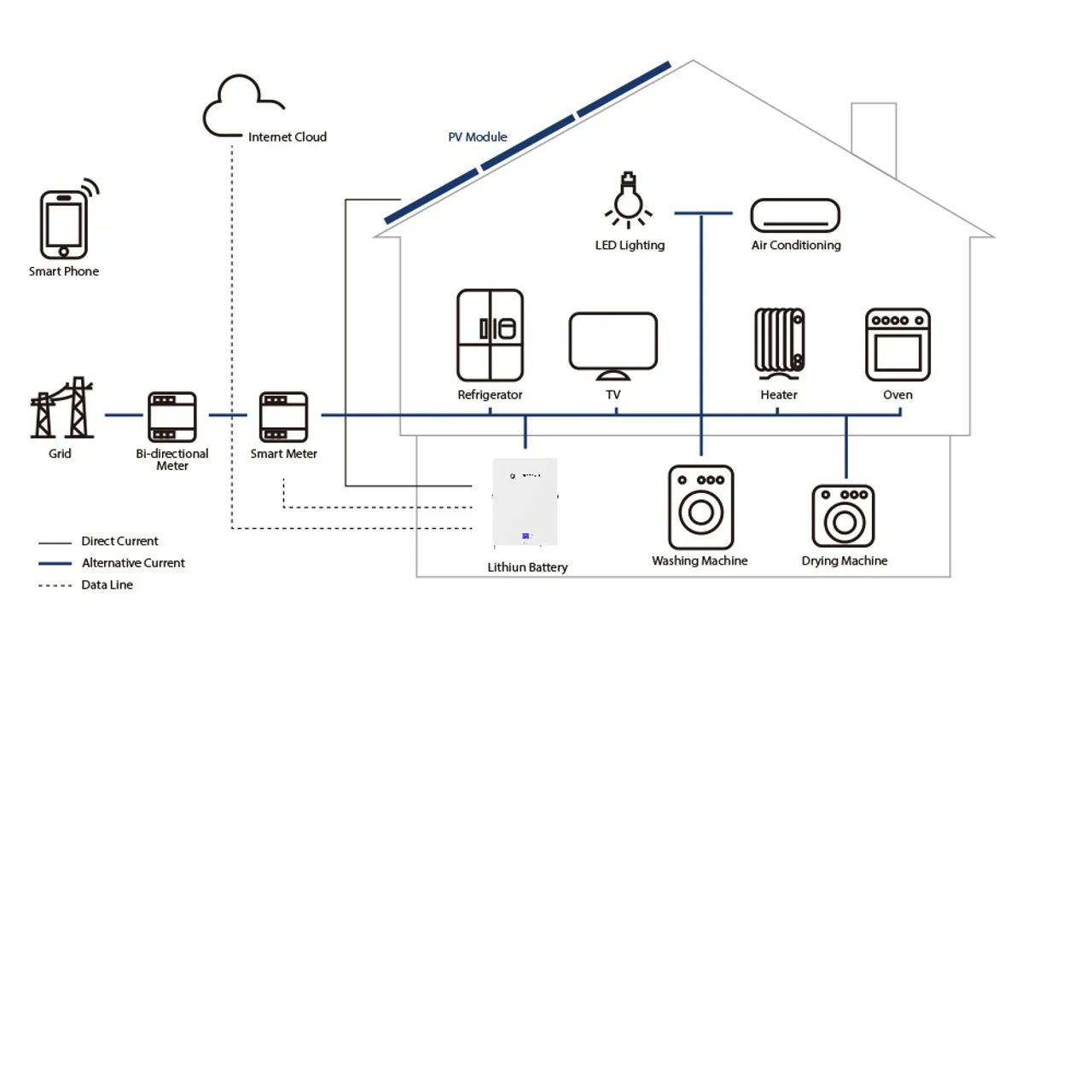

LTN Power storage wall is a battery that stores energy, detects outages and automatically becomes your home's energy source when the grid goes down. Your system detects outages, powers your home and electric vehicle with backup energy and automatically recharges with sunlight to keep your appliances running for days. Pair with solar and recharge with sunlight to keep your appliances running for days. Power storage wall reduces your reliance on the grid by storing your solar energy for use when the sun isn't shining. Use Power storage wall alone or combine it with other GSL products to save money, reduce your carbon footprint and prepare your home for power outages.

Product Specifications

LINIOTECH 14.33 kWh 48V 280ah UL9540A / UL1973 CE-EMC Power Storage Wall-Mount Battery Product Specifications

MODEL NO

LTN051280A-B-GBP2

Battery Chemistry LiFePO4

Capacity (Ah)

280

Scalability Max.16pcs in parallel (229kWh)

Nominal Voltage (V)

51.2
Operating Voltage(V) 46-56

Energy (kWh)

14.34

Usable Energy (kWh)

12.91

Charge/Discharge Current (A)

Recommend

100

Max.

150

Peak(2mins,25℃)

200
Other Parameter
Recommend Depth of Discharge 80%
Dimension (W/H/D,mm) 900*675*200

Weight Approximate (kg)

128.50
Master LED Indicator 4 LED (SOC:25%~100%)
2 LED (working, alarming, protecting)

IP Rating of Enclosur

IP20
Working Temperature Charge:0℃~55℃ Discharge:-20℃~55℃

Storage Temperature

0℃~35℃
Humidity 5%~95%
Altitude ≤2000m
Cycle Life (25±2℃,0.5C/0.5C,80%EOL) ≥8500
Installation Wallmounted
Communication Port CAN2.0, RS485
Warranty Period [3] 15 years
Life Cycle Power During Warranty Period

64.80MWh@80% EOL

Certification

UL1973, UL9540A, CB-IEC62619, CE-EMC, MSDS, UN38.3

Product Manual

Liniotech 14.33kwh battery wall mount Specifications and Manual

Liniotech 14.33kwh battery wall mount Data Sheet

Liniotech Brochure

Product Warranty

12 years limited warranty!

Product FAQs

N/A
