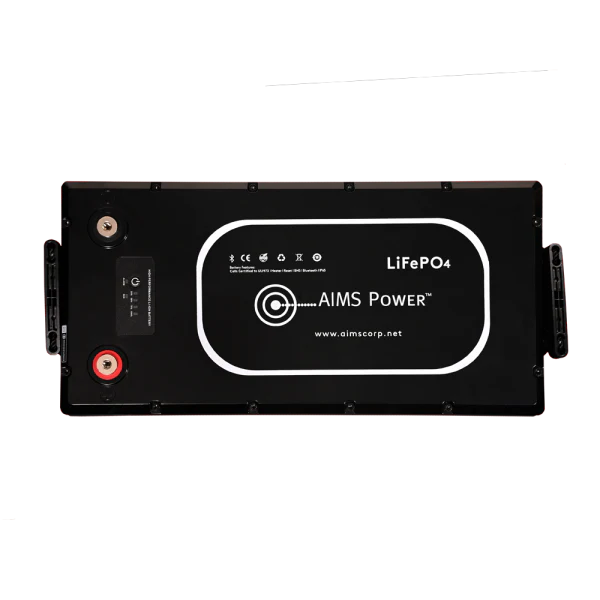

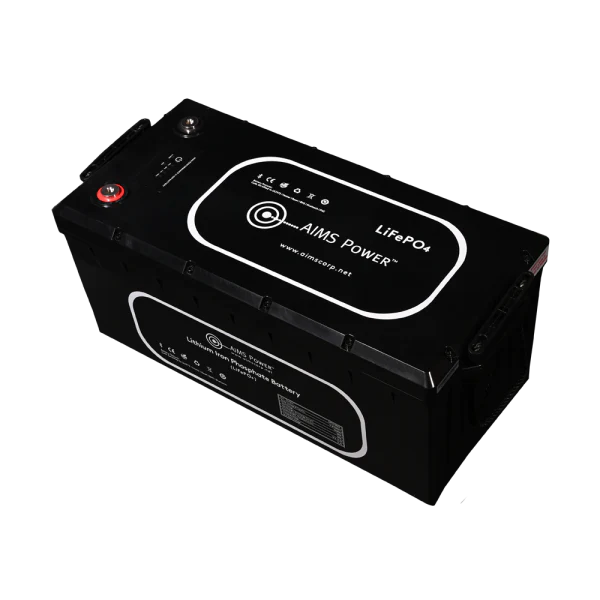

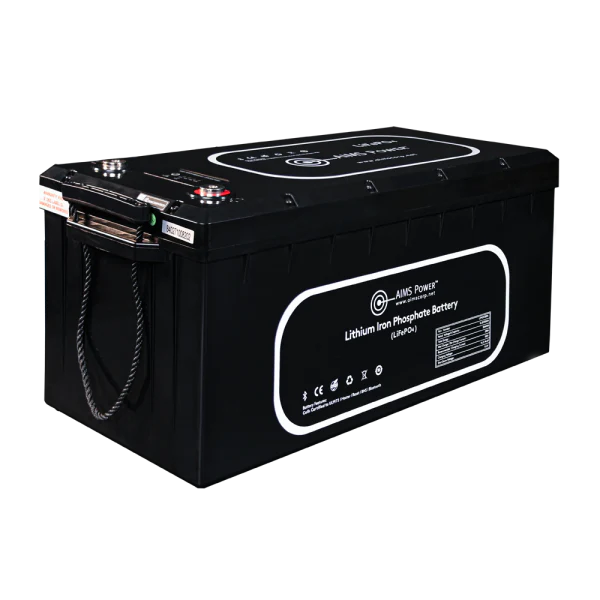

Aims Power Lithium Battery 300Ah 3.84 kW with Wake Up, Heater & BT Monitoring 12V LiFePO4
Aims Power Lithium Battery 300Ah 3.84 kW with Wake Up, Heater & BT Monitoring 12V LiFePO4
Description
Lithium battery 12V 300 Ah 3.84 kW
Introducing our newest powerful battery. This thing is a beast! AIMS Power 300A 12V Lithium Iron Phosphate Battery (LiFePO4)
Engineered for versatility, safety, and reliability, this advanced battery is packed with innovative features:
- Built-in Heater & Wake-Up Functionality: Enables efficient charging in cold temperatures and simplifies recovery of over-discharged batteries—no need for external jumpering.
- Stable Performance: Maintains constant output voltage, delivering virtually full power until fully discharged, reducing the need for voltage regulation circuitry.
- Longer Cycle Life & Easy Maintenance: LiFePO4 technology offers better thermal and chemical stability, ensuring longer service life and enhanced safety.
- Compact Yet Powerful: Fits seamlessly into existing 12V battery spaces, replacing lead-acid, AGM, or gel batteries in applications like RVs, golf carts, boats, commercial vehicles, and off-grid systems.
- Reliability You Can Trust: Backed by a lifetime prorated warranty (<3500 cycles) for safe, reliable, and powerful performance.
Enjoy constant output voltage, superior thermal stability, and extended battery life in a lightweight, compact design. Perfect for replacing lead acid, AGM, or Gel batteries in RVs, boats, golf carts, off-grid systems, and more.
Why AIMS Power?
Transparency and accuracy define our commitment to quality. We ensure our lithium batteries deliver the amp-hour capacity and performance we promise. While lighter than traditional batteries, our products are meticulously designed to meet the lithium density threshold required for optimal performance. Discrepancies in weight can compromise capacity, so we encourage informed choices.

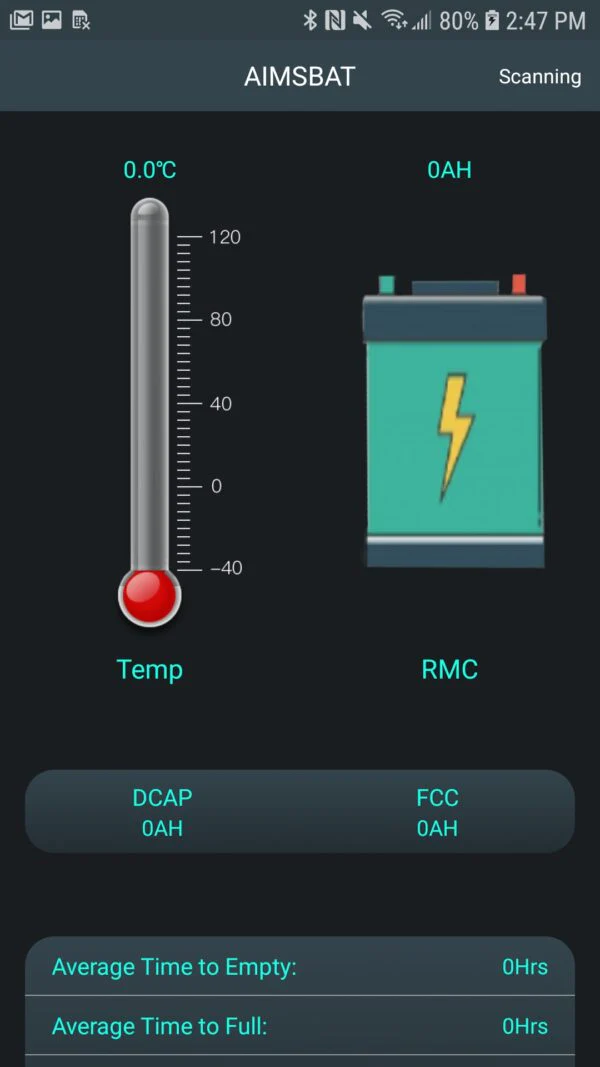

** Google and Apple app is AIMSBATC
Features:
- Automatic wake-up button in case battery is over discharged and/or has low voltage (no need to parallel another battery or have special charger to wake)
- Automatic heater for charging in colder environments (no external wiring needed)
- Digital state of charge meter
- Extremely high number of charge/discharge cycles

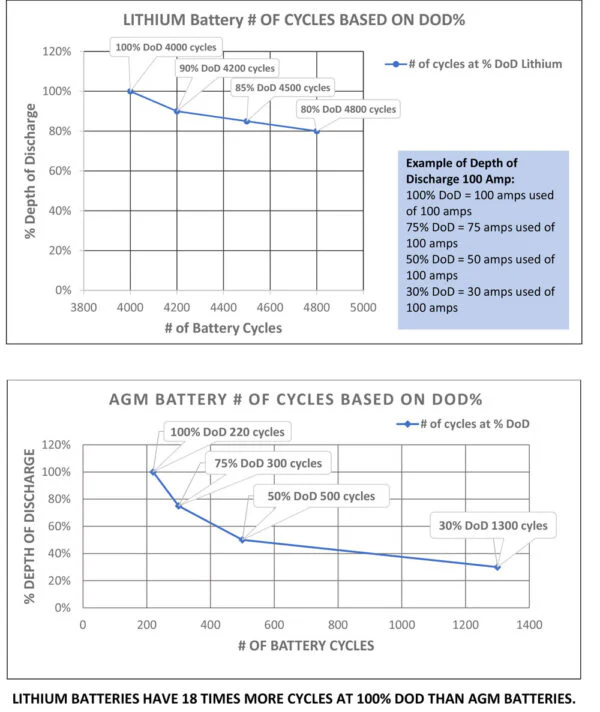

- 10 Year lifespan with proper maintenance > 5000 cycles at 80% DoD

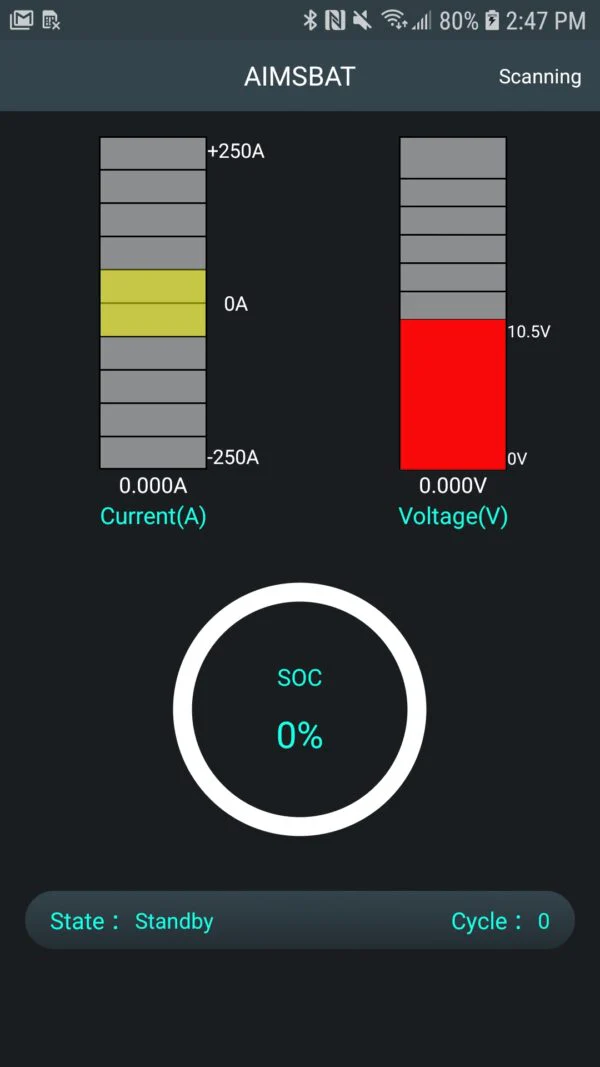

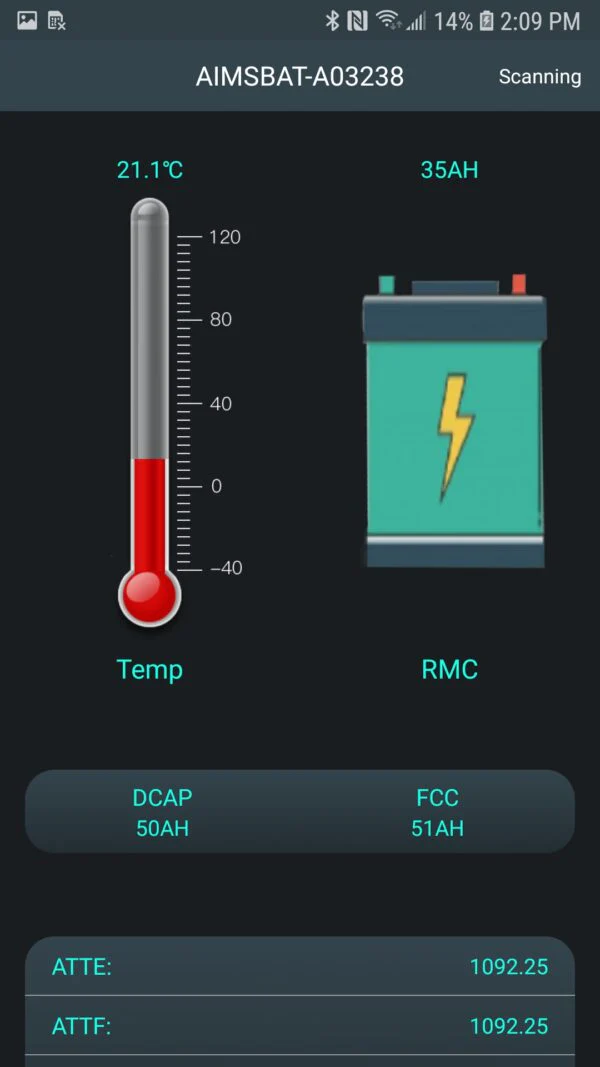

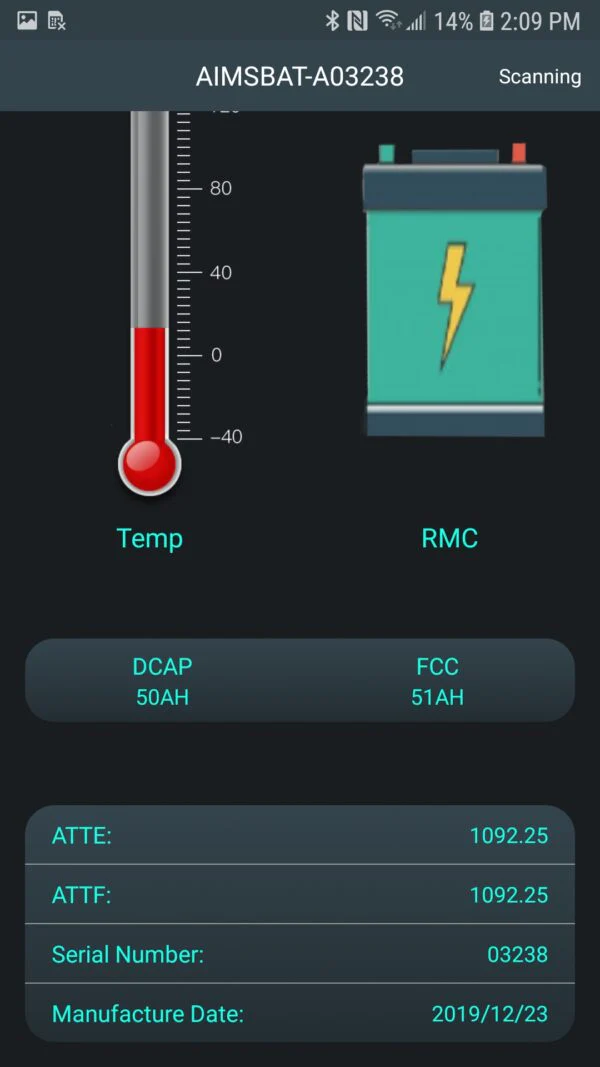

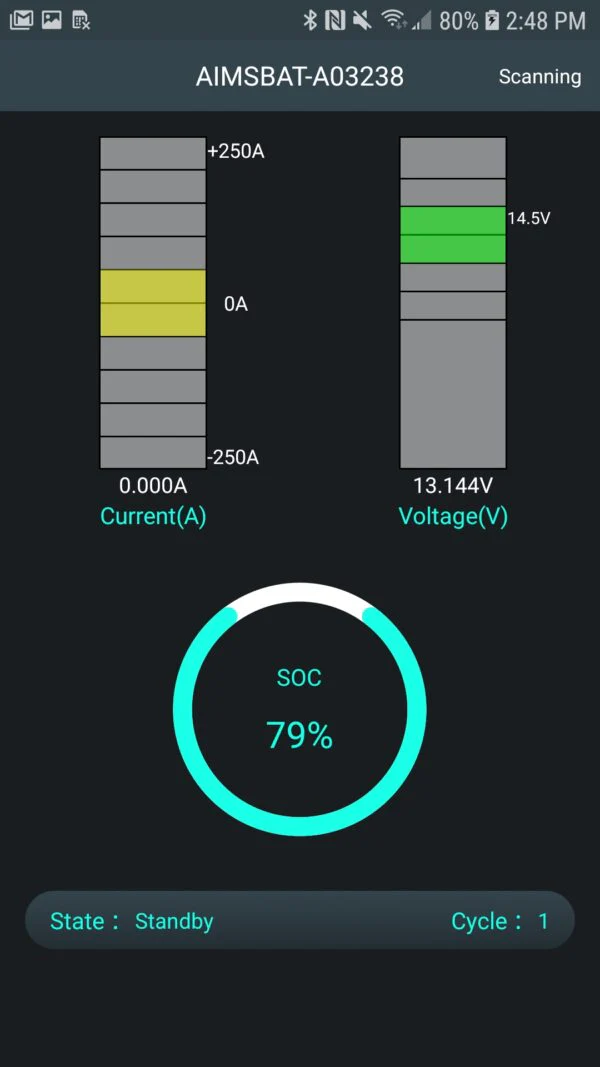

- Bluetooth monitoring
- Wide operating temperature range
- Unsurpassed high temperature performance
- Green energy without metal contaminant
- Low maintenance
- High amp capacity
- Stable output voltage
- Little self-discharge
- BMS safety protection. Each cell is fused and if for some unlikely situation a cell fails, this design will isolate the cell stopping any other damage and allows the battery to function safely

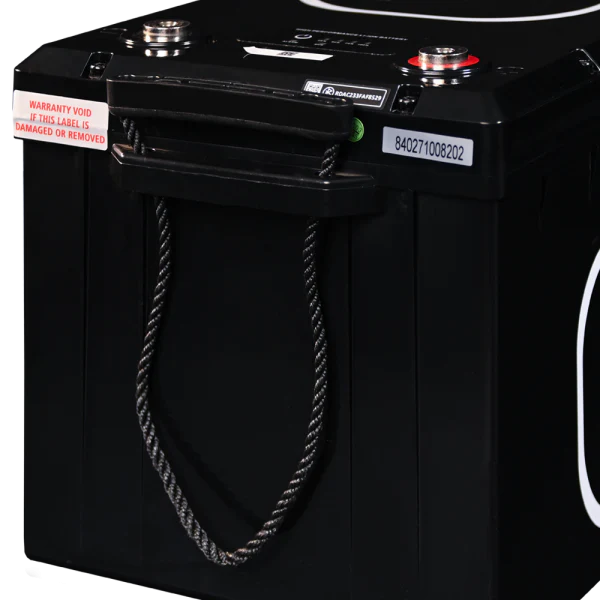

- Convenient carry handle
- Lightweight compared to other battery technologies
- Short circuit protected
- Physical damage to battery case will not cause fire
- Excessive thermal exposure will not cause a fire
- Able to withstand over-charge/over-discharge without damage to the battery
- Sophisticated Battery Management System (BMS)
- IP65 rated
- AIMS Power Lithium Batteries include a lifetime warranty covering manufacturing defects for up to 3,500 cycles. Cycle count is assessed through multiple parameters, including the internal Battery Monitoring System (BMS) and additional verification by AIMS Power. This warranty applies exclusively to units sold by AIMS Power or its authorized resellers and dealers. Battery warranty service is provided to the end user directly by AIMS Power at the discretion of the AIMS Power Technical Support Team.
*Ships freight due to DOT regulations.
Product Specifications
Aims Power Lithium Battery 300Ah 3.84 kW with Wake Up, Heater & BT Monitoring 12V LiFePO4 Product Specifications
| Model # | LFP12V300A | |
| Electrical Specifications | ||
| Nominal Voltage | 12.8V | |
| Nominal Capacity | 300Ah | |
| Expected Cycle Life | >5000 cycles w/1C charge and discharge rate, at 77°F, 80% DOD | |
| Operating Specifications | ||
| Charge Method | Smart charger, constant current, constant voltage | |
| Charge Voltage Range (Max 14.6V) | 14.2 -14.6V | |
| Continuous Charge Current | 200A Continuous | |
| Charge Temperature | 32° F to 113° F (built in heater will kick on in low temps) | |
| Discharge Current | 230A for 15 seconds, 300A for 2 seconds, 200A continuous | |
| Discharge Cut-off Voltage | 11.2V +/- .5V no power. <10V wake up feature to allow a charge (<7V need to apply a charge) | |
| High Voltage Cut-off | 14.8 +/- .2V | |
| Discharge Temperature | -4° F to 131° F | |
| Storage Temperature | -4° F to 131° F | |
| Self Disharge (stored at 50% SOC) | < 3%/month | |
| Watt hours | 3840 watt hours | |
| Physical Specifications | ||
| Battery Dimensions | 21.46″L x 10.35″D x 10.59″H | |
| Weight | 71.7 lb | |
| Shipping Weight | 73.5 lb | |
| Group Size | 8D | |
| Battery post size | 5/16″ 8m | |
| Features | ||
| Cell Balancing | Yes | |
| Protections | Short circuit, over charge, over discharge, low & high temp, over current, low & high voltage | |
| Communication | Bluetooth | |
| Heater | Built-in, triggered with charger | |

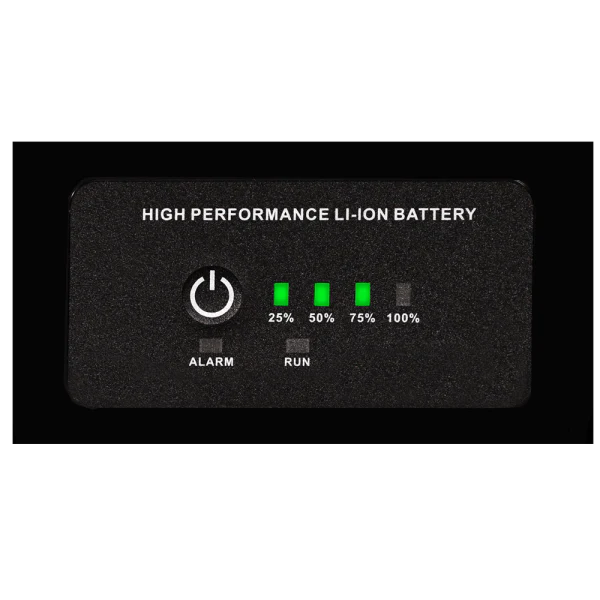

| Display | Precise digital SOC | LED indicators (rotatable) | |
| Sleep Mode | Yes – optional | |

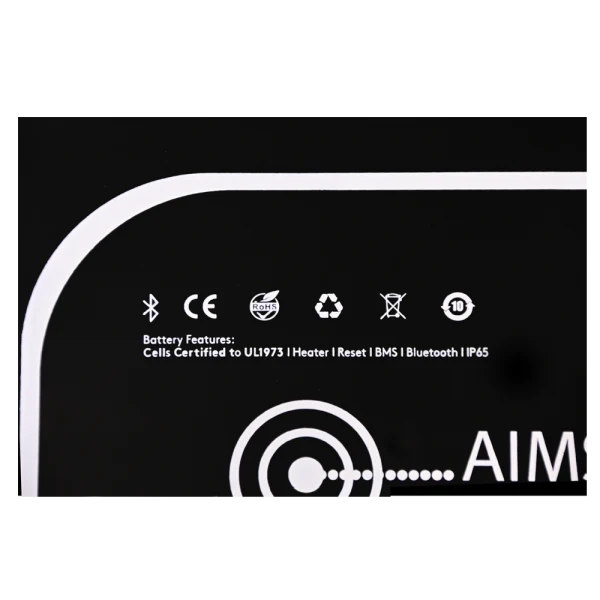

| Cell Certification | UL1973, ROHS, UN38.3 | |
| UPC | 840271008776 | |
| Warranty | Backed by a lifetime warranty (<3500 cycles)– IP65 Rated | |
| Splashproof | IP65 | |
| Connections | Parallel up to 4 strings & Series 1 string | |
| Battery Case | ABS+PC, extra strong | |
Product Manual
Aims Power LFP12V 104A 135A & 300A
Product Warranty
AIMS Power offers a one year warranty with all products. Follow the link below to register your product warranty:
https://www.aimscorp.net/product_registration.php
Product FAQs
AIMS Power FAQs
Original: $1,089.00
-65%$1,089.00
$381.15Product Information
