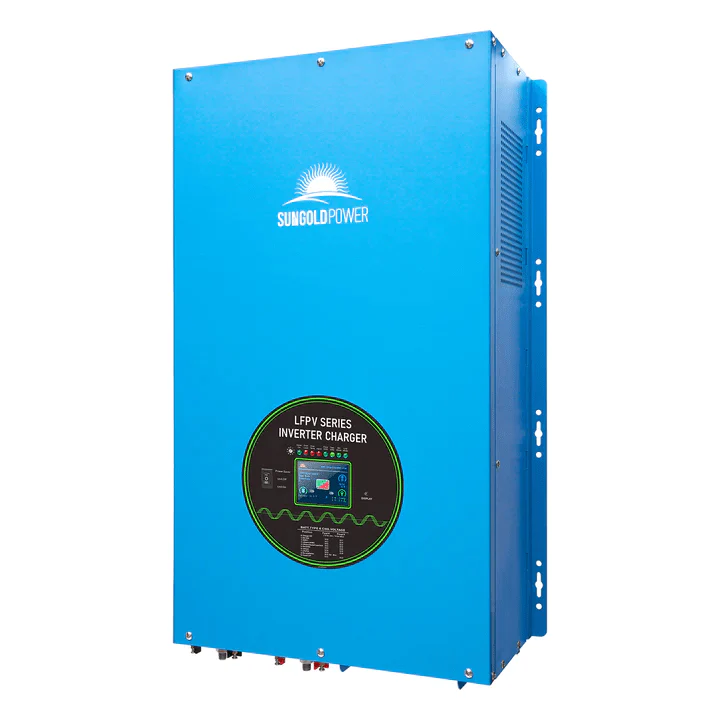

SunGold Power 18kW 48V Split Phase Solar Inverter Charger

SunGold Power 18kW 48V Split Phase Solar Inverter Charger

Description

Product Specifications

SunGold Power 18kW 48V Split Phase Solar Inverter Charger Specifications:

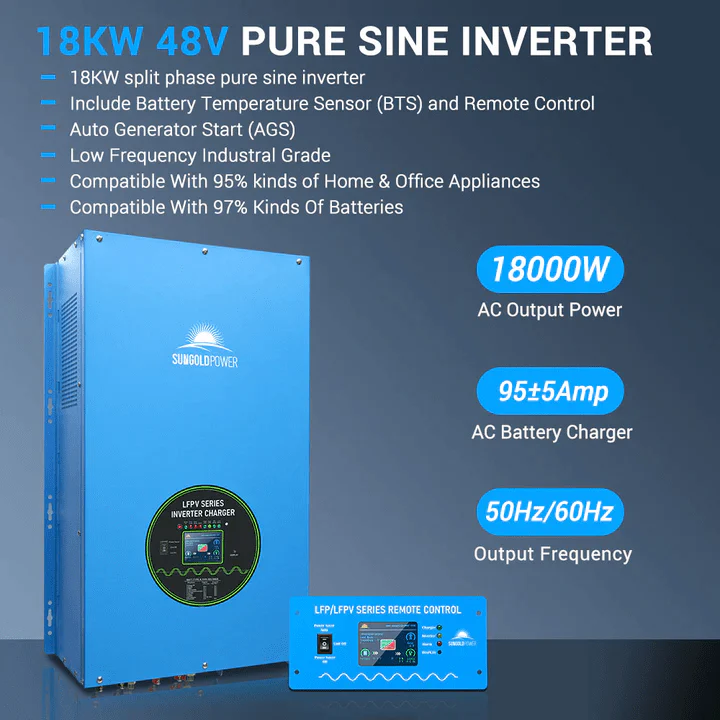

Main Features:

• *18KW split phase pure sine inverter charger DC 48V AC 240V input AC output 120V/240V
• *Auto Generator Start (AGS)
• *Support Solar Panel with MPPT Function
• *Include Battery Temperature Sensor (BTS) and Remote Control
• *8 kinds of battery voltage selection ( lithium LiFePO4, gel, AGM and lead Acid batteries）
• *Compatible With All kind of Home & Office Appliances
• *Powerful Charge Rate Up to 100Amp, Selectable From 0%-100%

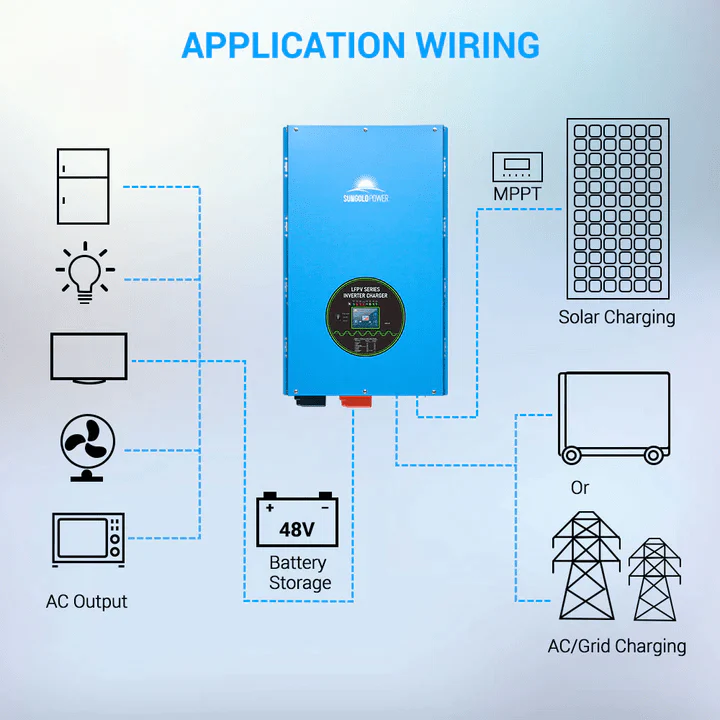

• *Built-in transfer switch and battery charge, backup or off grid power solutions
• *AC/Battery Priority Mode, Designates the Inverter-Preferred UPS Configuration
• *4-step Intelligent Battery Charging, PFC (Power Factor Correction) for Charger
• *8 ms Typical Transfer Time Between Utility & Battery,Ensure Power Continuity
• *15s Delay Before Transfer when AC Recover, Protection for Load when Used with Generator

Main Specification：

• Continuous Output Power :18.0KW
• Surge Rating(20s) :54.0KW
• Output Waveform :Pure Sine Wave
• AC Output Voltage: 120V and 240V
• AC Input Voltage: 240V( not suitable for AC 120V input )
• DC Battery Voltage:48Vdc
• Solar charger Current:80Amp
• AC Battery charger:100±5Amp
• Output Frequency :50Hz /60Hz
• Typical transfer Time :10ms(Max)

DC Input:

• Nominal Input Voltage :48.0Vdc
• Minimum Start Voltage :40.0Vdc / 42.0Vdc
• Low Battery Alarm :42.0Vdc / 44.0Vdc
• Low Battery Trip :40.0Vdc / 42.0Vdc
• High Voltage Alarm :64.0Vdc
• Low Battery voltage recover :62.0Vdc
• Power Saver on Idle Consumption: 50W
• Power Saver off Idle Power: 270W

Charger :

• Output Voltage: Depends on battery type
• Battery Initial Voltage for Start Up: 40-62.8V
• Over Charge Protection Shutdown :62.8V
• Charger Breaker: 100A
• Input Voltage Waveform :Sine wave (Grid or Generator)
• AC input range:184-253Vac/140-270Vac
• Nominal Input Frequency :50Hz or 60Hz (Auto detect)

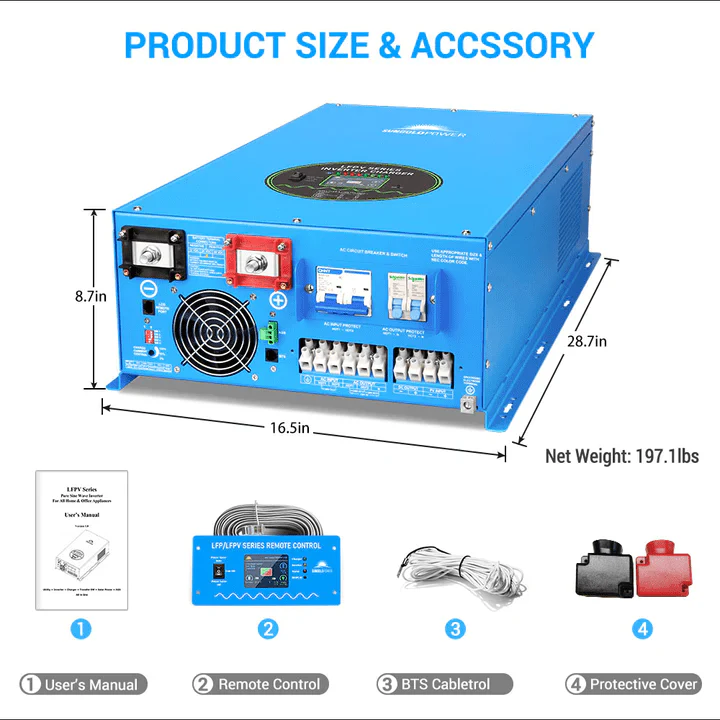

Packaging:

• 18000W 48V Split Phase Pure Sine Wave Solar Power Inverter
• English Manual
• Remote Control
• BTS Cable
• Unit Weight: 197 LB
• Unit Size: 28.7 x 16.5 x 8.7 inch
• Shipping Weight: 232 LB
• Shipping Size: 34.25 x 21.3 x 17.3 inch

Product Manual

LF-PV Series Pure Sine Wave Inverter User's Manual

Product Warranty

SunGold Power Warranty

WARRANTY PERIOD

The warranty period for is 12/36 months for different Sungoldpower products. In each case, the warranty period is measured starting on the day of purchase by the original consumer purchaser. The sales receipt from the first consumer purchase, or other reasonable documentary proof, is required in order to establish the start date of the warranty period.

LIMITED TO ORIGINAL CONSUMER BUYER

The warranty on Sungoldpower's product is limited to the original consumer purchaser and is not transferable to any subsequent owner.

EXCLUSIONS

Sungoldpower's warranty does not apply to:

Misused, abused, modified, damaged by accident, or used for anything other than normal consumer use as authorized in Sungoldpower's current product literature.

Attempted repair by anyone other than an authorized facility.

If any modified products received will be returned to you at your expense.

REPLACEMENTS

Sungoldpower will replace any Sungoldpower product that fails to operate( within 30 days). A replacement product assumes the remaining warranty of the original product.

If you want to replace one of the damaged parts, please contact us to arrange to send the replacement part. (under warranty)

PLEASE BE PREPARED FOR THE FOLLOWING INFORMATION:

Order number

Video or photo of the faulty product (if applicable)

The item with the original packaging.

REFUNDS (IF APPLICABLE)

If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within a certain amount of days.

If you have any further questions, please send an e-mail to [email protected]

Product FAQs

SunGold Power 18kW 48V Split Phase Solar Inverter FAQs

How do you connect this to a home with the multiple phase system?

It only has dual phase output, 120V and 240V. It can't work with the multiple phase system.

Does this unit work with lithium batteries? Is there an adjustable curve for charge discharge voltages?

This unit works with lithium battery, LiFePO4 in types is for lithium battery. In addition, the charge and discharge voltage can't be adjusted.

Can two units be connected together for 24 kW continuous?
No, the two units can not be connected together for 24kW continuous.
