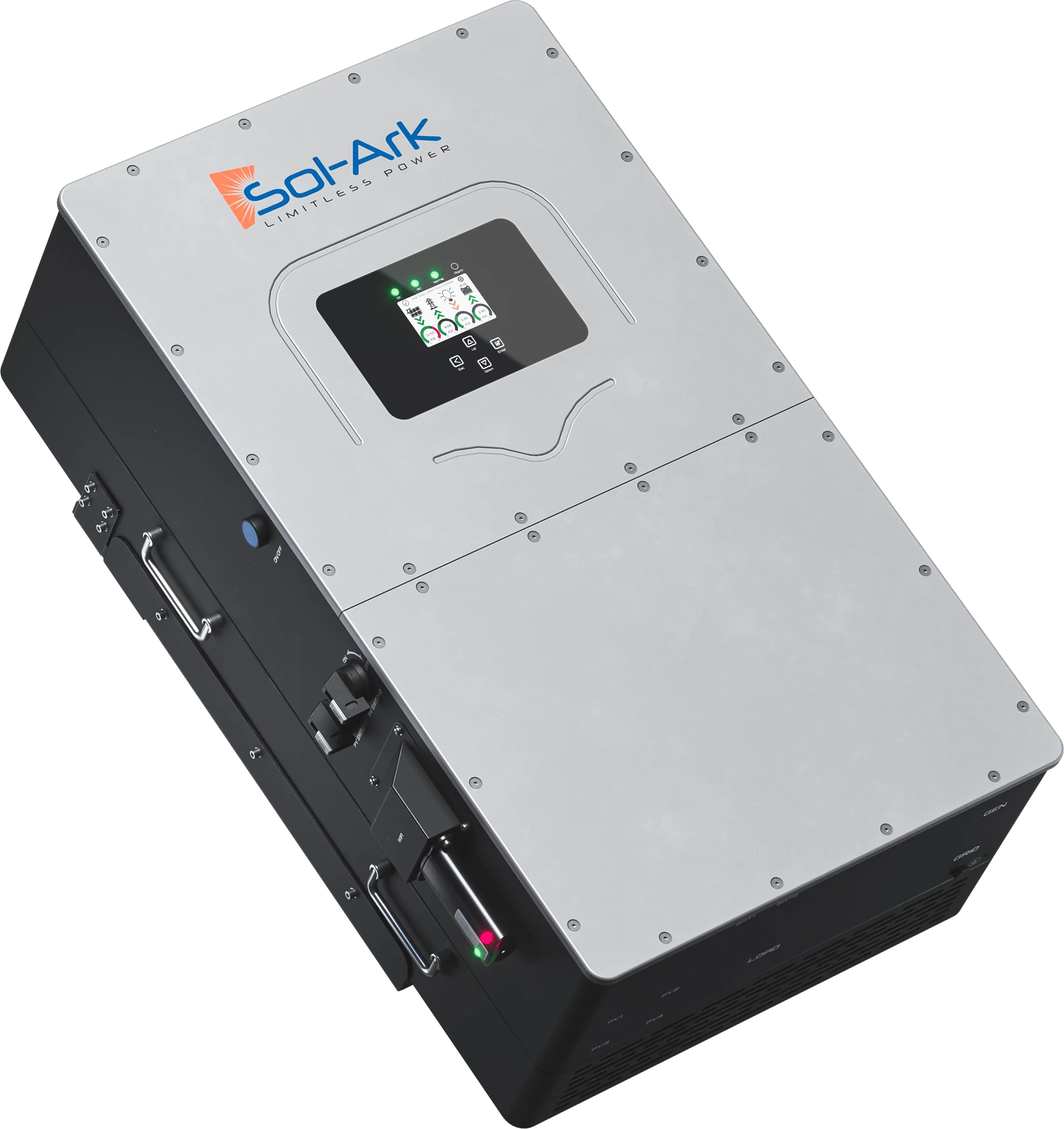

Sol-Ark 30K-3P | 30kW Commercial Inverter | 208 VAC 3 Phase | High Voltage DC Battery | Indoor/Outdoor | NEMA-3R
Sol-Ark 30K-3P | 30kW Commercial Inverter | 208 VAC 3 Phase | High Voltage DC Battery | Indoor/Outdoor | NEMA-3R
Description
The Sol-Ark 30K-3P-208V-N offers both AC and DC coupling, a maximum output of 30kW, and includes a 200A Transfer Switch with an ultra-fast 5ms response time. With four MPPT channels, you can efficiently manage and harvest energy from various inputs, and the built-in PV disconnect switch and rapid shutdown keep your entire system safe. The inverter also provides continuous AC grid/generator power at 72kW with a 200A input.
Operating at 120/208V Three Phase, this inverter was designed specifically to meet the needs of commercial and high-end residential settings. The built-in WiFi and LAN communication capabilities allow for remote monitoring and control of your entire Sol-Ark fleet from wherever you are. Additionally, you can stack up to 12 of theseĀ inverters in parallel.
Features:
- 200A built-in transfer switch
- Able to be in parallel with up to 12 units
- Capable of different modes, including grid sell, limited power to home, limited power to load, and time of use
- Able to turn on loads when excess power is available
- UL 1741 certified
- It has AC and DC coupling, allowing for a combination of DC-coupled and AC-coupled solar panels
- Used with high-voltage batteries
- Built-in Rapid shutdown and emergency stop
- Built-in remote monitoring system
Product Specifications
Sol-Ark 30kW Inverter 208VAC 3-Ph, High Voltage DC Battery, Indoor/Outdoor NEMA-3R Product Specifications
- 39,000W of Max Allowed PV Power
- 500VDC Max PV Voltage
- MPPT Voltage Range: 170-500V
- 4 MPPTs
- 100A of Battery Charge Current
- Idle Consumption: 60W
- 96% Efficiency
- 300V+ battery voltage
- Hybrid All-In-One unit
- UL 1741-2001 Certified
Product Manuals
Product Warranty
Limited Warranty: Sol-Ark 60K-3P-480V
10-Year Limited Warranty for Sol-Ark LLC Products. Sol-Ark LLC provides a Ten-year (10) limited
Warranty ("Warranty") against defects in materials and workmanship for its Sol-Ark LLC products
("Product"). The term of this warranty begins on the Product(s) initial purchase date, or the date
of receipt of the Product(s) by the end user, whichever is later. This must be indicated on the
invoice, bill of sale from your installer. This warranty applies to the original Sol-Ark LLC Product
purchaser and is transferable only if the Product remains installed in the original use location.
Please call Sol-Ark LLC to let us know if you are selling your Home and give us name and contact
of the new owner.
The warranty does not apply to any Product or Product part that has been modified or damaged by the following:
ā¢ Installation or Removal (examples: wrong voltage batteries, connecting batteries backward, damage due to water/rain to
electronics, preventable damage to solar wires.)
ā¢ Alteration or Disassembly.
ā¢ Normal Wear and Tear.
ā¢ Accident or Abuse.
ā¢ Unauthorized Firmware updates/software updates or alterations to the software code.
ā¢ Corrosion.
ā¢ Lightning: unless using EMP hardened system, then Sol-Ark LLC will repair the product.
ā¢ Repair or service provided by an unauthorized repair facility.
ā¢ Operation or installation contrary to manufacturer product instructions.
ā¢ Fire, Floods, or Acts of Nature.
ā¢ Shipping or Transportation.
ā¢ Incidental or consequential damage caused by other components of the power system.
ā¢ Any product whose serial number has been altered, defaced, or removed.
ā¢ Any other event not foreseeable by Sol-Ark LLC
Sol-Ark LLC liability for any defective Product, or any Product part, shall be limited to the repair or replacement of the Product, at Sol-Ark
LLC discretion. Sol-Ark LLC does not warrant or guarantee workmanship performed by any person or firm installing its Products. This warranty
does not cover the costs of installation, removal, shipping (except as described below), or reinstallation of Products or parts of Products. LCD
screen and fans are covered for 5 years from date of purchase.
THIS LIMITED WARRANTY IS THE EXCLUSIVE WARRANTY APPLICABLE TO SOL-ARK LLC PRODUCTS. SOL-ARK LLC EXPRESSLY DISCLAIMS
ANY OTHER EXPRESS OR IMPLIED WARRANTIES OF ITS PRODUCTS. SOL-ARK LLC ALSO EXPRESSLY LIMITS ITS LIABILITY IN THE EVENT
OF A PRODUCT DEFECT TO REPAIR OR REPLACEMENT IN ACCORDANCE WITH THE TERMS OF THIS LIMITED WARRANTY AND
EXCLUDES ALL LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION ANY LIABILITY FOR
PRODUCTS NOT BEING AVAILABLE FOR USE OR LOST REVENUES OR PROFITS, EVEN IF IT IS MADE AWARE OF SUCH POTENTIAL
DAMAGES.Ā
Product FAQs
N/A
