RUiXU 11.4kW Split Phase Hybrid Inverter | RX-12K | UL1741
RUiXU Split Phase Hybrid Inverter | RX-12K | UL1741
Expected to ship by the end of November.

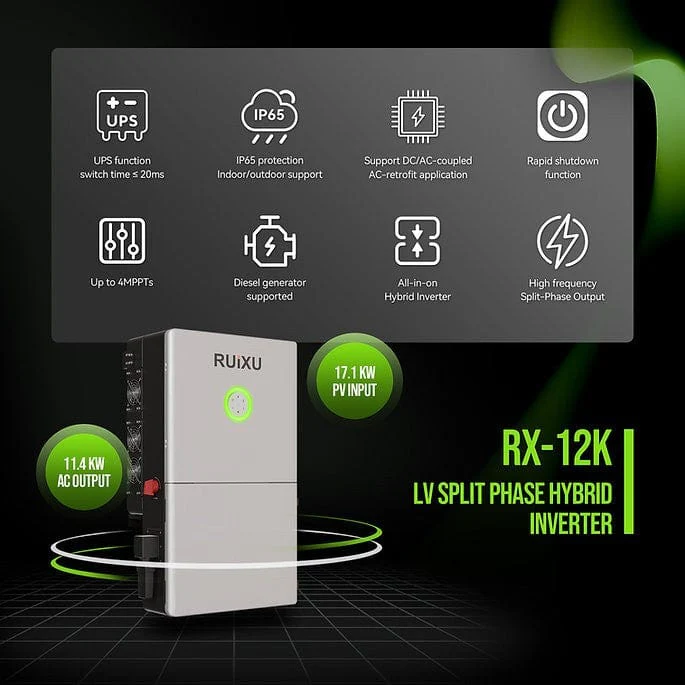

RUiXU RX-12K suitable for the US market split phase grid, photovoltaic input supports 1.5DC /AC ratio, battery input 48V flexible battery configuration, Up to 11.4kW output integrated 200A transfer Relay to support whole home backup power.
1.AC COUPLING CAPABILITY
support to quickly retrofit existing solar systems (on-grid & off-grid)
2.ALL-IN-ONE HYBRID INVERTER
Capable of running entirely off the grid, using grid assist, or selling power back to the grid.
3.HIGH FREQUENCY, SPLIT-PHASE OUTPUT
Allows for 120/240V single unit or 120/208 service operation
4.GENERATOR-COMPATIBLE
Grid & diesel generator separately connected, support storing energy from diesel generator
5.HIGH OUTPUT POWER
Up to 11.4kW output intergrated 200A transfer Relay , support whole home backup power.
6. RAPID SHUTDOWN FUNCTION
7.IP65
IP65 protection,support indoor and outdoor installlation.
8.MULTIPLE BATTERY COMPATIBILITY
Lithium battery and lead acid battery compatibility
9.MPPT
Up to 4MPPTs
10.UPS
With UPS function switch time ≤ 20ms
Product Specifications
RUiXU Split Phase Hybrid Inverter | RX-12K | UL1741 Product Specifications
| PV STRING INPUT | |
|---|---|
| Max PV Array Power [Wp]@STC | 17100 |
| Max DC Voltage [V] | 600 |
| MPPT Voltage Range [V] | 90～550 |
| Nominal DC Voltage [V] | 380 |
| Start Voltage/Min Input Voltage [V | 100 |
| Max Input Current [A] | 16/16/16/16 |
| No. of Strings per MPPT | 1/1/1/1 |
| No. of MPPT | 4 |
| BATTERY INPUT | |
| Battery Type | Lead-acid or LiFePO4 |
| Voltage Range [V] | 40～60 |
| Max. Charging Current [A] | 240A |
| Max. Discharging Current [A] | 240A |
| AC OUTPUT [ON-GRID] | |
| Rated AC Power [W]@208Vac | 9880 |
| Rated AC Power [W]@240Vac | 11400 |
| Max. Apparnet Power [VA] | 12540 |
| Rated AC Current [A]@208Vac | 47.5 |
| Max. AC Current [A]@240Vac | 52.3 |
| Rated AC Voltage/Range | L1/L2/N/PE，208V/240V； 183V~229V/211V~264V |
| Rated Output Frequency [Hz] | 60/54-65 |
| Power Factor [cosφ] | 0.8 leading～0.8 lagging |
| Total Harmonic Distortion [THDi] | <3% |
| AC OUTPUT [BACK-UP MODE] | |
| Rated Output Power [W]@240Vac | 11400 |
| Over Load Capacity [W, 10s] | 17100 |
| Rated Output Voltage [V] | 120/240 |
| Rated Output Frequency [Hz] | 60 |
| Output THDV(@ Liner Load) | <3% |
| EFFICENCY | |
| Max. Efficiency | 97.6% |
| CEC Efficiency [@600Vdc] | 97% |
| Bat-AC Max. Efficiency | 93% |
| INTERFACE | |
| Display | LED+APP (Bluetooth) |
| Communication Port | RS232 +RS485(RJ45 ) +DRM(RJ45) |
| Communication | Wi-Fi/Ethernet/4G |
| Load Monitor | 24 hours |
| PROTECTION | |
| Over Voltage Protection | Intergrated |
| AC Surge Protection | Type II |
| DC Surge Protection | Type II |
| Over Heat Protection | Intergrated |
| Islanding Pretection | Intergrated |
| AFP | Intergrated |
| RSD | Intergrated |
| GENERAL DATA | |
| Isolation Type | HF |
| Standby Power Consumption [W] | ≈20W |
| Idle Power Consumption [W] | ≈90W |
| Cooling Method | Smart Fan Cooling |
| Ambient Humidity | 0%～100% no-condensing |
| Altitude | 4000m （>3000m power derating） |
| Noise [dBA] | <40 |
| Ingress Protection | NEMA 4x (IP65) |
| Mounting | Wall Mounting |
| Dimensions [H*W*D][inch] | 30.7*18.5*10.2 |
| Weight [kg] | 50 (110 lbs) |
| Warranty [years] | 10 |
| Safety/EMC Standard | UL 1741 CRD, IEEE 1547, UL 1699B, UL 1998, UL 9540, CAN/CSA C22.2.107.1-1, FCC, Part 15 Class B, SRD-UL1741 |
RUiXU Split Phase Hybrid Inverter | RX-12K Spec Sheet
Product Manual
RUiXU Split Phase Hybrid Inverter | RX-12K | UL1741 Manual
Product Warranty
10 Years Warranty
All RUiXU batteries come with 10 years warranty.
RUiXU stand behind the quality and durability of our products.
Quality Assurance
RUiXU take pride in our relentless commitment to delivering products of the highest quality. Our rigorous quality assurance processes ensure that every item leaving our facilities meets the strictest standards.
Local Warehouse
Swift Shipping for Your Convenience
With our strategically located local warehouse, we bring convenience right to your doorstep. Enjoy expedited shipping within 3 business days.
Expert and Timely Technical Service Team
Your Reliable Support Partner
Our expert technical service team is dedicated to providing you with unparalleled support when you need it most. we promise all questions will be answered within 24 hours
