SunGold Power 6000W DC 24V Pure Sine Split Phase Inverter with Charger
SunGold Power 6000W DC 24V Pure Sine Split Phase Inverter with Charger
Description
The SunGoldPower LFP 6000 Watt DC 24V AC 120/240 Split Phase Inverter Charger is a top high quality low frequency power inverter, built for running your whole house (small home), Business, RV System, Trailer or Boat Application, this inverter charger is perfect for your off grid system or an emergency backup supply. The split-phase inverter requires 240VAC input and will output 110/120 or 220/230/240VAC, and it can output 50 or 60Hz via the SW4. It is capable of producing 2 legs of 110V, making this inverter perfect for home and business applications with a 220 panel in place.
Three in one product:
★ The 6000 watt power inverter transforms 24V DC power stored by batteries to AC electricity that can power the tools and appliances.
★ It has a built-in 90 amp battery charger which help the grid or generator to recharge the battery.
★ The transfer switch allows the product to automatically switch between shore power and battery power within 10 mili seconds.
Product Specifications
SunGold Power 6000W DC 24V Pure Sine Split Phase Inverter with Charger Product Specifications
| Category | Specification | Details |
|---|---|---|
| Main Features | Inverter Type | 6000W Low Frequency Pure Sine Inverter with Charger |
| Power Priority | AC / Battery Priority Selector | |
| Generator Support | Automatic Generator Start | |
| Design | Safe and convenient operation | |
| Appliance Compatibility | Powers all types of appliances | |
| Display & Control | LCD display with remote control | |
| Idle Consumption | Low idle power consumption | |
| Battery Profiles | 9 selectable battery type settings | |
| Charger | Multi-stage smart charger, 90A ±5A (can be disabled) | |
| Transfer Time | 10 ms (typical) | |
| Inverter Output | Continuous Output Power | 6000W |
| Surge Power | 18,000W (20 seconds) | |
| AC Output Voltage | 120V / 240V | |
| AC Input Voltage | 240V | |
| Output Waveform | Pure sine wave (bypass mode) | |
| Transfer Time | 10 ms (max) | |
| Nominal Efficiency | >88% | |
| DC Input | Nominal Input Voltage | 24.0V DC |
| Minimum Start Voltage | 20.0V DC | |
| Low Battery Alarm | 21.0V – 22.0V DC | |
| Low Battery Shutdown | 20.0V – 21.0V DC (SW1 selectable) | |
| High Voltage Alarm | 32.0V DC | |
| Battery Restart Voltage | 26.0V DC | |
| Idle Power Consumption | 77W | |
| Power Saver Idle Consumption | 29W | |
| AC Charger | Charging Current | 90A ±5A |
| AC Input Range | 140–270VAC / 184–253VAC (SW2 selectable) | |
| Overcharge Protection | 31.4V shutdown | |
| Charge Profile | Selectable by battery type | |
| Charge Current Adjustment | Off / 0% – 100% | |
| Charging Method | 3-stage intelligent charger | |

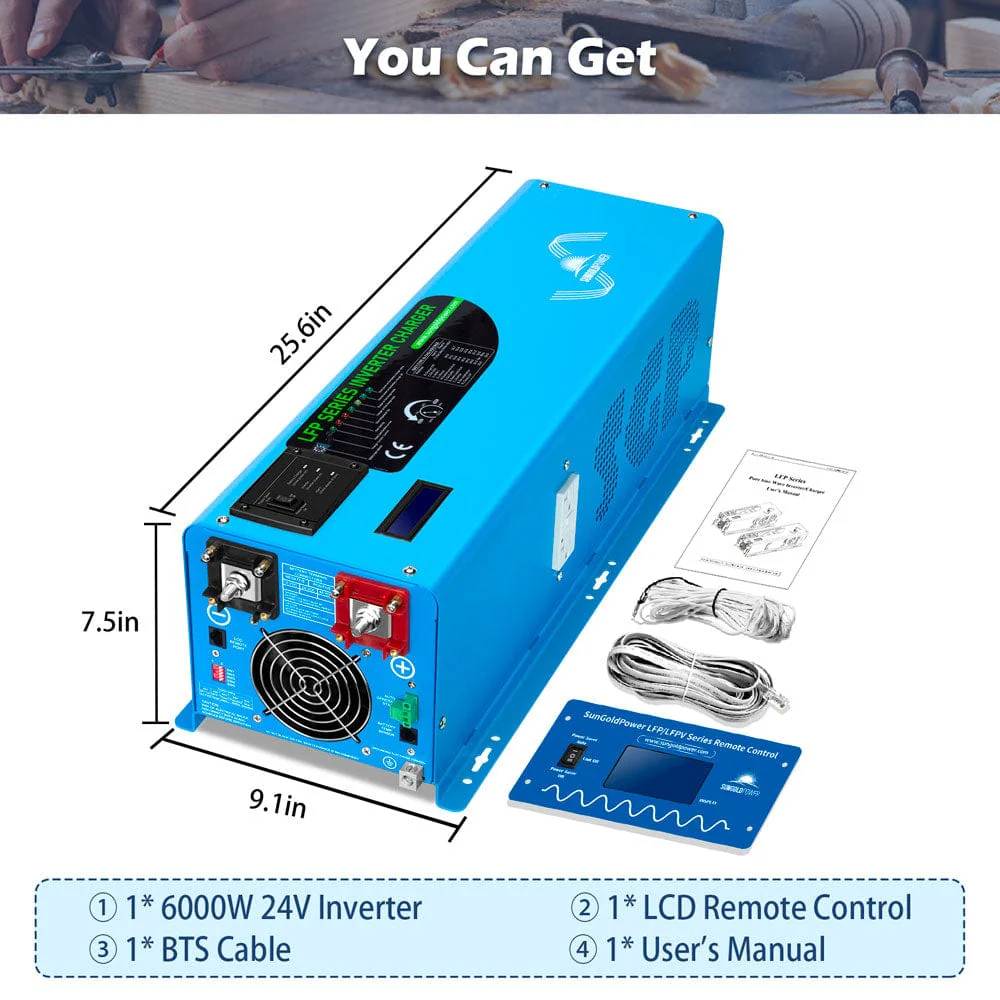

| Packaging | Included Items | Inverter, English manual, remote control, BTS cable |
| Unit Weight | 76.7 lbs | |
| Unit Size | 25.6 × 9.1 × 7.5 inches | |
| Shipping Weight | 85.5 lbs | |
| Shipping Size | 30.3 × 13.4 × 12.8 inches |
Product Manual
LFP 6KW 24V Pure Sine Wave Split Inverter/Charger Data Sheet
LFP Series Pure Sine Wave Inverter/Charger User's Manual
Product Warranty
SunGold Power Product Warranty
WARRANTY PERIOD
The warranty period for is 12/36 months for different Sungoldpower products. In each case, the warranty period is measured starting on the day of purchase by the original consumer purchaser. The sales receipt from the first consumer purchase, or other reasonable documentary proof, is required in order to establish the start date of the warranty period.
LIMITED TO ORIGINAL CONSUMER BUYER
The warranty on Sungoldpower's product is limited to the original consumer purchaser and is not transferable to any subsequent owner.
EXCLUSIONS
Sungoldpower's warranty does not apply to:
Misused, abused, modified, damaged by accident, or used for anything other than normal consumer use as authorized in Sungoldpower's current product literature.
Attempted repair by anyone other than an authorized facility.
If any modified products received will be returned to you at your expense.
REPLACEMENTS
Sungoldpower will replace any Sungoldpower product that fails to operate( within 30 days). A replacement product assumes the remaining warranty of the original product.
If you want to replace one of the damaged parts, please contact us to arrange to send the replacement part. (under warranty)
Product FAQs
SunGold Power 6000W DC 48V Low Frequency Split Phase Inverter FAQs
1. Is this unit a grid-tie inverter?
This is a pure sine wave inverter, therefore, it's an off the grid inverter.
2. How many can I put it parallel?
It can not be connected in parallel.
3. Can I hook my solar panels directly to the controller or do I still need a solar battery controller?
You will need have an external solar controller if you want it work with solar panels.
