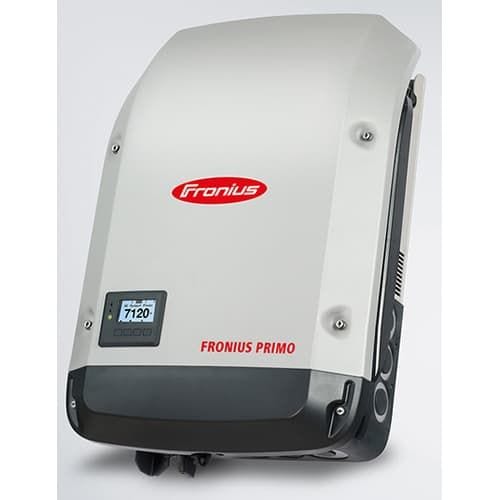

Fronius Primo 6.0-1, 6000W Non-Isolated String Inverter | 208/240 VAC
Fronius Primo 6.0-1, 6000W Non-Isolated String Inverter | 208/240 VAC
Description
Design flexibility and unrivaled power capability in one sleek package. Now Assembled in the USA!
The transformerless, single-phase Fronius Primo 6.0 kW is the ideal solar inverter for residential applications wth a 208/240 grid connection. The SnapINverter has many standard features, making it convenient and"one-stop shop" for a high quality inverter. The hinge mounting system and lightweight inverter itself creates a streamlined installation process that can be done in under 15 minutes. Several industry-leading additions come standard with the Fronius Primo including Wi-Fi and SunSpec Modbus interfaces for seamless monitoring and datalogging, field proven Arc Fault Circuit Interruption (AFCI), and Fronius' free online and mobile monitoring platform. The Fronius Primo is NEC 2014 compliant and ready for codes and standards of the future. This great solution is now also available with a Revenue Grade Metering option, completely integrated.
Product Specifications
Fronius Primo 6.0-1, 6000W Non-Isolated String Inverter | 208/240 VAC Product Specifications
| INPUT DATA | Fronius Primo 6.0-1 |
|---|---|
| Recommended PV Power (kWp) | 4.8 - 9.3 |
| Max. usable input current (MPPT 1 / MPPT 2) | 18 A / 18 A |
| Total max. DC current | Ā 36 A |
| Max. array short circuit current | Ā 2x 22.5 A |
| Operating Voltage RangeĀ | 80*Ā - 600 V |
| Max. input voltage | 600 V |
| Nominal input voltageĀ | Ā 420 V |
| Admissable conductor size DC | AWG 14...AWG 6 |
| Number of MPPT | 2 |
| MPP Voltage range | 240 - 480Ā V |
| OUTPUT DATA | Fronius Primo 6.0-1 |
|---|---|
| Max. output power | 6000 W |
| Max. continuous output current 208/240 | Ā 28.8 A /Ā 25.0 A |
| Recommended OCPD/AC breaker size 208/240 | Ā 40 A / 35 A |
| CEC Efficiency 208/240 | Ā 96.0 % |
| Max. Efficiency | 96.9% |
| Admissable conductor size AC | AWG 14 - AWG 6 |
| Grid connection | Ā 208 / 240 |
| Frequency | 60 Hz |
| Total harmonic distortion | Ā < 5.0 % |
| Power factor (cos ac,r) | 0.85-1 ind./cap |
| GENERAL DATA | Fronius Primo 6.0-1 |
|---|---|
| Dimensions (width x height x depth) | 16.9 x 24.7 x 8.1 in. |
| Weight | 47.29 lb. |
| Degree of protection | NEMA 4X |
| Night time consumption | < 1 W |
| Inverter topology | Transformerless |
| Cooling | Variable speed fan |
| Installation | Indoor and outdoor installation |
| Ambient operating temperature range | Ā -40 ... 131, F (-40 ... +55, C) |
| Permitted humidity | Ā 0 - 100 % |
| Ā DC connection terminals | Ā 4x DC+ and 4x DC- screw terminals for copper (solid / stranded / fine stranded) or aluminum (solid / stranded) |
| Ā AC connection terminals | Ā Screw terminals 12-6 AWG |
| Ā Certificates and compliance with standards | Ā UL 1741-2010, UL1998 (for functions: AFCI, RCMU and isolation monitoring), IEEE 1547-2003, IEEE 1547.1-2003, ANSI/IEEE C62.41, FCC Part 15 A & B, NEC Article 690,C22. 2 No. 107.1-01 (September 2001) , UL1699B Issue 2 -2013, CSA TIL M-07 Issue 1 -2013 |
| INTERFACES AND PROTECTIVE DEVICES | Fronius Primo 6.0-1 |
|---|---|
| AFCI; DCĀ disconnect & 2014 NEC Ready | Yes; all integrated |
| Wi-Fi*/Ethernet/Serial | Wireless standard 802.11 b/g/n / Fronius Solar.web, SunSpec Modbus TCP, JSON / SunSpec Modbus RTU |
| 6 inputs or 4 digital inputs/outputs | External relay controls |
| USB (A socket) | Datalogging and/or updating via USB |
| 2x RS422 (RJ45 socket) | Fronius Solar Net, interface protocol |
| Ā Datalogger and Webserver | Ā Yes; included |
Product Manual
- Fronius Primo Datasheet |Ā Download
- Fronius Primo Operating Manual |Ā Download
Product Warranty
Fronius Product Warranty
Available Warranty Types
Fronius offers two types of warranty extensions. You can either chose the Fronius Warranty Plus which covers the cost of material, labour (service lump sum payment for the exchange by the installer) and freight or the Fronius Warranty which covers the cost of material only.
A detailed overview of the warranty types is available on the Fronius homepage.
Product FAQs
Fronius Product FAQs
How do I find Installer in my area?
You can find your nearest installer using our dedicated search tool, theĀ Fronius Service Ā Partner Search.
I would like t buy PV system. What do I need to do?
If you would like to buy a PV system, please contact an installer. If you do not know any local companies, you can find your nearest installer using our dedicatedĀ search tool.
What does Fronius offer in terms of e mobility?
The Fronius Wattpilot is an intelligent charging solution for everyone with an electric car. The Fronius Wattpilot is available in two versions - the permanently installed Wattpilot Home for your home and the mobile Wattpilot Go for on the way. The device can be operated via the associated Solar.wattpilot app, which also provides an overview of the charging process. The intelligent plug-and-play charging solution has two different charging modes, the Eco and the Next Trip mode. In addition, the Wattpilot is PV-optimized: The car can therefore be charged with excess solar energy in ampere steps in a particularly cost-efficient and sustainable manner.
