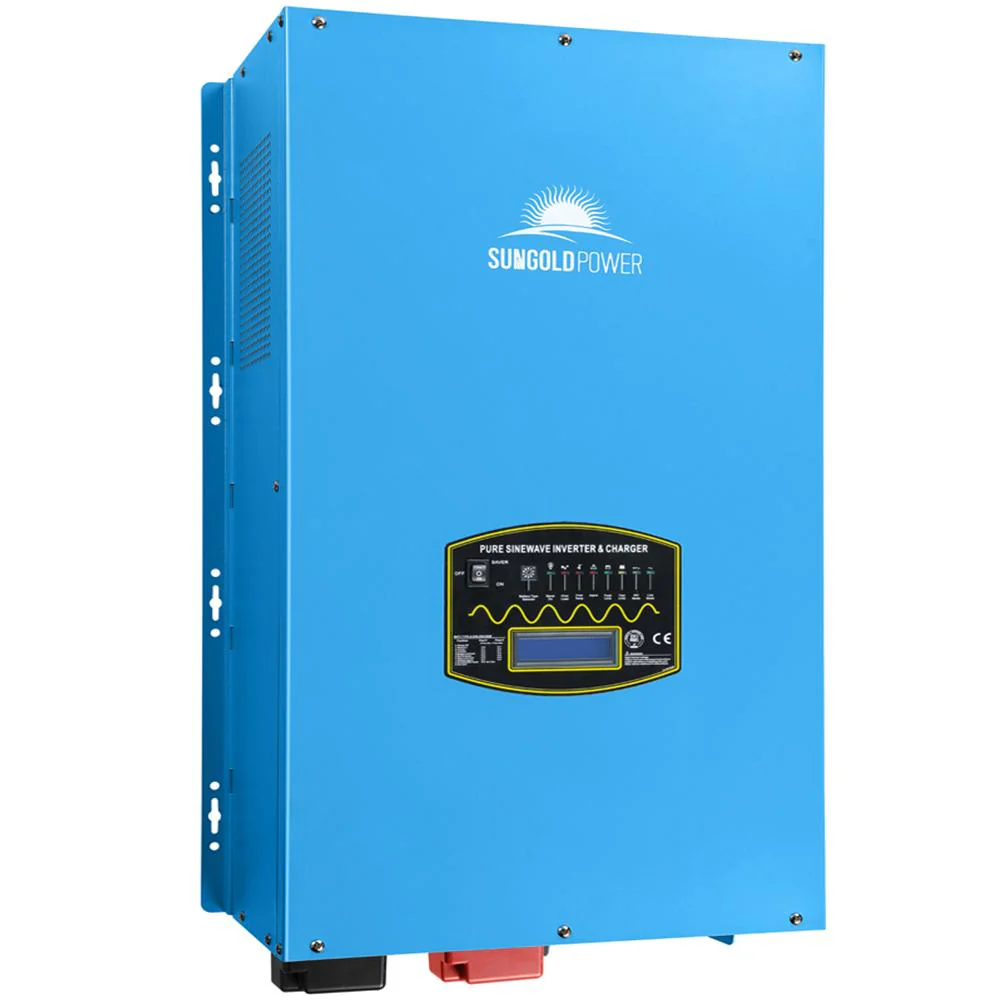

SunGold Power 15kW 48V Split Phase Solar Inverter Charger
SunGold Power 15kW 48V Split Phase Solar Inverter Charger
Description
Product Specifications
SunGold Power 15kW 48V Split Phase Solar Inverter Product Specifications
| Main Features | Main Specifications | DC Input | Charger | Solar Charger Controller | Packaging |
|---|---|---|---|---|---|

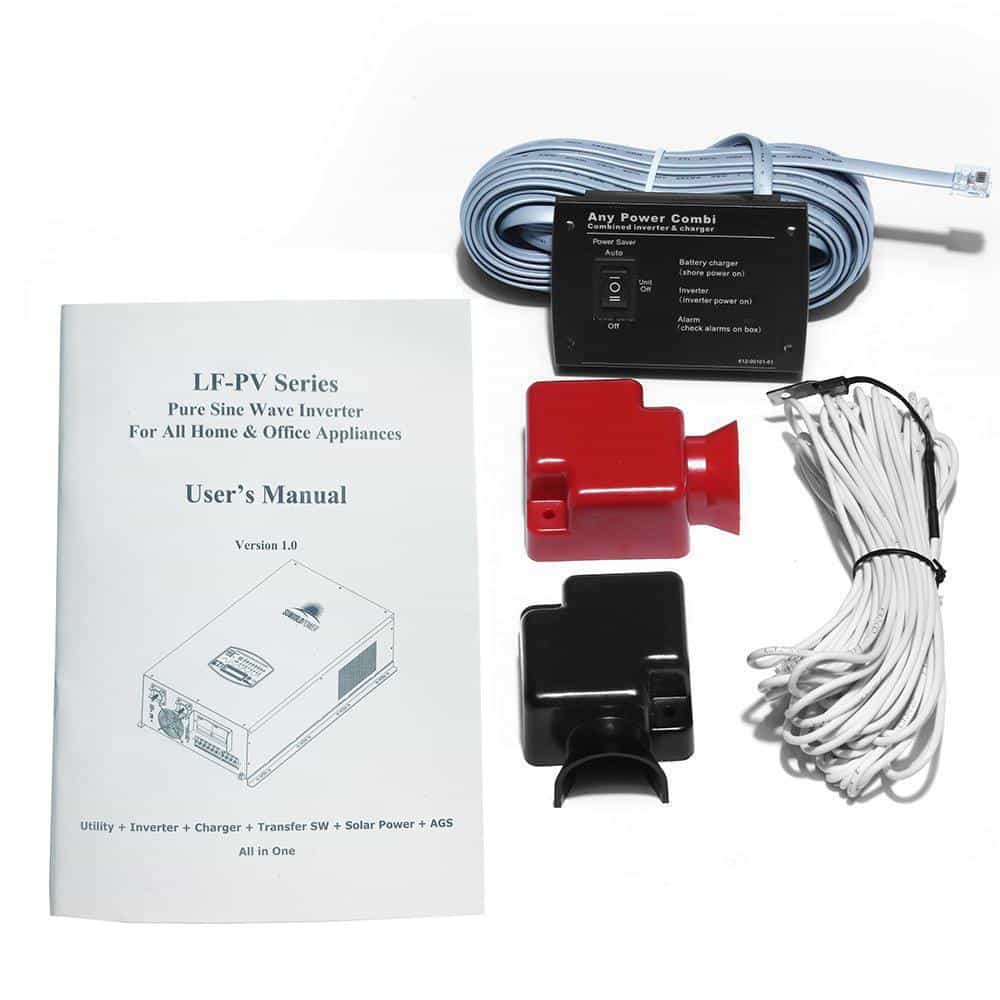

| 15KW split phase pure sine inverter charger DC 48V AC 240V input AC output 120V/240V | Continuous Output Power: 15.0KW | Nominal Input Voltage: 48.0Vdc | Output Voltage: Depends on battery type | Solar Input Voltage Range: 60-145V(Max 4000W) | 15000W 48V Split Phase Pure Sine Wave Solar Power Inverter |
| Auto Generator Start (AGS) | Surge Rating (20s): 45.0KW | Minimum Start Voltage: 40.0Vdc / 42.0Vdc | Battery Initial Voltage for Start Up: 40-62.8V | Rated Charge Current: 80A | English Manual |
| Support Solar Panel with MPPT Function | Output Waveform: Pure Sine Wave | Low Battery Alarm: 42.0Vdc / 44.0Vdc | Over Charge Protection Shutdown: 62.8V | Over Charge Disconnection: 59.2V | Remote Control |
| Include Battery Temperature Sensor (BTS) and Remote Control | AC Output Voltage: 120V and 240V | Low Battery Trip: 40.0Vdc / 42.0Vdc | Charger Breaker: 100A | Over Charge Recovery: 54.4V | BTS Cable |
| 8 kinds of battery voltage selection (lithium LiFePO4, gel, AGM and lead Acid) | AC Input Voltage: 240V (not suitable for AC 120V input) | High Voltage Alarm: 64.0Vdc | Input Voltage Waveform: Sine wave (Grid or Generator) | Over Discharge Disconnection: 43.2V | Unit Weight: 176.6 LB |
| Compatible With All kind of Home & Office Appliances | DC Battery Voltage: 48Vdc | Low Battery Voltage Recover: 62.0Vdc | AC input range: 184-253Vac/140-270Vac | Over Discharge Reconnection: 49.6V | Unit Size: 28.7x 16.5x 8 inch |
| Powerful Charge Rate Up to 100Amp, Selectable From 0%-100% | Solar Charger Current: 80Amp | Power Saver on Idle Consumption: 45W | Nominal Input Frequency: 50Hz or 60Hz (Auto detect) | Shipping Weight: 213 LB | |
| Built-in transfer switch and battery charge, backup or off-grid power solutions | AC Battery Charger: 100±5Amp | Power Saver off Idle Power: 225W | AC Battery Charger: 100±5Amp | Shipping Size: 34.25x 21.3x 16.2 inch | |
| AC/Battery Priority Mode, Designates the Inverter-Preferred UPS Configuration | Output Frequency: 50Hz / 60Hz | ||||
| 4-step Intelligent Battery Charging, PFC (Power Factor Correction) for Charger | Typical Transfer Time: 10ms (Max) | ||||
| 8 ms Typical Transfer Time Between Utility & Battery, Ensure Power Continuity | |||||
| 15s Delay Before Transfer when AC Recover, Protection for Load when Used with Generator |
Product Manual
LF-PV Series Pure Sine Wave Inverter User's Manual
Product Warranty
SunGold Power Product Warranty
WARRANTY PERIOD
The warranty period for is 12/36 months for different Sungoldpower products. In each case, the warranty period is measured starting on the day of purchase by the original consumer purchaser. The sales receipt from the first consumer purchase, or other reasonable documentary proof, is required in order to establish the start date of the warranty period.
Our products come with 30 days return policy. Within the return period, Sungoldpower will pay the shipping costs of the returned item(s) for the following reasons: carrier damage, defective product, product inconsistent with advertisements, incorrect product received, or for any extra product you did not order. For all other reasons, customers are responsible for shipping fees.
LIMITED TO ORIGINAL CONSUMER BUYER
The warranty on Sungoldpower's product is limited to the original consumer purchaser and is not transferable to any subsequent owner.
EXCLUSIONS
Sungoldpower's warranty does not apply to:
Misused, abused, modified, damaged by accident, or used for anything other than normal consumer use as authorized in Sungoldpower's current product literature.
Attempted repair by anyone other than an authorized facility.
If any modified products received will be returned to you at your expense.
REPLACEMENTS
Sungoldpower will replace any Sungoldpower product that fails to operate( within 30 days). A replacement product assumes the remaining warranty of the original product.
If you want to replace one of the damaged parts, please contact us to arrange to send the replacement part. (under warranty)
Product FAQs
SunGold Power 15kW 48V Split Phase Solar Inverter FAQs
1. How do you connect this to a home with the multiple phase system?
It only has dual phase output, 120V and 240V. It can't work with the multiple phase system
2. Does this unit work with lithium batteries? Is there an adjustable curve for charge discharge voltages?
This unit works with lithium battery, LiFePO4 in types is for lithium battery. In addition, the charge and discharge voltage can't be adjusted.
3. Can two units be connected together for 24 kW continuous?
No, the two units can not be connected together for 24kW continuous.
Original: $3,350.00
-65%$3,350.00
$1,172.50Product Information
