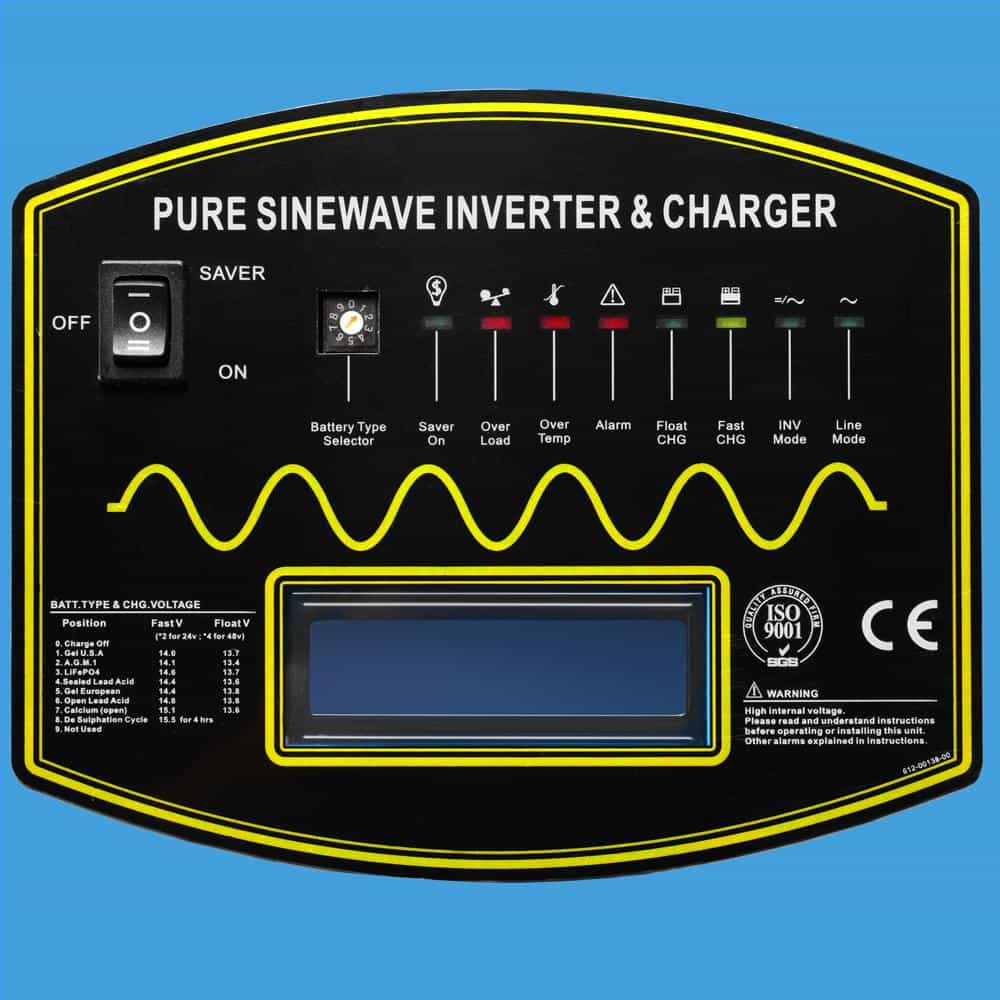

SunGold Power 12kW 48V Split Phase Solar Inverter Charger

SunGold Power 12kW 48V Split Phase Solar Inverter Charger

Description

Product Specifications

SunGold Power 12kW 48V Split Phase Solar Inverter Charger Product Specifications

---

Category	Specifications
Main Features	12KW Split Phase Pure Sine Inverter Charger DC 48V, AC 240V Input, AC Output 120V/240V
	Auto Generator Start (AGS)
	Supports Solar Panel with MPPT Function
	Includes Battery Temperature Sensor (BTS) and Remote Control
	8 kinds of battery voltage selection (Lithium LiFePO4, Gel, AGM, Lead Acid batteries)
	Compatible with All Kinds of Home & Office Appliances
	Powerful Charge Rate Up to 120Amp, Selectable From 0%-100%
	Built-in Transfer Switch and Battery Charge, Backup or Off-Grid Power Solutions
	AC/Battery Priority Mode, Designates the Inverter-Preferred UPS Configuration
	4-Step Intelligent Battery Charging, PFC (Power Factor Correction) for Charger
	8ms Typical Transfer Time Between Utility & Battery, Ensures Power Continuity
	15s Delay Before Transfer When AC Recovers, Protection for Load When Used with Generator
Main Specifications	Continuous Output Power: 12.0KW
	Surge Rating (20s): 36.0KW
	Output Waveform: Pure Sine Wave
	AC Output Voltage: 120V and 240V
	AC Input Voltage: 240V (Not suitable for AC 120V input)
	DC Battery Voltage: 48Vdc
	Solar Charger Current: 80Amp
	AC Battery Charger: 120±5Amp
	Output Frequency: 50Hz / 60Hz
	Typical Transfer Time: 10ms (MAX)
DC Input	Nominal Input Voltage: 48.0Vdc
	Minimum Start Voltage: 40.0Vdc / 42.0Vdc
	Low Battery Alarm: 42.0Vdc / 44.0Vdc
	Low Battery Trip: 40.0Vdc / 42.0Vdc
	High Voltage Alarm: 64.0Vdc
	Low Battery Voltage Recovery: 62.0Vdc
	Power Saver on Idle Consumption: 40W
	Power Saver off Idle Power: 180W
Charger	Output Voltage: Depends on Battery Type
	Battery Initial Voltage for Start Up: 40-62.8V
	Overcharge Protection Shutdown: 62.8V
	Charger Breaker: 80A
	Input Voltage Waveform: Sine Wave (Grid or Generator)
	AC Input Range: 184-253Vac / 140-270Vac
	Nominal Input Frequency: 50Hz or 60Hz (Auto Detect)
Solar Charger Controller	Solar Input Voltage Range: 60-145Vdc (Max 4000W)
	Max PV Open Circuit Array Voltage: 145Vdc
	Rated Charge Current: 80A
	Overcharge Disconnection: 59.2V
	Overcharge Recovery: 54.4V
	Over Discharge Disconnection: 43.2V
	Over Discharge Reconnection: 49.6V

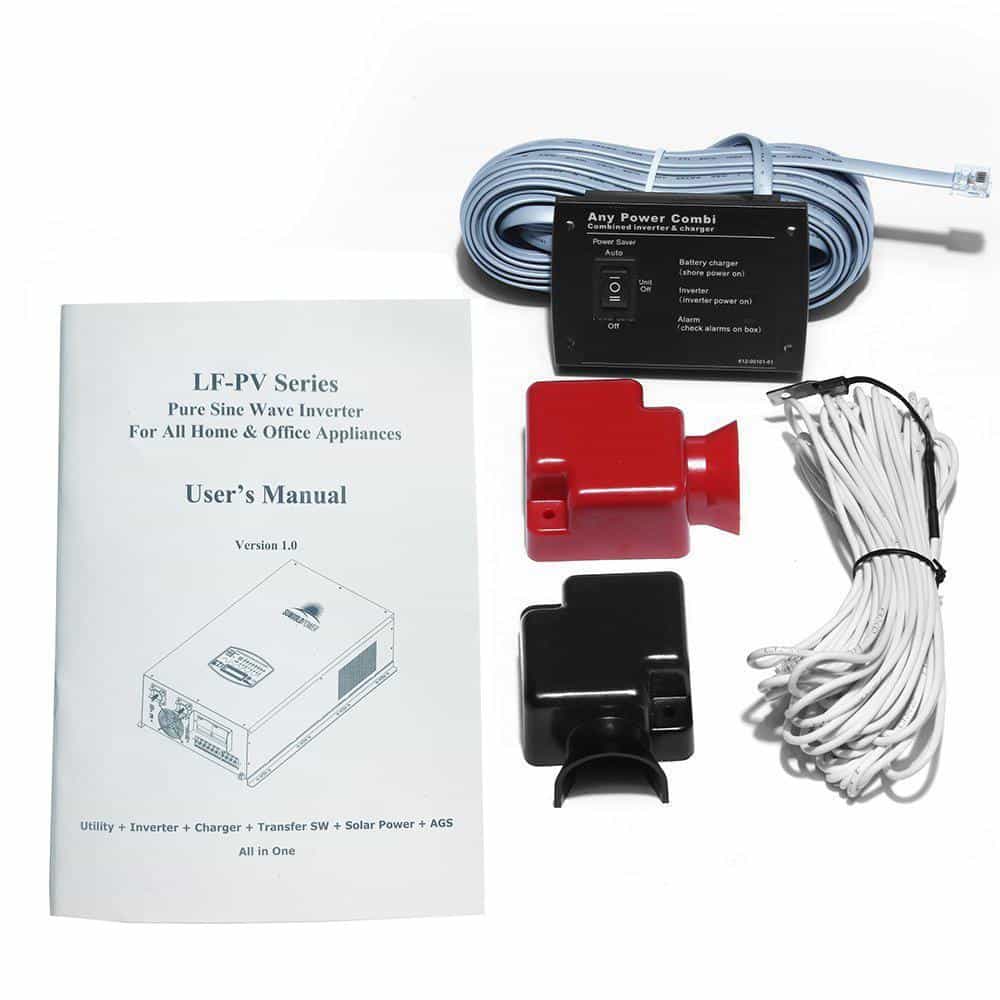

Packaging	12000W 48V Split Phase Pure Sine Wave Solar Power Inverter
	English Manual
	Remote Control
	BTS Cable
	Unit Weight: 160 LB
	Unit Size: 27.6 x 16.5 x 8 inches
	Shipping Weight: 185 LB
	Shipping Size: 29.2 x 23 x 16.5 inches

Product Manual

LF-PV Series Pure Sine Wave Inverter User's Manual

Product Warranty

SunGold Power Product Warranty

WARRANTY PERIOD

The warranty period for is 12/36 months for different Sungoldpower products. In each case, the warranty period is measured starting on the day of purchase by the original consumer purchaser. The sales receipt from the first consumer purchase, or other reasonable documentary proof, is required in order to establish the start date of the warranty period.

Our products come with 30 days return policy. Within the return period, Sungoldpower will pay the shipping costs of the returned item(s) for the following reasons: carrier damage, defective product, product inconsistent with advertisements, incorrect product received, or for any extra product you did not order. For all other reasons, customers are responsible for shipping fees.

LIMITED TO ORIGINAL CONSUMER BUYER

The warranty on Sungoldpower's product is limited to the original consumer purchaser and is not transferable to any subsequent owner.

EXCLUSIONS

Sungoldpower's warranty does not apply to:

Misused, abused, modified, damaged by accident, or used for anything other than normal consumer use as authorized in Sungoldpower's current product literature.

Attempted repair by anyone other than an authorized facility.

If any modified products received will be returned to you at your expense.

REPLACEMENTS

Sungoldpower will replace any Sungoldpower product that fails to operate( within 30 days). A replacement product assumes the remaining warranty of the original product.

If you want to replace one of the damaged parts, please contact us to arrange to send the replacement part. (under warranty)

Product FAQs

SunGold Power 12kW 48V Split Phase Solar Inverter FAQs

1. How do you connect this to a home with the multiple phase system?
It only has dual phase output, 120V and 240V, it can't work with the multiple phase system, thanks.

2. This inverter can use 240v, and 120v at the same time?
If you need have 240V & 120V load at the same time, HOT1 will have 2cables connected, but please note that 120V load power cannot exceed 50% of inverters real power, it is only 6000W if 120V output.

3. What is power consumption of the inverter with no load?
The  power saver on idle consumption is 40W and power saver off idle power is 180W.
