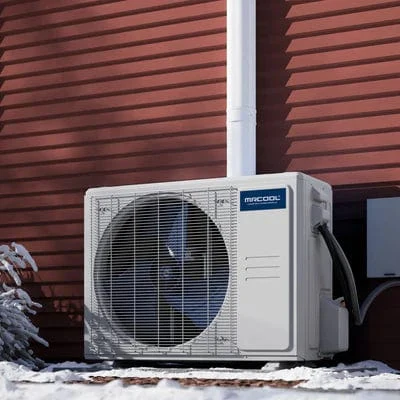

MRCOOL DIY® 5th Gen E Star 24,000 BTU Single Zone Mini Split Condenser 230V (DIY-24-HP-C-230D25-O)

MRCOOL DIY® 5th Gen E Star 24,000 BTU Single Zone Mini Split Condenser 230V (DIY-24-HP-C-230D25-O)

Description

Taking on an HVAC installation yourself might seem daunting, but the 5th Generation MRCOOL® DIY® 24K BTU 22.7 SEER Ductless Heat Pump Single Zone Mini Split Condenser is built specifically for easy, do-it-yourself setup. With no special tools or professional experience needed, this system is perfect for heating and cooling areas between 750-1,000 sq. ft.

The pre-charged 25-foot QuickConnect® line set simplifies installation by eliminating the need for vacuuming, while the included DIYPRO® cable adds extra durability, replacing traditional electrical conduit to protect against weather, animals, and yardwork hazards. With multiple control options, managing your comfort is effortless. Adjust settings using the included remote, the SmartHVAC app on Apple or Android devices, or go hands-free with voice control via Amazon Alexa and Google Assistant. For homes near the coast, the Gold Fin Condenser enhances corrosion resistance, ensuring lasting performance.

This system is packed with features to maximize efficiency and convenience. The Timer function helps regulate energy use, while Auto mode maintains your preferred temperature with no extra effort. If power is lost, the unit automatically restores previous settings. Plus, the anti-mildew function helps prevent moisture buildup inside the air handler. Engineered for long-term reliability, the 5th Generation MRCOOL® DIY® Mini Split comes with an industry-leading warranty, including a limited lifetime warranty, 7-year compressor coverage, and a 5-year parts warranty. Combining user-friendly installation with advanced technology, this system delivers lasting comfort with ease.

Features

• NEEP ccASHP Listed
• Intertek listed 5031495
• Easy DIY installation
• Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
• Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
• The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.

Product Specifications

MRCOOL DIY® 5th Gen E Star 24,000 BTU Single Zone Mini Split Condenser 230V (DIY-24-HP-C-230D25-O) Product Specifications

Dimensions	16.14" D x 31.89" H x 37.24" w
SEER2	22.7
EER2	12.7
HSPF2-4	9.5
HSPF2-5	7.1
Tonnage	2
Cooling Capacity (BTU)	23000
Heating Capacity (BTU)	23000
Voltage (V)	208/230
Phase	1
Cycle	60
Max Fuse Breaker (A)	25
Min Circuit Ampacity (A)	24
Color	White
Zone Capacity	1
Refrigerant Type	R-454B
Refrigerant Volume (Oz)	67.37
Decibel Rating (DBA)	58.5
Inverter	DC
Line Set Length	25
Max Lineset Length (FT)	164
Liquid Line Size	3/8
Suction Line Size	5/8
Compressor Motor Type	Rotary
Auxiliary Heater Included	No
Auxiliary Heater Available	No
Fan Only Option	Yes
Quiet Mode	Yes
Auto Cool	Yes
WIFI Compatibility	Yes
APP Compatibility	Yes
Works with IOS	Yes
Works with Android	Yes
UL Listed	Yes
ETL Listed	Yes
Energy Star Certified	Yes
AHRI Certified	Yes
Registered Warranty	Extended Limited Lifetime*
Base Parts Warranty	5
Base Compressor Warranty	7
Has Batteries	Yes
Contains Electronics	Yes
Contains Chemicals	Yes
Contains Aerosol	Yes
Contains Compressed Gas	Yes
Proposition 65 Warning	Yes
Net Weight (Lbs)	122.8
Gross Depth (In)	19.88
Gross Height (In)	37.01
Gross Width (In)	42.91
Gross Weight (Lbs)	155.64

Product Manual

Product Warranty

MRCOOL Limited Lifetime Warranty

LIMITATIONS OF WARRANTIES

Q1 How do I register my warranty?

Answer: Go to here to file your warranty.

Q2 How do I find the AHRI number of my unit?

Answer: You can find links to the AHRI certificates on the documentation page at mrcool.com/documentation.
