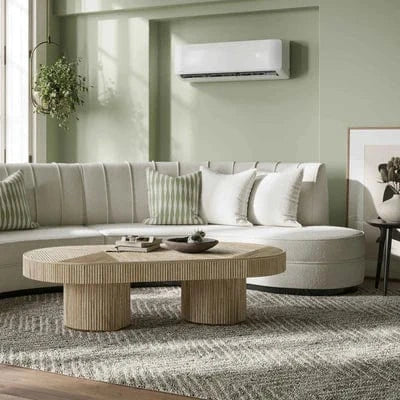

MRCOOL DIY® 5th Gen E Star 24,000 BTU Single Zone Mini Split Air Handler 230V (DIY-24-HP-WMAH-230D25-O)

MRCOOL DIY® 5th Gen E Star 24,000 BTU Single Zone Mini Split Air Handler 230V (DIY-24-HP-WMAH-230D25-O)

Description

The 5th Generation MRCOOL® DIY® 24K BTU Ductless Mini-Split Heat Pump is a highly efficient solution for heating and cooling spaces up to 1050 sq. ft. Designed for hassle-free DIY installation, it eliminates the need for special tools or professional assistance, making setup quick, easy, and budget-friendly. A key advantage of this system is the pre-charged 25-foot DIY® QuickConnect® line set, which comes filled with R-454B refrigerant. This removes the need for vacuuming, significantly reducing installation time and expenses.

The included DIYPRO® cable further simplifies setup by eliminating the need for electrical conduit, while also enhancing durability and resistance to outdoor elements and wildlife. Managing your comfort is effortless with multiple control options. Adjust settings with the wireless remote, the SmartHVAC app for Apple and Android devices, or voice commands via Amazon Alexa and Google Assistant. For enhanced comfort, the Follow Me function allows the system to detect and adjust temperatures based on the remote’s location, ensuring even distribution.

Additionally, Dry Mode helps maintain a comfortable indoor environment by reducing excess humidity. Built for long-term performance, the outdoor unit’s Gold Fin® Condenser provides superior corrosion resistance, ideal for coastal environments. With industry-leading warranties—including a limited lifetime warranty, a 7-year compressor warranty, and a 5-year parts warranty—this MRCOOL® DIY® system delivers reliable, year-round comfort with innovative smart features and easy installation.

Features

• NEEP ccASHP Listed
• Intertek listed 5031495
• Easy DIY installation

• Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
• Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
• The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.

Product Specifications

MRCOOL DIY® 5th Gen E Star 24,000 BTU Single Zone Mini Split Air Handler 230V (DIY-24-HP-WMAH-230D25-O) Product Specifications

Dimensions	8.9" D x 13.19" H x 42.52" W
Tonnage	2
Voltage (V)	208/230
Phase	1
Cycle	60
Max Fuse Breaker (A)	15
Min Circuit Amapcity (A)	3
Mount Type	Wall
Color	White
Max Coverage Area	1050 sqft
Decibel Rating Low (DBA)	20
Decibel Rating High (DBA)	54
Number of Speeds	5
Oscillation	Yes
Liquid Line Size	3/8
Suction Line Size	5/8
Filter Type	Reusable
Auxiliary Heater Included	No
Auxiliary Heater Available	No
Fan Only Option	Yes
Quiet Mode	Yes
Auto Cool	Yes
WIFI Compatibility	Yes
APP Compatibility	Yes
Works with IOS	Yes
Works with Android	Yes
Remote Control Included	Yes
UL Listed	Yes
ETL Listed	Yes
Energy Star Certified	Yes
AHRI Certified	Yes
Registered Warranty	Extended Limited Lifetime*
Base Parts Warranty	5
Base Compressor Warranty	7
Has Batteries	Yes
Contains Electronics
Contains Chemicals	Yes
Contains Aerosol	Yes
Contains Compressed Gas	Yes
Proposition 65 Warning	Yes
Gross Depth (In)	17.68
Gross Height (In)	14.29
Gross Width (In)	46.73
Gross Weight (Lbs)	49.82

Product Manual

Product Warranty

MRCOOL Limited Lifetime Warranty

LIMITATIONS OF WARRANTIES

Q1 How do I register my warranty?

Answer: Go to here to file your warranty.

Q2 How do I find the AHRI number of my unit?

Answer: You can find links to the AHRI certificates on the documentation page at mrcool.com/documentation.
