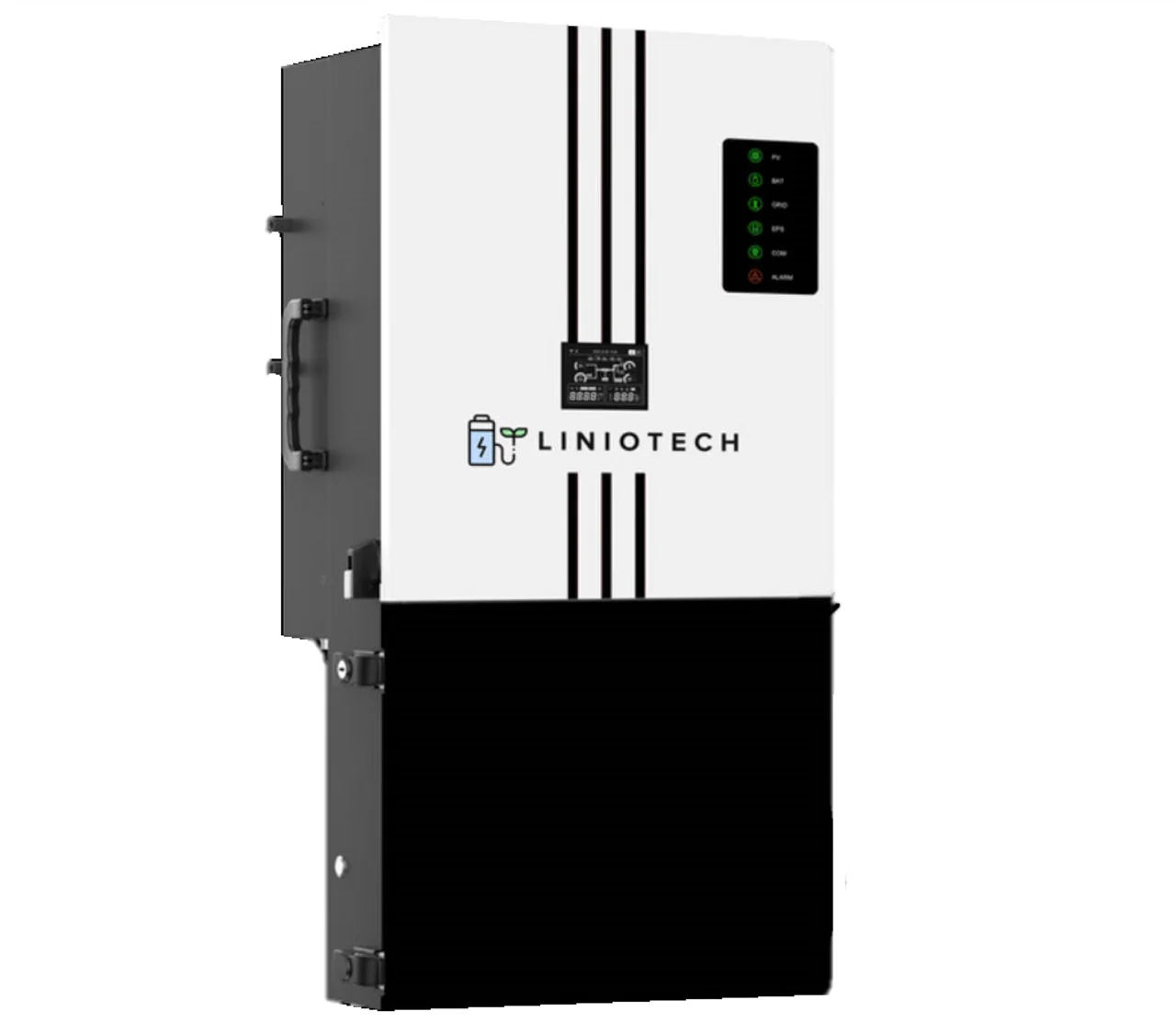

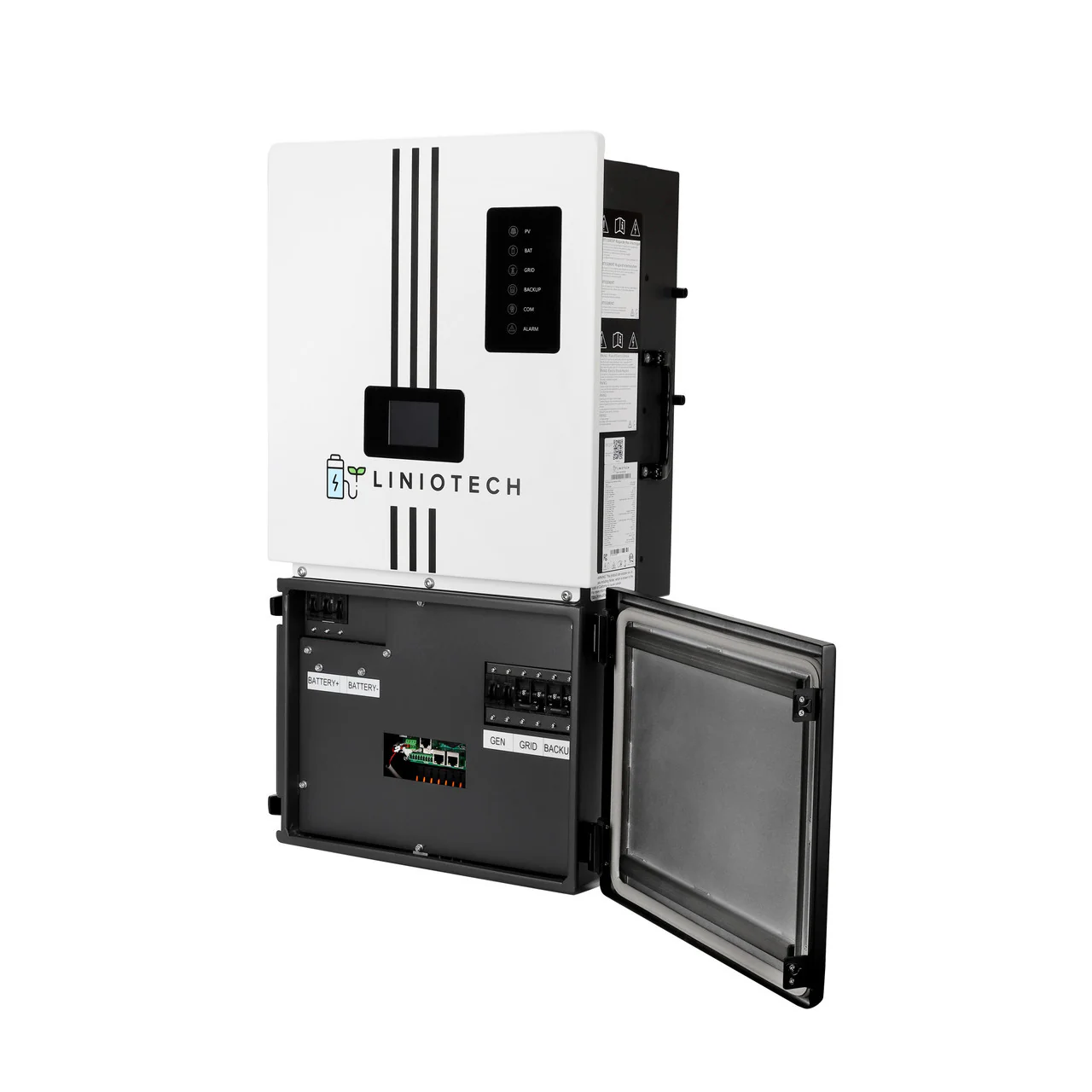

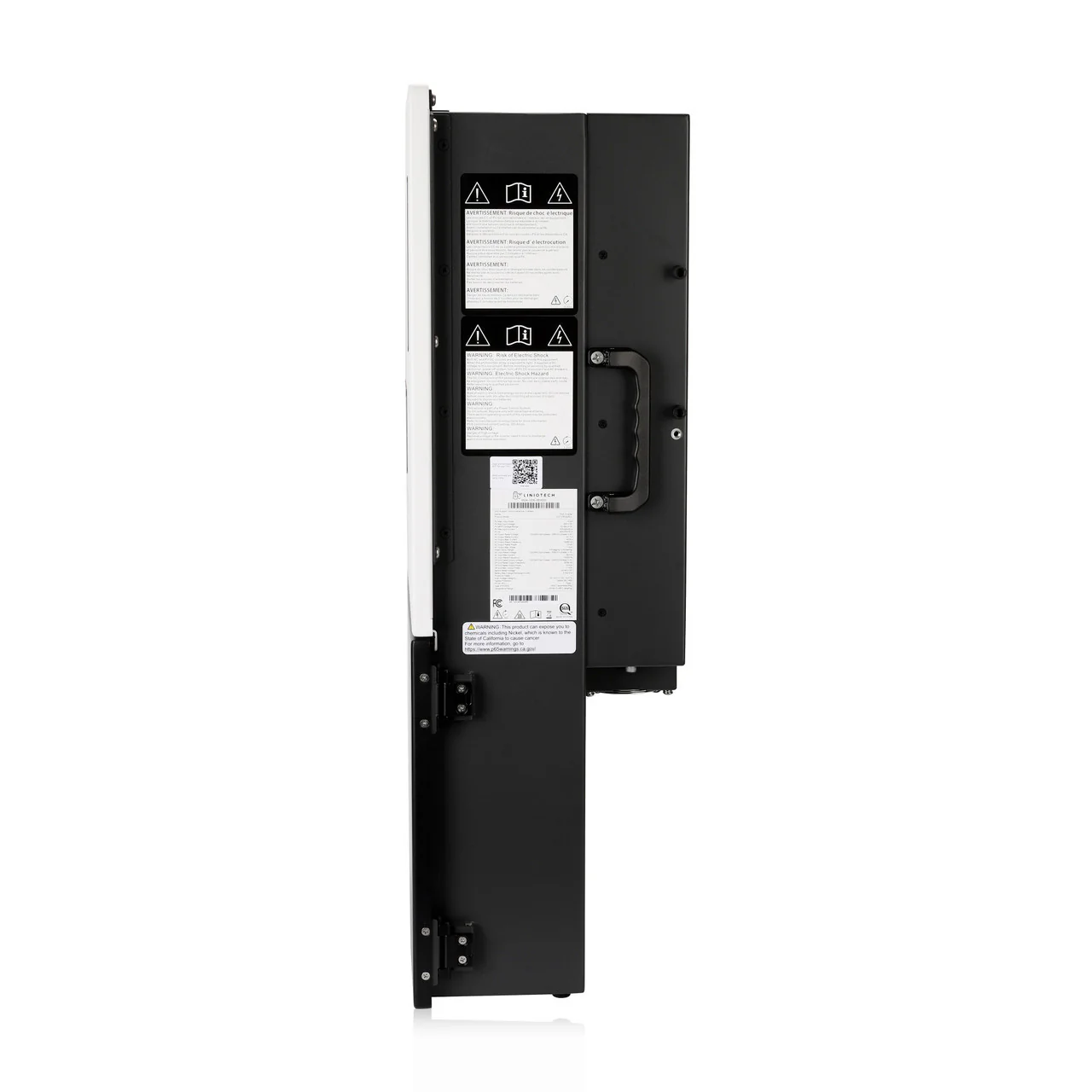

LINIOTECH 15KVA Hybrid Inverter All in One solar Inverter | 15kW PV Input | 11.4kW AC Output

LINIOTECH 15KVA Hybrid Inverter All in One solar Inverter | 15kW PV Input | 11.4kW AC Output

Description

GO GREEN! LOWER CARBON!

MAXIMIZE ENERGY INDEPENDENCE.

Power your home, business, or commercial facility with the Liniotech 15kPV Hybrid Inverter, engineered to deliver maximum energy efficiency, smart battery storage integration, and high-output solar conversion—all in one robust, scalable solution.

⚡️ Key Features of the Liniotech 15kPV ESS Hybrid Inverter

✅ Massive 15kW Solar Input with 3 MPPTs

• Accepts up to 15,000W of PV input (200% oversizing supported)

• Dual high-amperage (30A) MPPTs for optimal PV harvesting

• Wide voltage range (90-540VDC) supports modern high-efficiency solar panels

✅ High AC Output and Expandability

• 11.4kW continuous AC output, 20kW surge

• Split-phase (120/240V) and 208V 3-phase compatible

• Stack up to 9 units for 90kW output – perfect for commercial scalability

✅ Advanced Battery Integration

• Supports 48V LiFePO4 or lead-acid batteries (40-64V range)

• Up to 210A charge/discharge current

• Seamless integration with battery brands like Liniotech, EG4, Pytes, BYD, Pylontech, simpliphi, fortress power, Discover AES and more

✅ Grid-Tied, Off-Grid, or Hybrid Use

• <10ms transfer time for sensitive electronics

• AC-coupling compatible – keep existing SolarEdge, Enphase, or microinverter systems and just add battery storage

• Export limiting for compliance in utility-regulated zones

✅ Home Backup Ready

• Generator-ready input for uninterrupted backup

• Integrated Rapid Shutdown (RSD) and AFCI for NEC 2023 compliance

✅ Smart Energy Monitoring and App Control

• Real-time data via Liniotech app or web portal

• Remote firmware upgrades, diagnostics, and performance analytics

• WiFi / LAN / RS485 / CAN interfaces for BMS, smart meters, and home automation

---

Versatile Use Cases

• Residential Solar with Battery Backup

• Commercial & Industrial Solar Systems

• Off-Grid Cabins & Remote Locations

• Whole-Home Energy Backup Systems

• Farms, Restaurants, Schools, Hospitals, Museums

---

Advanced Features You’ll Love

• 3 MPPTs for maximizing power harvest from multiple PV arrays

• AC-coupling lets you retrofit battery storage into existing solar systems

• Supports up to 30A input per MPPT—ideal for high-power solar modules

• Integrated DC breakers, anti-islanding, surge protection, and leakage detection

• Flexible system modes: Self-Consumption, Time-of-Use, Battery Priority, Grid Sell

Compatibility:

Model	LNT5K0228UL	LNT6K0228UL	LNT7K0228UL	LNT10K0228UL
Efficiency
Max. Efficiency (PV to AC)	98.0%
Max. Efficiency (BAT to AC)	94.5%
Input (PV)
Max. PV Input Power	7,500W	9,000W	12,000W	15,000W
Max. PV Voltage	600V
Start-up Voltage	90V
MPPT Operating Voltage Range	70V-540V
Max. Input Current per MPPT	30A/22A		30A/22A/22A
Max short current per MPPT	40A/30A		40A/30A/30A
String per MPPT	4(2/2)		6(2/2/2)
Nos. of MPPT	2		3
Input / Output (BAT)
Battery Type	Lithium-ion/Lead-acid
Nominal battery voltage	48V
Battery voltage range	40V-64V
Max. charge/discharge current	210A/130A	210A/130A	210A/180A	210A/210A
Max. charge/discharge power	10,000W/5,000W	10,000W/6,000W	10,000W/7,600W	11,400W/11,400W
Output (Grid)
Nominal AC Output Power	5,000W	6,000W	7,600W	10,000W
Max. AC Output Apparent power	5,500VA	6,600VA	7,600VA	11,400VA
Max. AC Output Power (PF=1)	5,500W	6,600W	7,600W	11,400W
Nominal AC Output Current	20.9A/24.1A	25A/28.9A	31.7A/36.6A	41.7A/47.5A
Max. AC output current	26.5A	31.8A	40.4A	47.5A
Nominal Grid Voltage	120/240V (Split phase) / 208V (2/3 phase)
Nominal Grid Frequency	50 Hz /60Hz
Grid Frequency Range	45Hz-55Hz/55Hz-65Hz（（Adjustable）
Power Factor	> 0.99 @rated power (Adjustable 0.8 LG – 0.8 LD)
THDI	<3% (Rated Power)
Output (Back Up)
Nominal Output Power	5,000W	6,000W	7,600W	10,000W
Nominal Output Current	20.9A/24.1A	25A/28.9A	31.7A/36.6A	41.7A/47.5A
Peak Output Apparent Power(1s)	10,000VA	12,000VA	15,200VA	20,000VA
Nominal Output Voltage	120/240V (Split phase) / 208V (2/3 phase)
Nominal Output Frequency	50 Hz /60Hz
Transfer Time	＜10ms
THDV	<3% @100% R Load
Protection
Protection Category	Class I
DC Switch	Yes
Anti-islanding Protection	Yes
AC Overcurrent Protection	Yes
DC/AC Overvoltage Protection	DC Type II, AC Type III
AC Short Circuit Protection	Yes
DC Reverse connection	Yes
Surge Arrester	DC Type II, AC Type II
Insulation Resistance Detection	Yes
Leakage Current Protection	Yes
AFCI	Yes
RSD	Yes (APsystems Sunspec)
Generator	Yes
General
Max. Operation Altitude	2000m
Ingress Protection Degree	IP65/NEMA 3R
Operating Temperature Range	-25~60℃(>45℃ derating)
Relative Humidity	0~100%
Cooling Method	Fan Cooling
Mounting	Wall bracket
Dimensions (W*H*D)	16.5*31.5*9.4 inch（420mm*800mm*240mm）
Weight	40Kg/88Ib
PV Connection Way	Terminals
HMI & COM
Display	Wireless & APP + LED , LCD (optional)
Communication Interface	RS485/CAN (for BMS), DRM/RS485 (for meter), RS485 , Optional: WiFi /LAN
Certification
Grid	UL1741SB, IEEE1547: 2018, HECO SRD 2.0
Safety	UL 1741/CSA C22.2/UL 1699B
EMC	FCC Part 15 Class B
Warranty	10 Years
