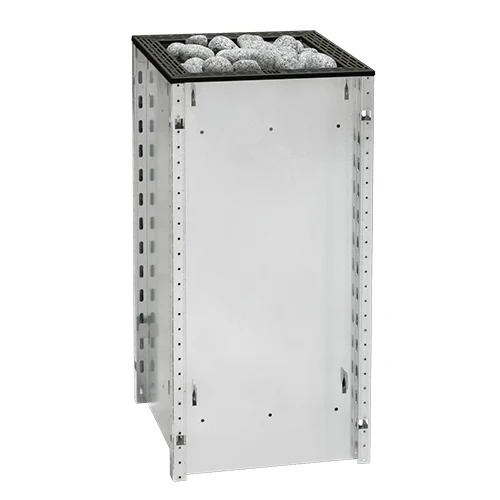

The HUUM CORE Sauna Heater is built to reflect the personality of its owner while providing exceptional performance and luxurious steam with a modern, refined look.
Crafted in Estonia where sauna is a way of life, the HUUM CORE BK/ST is constructed from stainless steel with different inlay finishes to choose from. The unit arrives without a casing for easy customization with ceramic tiles, stone, glass or wood to personalize the heater and make it your own. Available in a variety of power ratings to suit a wide array of sauna sizes, the CORE thrives in tight spaces where users can benefit from the heater’s small footprint and minimal safety distances. This clever design allows endless choices for placement, including the option to embed the heater within the sauna bench.
The CORE will swiftly heat the sauna room while you confidently ladle water upon the sauna stone surface to generate an abundance of steam. Pair the unit with a UKU Control for total command of your powerful sauna heater system.
Backed by a 3-year warranty for private use, the HUUM CORE BK/ST Sauna Heater is an embodiment of pure Nordic design, showcasing versatile functionality and durability while providing long-lasting relaxation.
Key Features:
- 240V/1PH operation
- Customizable design with choice of different inlay finishes
- Allows personalization with ceramic tiles, stone, glass, or wood
- Can be completely embedded into a sauna bench
- Direct contact between stones and heating elements
- Stainless steel, industrial quality heating elements
- Designed, engineered, and made in Estonia
- Works with UKU Controls (sold separately)
- 66 pound stone capacity (required 2Â boxes sold separately)
- Dimensions:Â 12.2"W (31 cm) x 12.2"D (31 cm) Â x 32.7"H (83 cm)
- Limited 3-year residential warranty and limited 1-year commercial warranty (excluding elements)
Includes:
- Sauna Heater
- Adjustable Legs (4)
- Unfinished Metal Shields (4)
- Cover Strips (4)
- Cover Strip Fastening Screws
- Installation and Operation Manual
- 3-Year Limited Residential Warranty and 1-Year Limited Commercial Warranty (Excluding Elements)
Required for Operation:
- 66 lbs stones (Qty 2 x 33 lbs 5-10cm stones boxes)
Product Specifications
HUUM CORE Series Sauna Heater, Customizable Exterior, Up to 10.5kW Product Specifications
| Category | Specification |
|---|---|
| Model | CORE BK/ST |
| Room Size | 177-566 cu. ft. |
| Wattage Rating | 6500-10500 W |
| Voltage | 240 V |
| Phase | 1 |
| Amperage | 25-43.75 A |
| Circuit Breaker | See Installation and Operation Manual |
| Wire Size (AWG) | 10 or 8 |
| Safety Listing | CE (CE Certificate) |
| Minimum Ceiling Height | 80" (203 cm) |
| Safety Distance (Front to Back) | See Installation and Operation Manual |
| Safety Distance (Left to Right) | See Installation and Operation Manual |
| Stone Capacity | 66 lbs (30 kg) |
| Stone Size | 2"–4" (5–10 cm) |
| Width | 12.2" (31 cm) |
| Depth | 12.2" (31 cm) |
| Height | 32.7" (83 cm) |
| Weight | 41.9 lbs (19 kg) |
| Shipping Weight (with Sauna Stones) | 107.9 lbs (48.9 kg) |
Product Manual
HUUM-CORE-Sauna-Heater-IOM.pdf
Product Warranty
HUUM-Warranty.pdf
Shipping:
About This Delivery: This sauna heater system requires a scheduled appointment. It arrives on a wooden pallet and is encased in three-ply cardboard for solid protection. The driver is responsible for “delivery only” and will provide limited assistance at the site. Prior to shipping, we may contact customers to share shipment details and needs and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses. Our goal is to ensure your project’s success.
Accessory Freight:Â Sauna accessories can be shipped with this sauna heater to save on shipping costs. Consider adding accessories to sauna heater orders to bolster margins.
Product FAQs
N/A
