Huum CLIFF 11, 10.5kW Sauna Heater

Huum CLIFF 11, 10.5kW Sauna Heater

Description

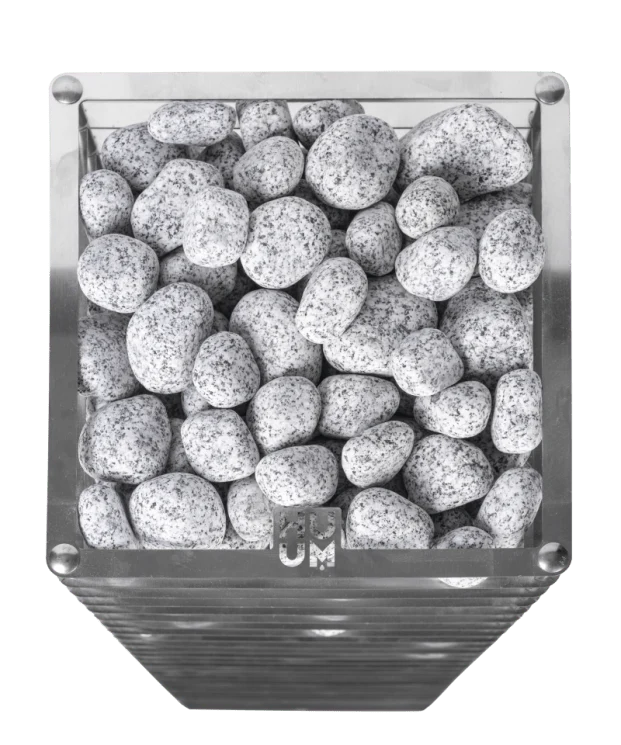

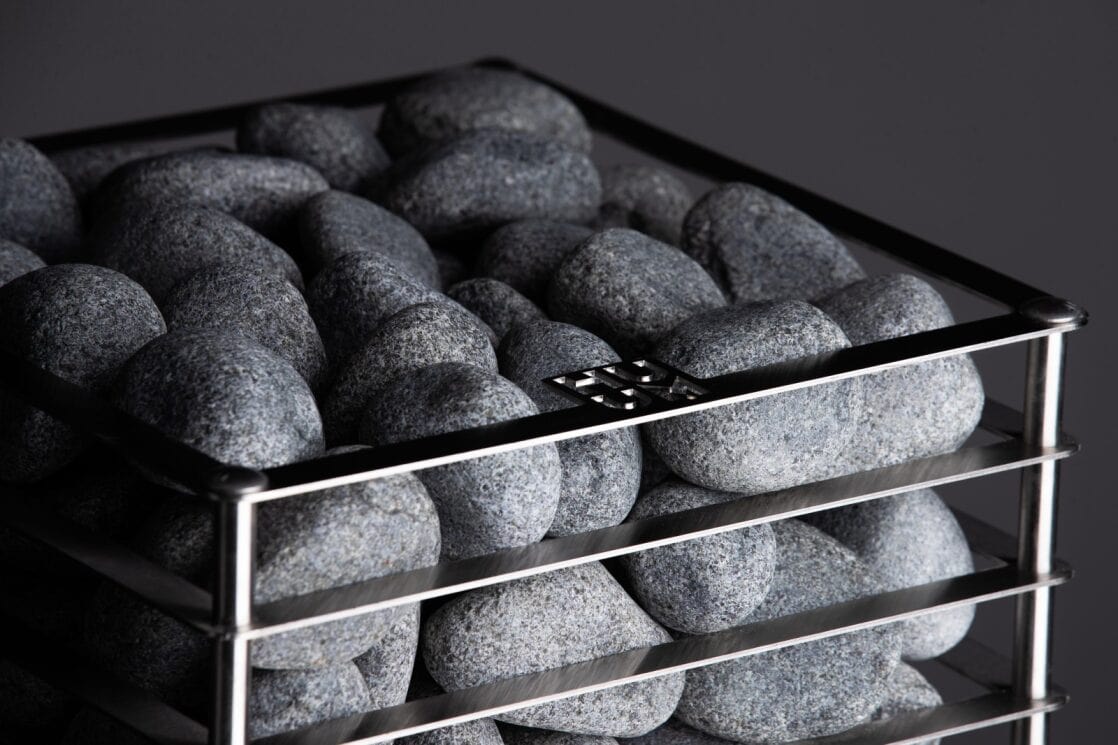

The CLIFF 10.5kW sauna heater is a slender electric sauna heater with remarkably small safety distances, which makes it perfect for saunas with limited spaces. The CLIFF 10.5kW sauna heater is designed for sauna spaces up to 600 cubic feet (CF).

Required Control, extension box, and sauna stones (5 boxes) sold separately

• Slender design
• Suitable for use in small saunas with limited space
• Small safety distances
• Heats up to 25% faster due to internal air duct
• For sauna rooms from 353 to 600 cu. ft.
• Works with UKU controls (sold separately)
• Works with UKU extension box (sold separately)
• 165 pound stone capacity (required 5 boxes sold separately)
• Removable rib(s) for more accurate stacking of stones
• Direct contact between stones and heating elements
• More exposed stones creates a longer and milder heat
• Stainless steel construction
• Stainless steel, industrial quality heating elements
• Floor model
• Designed, engineered, and made in Estonia
• Dimensions: 10.6" W (270mm) x 10.6" D (160mm) x 38.4" H (975mm)
• Limited 5-year warranty (excluding elements)

Product Specifications

Huum CLIFF 11, 10.5kW Sauna Heater Product Specifications

PACKAGE CONTENTS	10.5kW sauna heater 2 prop blocks (for removal of sauna rib slats) Installation and operation manual 5-Year limited warranty (excluding elements)
OPTIONAL ACCESSORIES	Rail C, Reflect C, Flange CS
COMPATIBLE SAUNA CONTROL	UKU
WEIGHT	37.5 lbs (17kg)
LENGTH / WIDTH	11.25" (285.8mm)
WIDTH / DEPTH	11.25" (285.8mm)
HEIGHT	38.25" (971.5mm)
DIAMETER	N/A
DIMENSIONS	11.25" W (285.8mm) x 11.25" W (285.8mm) x 38.25" H (971.5mm)
KW	10.5
WATTS	10500
VOLTS	240
AMPS	43.75
PHASE	1PH
ROOM VOLUME (CU. FT.)	353 - 600 CU. FT.
ROCK CAPACITY	165 lbs



Product Manual

CLIFF Installation Manual

CLIFF Spec Diagram

Product Warranty

HUUM Heater Warranty

Limited 5-Year Warranty (excludes heating elements)

Product FAQs

N/A
