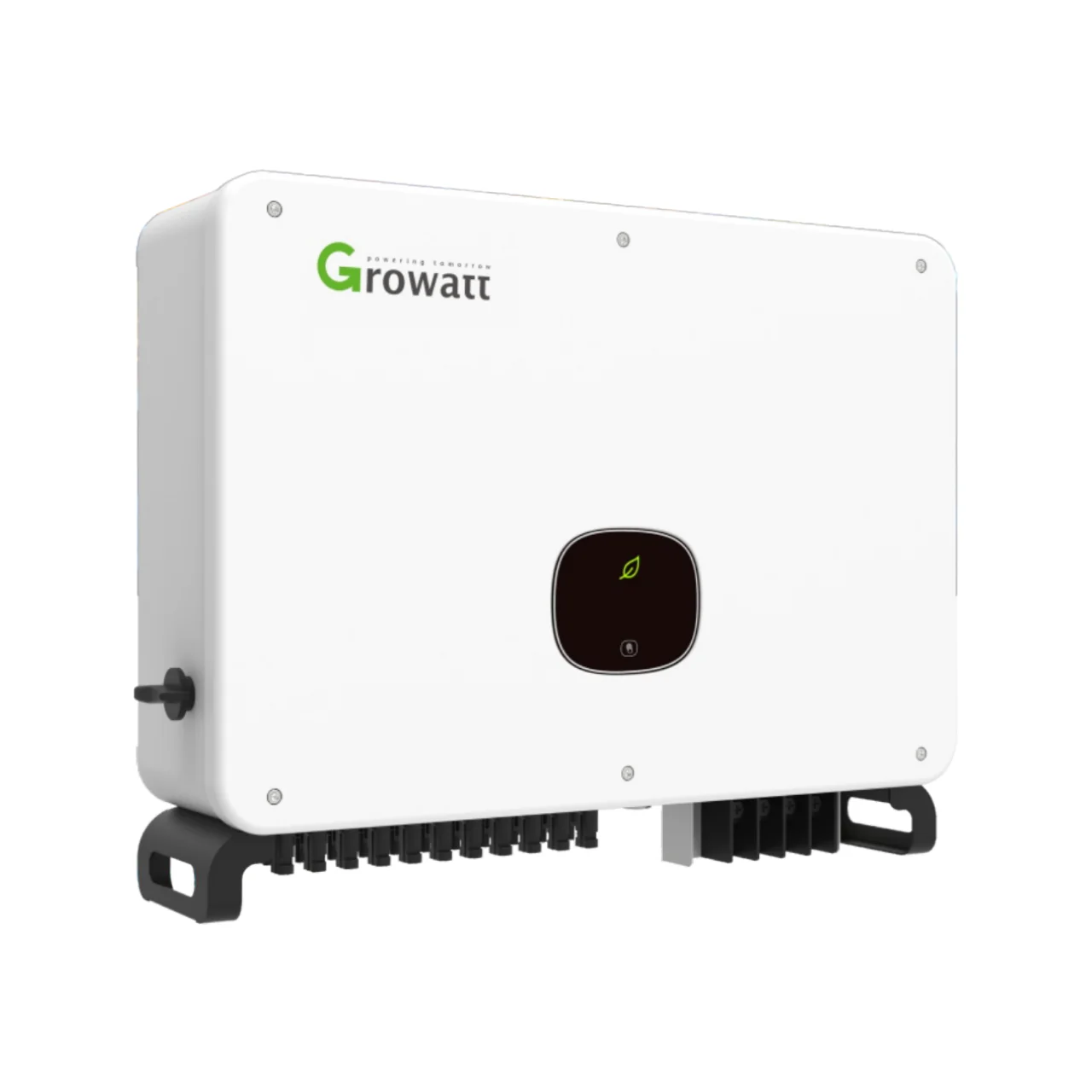

Growatt 60kW Three Phase Grid-Tie Inverter | MAC60KTL3-X MV

Growatt 60kW Three Phase Grid-Tie Inverter | MAC60KTL3-X MV

Description

The Growatt 60kW Three Phase Grid-Tie Inverter (MAC60KTL3-X MV) offers unparalleled performance for commercial solar installations. With a remarkable 60,000W capacity and three MPPTs, this inverter provides high-efficiency energy conversion, ensuring your system operates at peak performance. Designed for both reliability and safety, it features a fuseless design, an IP65 rating for durability, and compliance with CE standards. The inverter is equipped with smart diagnostics, making it easier than ever to monitor your solar system’s health, while its wide voltage range allows for flexibility across different applications.

Key Features:

• 3 MPPTs for efficient power management
• Smart Diagnosis for quick fault detection
• High Efficiency up to 98.8% for maximum energy output
• Local WiFi Connection for seamless monitoring
• OLED display and touch button for easy interface and control
• AC and DC Type II SPD for enhanced protection
• Data Storage up to 25 years for long-term monitoring and analysis
• 2-in-1 connection embedded for simplified setup

Product Specifications

Growatt 60kW Three Phase Grid-Tie Inverter | MAC60KTL3-X MV Product Specifications

Specification	Details
Nominal Power Output	60,000W (60kW)
Max. DC Voltage	1100V
Nominal DC Operating Voltage	600V
MPPT Voltage Range	200V – 1000V
Max. Input Current per MPPT	30A
Number of MPPTs / Strings per MPPT	6 / 2
AC Nominal Output Power	60kW
Max. AC Apparent Power	66kVA
AC Voltage Range	277/480V, 3-phase
Max. AC Output Current	91A
Frequency Range	50/60Hz
Max. Efficiency	98.8%
Euro Efficiency	98.4%
Protection Rating	IP66
Cooling Method	Intelligent Smart Cooling (fan)
Communication	RS485, WiFi / GPRS (optional), PLC
Weight	~88 kg (194 lbs)
Dimensions (W × H × D)	800 × 630 × 310 mm (31.5" × 24.8" × 12.2")
Warranty	5 years

Product Manual

Growatt Data Sheet

Growatt User Manual

Product Warranty

Growatt Warranty

Service terms & conditions.

(1)Product coverage: Including Growatt PV Inverters, Growatt Storage Inverters, Growatt Smart Energy Management Devices, Growatt Monitoring Software, EV Chargers, Portable Power Station and Growatt Batteries and Accessories

(2)Country and Region coverage: All country and regions, including China Hong Kong special administration region, Macao special administration region, Taiwan, excluding mainland China ONLY. Warranty coverage is contingent upon the alignment of the country of sale, the country of installation, and the country of after-sales service.

(3)Warranty claim: In general, serial number(S/N）must be provided in order to claim warranty. Please store the original purchasing invoice/ installation documents or receipts carefully. Customers need to present it for warranty claim if required.

(4)Warranty period: The standard warranty period is from the date of installation on the installation certificate and no more than six months after the delivery date from Growatt. A warranty extension may only be applied within a period of two years from the date of installation.

Growatt service commitment

(1) The service hotline for Growatt local service center varies, please check our local service center in your country/region. The service hotline in Shenzhen headquarter is +86 755 27471942. Our service hotline offering general inquiry, technical support, etc.

(2) Service email address: [email protected]. Customer is suggested to contact Growatt service representative in your country/region directly.

(3) Warranty period and service mode. We offer different service solutions for different product, see details on below table

Note: If warranty period was specified on sales order, then warranty period would obey to sales order.

(4) Installation and commissioning：Growatt don’t offer installation service, don’t offer onsite debugging service for monitoring device. Growatt can offer onsite commission service for big scale plant (inverter capacity＞500kw)

Product FAQs

N/A
