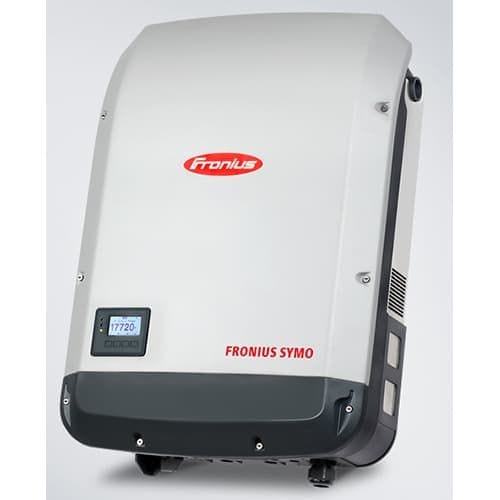

Fronius Symo 20.0-3, 20kW Non-Isolated String Inverter | 480 VAC
Fronius Symo 20.0-3, 20kW Non-Isolated String Inverter | 480 VAC
Description
Fronius Symo is the ideal compact threephase inverter for all commercial applications. The high system voltage and wide input range ensure maximum flexibility in system design. With low roof loading, NEMA 4X and 1000 V DC rating, the Fronius Symo can be mounted in many different ways, including flat on a roof or on a pole. The modern design is equipped with the SnapINverter mounting system, allowing for lightweight, secure and convenient installation. Several industry-leading features are available with the Fronius Symo including Wi-Fi and SunSpec Modbus interfaces for seamless monitoring and datalogging, field proven Arc Fault Circuit Interruption (AFCI), NEC 2014 compliant.
Features
- Compatibility - PC board replacement process. Smart grid ready.
- Safety - Arc Fault Circuit Interruption. SuperFlex Design.
- Safety - Arc Fault Circuit Interruption. SuperFlex Design.
Product Specifications
Fronius Symo Lite 20.0-3 480VAC Inverter Product Specifications
| Feature | Details |
|---|---|
| Dimensions | 20.10 x 28.50 x 8.90 inches |
| Weight | 76.70 lbs |
| Protection Class | NEMA 4X |
| Overvoltage Category (DC/AC) | < 1W |
| Night-Time Consumption | Transformerless |
| Cooling | Variable Speed Fan |
| Installation | Indoor & Outdoor Installation |
| Ambient Temperature Range | -40Ā°C to +60Ā°C |
| DC Connection Technology | 6x DC+ and 6x DC- screw terminals for copper (solid/stranded/fine stranded) or aluminum (solid/stranded) |
| Recommended PV Power | 12.00 - 19.50 kW |
| Maximum Usable Input Current | 33.00 A / 25.00 A |
| Minimum DC Current | 51.00 A |
| Maximum Array Short Circuit Current | 49.50 / 37.50 A |
| MPP Voltage Range | 450 V - 800 V |
| Operating Voltage Range | 200 V - 1000 V |
| Maximum Input Voltage | 1000 V |
| Maximum Efficiency | 97.00% |
Product Manual
N/A
Product Warranty
Fronius Product Warranty
Available Warranty Types
Fronius offers two types of warranty extensions. You can either chose the Fronius Warranty Plus which covers the cost of material, labour (service lump sum payment for the exchange by the installer) and freight or the Fronius Warranty which covers the cost of material only.
A detailed overview of the warranty types is available on the Fronius homepage.
Product FAQs
Fronius Product FAQs
How do I find Installer in my area?
You can find your nearest installer using our dedicated search tool, theĀ Fronius Service Ā Partner Search.
I would like t buy PV system. What do I need to do?
If you would like to buy a PV system, please contact an installer. If you do not know any local companies, you can find your nearest installer using our dedicatedĀ search tool.
What does Fronius offer in terms of e mobility?
The Fronius Wattpilot is an intelligent charging solution for everyone with an electric car. The Fronius Wattpilot is available in two versions - the permanently installed Wattpilot Home for your home and the mobile Wattpilot Go for on the way. The device can be operated via the associated Solar.wattpilot app, which also provides an overview of the charging process. The intelligent plug-and-play charging solution has two different charging modes, the Eco and the Next Trip mode. In addition, the Wattpilot is PV-optimized: The car can therefore be charged with excess solar energy in ampere steps in a particularly cost-efficient and sustainable manner.
