Fronius Symo 15.0-3, 15kW Non-Isolated String Inverter | 208VAC

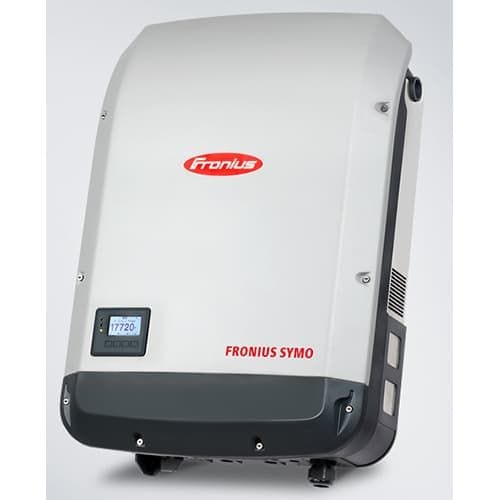

Fronius Symo 15.0-3 208VAC , Non-Isolated String Inverter
Description
Fronius Symo Three-Phase Commercial Inverters
The Fronius Symo three-phase commercial inverter utilizes the Fronius SnapINverter hinge mounting system, which enables tool-free attachment and removal of the inverter from the wall mounting plate and integrated disconnect, making it easier than ever to install large solar arrays. Power ranges from 10 kW to 24 kW. A wide MPPT voltage range, two MPPT input circuits (note: only one MPPT circuit on Symo 15.0-208-3), and the NEMA 4X enclosure provides greater flexibility in system design even in extreme environments. Fuse holders ship with slugs, so appropriate fuses must be ordered separately (See Electrical Distribution Parts).
Fronius Symo inverters can be equipped with the WiFi Fronius Datamanager 2.0 card that enables Internet monitoring via the Fronius Solar.web portal on computer or smartphone. Only one card is required for multiple Symo inverters installed in the same location. The inverters also support a Modbus interface for third-party monitoring and datalogging. The Fronius.Web monitoring portal can also utilize the free Fronius Solar.TV service, to transmit monitoring data to a public display, which includes system yield, energy production, and environmental benefits.
Fronius Symo inverters are covered by a 10-year warranty, which can be extended to 15 or 20 years. These transformerless inverters work with an ungrounded PV array topology so the requirements of NEC apply, including use of PV Wire for exposed array string wiring.
Features
- Dual-MPPT DC inputs
- Internal Arc Fault Circuit Interrupter (AFCI) for added safety per NEC 2011
- Inverter sizes available from 10.0 kW to 24.0 kW
- Easy-to-mount SnapINverter concept and NEMA 4X enclosure
- WiFi, wired Ethernet, or Serial monitoring through preinstalled Datamanager Card
- Monitoring included via Fronius Solar.Web Portal
- 10-year warranty, extendable up to 20 years
- Listed to UL 1741-2010, UL 1699B Issue 2-2013 and CSA TIL M-07 Issue 1-2013 for U.S.A. and Canada.
- Complies with: IEEE 1547-2003, IEEE 1547.1, ANSI/IEEE C62.41, FCC Part 15 A & B, C22.2 No. 107.1-01 (Sept 2001)
Product Specifications
Fronius Symo 15.0-3 208VAC , Non-Isolated String Inverter Product Specifications
| Feature | Details |
|---|---|
| Manufacturer | Fronius |
| Category | Three-phase Grid Tied |
| Type | String Inverter |
| Continuous AC Power Output | 15,000 W |
| Max Operating Voltage | 1,000 V |
| Min Operating Voltage | 325 V |
| AC Voltages | 208, 240 VAC |
| AC Frequencies | 60 Hz |
| Recommended PV Input (STC) | 19,500 W |
| Topology | Transformerless |
| Mounting Type | DIN Rail, Rack, Surface Mount |
| Special Features | Wifi Interface Option, Field Serviceability, Design Flexibility |
Product Manual
- Fronius Symo Data Sheet |Ā Download
- Fronius Symo Operations Manual |Ā Download
Product Warranty
Fronius Product Warranty
Available Warranty Types
Fronius offers two types of warranty extensions. You can either chose the Fronius Warranty Plus which covers the cost of material, labour (service lump sum payment for the exchange by the installer) and freight or the Fronius Warranty which covers the cost of material only.
A detailed overview of the warranty types is available on the Fronius homepage.
Product FAQs
Fronius Product FAQs
How do I find Installer in my area?
You can find your nearest installer using our dedicated search tool, theĀ Fronius Service Ā Partner Search.
I would like t buy PV system. What do I need to do?
If you would like to buy a PV system, please contact an installer. If you do not know any local companies, you can find your nearest installer using our dedicatedĀ search tool.
What does Fronius offer in terms of e mobility?
The Fronius Wattpilot is an intelligent charging solution for everyone with an electric car. The Fronius Wattpilot is available in two versions - the permanently installed Wattpilot Home for your home and the mobile Wattpilot Go for on the way. The device can be operated via the associated Solar.wattpilot app, which also provides an overview of the charging process. The intelligent plug-and-play charging solution has two different charging modes, the Eco and the Next Trip mode. In addition, the Wattpilot is PV-optimized: The car can therefore be charged with excess solar energy in ampere steps in a particularly cost-efficient and sustainable manner.
Original: $3,239.03
-65%$3,239.03
$1,133.66Product Information
