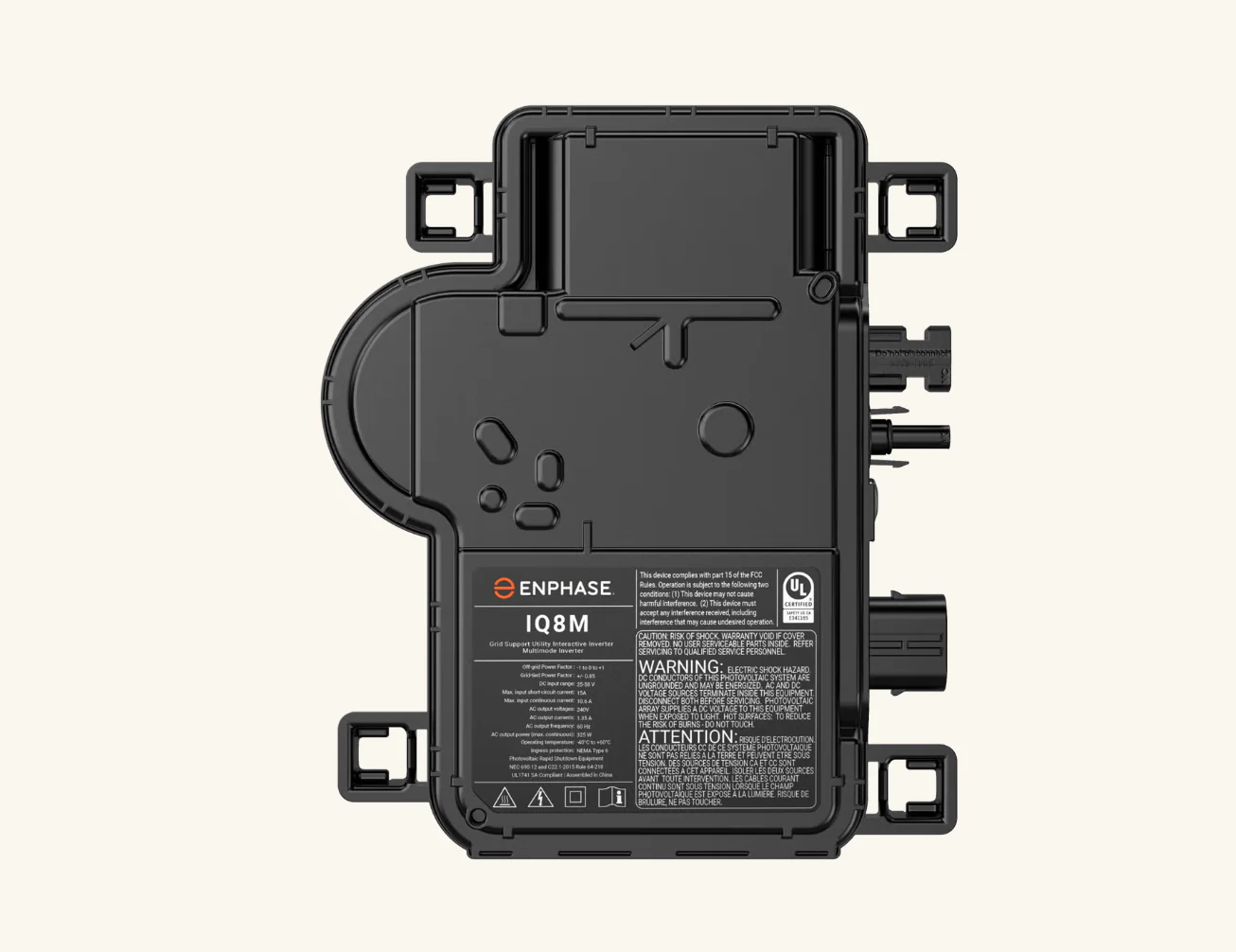

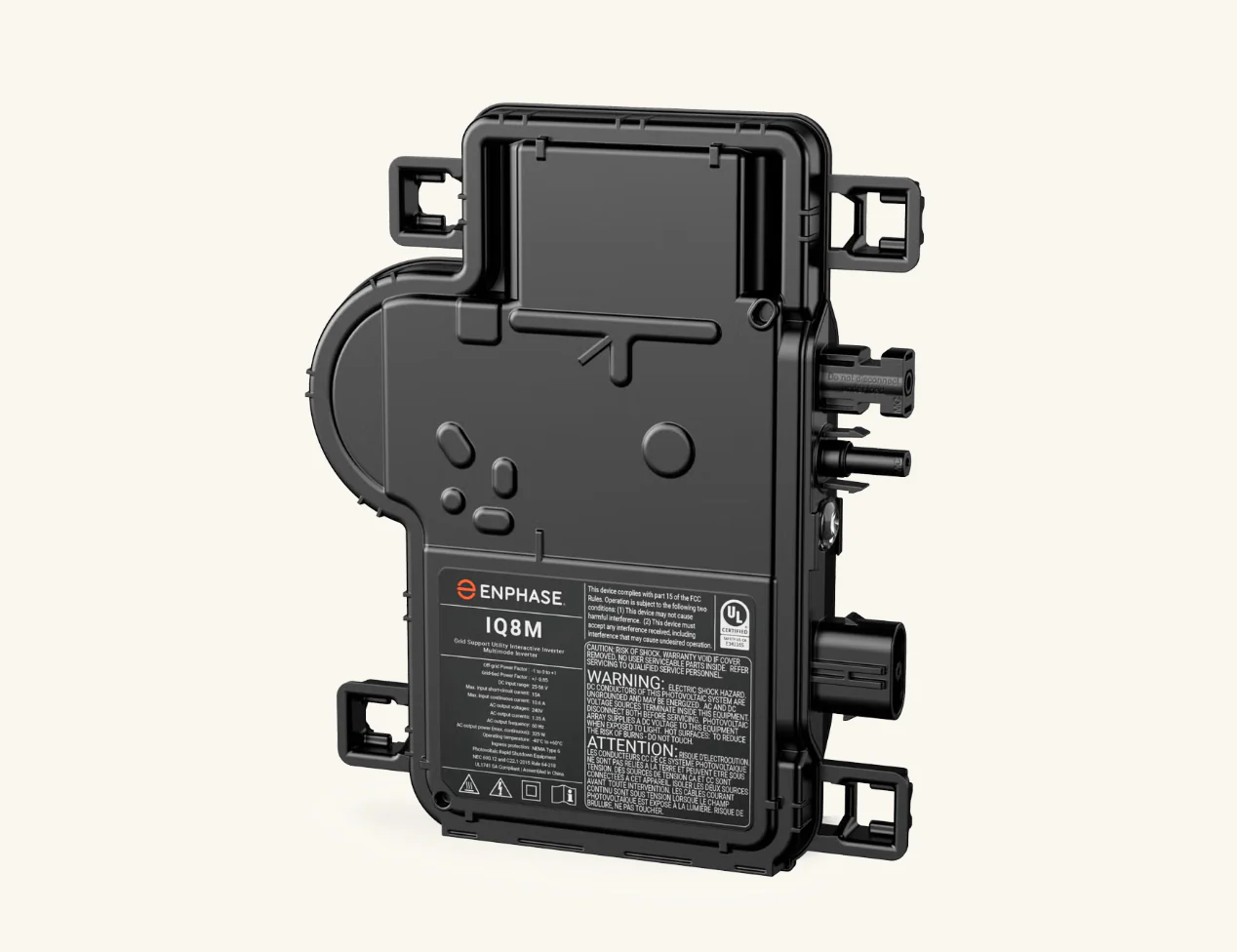

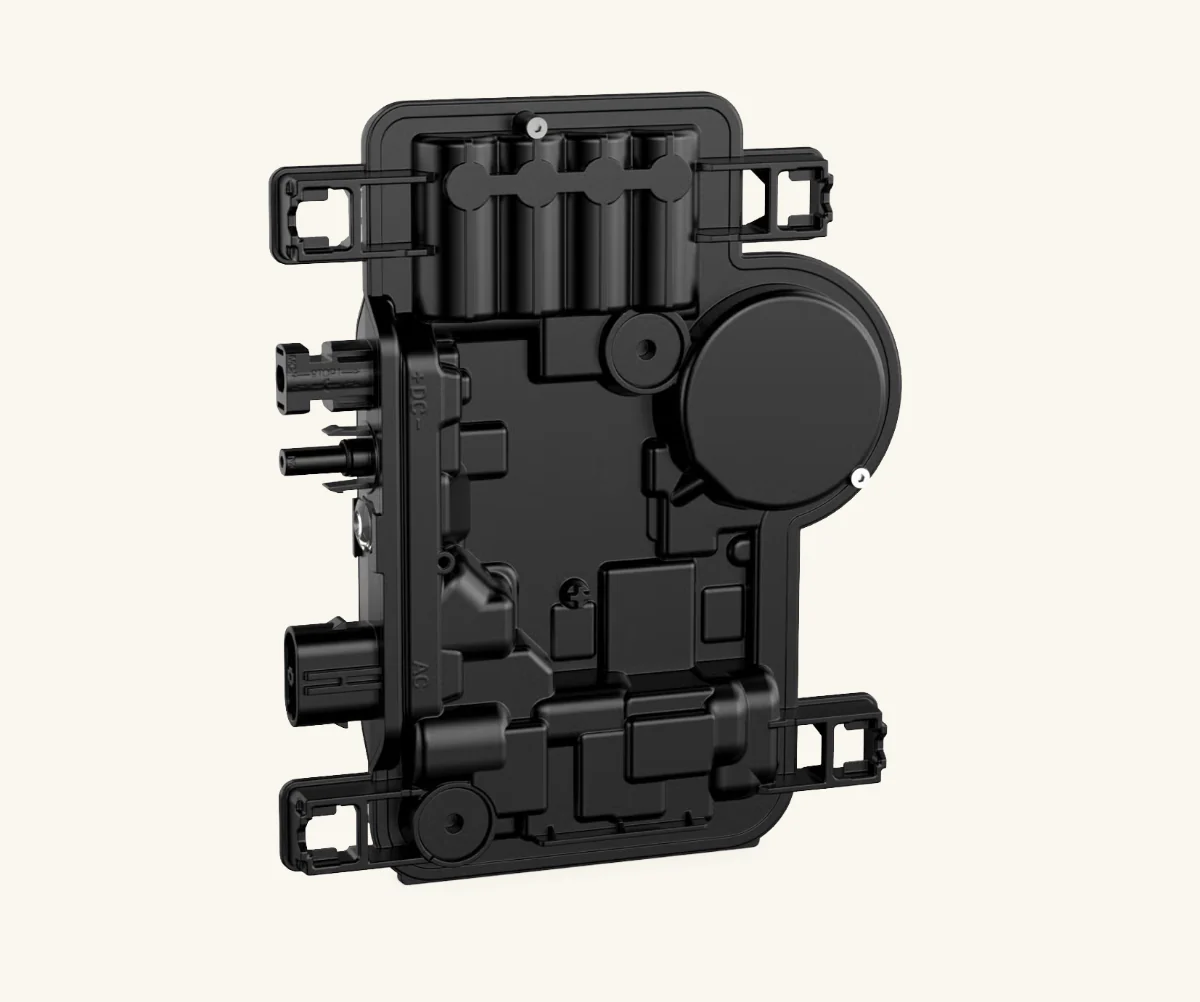

Enphase IQ8M Microinverter (MC4)
Enphase IQ8+ Microinverter (MC4)
Description
Our newest IQ8+ Microinverters are the industry's first grid-forming microinverters with split-phase power conversion capability to convert DC power to AC power efficiently.
The brain of the semiconductor-based microinverter is our proprietary application-specific integrated circuit (ASIC) which enables the microinverter to operate in grid-tied or off-grid modes. This chip is built in advanced 55 nm technology with high-speed digital logic and has super-fast response times to changing loads and grid events, alleviating constraints on battery sizing for home energy systems.
Part of the Enphase Energy System, IQ8+ Microinverters integrate with the Enphase IQ Battery, Enphase IQ Gateway, and the Enphase App monitoring and analysis software.
IQ8+ Microinverters redefine reliability standards with more than one million cumulative hours of power-on testing, enabling an industry-leading limited warranty of up to 25 years.
Connect PV modules quickly and easily to the IQ8 Series Microinverters that have integrated MC4 connectors.
IQ8+ Microinverters are UL Listed as PV Rapid Shutdown equipment and conform with various regulations when installed according to the manufacturer's instructions.
Features
- Lightweight and compact with plug-and-play connectors
- Power line communication (PLC) between components
- Faster installation with simple two-wire cabling
- Produce power even when the grid is down
- More than 1 million cumulative hours of testing
- Class II double-insulated enclosure
- Optimized for the latest high-powered PV modules
- Complies with the latest advanced grid support
- Remote automatic updates for the latest grid requirements
- Configurable to support a wide range of grid profiles
- Meets CA Rule 21 (UL 1741-SA) and IEEE 1547:2018 (UL 1741-SB)
- Required for Sunlight Jump Start
Product Specifications
Enphase IQ8+ Microinverter (MC4) Product Specifications
| Length | 212.00 mm |
|---|---|
| Width | 175.00 mm |
| Height | 30.20 mm |
| Weight | 1.1 kg |
- Peak output power: 300 VA
- Input power: 235 - 440 W
- Maximum continuous output power: 290 VA
- Operating range: 16 – 58 V
Product Manual
Enphase IQ8 and IQ8+ Microinverters data sheet
Enphase IQ8 and IQ8+ Microinverters with MC4 connectors data sheet
Product Warranty
Enphase Product Warranty
Product FAQs
Enphase Product FAQs
Microinverters with MC4 Connectors and Product Numbers
The following table lists IQ Microinverters with adapter cables and their integrated MC4 connector counterparts.
| IQ Microinverter with Adapter Cable (Q-DCC-2) | IQ Microinverter with Integrated MC4 Connector |
|---|---|
| IQ7-60-2-US | IQ7-60-M-US |
| IQ7PLUS-72-2-US | IQ7PLUS-72-M-US |
| IQ7A-72-2-US | IQ7A-72-M-US |
| IQ8-60-2-US | IQ8-60-M-US |
| IQ8PLUS-72-2-US | IQ8PLUS-72-M-US |
| IQ8M-72-2-US | IQ8M-72-M-US |
| IQ8A-72-2-US | IQ8A-72-M-US |
| IQ8H-240-72-2-US | IQ8H-240-72-M-US |
| IQ8H-208-72-2-US | IQ8H-208-72-M-US |
Mixing and Matching Microinverters
Yes, you can mix and match microinverters with and without integrated MC4 connectors as long as they belong to the same product line. For instance, an IQ7+ with an integrated MC4 connector can be combined with an IQ7+ using a Q-DCC-2 adapter.
When submitting permits, use “-x” in place of “-2” or “-M,” and specify:
Example: “Model Number: IQ7-60-x-US, where x = 2 or M” or “IQ8PLUS-72-x-US, where x = 2 or M.”
Permitting Recommendations for the IQ8 Series
When submitting permits and plan sets for the IQ8 Series, include additional models with an "or" clause. Examples:
- IQ8M-72-x-US: Specify “IQ8M-72-x-US or IQ8MC-72-M-US.”
- IQ8A-72-x-US: Specify “IQ8A-72-x-US or IQ8AC-72-M-US.”
- IQ8H-240-72-x-US: Specify “IQ8H-240-72-x-US or IQ8HC-72-M-US.”
- IQ8H-208-72-x-US: Specify “IQ8H-208-72-x-US or IQ8HC-72-M-US.”
Specifications for IQ8MC, IQ8AC, and IQ8HC Microinverters
Click the SKUs below to access their data sheets:
- IQ8MC-72-M-US
- IQ8AC-72-M-US
- IQ8HC-72-M-US
These SKUs support:
- 240 V-split-phase (L-L), 180° grids in single-phase/split-phase
- 208 V-single-phase (L-L), 120° connection
Availability of IQ Battery 5P and System Controller 3/3G
These products will be available in all 50 states and Puerto Rico. However, they are not yet released in Canada, Mexico, or other U.S. territories. Additional release details will be announced soon. For more information, contact your local Enphase Sales representative.
