Enphase IQ Load Controller
Enphase IQ Load Controller
Description

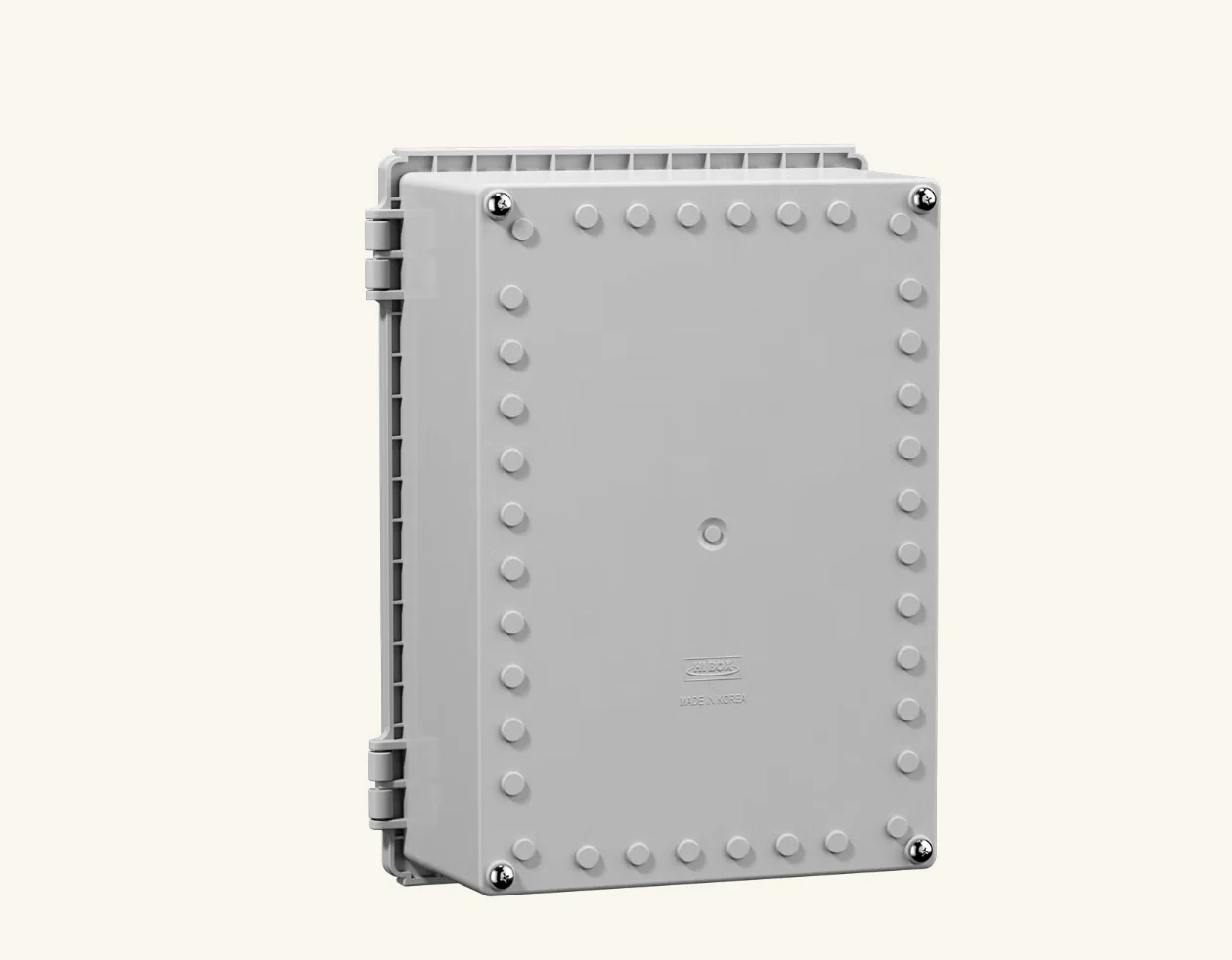

The IQ Load Controller is a complete solution to use the load control feature of the IQ System Controller.
Using the IQ Load Controller helps power your critical loads for a longer time when off-grid by shedding non-essential loads, or can help ensure right solar-to-storage ratio for an off-grid system.
This product can be used to control two 36 A dedicated loads or two 32 A branches or solar circuits.
The DIN rail design enables easy installation and servicing.
The product comes with a 5-year limited warranty.
Features
- Control up to two 36 A resistive loads, three HP/25 A inductive loads running at 240 VAC, or four loads running at 120 VAC
- Shed up to two excess IQ6 Series, IQ7 Series, M215, or M250 solar branch circuits (up to 32 A each) to maintain solar-to-storage ratio when off-grid
- Prioritize essential appliances during a grid outage to optimize energy consumption and prolong battery life
- Choose from three load control modes for flexibility or manually control loads from the Enphase App
- A complete solution for use with the IQ System Controller load control feature
- DIN rail-mounted components enable easy installation and servicing
- Easy configuration via the Enphase Installer App
- Designed for indoor or outdoor installations
- 5-year limited warranty
Compatibility
- Enphase Energy System 1.0/2.0/3.0
- IQ Battery
- M Series Microinverters
- IQ Microinverters
- IQ System Controller
- IQ Combiner
- IQ Gateway
Product Specifications
Enphase IQ Load Controller Product Specifications
| Width | 319.5 mm |
| Height | 370.3 mm |
| Depth | 151.4 mm |
| Weight | 6.6 lbs |
Product Manual
Enphase IQ Load Controller data sheet
Product Warranty
5 Year Limited Warranty
Product FAQs
Enphase Product FAQs
What is changing with the introduction of IQ8 Series Microinverters?
The IQ8 family of microinverters adds exciting new grid forming capabilities. As a result of these new requirements, there are several new requirements from the National Electric Code that systems must adhere to. This changes installation and wiring methods that installers must account for during the sales, design, and installation process.
The new requirements only apply to IQ8 systems with back-up power configurations (sunlight back-up without storage, or back-up configurations w/ IQ8s and IQ Batteries). The changes do not apply to a grid tied-only configuration of IQ8 (no back-up functionality). In a grid-tied only configuration, an IQ8 PV system would have the same design and installation parameters of a grid tied-only IQ7 system.
Summary of key design and installation differences between back-up configurations of IQ8 and IQ7
|
PV only back-up configuration |
No |
Yes. IQ Load Controller (EP-NA-LK02-040) and IQ System Controller 2 (EP200G101-M240US00) Required |
|
PV black start |
No |
Yes |
|
PV size limit |
96A while off grid |
64A. PV must be landed on lugs in System Controller 2 |
|
PV:ESS power ratio limit |
1.5 |
No power limit |
|
PV Breaker Type for IQ Combiner |
Standard 20A 2 pole breaker |
Eaton BR220B breakers (BRK-20A-2P-240V-B) |
|
PV plugin breaker tiedown kit requirement |
No |
Yes X-IQ-NA-HD-125A from Enphase or BREQS125 from Eaton - One per two PV Breakers in IQ Combiner and EP200G-NA-HD-200A from Enphase or BRHDK125 from Eaton in IQ System Controller 2 |
|
PV Rapid Shutdown initiator |
PV system disconnect |
External Rapid shutdown initiator (EP200G-NA-02-RSD) required – must be used with IQ System Controller 2 |
|
IQ Gateway (Envoy) breaker location |
IQ Combiner (PV array) |
IQ System Controller. IQ Gateway re-wiring required to move IQ Gateway breaker from IQ Combiner to IQ System Controller either on Generator location or Quad breaker in Autotransformer location |
|
IQ Gateway (Envoy) physical location |
Near PV array |
Near IQ System Controller 2 |
|
System Controller Type |
System Controller 1 or 2 |
System Controller 2 only |
|
Hold down kit for storage breaker in System Controller |
Yes |
Yes. Now available for purchase from Enphase (EP200G-NA-HD-200A) |
|
IQ Combiner Type |
IQ Combiner 3/3C or 4/4C |
IQ Combiner 4 or 4C (X-IQ-AM1-240-4 or X-IQ-AM1-240-4C) |
|
Cell Modem Required |
Yes |
Yes |
Kindly find the latest tech brief for enphase system shutdown here
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Enphase IQ Load Controller
Description
The IQ Load Controller is a complete solution to use the load control feature of the IQ System Controller.
Using the IQ Load Controller helps power your critical loads for a longer time when off-grid by shedding non-essential loads, or can help ensure right solar-to-storage ratio for an off-grid system.
This product can be used to control two 36 A dedicated loads or two 32 A branches or solar circuits.
The DIN rail design enables easy installation and servicing.
The product comes with a 5-year limited warranty.
Features
- Control up to two 36 A resistive loads, three HP/25 A inductive loads running at 240 VAC, or four loads running at 120 VAC
- Shed up to two excess IQ6 Series, IQ7 Series, M215, or M250 solar branch circuits (up to 32 A each) to maintain solar-to-storage ratio when off-grid
- Prioritize essential appliances during a grid outage to optimize energy consumption and prolong battery life
- Choose from three load control modes for flexibility or manually control loads from the Enphase App
- A complete solution for use with the IQ System Controller load control feature
- DIN rail-mounted components enable easy installation and servicing
- Easy configuration via the Enphase Installer App
- Designed for indoor or outdoor installations
- 5-year limited warranty
Compatibility
- Enphase Energy System 1.0/2.0/3.0
- IQ Battery
- M Series Microinverters
- IQ Microinverters
- IQ System Controller
- IQ Combiner
- IQ Gateway
Product Specifications
Enphase IQ Load Controller Product Specifications
| Width | 319.5 mm |
| Height | 370.3 mm |
| Depth | 151.4 mm |
| Weight | 6.6 lbs |
Product Manual
Enphase IQ Load Controller data sheet
Product Warranty
5 Year Limited Warranty
Product FAQs
Enphase Product FAQs
What is changing with the introduction of IQ8 Series Microinverters?
The IQ8 family of microinverters adds exciting new grid forming capabilities. As a result of these new requirements, there are several new requirements from the National Electric Code that systems must adhere to. This changes installation and wiring methods that installers must account for during the sales, design, and installation process.
The new requirements only apply to IQ8 systems with back-up power configurations (sunlight back-up without storage, or back-up configurations w/ IQ8s and IQ Batteries). The changes do not apply to a grid tied-only configuration of IQ8 (no back-up functionality). In a grid-tied only configuration, an IQ8 PV system would have the same design and installation parameters of a grid tied-only IQ7 system.
Summary of key design and installation differences between back-up configurations of IQ8 and IQ7
|
PV only back-up configuration |
No |
Yes. IQ Load Controller (EP-NA-LK02-040) and IQ System Controller 2 (EP200G101-M240US00) Required |
|
PV black start |
No |
Yes |
|
PV size limit |
96A while off grid |
64A. PV must be landed on lugs in System Controller 2 |
|
PV:ESS power ratio limit |
1.5 |
No power limit |
|
PV Breaker Type for IQ Combiner |
Standard 20A 2 pole breaker |
Eaton BR220B breakers (BRK-20A-2P-240V-B) |
|
PV plugin breaker tiedown kit requirement |
No |
Yes X-IQ-NA-HD-125A from Enphase or BREQS125 from Eaton - One per two PV Breakers in IQ Combiner and EP200G-NA-HD-200A from Enphase or BRHDK125 from Eaton in IQ System Controller 2 |
|
PV Rapid Shutdown initiator |
PV system disconnect |
External Rapid shutdown initiator (EP200G-NA-02-RSD) required – must be used with IQ System Controller 2 |
|
IQ Gateway (Envoy) breaker location |
IQ Combiner (PV array) |
IQ System Controller. IQ Gateway re-wiring required to move IQ Gateway breaker from IQ Combiner to IQ System Controller either on Generator location or Quad breaker in Autotransformer location |
|
IQ Gateway (Envoy) physical location |
Near PV array |
Near IQ System Controller 2 |
|
System Controller Type |
System Controller 1 or 2 |
System Controller 2 only |
|
Hold down kit for storage breaker in System Controller |
Yes |
Yes. Now available for purchase from Enphase (EP200G-NA-HD-200A) |
|
IQ Combiner Type |
IQ Combiner 3/3C or 4/4C |
IQ Combiner 4 or 4C (X-IQ-AM1-240-4 or X-IQ-AM1-240-4C) |
|
Cell Modem Required |
Yes |
Yes |
Kindly find the latest tech brief for enphase system shutdown here
