Description

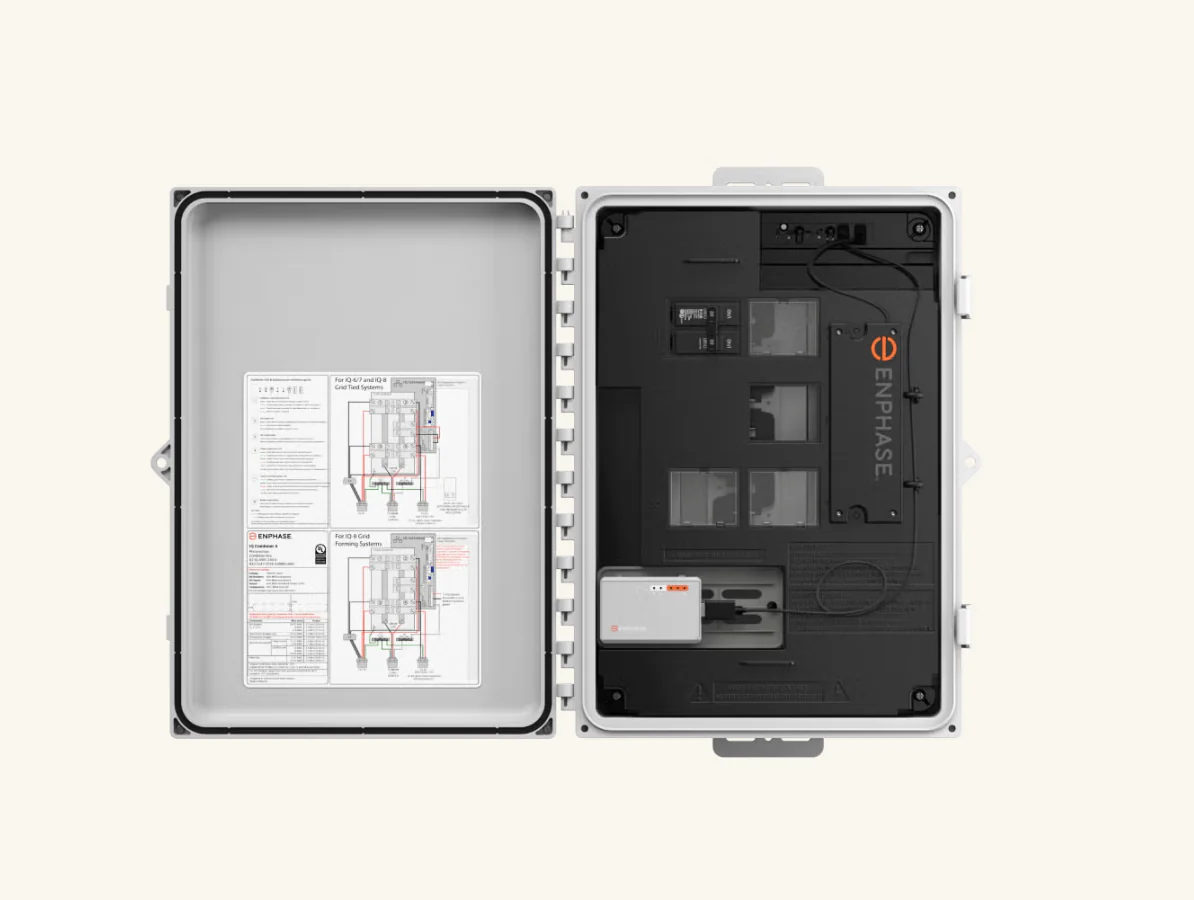

The Enphase IQ Combiner 4/4C with IQ Gateway and integrated LTE-M1 cell modem (included only with IQ Combiner 4C) consolidates interconnection equipment into a single enclosure and streamlines Enphase Energy Systems by providing a consistent, pre-wired solution for residential applications. It offers up to four 2-pole input circuits and Eaton BR series busbar assembly. Compatible with IQ8 Microinverters.
Note: This kit does not include BR breakers.
- Includes IQ Gateway for communication and control
- Includes Enphase Mobile Connect cellular modem (CELLMODEM-M1-06-SP-05) with 5-year data plan provided by T-mobile, included only with IQ Combiner 4C
- Alternate Enphase Mobile Connect modem with 5-year data plan provided by AT&T (CELLMODEM-M1-06-AT-05) and T-Mobile (CELLMODEM-M1-06-SP-05) available separately to be used with IQ Combiner 4
- Includes solar shield to match Enphase IQ Battery aesthetics and deflect heat
- Flexible networking supports Wi-Fi, Ethernet, or cellular
- Optional AC receptacle available for PLC bridge
- Provides production metering and consumption monitoring
- Centered mounting brackets support single stud mounting
- Supports bottom, back, and side conduit entry
- Up to four 2-pole branch circuits for 240VAC plug-in breakers (not included) with hold down kit support
- Durable NRTL-certified NEMA type 3R enclosure
- Five-year limited warranty
- Two years labor reimbursement program coverage included
- Compatible with IQ8-Series and IQ7-Series Microinverters
- UL listed
- X2-IQ-AM1-240-4 complies with IEEE 1547:2018 (UL 1741-SB, 3rd Ed.)
Product Specifications
Enphase IQ Combiner 4 (IEEE certified) Product Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Enphase |
| Model | X2-IQ-AM1-240-4 |
| Length [mm (in)] | 535 mm (21.06 in) |
| Width [mm (in)] | 375 mm (14.75 in) |
| Depth [mm (in)] | 168 mm (6.63 in) |
| Weight [kg (lb)] | 7.5 kg (16.5 lb) |
| Workmanship Warranty Period [Years] | 5 |
What's in the Box?
- IQ Combiner 4
- IQ Gateway PCBA
- Pair of Consumption Current Transformers (CT)
- Production Current Transformers (CT)
- Solar shield
Product Manual
Enphase IQ Combiner 4/4C IEEE 1547 compliant data sheet
Enphase PCS Integration in Enphase Energy System 3.0 UL certification document
Enphase IQ Combiner 4
Product Warranty
Enphase Product Warranty
Product FAQs
Enphase Product FAQs
What is changing with the introduction of IQ8 Series Microinverters?
The IQ8 family of microinverters adds exciting new grid forming capabilities. As a result of these new requirements, there are several new requirements from the National Electric Code that systems must adhere to. This changes installation and wiring methods that installers must account for during the sales, design, and installation process.
The new requirements only apply to IQ8 systems with back-up power configurations (sunlight back-up without storage, or back-up configurations w/ IQ8s and IQ Batteries). The changes do not apply to a grid tied-only configuration of IQ8 (no back-up functionality). In a grid-tied only configuration, an IQ8 PV system would have the same design and installation parameters of a grid tied-only IQ7 system.
Summary of key design and installation differences between back-up configurations of IQ8 and IQ7
|
PV only back-up configuration |
No |
Yes. IQ Load Controller (EP-NA-LK02-040) and IQ System Controller 2 (EP200G101-M240US00) Required |
|
PV black start |
No |
Yes |
|
PV size limit |
96A while off grid |
64A. PV must be landed on lugs in System Controller 2 |
|
PV:ESS power ratio limit |
1.5 |
No power limit |
|
PV Breaker Type for IQ Combiner |
Standard 20A 2 pole breaker |
Eaton BR220B breakers (BRK-20A-2P-240V-B) |
|
PV plugin breaker tiedown kit requirement |
No |
Yes X-IQ-NA-HD-125A from Enphase or BREQS125 from Eaton - One per two PV Breakers in IQ Combiner and EP200G-NA-HD-200A from Enphase or BRHDK125 from Eaton in IQ System Controller 2 |
|
PV Rapid Shutdown initiator |
PV system disconnect |
External Rapid shutdown initiator (EP200G-NA-02-RSD) required ā must be used with IQ System Controller 2 |
|
IQ Gateway (Envoy) breaker location |
IQ Combiner (PV array) |
IQ System Controller. IQ Gateway re-wiring required to move IQ Gateway breaker from IQ Combiner to IQ System Controller either on Generator location or Quad breaker in Autotransformer location |
|
IQ Gateway (Envoy) physical location |
Near PV array |
Near IQ System Controller 2 |
|
System Controller Type |
System Controller 1 or 2 |
System Controller 2 only |
|
Hold down kit for storage breaker in System Controller |
Yes |
Yes. Now available for purchase from Enphase (EP200G-NA-HD-200A) |
|
IQ Combiner Type |
IQ Combiner 3/3C or 4/4C |
IQ Combiner 4 or 4C (X-IQ-AM1-240-4 or X-IQ-AM1-240-4C) |
|
Cell Modem Required |
Yes |
Yes |
What are the product numbers of microinverters with MC4 connectors?
This table lists the existing product SKU numbers and their equivalent integrated MC4 connector counterparts.
|
IQ Microinverter with adapter cable (Q-DCC-2) |
IQ Microinverter with integrated MC4 connector |
|---|---|
|
IQ7-60-2-US |
IQ7-60-M-US |
|
IQ7PLUS-72-2-US |
IQ7PLUS-72-M-US |
|
IQ7A-72-2-US |
IQ7A-72-M-US |
|
IQ8-60-2-US |
IQ8-60-M-US |
|
IQ8PLUS-72-2-US |
IQ8PLUS-72-M-US |
|
IQ8M-72-2-US |
IQ8M-72-M-US |
|
IQ8A-72-2-US |
IQ8A-72-M-US |
|
IQ8H-240-72-2-US |
IQ8H-240-72-M-US |
|
IQ8H-208-72-2-US |
IQ8H-208-72-M-US |
Product Information
Product Information
