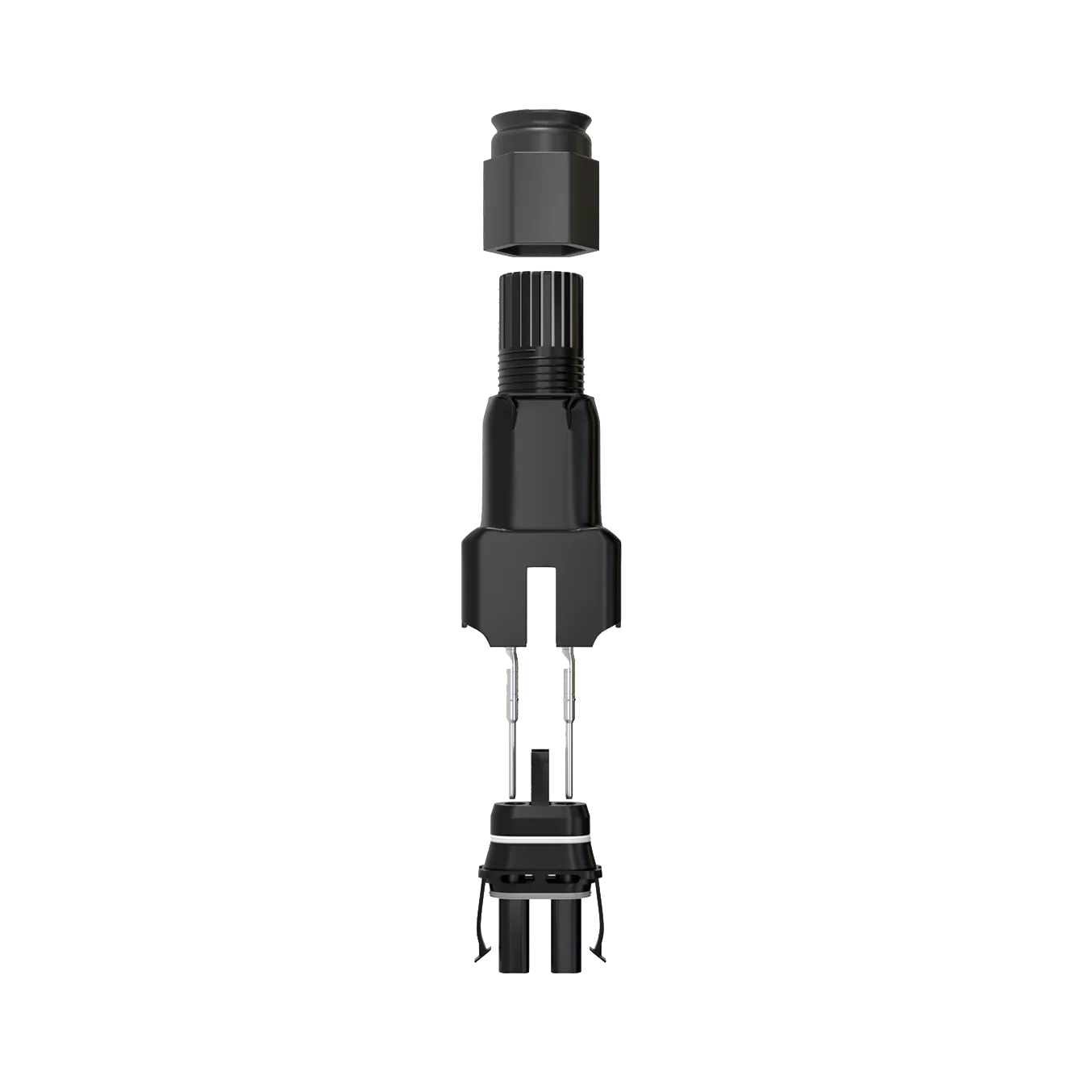

Enphase IQ Field Wireable (plug)

Enphase IQ Field Wireable (plug)

Description

• Uses MC-style crimp tool
• Plug (male) and socket (female) connector types available

What's in the box?

• 10 IQ Field Wireables (plug)


Compatibility

• IQ Microinverters
• IQ Cable
• 60-, 72-, and 96-cell PV modules



Product Specifications

Enphase IQ Field Wireable (plug) Product Specifications

• Degree of protection: IP67, IEC 60529
• Temperature rating: 90° C wet/dry
• Rated voltage: Up to 250 V


Product Manual

N/A

Product Warranty

Enphase Product Warranty

Product FAQs

Enphase Product FAQs

Microinverters with MC4 Connectors and Product Numbers

The following table lists IQ Microinverters with adapter cables and their integrated MC4 connector counterparts.

IQ Microinverter with Adapter Cable (Q-DCC-2)	IQ Microinverter with Integrated MC4 Connector
IQ7-60-2-US	IQ7-60-M-US
IQ7PLUS-72-2-US	IQ7PLUS-72-M-US
IQ7A-72-2-US	IQ7A-72-M-US
IQ8-60-2-US	IQ8-60-M-US
IQ8PLUS-72-2-US	IQ8PLUS-72-M-US
IQ8M-72-2-US	IQ8M-72-M-US
IQ8A-72-2-US	IQ8A-72-M-US
IQ8H-240-72-2-US	IQ8H-240-72-M-US
IQ8H-208-72-2-US	IQ8H-208-72-M-US

Mixing and Matching Microinverters

Yes, you can mix and match microinverters with and without integrated MC4 connectors as long as they belong to the same product line. For instance, an IQ7+ with an integrated MC4 connector can be combined with an IQ7+ using a Q-DCC-2 adapter.

When submitting permits, use “-x” in place of “-2” or “-M,” and specify:

Example: “Model Number: IQ7-60-x-US, where x = 2 or M” or “IQ8PLUS-72-x-US, where x = 2 or M.”

Permitting Recommendations for the IQ8 Series

When submitting permits and plan sets for the IQ8 Series, include additional models with an "or" clause. Examples:

• IQ8M-72-x-US: Specify “IQ8M-72-x-US or IQ8MC-72-M-US.”
• IQ8A-72-x-US: Specify “IQ8A-72-x-US or IQ8AC-72-M-US.”
• IQ8H-240-72-x-US: Specify “IQ8H-240-72-x-US or IQ8HC-72-M-US.”
• IQ8H-208-72-x-US: Specify “IQ8H-208-72-x-US or IQ8HC-72-M-US.”

Specifications for IQ8MC, IQ8AC, and IQ8HC Microinverters

Click the SKUs below to access their data sheets:

• IQ8MC-72-M-US
• IQ8AC-72-M-US
• IQ8HC-72-M-US

These SKUs support:

• 240 V-split-phase (L-L), 180° grids in single-phase/split-phase
• 208 V-single-phase (L-L), 120° connection

Availability of IQ Battery 5P and System Controller 3/3G

These products will be available in all 50 states and Puerto Rico. However, they are not yet released in Canada, Mexico, or other U.S. territories. Additional release details will be announced soon. For more information, contact your local Enphase Sales representative.
