Enphase IQ Cable (portrait, three-phase)

Enphase IQ Cable (portrait, three-phase)

Description

The Enphase IQ Cable (portrait, three-phase) is a specialized continuous cable used to quickly and easily connect Enphase IQ Microinverters in a solar photovoltaic (PV) system that operates on three-phase alternating current (AC).

What's in the box?

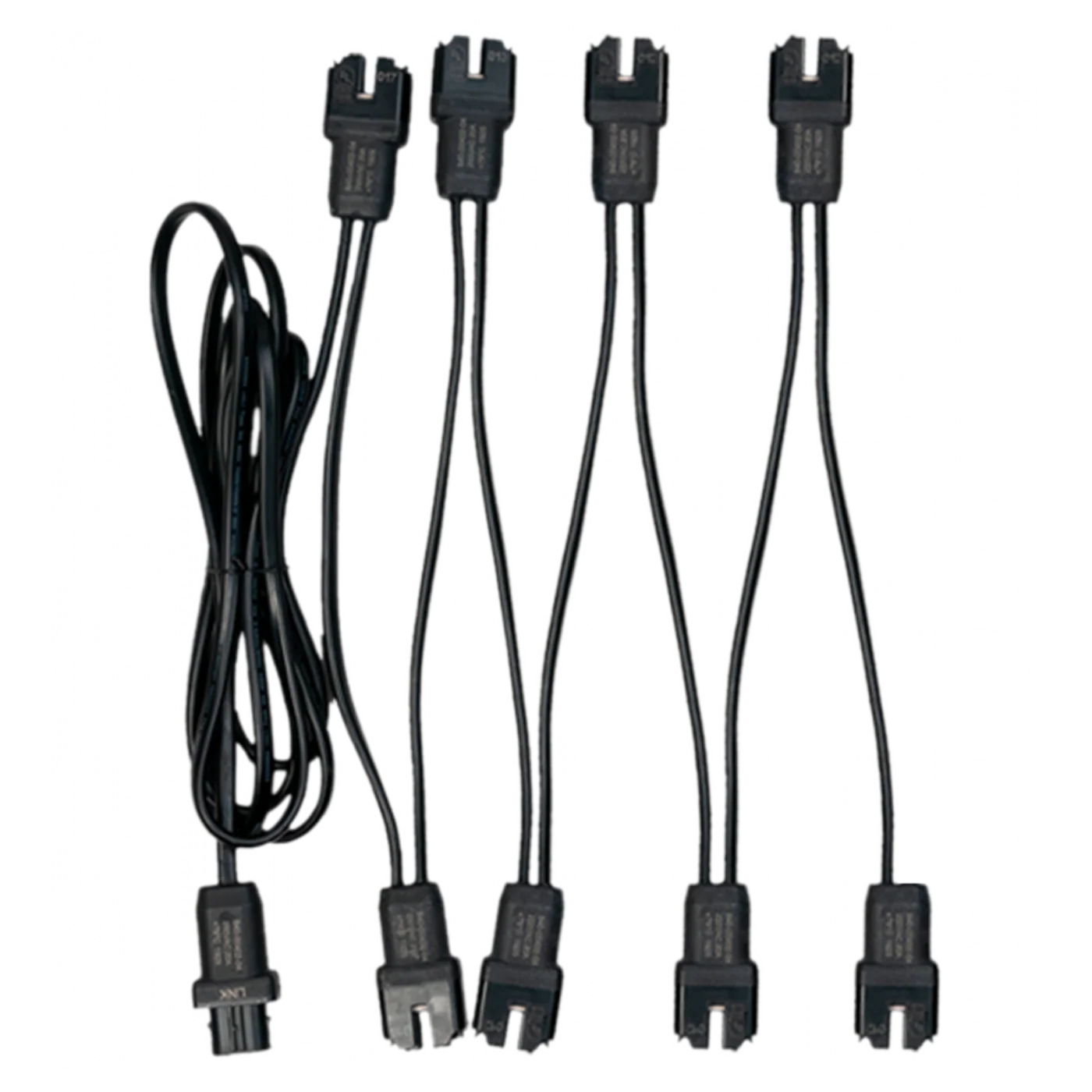

• 4 drops IQ Cables (portrait, three-phase)


Compatibility

• IQ Microinverters
• IQ Cable
• 60-, 72-, and 96-cell PV modules



Product Specifications

Enphase IQ Cable (portrait, three-phase) Product Specifications

• Voltage rating: 600 V (connector rating 250 V)
• Current rating: 25 A
• Connector spacing: 1.3 m
• Temperature rating: 90°C dry/wet
• Cable insulator rating: IEC 60529, IP67
• Flame test rating: IEC 60332-1-2
• Compliance: RoHS, OIL RES I, CE, UV resistant
• Connector spacing: 1300 mm
• Diameter: 2.5mm²
• Weight: 1.81 kg

Product Manual

N/A

Product Warranty

Enphase Product Warranty

Product FAQs

Enphase Product FAQs

Microinverters with MC4 Connectors and Product Numbers

The following table lists IQ Microinverters with adapter cables and their integrated MC4 connector counterparts.

IQ Microinverter with Adapter Cable (Q-DCC-2)	IQ Microinverter with Integrated MC4 Connector
IQ7-60-2-US	IQ7-60-M-US
IQ7PLUS-72-2-US	IQ7PLUS-72-M-US
IQ7A-72-2-US	IQ7A-72-M-US
IQ8-60-2-US	IQ8-60-M-US
IQ8PLUS-72-2-US	IQ8PLUS-72-M-US
IQ8M-72-2-US	IQ8M-72-M-US
IQ8A-72-2-US	IQ8A-72-M-US
IQ8H-240-72-2-US	IQ8H-240-72-M-US
IQ8H-208-72-2-US	IQ8H-208-72-M-US

Mixing and Matching Microinverters

Yes, you can mix and match microinverters with and without integrated MC4 connectors as long as they belong to the same product line. For instance, an IQ7+ with an integrated MC4 connector can be combined with an IQ7+ using a Q-DCC-2 adapter.

When submitting permits, use “-x” in place of “-2” or “-M,” and specify:

Example: “Model Number: IQ7-60-x-US, where x = 2 or M” or “IQ8PLUS-72-x-US, where x = 2 or M.”

Permitting Recommendations for the IQ8 Series

When submitting permits and plan sets for the IQ8 Series, include additional models with an "or" clause. Examples:

• IQ8M-72-x-US: Specify “IQ8M-72-x-US or IQ8MC-72-M-US.”
• IQ8A-72-x-US: Specify “IQ8A-72-x-US or IQ8AC-72-M-US.”
• IQ8H-240-72-x-US: Specify “IQ8H-240-72-x-US or IQ8HC-72-M-US.”
• IQ8H-208-72-x-US: Specify “IQ8H-208-72-x-US or IQ8HC-72-M-US.”

Specifications for IQ8MC, IQ8AC, and IQ8HC Microinverters

Click the SKUs below to access their data sheets:

• IQ8MC-72-M-US
• IQ8AC-72-M-US
• IQ8HC-72-M-US

These SKUs support:

• 240 V-split-phase (L-L), 180° grids in single-phase/split-phase
• 208 V-single-phase (L-L), 120° connection

Availability of IQ Battery 5P and System Controller 3/3G

These products will be available in all 50 states and Puerto Rico. However, they are not yet released in Canada, Mexico, or other U.S. territories. Additional release details will be announced soon. For more information, contact your local Enphase Sales representative.
