Aims Power Dual Panel Pole Mount for Two 120W/130W Panels

Aims Power Dual Panel Pole Mount for Two 120W/130W Panels

Description:

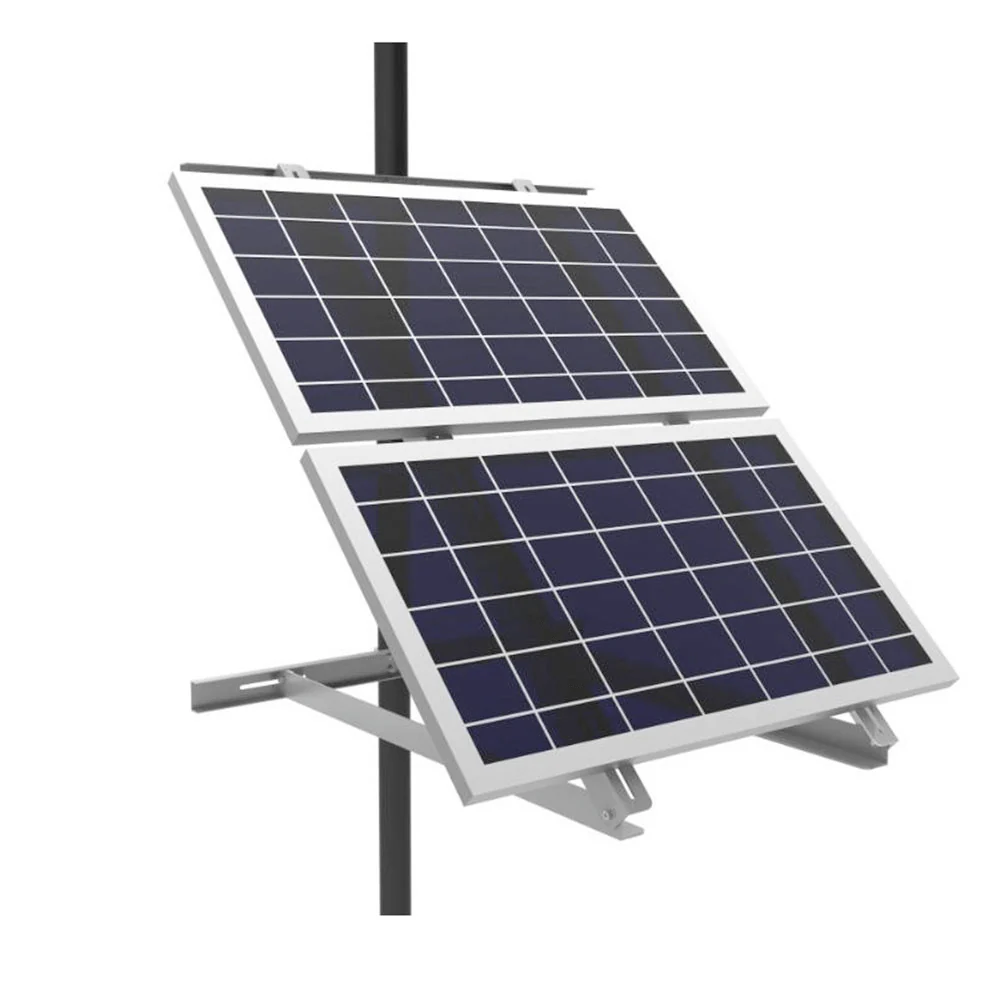

This dual solar panel pole bracket installs quickly and  supports 2 panels. Compatible with panels sizes 20 watts up to 170 watts. The angle adjusts effortlessly allowing optimal sunlight according to the season.  Built with heavy duty aluminum brackets, stainless steel hardware and backed by a 10 year warranty. You can rely on this mount to withstand the environment, protecting your solar investment.  Perfect for applications using existing poles on location.

Product Specifications

Aims Power Dual Panel Pole Mount for Two 120W/130W Panels

Features:

• Heavy duty aluminum material
• Stainless steel hardware
• Adjustable 20° to 70° tilt angle
• Predrilled holes for easy installation, little measuring needed
• Installs quickly, minimal tools needed
• All hardware included (pole not included)
• Fits panels up to 26.5″ width or  up to 170 watts.
• Panels simply attached to brackets using heavy duty bolts via the predrilled holes on panel and mounting system. Any universal hose clamp may be used if the pole is >3.25″ OD

Pole not included. Ensure pole can withstand weather and weight.  Install facing South and limit obstructions.

Specifications

• Tilt angle adjustable 20°-70°
• Anodized aluminum
• Fits 2 panels. Panel sizes up  170 Watts  or max width of 26.5″ per panel
• 10 year warranty
• Works with any existing pole – included hose clamps are  for max pole OD diameter of 3.25″
• Stainless steel hardware

Product Manual

Product Manual

 AIMS Power Dual Solar Panel Pole Mount - PV2X130POLE



Product Warranty

AIMS Power offers a one year warranty with all products. Follow the link below to register your product warranty:

https://www.aimscorp.net/product_registration.php

Product FAQs

AIMS Power FAQs
