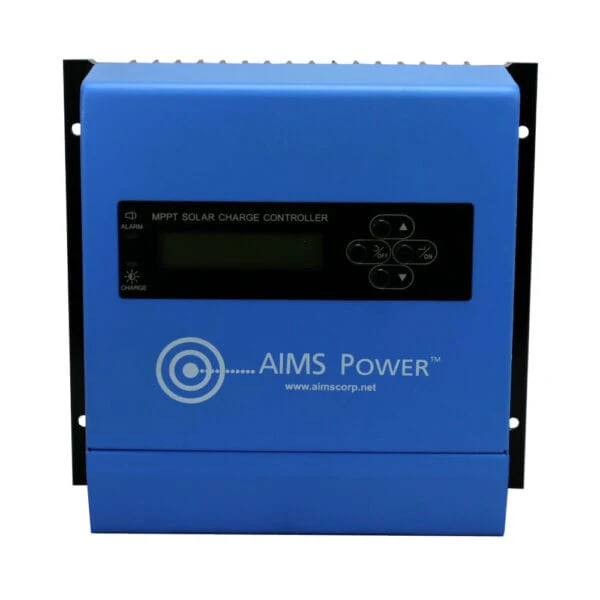

Aims Power 30 Amp MPPT Solar Charge Controller

Aims Power 30 Amp MPPT Solar Charge Controller

Description:

This solar battery charge controller by AIMS Power features a smart tracking algorithm using MPPT charging technology and has less power loss performing at 97.5-99% efficiency, maximizing energy harvest. The tracking algorithm is automatic and varies with weather conditions. This charge controller also has temperature compensation protection using the included battery temperature sensor. Charges 12 & 24 volt solar systems with multistage charging technology and adjusts according to battery type. The AIMS charge controller includes LED indicators to show charging status and faults. An LCD displays key information such as battery voltage, solar panel voltage, solar panel charging current and charge mode. Users are able to revise and set the default parameters according to system design. Backed by a 2 year warranty.

Product Specifications

Aims Power 30 Amp MPPT Solar Charge Controller

Features:

• MPPT technology: Maximum Power Point Tracking produces maximum available power from PV array to battery bank utilizing peak power of the I-V curve
• Quality heatsink cooling – no fans needed and no thermal derating
• Battery type selector and user defined charging voltage
• 4 stage charging
• PV input, battery output and load control ports
• Stackable
• Reliable electronics, over engineered components generating less heat
• Very efficient up to 99%
• Low self consumption
• Thermal design rugged case
• Over temp protection
• Overload, short circuit, high and low voltage protection
• CE, ETL to UL1741 and RoHS compliant
• Marine coated
• Mounting holes

Specifications:

• ELECTRICAL
  PV Operating Voltage:

  • 18-100Vdc@12V
  • 34-100Vdc@24V

  Rated PV input:

  • 12V – 400 Watts
  • 24V – 800 watts

  Maximum battery current: 30 amps

  DC load port: 30 amps
  Max PV open circuit voltage: 100Vdc
  Self power consumption: <2 watts
  Efficiency: 97%
  Protections: overload, short circuit, high voltage, high temperature, low voltage and auto correct
  Optimal cooling case design – built for extreme conditions


  CHARGING
  Battery types: gel, sealed, AGM, flooded, lithium, user defined (adjustable voltage)
  4 Stage charging: bulk, absorption, float and equalize
  Bulk charge voltage: sealed 14.4V, AGM/Gel 14.2V, flooded 14.6V, user defined 10-15V
  Float charge voltage:  sealed/AGM/Gel 13.7V, flooded 13.6V, user defined 10-15V
  Equalize charge voltage: sealed 14.6V, AGM/Gel 14.8V, flooded 14.8V, user defined 10-15V
  Low voltage reconnection: 12.5V
  Low voltage disconnect voltage: 10.5V (10.5-12.5V adjustable)
  MECHANICAL
  Enclosure: IP43 protection, metal
  Cooling: heatsink
  Humidity: 100% non-condensing
  Temperature compensation: -5mV⁰C / 2V with BTS
  Temperature range: -25⁰C to 60⁰C or -13⁰F to 140⁰F
  Conformal coated for marine environments
  Wire knockouts: 1.25”
  Unit weight: 5 lbs
  Boxed weight: 6 lbs
  Dimensions: 8.25”L x 7”W x 2.75”H
  Warranty: 2 years
  Certifications: ETL to UL1741, CE, RoHS, CETL

Product Manual

Aims Power 30 Amp MPPT Solar Charge Controller

AIMS Power 30 AMP Charge Controller - SCC30AMPPT

Product Warranty

AIMS Power offers a one year warranty with all products. Follow the link below to register your product warranty:

https://www.aimscorp.net/product_registration.php

Product FAQs

AIMS Power FAQs
