Aims Power 30KW 300VDC 208 VAC Pure Sine Three Phase Power Inverter Charger

Aims Power 30KW 300VDC 208 VAC Pure Sine Three Phase Power Inverter Charger

Aims Power 30KW Pure Sine Power Inverter Charger 300VDC 208 VAC Three Phase

Description

That’s right! You read it correctly. We offer HUGE DC to AC pure sine inverter chargers 30KW up to 200KW.Ā  Introducing the NEW AIMS extra large power inverter charger product line in 240 split phase or 208 three phase. This off-grid, back up power inverter is perfect for businesses, large homes, farms or other applications that require huge amounts of back-up power.

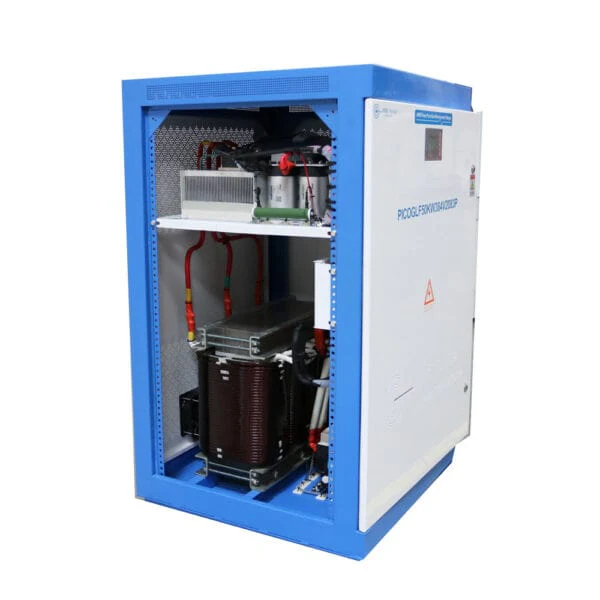

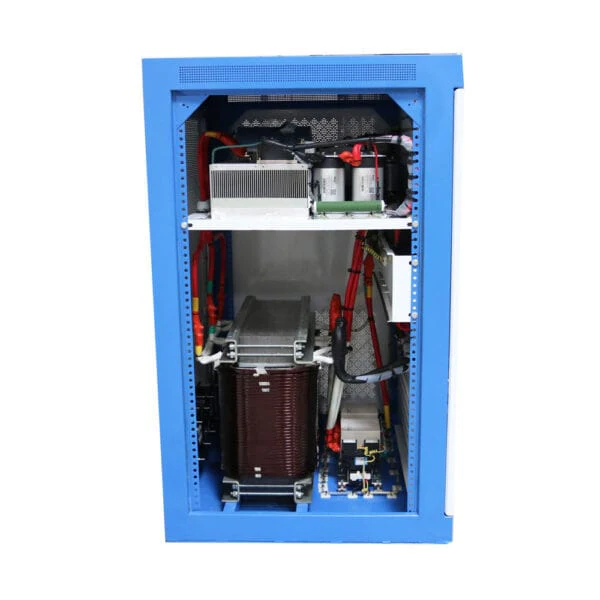

These units have a large DC input range allowing you to create your own DC input source such as solar, wind, hydro and deep cycle batteries.Ā  The higher DC input enables you to operate more efficiently when using this inverter. Its modular, simple and easy design allows for convenient access for maintenance and adjustments. The IPM provides high efficiency and stable performance prolonging the overall life of this inverter. The inverter also includes a power LCD display monitoring DC input, output frequency, phase voltage, phase current, AC bypass input voltage, output power kWH, time and date, temperature and fault codes. We also offer extended warranties. UL Listed.

Product Specifications

Aims Power 30KW Pure Sine Power Inverter Charger 300VDC 208 VAC Three Phase Product Specifications

DC INPUT

  • DC input – 300 volt
  • DC input range – 200-600 Vdc
  • Rated current amps – 100 A

AC INPUT

  • 120 / 08 Vac

AC OUTPUT

  • 30,000 – 30kw
  • Pure sine wave
  • 480 VAC (+- 3%)
  • Three phase L1 + L2 + L3 + N + Earth
  • Current: 83.3 A phase current
  • Adjustable 50/60 hz
  • Power Factor: >0.95
  • Inverter efficiency: >94%
  • LCD Display
  • Voltage accuracy – Load balancing<1%, Unbalance <5%
  • THD: linear load ,2%, nonlinear load >3%
  • No load amps: 2% of inverter size depending on DC voltage (1000 watts / DC input voltage = amps)

PROTECTIONS

  • Overload 150% – 5 seconds, 120% for 35 seconds
  • Input reverse polarity
  • Under voltage,
  • Over voltage
  • Output over current
  • Short circuit
  • Over temperature
  • Fan cooled – Always on
  • Short circuit: no automatic recovery. Restart required
  • <50dB
  • Operating temperature: -25 to 55 Celsius (-13 to 131 Fahrenheit)
  • Humidity: 90% non-condensing
  • Dimensions: 33.5″D x 33.5″W x 51.2″H
  • Weight: 926 lbs.
  • CE, UL 1741 and CS22.2

Product Manual

Aims Power 30KW Pure Sine Power Inverter Product Manual

Product Warranty

AIMS Power offers a one year warranty with all products. Follow the link below to register your product warranty:

https://www.aimscorp.net/product_registration.php

Product FAQs

AIMS Power FAQs
