RUiXU RX-LFP48100-H | 100Ah Lithium Server Rack Battery | 19" Rack Mounted 3U Module | Self-heating | UL1973 | UL9540A |
RUiXU RX-LFP48100-H | 100Ah Lithium Server Rack Battery | 19" Rack Mounted 3U Module | Self-heating | UL1973 | UL9540A |
Why Choose RUiXU Batteries?
| Ā | RUiXU | Other Brand |
| Size (Ultra-thin) | 3U Size(482x460x133.5mm),133mm height will save more space,compact & flexible | 4U(482x420x161mm) or 4.5U |
| Installation | Rack Mounted,Floor Mounted,Wall Mounted,Stack Mounted | Rack mounted |
| Inverter Protocol Choosing | Use DIP address to set the RS485 baud rate and inverter protocol choosing | need to connect with computer to choose protocol |
| Modular | Support Ā up to 32units in parallel,extend to 160KWh system without additional controller | only support 16units in parallel |

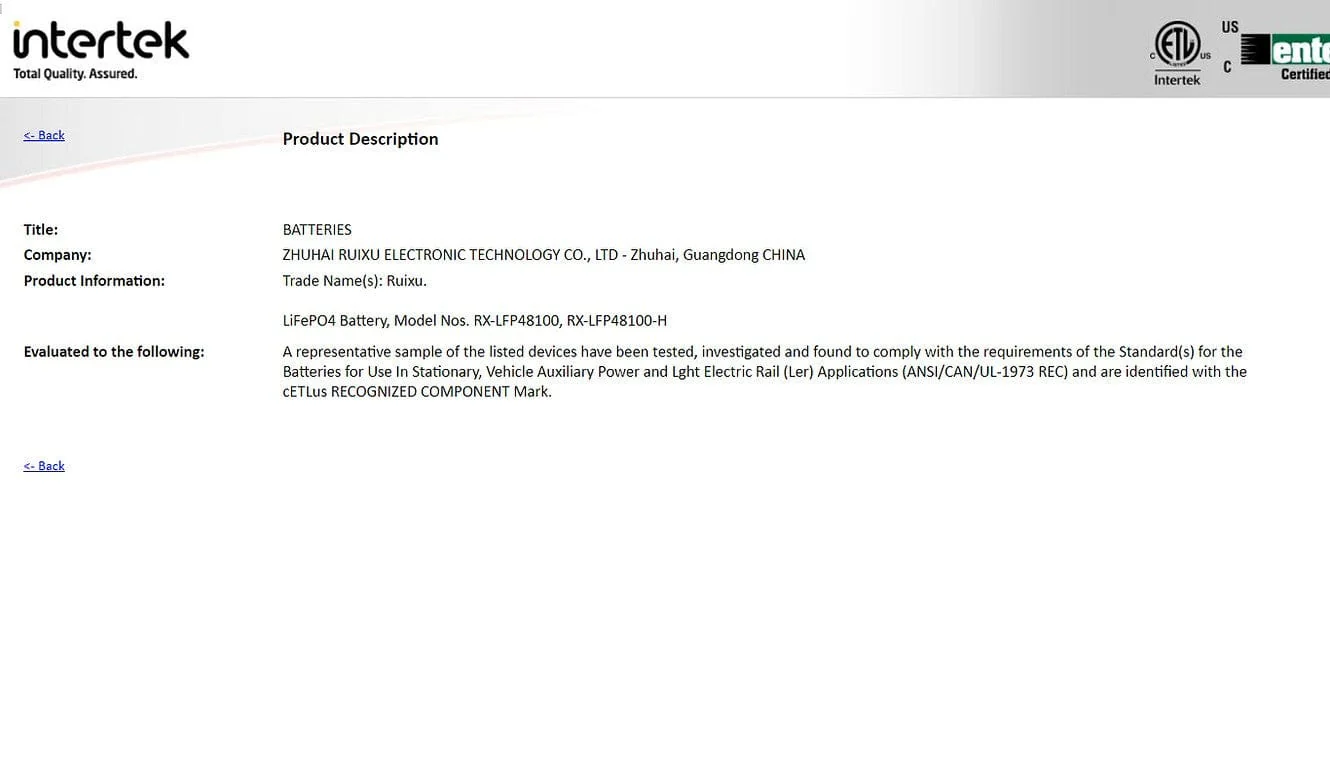

| Certification | UL1973 &IEC62619 for whole battery pack ,UN38.3,MSDS | / |
| Pre-charge ability(single battery) | 1000000uF,capable of precharging higher power inverters | 20000uF |
| Working Temperature | Charge:-5°C-59°C            Discharge:-10°C-59°C,built-in heater is optional | Charge:-5°C -59°C              Discharge:-10°C -59°C |
Ā

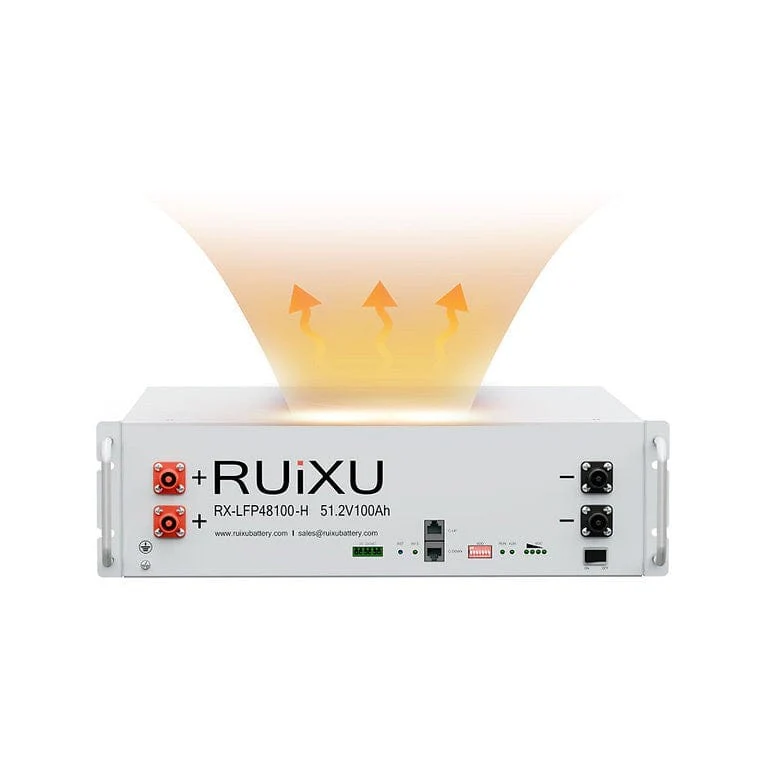

RX-LFP48100-H
Nominal voltageĀ ļ¼51.2V
Nominal [email protected] ļ¼100 Ah
Min. [email protected]ļ¼100 Ah
āNominal energy :5120Wh

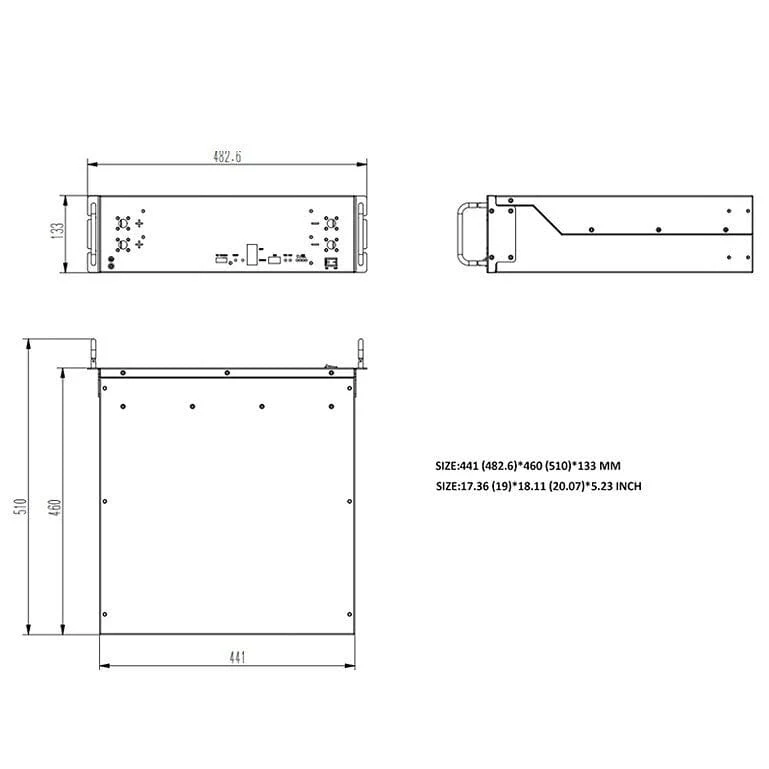

Dimesion(W*D*H):482.6x460x133mm | 19 x 18.1 x 5.23 inch
Weight: ~47kg (103.6lb)Ā
Modular
Support up to 32 units in parallel, scale from 5 kWh to 160 kWh configuration without external controller.
Inverter Protocol Choosing
Use DIP address to set the RS485 baud rate and inverter protocol choosing
Communications
Canbus : Victron,SMA,Studer Innotec,Sofar,Solark,Solis,Goodwe,Deye,
Growatt,SAJ,LUXPOWER,Megarevo,INVT,Sermatec,TBB,
MUST,Sunsynk,Schneider
RS485 : MPP,Voltronic,RCT,Alpha outback
Standard Included
(1) RUiXU 48V Server Rack battery (RX-LFP48100)
(1) RJ45/CAT5e Patch Cable
(1) Ground CableĀ
(1) Set of Parallel 4AWG Cables Ā per battery
***Cables***
1.6 slot cabinet installation,300MM cable (battery to cabinet busbar) included.
2.No busbar connection,250MM cable (battery to battery) included, only available for 48V system 2000W-5000W.
Product Specifications
RUiXU RX-LFP48100-H | 100Ah Lithium Server Rack Battery | 19" Rack Mounted 3U Module | Self-heating | UL1973 | UL9540A | Product Specifications
| Nominal voltage | 51.2V |
|---|---|
| Nominal capacity | 100Ah |
| Nominal energy | 5.12kWh |
| Usable energy | 4.92kWh |
| Operating voltage range | 44.8V~56.0V |
| Charge voltage | 56V |
| Float voltage | 54.6V |
| Recommended charge current | 50A |
| Max. charge current | 70A |
| Recommended discharge current | 50A |
| Max. discharge current | 100A |
| Communication | RS485 /CAN |
| Peak discharge current | 101~119A@5mins | 120~149A@15S |
| IP rating | IP20 |
| Cycle life | ā„6000 cycles @90%DOD |
| Net weight | ~47kg (103.6lb) |
| Dimension(W*H*D) | 482*133.5*460mm (18.9*5.2*18.1 inch) |
| Cell type | Lithium-iron phosphate (LiFePO4) |
| Design life | 15 years |
| Operation temperature | -10~50ā (14~122ā) |
| Storage temperature | -10~45ā (14~113ā) |
| Relative humidity | 5%~90%No condensation |
| Install altitude | ā¤4000m |
| Install location | Indoor |
| Installation | Wall mounted / Floor mounted / Stack / Rack mounted |
| Certiļcation | CE / IEC62619 / Ul1973 / UN38.3 |
| Heater Specifications | |
| Voltage | 56V |
| Power Consumption | 250W |
| Function | sellf-heating starts ā¤4l°F (5°C), ā„53.6°F(5°C) self-heating stops |
Ā
Product Manual
RUiXU RX-LFP48100-H | 19" Rack Mounted 3U Module | Self-heating | UL1973 | UL9540A | Manual
Product Warranty
RUIXU(āthe Sellerā) warrants each RUIXU branded battery (āthe Productā), as listed below, sold by RUIXU or any of its authorized distributors or dealers, to be free of defects for the period as listed in the table below (āthe Warranty Periodā), from the date of sale as determined by either the customersā sale receipt, the shipping invoice and/or the battery serial number, with proof of purchase. Within the Warranty Period, subject to the exclusions listed below, the Manufacturer will credit, replace or repair, if serviceable, the Product and/or parts of the Product, if the components in question are determined to be defective in material or workmanship.
The Warranty Period for Physical Goods purchased from RUiXU Battery is 10 Years.
RUiXU Battery will replace or repair the product at no charge, using new or refurbished replacement parts.
The Seller has no obligation under this limited warranty for product subjected to the following conditions (including but not limited to):
*Damage caused during shipping or mishandling of the Product
*Damage due to improper installation:loose terminal connections, under-sized cabling, incorrect series (cannot be used in series) or parallel connections, reverse polarity connections, or insufficient space for airflow
*Environmental damage such as inappropriate storage conditions as defined by the Manufacturer, exposure to extreme hot or cold temperatures, fire or freezing, or water damage, impact, or collision
*Damage due to improper operation or maintenance such as under- or over-charging the Product, cold temperature charging, lack of cleaning resulting in corroded terminal connections or build-up of dirt, debris, organic matter, fossil fuels, or chemicals on the Product casing
*Improper use of CAN cables such as improper connections or not connecting them
*Installing CAN communication devices that do not follow the appropriate CANbus guidelines as defined by the Manufacturer
*Product that has been opened, modified, or tampered with Tampering or removal of manufacture date codes.
*Product that was used for applications other than which it was designed and intended for by the Manufacturer
*Product that was under-sized for the application.
This Limited Warranty does not cover a Product that has reached its normal end of life due to usage which may occur prior to the Warranty Period. A battery can deliver only a fixed amount of Energy over its life which will occur over different periods of time depending on the application. The Manufacturer reserves the right to deny a warranty claim if the Product is determined, upon inspection, to be at its normal end of life even if within the Warranty Period.
Submitting A Warranty Claim
To submit a warranty claim, please contact the original place of purchase. The Product may be required to be shipped back to the Seller for further inspection. The Product must be shipped in compliance with UN38.3. Please note that DOT requires all personsā shipping batteries to be Hazmat certified.
Technical Support
If you have technical questions about the Product, please contact the place of purchase or RUIXU Battery directly atĀ [email protected]
Product FAQs
N/A
