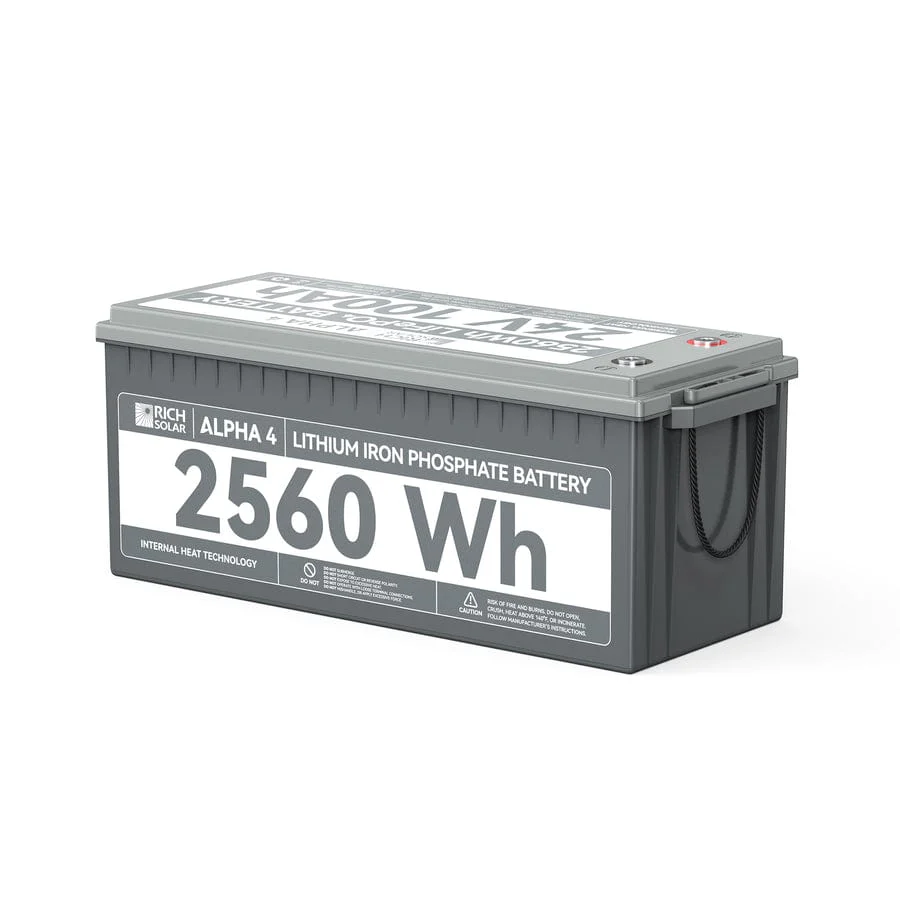

Rich Solar Alpha 4 | 24V 100Ah LiFePO4 Battery w/ Internal Heat Technology and Bluetooth

Rich Solar Alpha 4 | 24V 100Ah LiFePO4 Battery w/ Internal Heat Technology and Bluetooth

Rich Solar Alpha 4 | 24V 100Ah LiFePO4 Battery w/ Internal Heat Technology and Bluetooth

Description

RICH SOLAR 24V 100Ah(ALPHA4) lithium iron phosphate battery has a much longer cycle life capacity, and is easier to maintain compared to other battery technologies.

  • 7000 Cycles at 80% DOD
  • Grade A LiFePO4 Cells, 10+ Years Lifespan
  • 48.5lb, 1/5 Lighter than Lead-acid Batteries
  • Size: L20.9*W8.1*H8.5 in
  • BMS Protection, Certified by UL, FCC and UN38.3





Product Specifications

Rich Solar Alpha 4 | 24V 100Ah LiFePO4 Battery w/ Internal Heat Technology and Bluetooth Product Specifications

Battery Cell Type LiFePO4 Battery
Nominal Voltage 25.6V
Nominal Capacity 100Ah
Nominal Energy 2560Wh
Cycle Life 7000 Cycles at 80% DOD
Maximum Expansion (Parallel & Series) 4P4S
BMS BMS 100A
Maximum Continous Charge Current: 100A
Maximum Continous Discharge Current: 100A
Maximum Discharge Current 10 Seconds: 100A
Charge Charge Method CC/CV
Charge Voltage 14.4V ± 0.2V
Recommend Charge Current 50A (0.2C)
Temperature Charge Temperature 32℉ to 131℉ (0℃ to 55℃)
Discharge Temperature -4℉ to 140℉ (-20℃ to 60℃)
Storage Temperature 14℉ to 113℉ (-10℃ to 45℃)
Self-heating Heating Function 100W
Internal Heating Starts < 41℉ (5℃)
Internal Heating Stops > 50℉ (10℃)
Others Net Battery Weight 48.5lb
Size (L*W*H) 20.9x8.1x8.5in (Group 31 size)
Housing Material ABS (Flame Retardant Plastic)
Protection Class IP65
Warranty 10 Years
Certifications UL1973, FCC, UN38.3



Product Manual

Rich Solar Alpha 4 Spec Sheet


Product Warranty

Rich Solar Product Warranty

The warranty period for RICH SOLAR's products:

1) Rigid Solar Panels: 25-year power output warranty

2) Portable Briefcase Solar Panels: 5 year power output warranty

3) Portable Power Stations: 2 years

4) Solar Charge Controllers: 2 Years (MPPT) | 6 Months (PWM)

5) Inverters: 2 years

6) Flexible Solar Panel: 1 year workmanship and materials

7) CIGS Flexible Solar Panel: 1 year workmanship and materials

8) LiFePO4 Lithium Battery: 3 year manufacturer defect

The warranty period for all other RICH SOLAR products and components is one (1) year from the date of original purchase by the original consumer. A sales receipt from the original consumer purchase, or other reasonable documentary proof, is required in order to establish the start of the warranty period. If you completed the online RICH SOLAR Product Registration Form within thirty (30) days after purchasing your product, that registration can also establish the start date of the warranty period (but warranty coverage is not conditioned upon such registration). REMEDY. RICH SOLAR will, at its option, (1) repair the product at no charge, using new or refurbished replacement parts, or (2) exchange the product with a product that is new or which has been manufactured from new or serviceable used parts and is at least functionally equivalent to the original product. A replacement product/part assumes the remaining warranty of the original product or ninety (90) days from the date of replacement or repair, whichever provides longer coverage for you. When a product or part is exchanged, any replacement item becomes your property and the replaced item becomes RICH SOLAR’s property.

LIMITED TO ORIGINAL CONSUMER BUYER. This warranty is not transferable to any subsequent owner of a RICH SOLAR product.

EXCLUSIONS AND LIMITATIONS. This Limited Warranty applies only to hardware products manufactured by or for RICH SOLAR that can be identified by the "RICH SOLAR" trademark, trade name, or logo affixed to them. The Limited Warranty does not apply to any non-RICH SOLAR products, even if packaged or sold with RICH SOLAR products. Non-RICH SOLAR manufacturers, or suppliers may provide their own warranties. This warranty does not apply to: (i) to damage caused by accident, abuse, misuse, misapplication, or non-RICH SOLAR products; (ii) to damage caused by service performed by anyone other than RICH SOLAR; (iii) to a product or a part that has been modified without the written permission of RICH SOLAR; (iv) to a product where any RICH SOLAR serial number has been removed or defaced, or (v) to any product purchased through an online auction house. This limited warranty does not apply to any battery cell or product containing a battery cell unless the battery cell has been fully charged by you within seven (7) days after your purchase of the product and at least once every 6 months thereafter.

Product FAQs

What is the difference between DC and AC power?
DC (direct current) power is drawn directly from the battery and will run several types of
RV appliances, like lights and water pumps. AC power (alternating current), is what is
used in your home. An inverter in your RV converts your DC battery power into AC for
AC-powered devices such as TVs, hair dryers or coffee makers.
