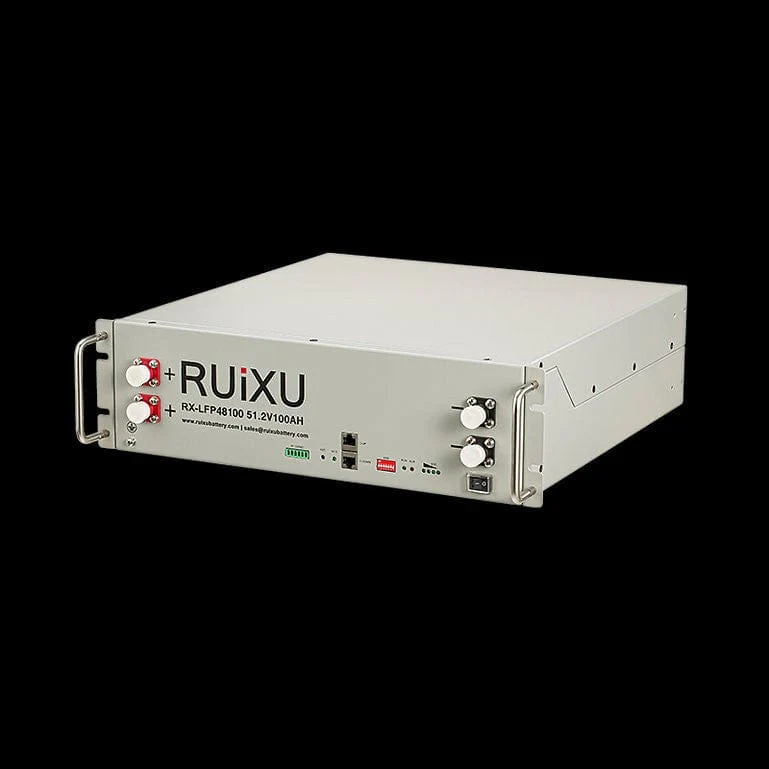

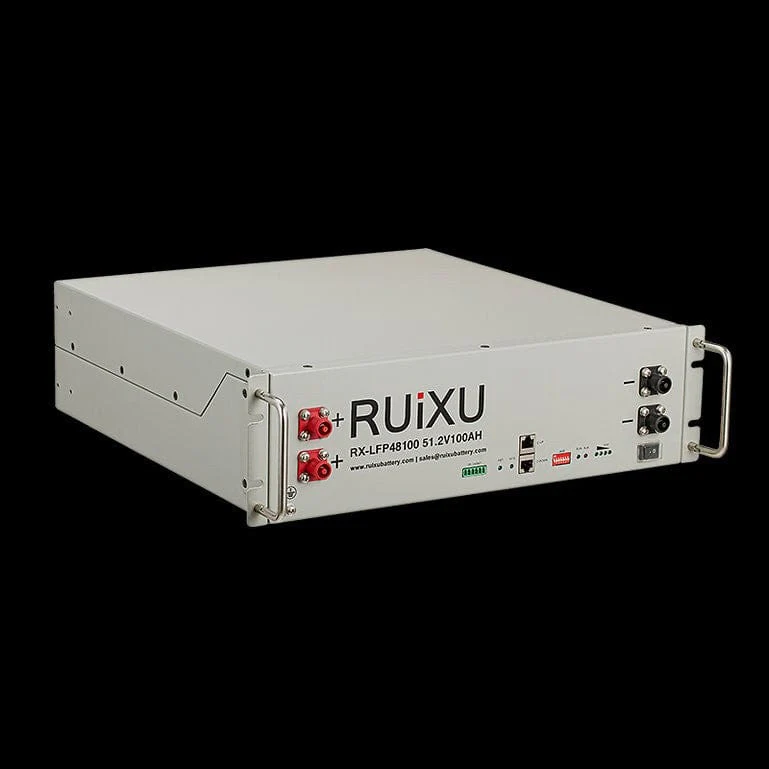

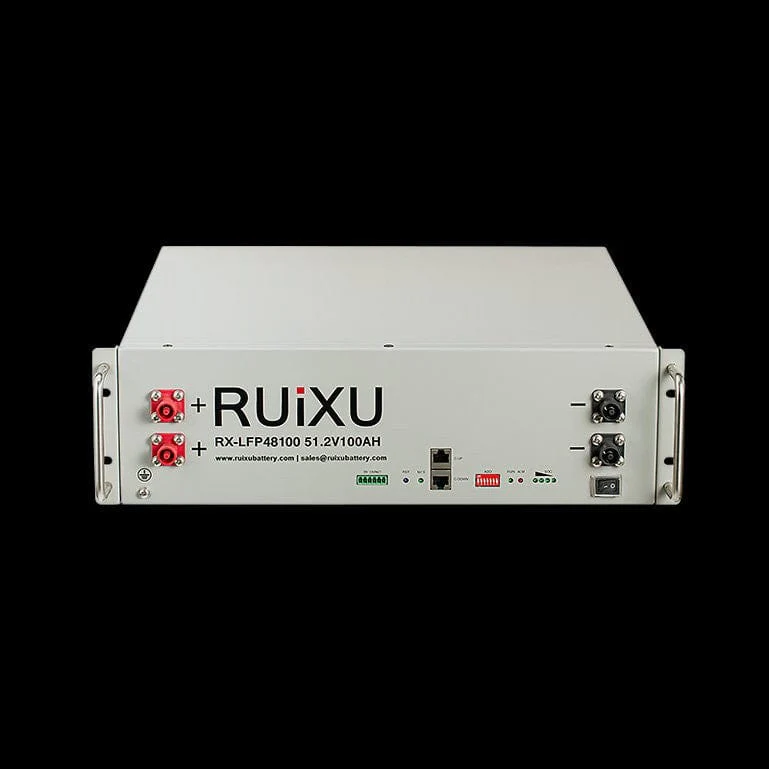

RUiXU RX-LFP48100 100 Ah Lithium Server Rack Battery | 19" Rack Mounted 3U Module | UL1973 Certified | UL9540A

RUiXU RX-LFP48100 100 Ah Lithium Server Rack Battery | 19" Rack Mounted 3U Module | UL1973 Certified | UL9540A

RUiXU RX-LFP48100 100 Ah Lithium Battery | 19" Rack Mounted 3U Module | UL1973 Certified | UL9540A

Description

Why choose RUiXU Server Rack Battery?

Ā  RUiXU Other Brand
Size (Ultra-thin) 3U Size(482x460x133.5mm),133mm height will save more space,compact & flexible 4U(482x420x161mm) or 4.5U
Installation Rack Mounted,Floor Mounted,Wall Mounted,Stack Mounted Rack mounted
Inverter Protocol Choosing Use DIP address to set the RS485 baud rate and inverter protocol choosing need to connect with computer to choose protocol
Modular Support Ā up to 32units in parallel,extend to 160KWh system without additional controller only support 16units in parallel

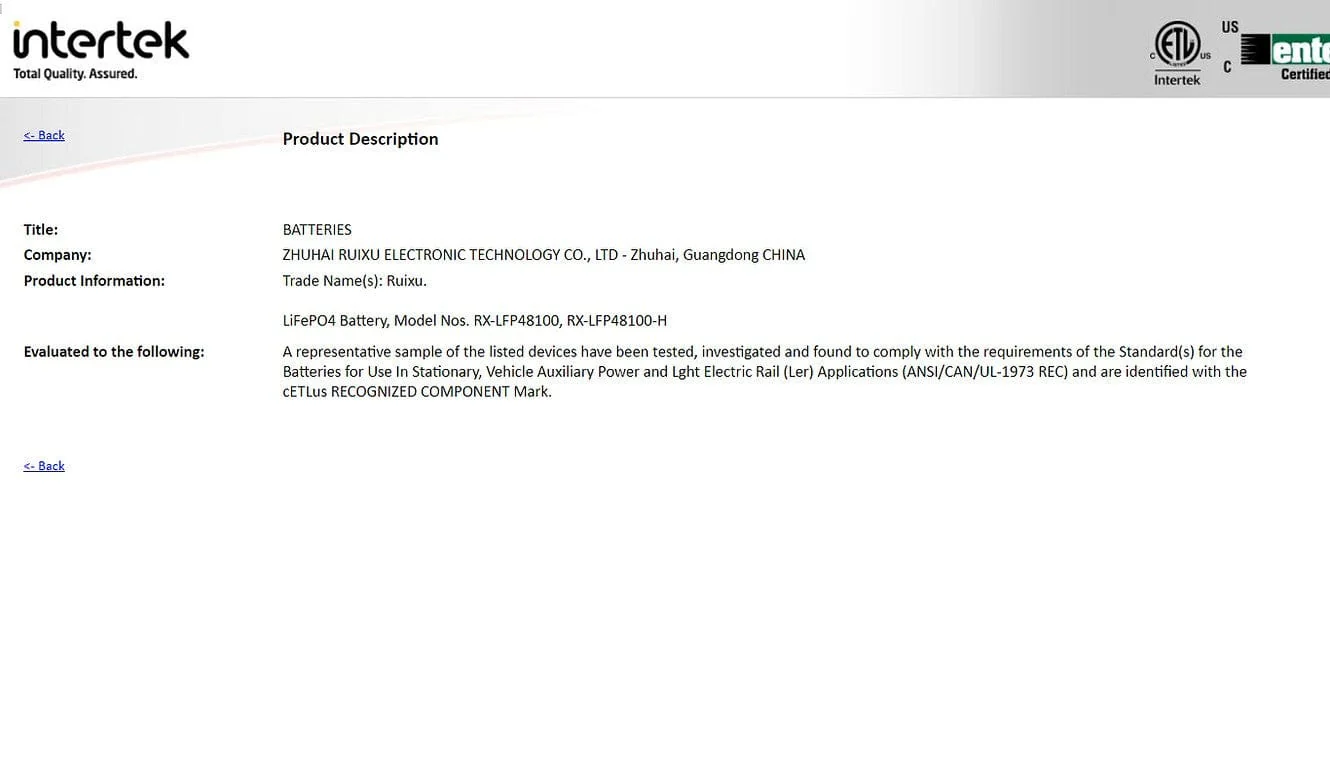

Certification UL1973 &IEC62619 for whole battery pack ,UN38.3,MSDS /
Pre-charge ability(single battery) 1000000uF,capable of precharging higher power inverters 20000uF
Working Temperature Charge:-5°C-59°C                        Discharge:-10°C-59°C,built-in heater is optional Charge:-5°C -59°C                           Discharge:-10°C -59°C

Ā

RX-LFP48100

Nominal voltage :51.2V

Nominal [email protected] :100 Ah

Min. [email protected]:100 Ah

Nominal energy :5120Wh

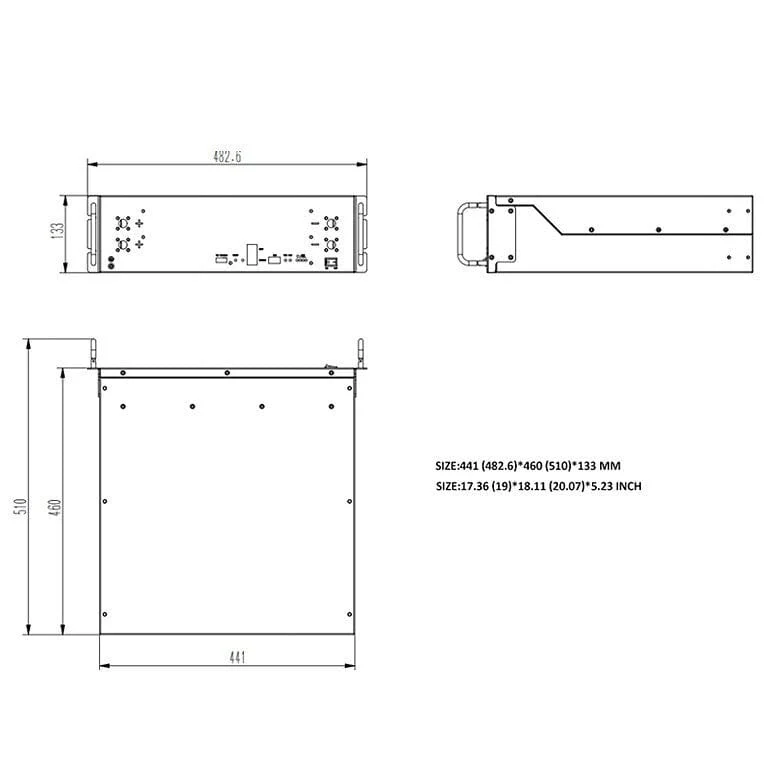

Dimesion(W*D*H):482.6x460x133mm | 19 x 18.1 x 5.23 inch

Weight: ~47kg (103.6lb)Ā

Modular

Support up to 32 units in parallel, scale from 5 kWh to 160 kWh configuration without external controller.

Inverter Protocol Choosing

Use DIP address to set the RS485 baud rate and inverter protocol choosing

Communications

Canbus : Victron,SMA,Studer Innotec,Sofar,Solark,Solis,Goodwe,Deye,

Growatt,SAJ,LUXPOWER,Megarevo,INVT,Sermatec,TBB,

MUST,Sunsynk,Schneider
RS485 : MPP,Voltronic,RCT,Alpha outback

Standard Included

(1) RUiXU 48V Server Rack battery (RX-LFP48100)
(1)Ā RJ45/CAT5e Patch Cables

(1) Ground CableĀ

(1) Set of Parallel 4AWG Cables Ā per battery

***Cables***

1.6 slot cabinet installation,300MM cable (battery to cabinet busbar) included.
2.No busbar connection,250MM cable (battery to battery) includedĀ only available for 48V system 2000W-5000W.

Product Specifications

RUiXU RX-LFP48100 | 19" Rack Mounted 3U Module | UL1973 Certified | UL9540A Product Specifications

Nominal voltage 51.2V
Nominal capacity 100Ah
Nominal energy 5.12kWh
Usable energy 4.92kWh
Operating voltage range 44.8V~56.0V
Charge voltage 56V
Float voltage 54.6V
Recommended charge current 50A
Max. charge current 70A
Recommended discharge current 50A
Max. discharge current 100A
Communication RS485 /CAN
Peak discharge current 101~119A@5mins | 120~149A@15S
IP rating IP20
Cycle life ≄6000 cycles @90%DOD
Net weight ~47kg (103.6lb)
Dimension(W*H*D) 482*133.5*460mm (18.9*5.2*18.1 inch)
Cell type Lithium-iron phosphate (LiFePO4)
Design life 15 years
Operation temperature -10~50ā„ƒ (14~122℉)
Storage temperature -10~45ā„ƒ (14~113℉)
Relative humidity 5%~90%No condensation
Install altitude ≤4000m
Install location Indoor
Installation Wall mounted / Floor mounted / Stack / Rack mounted
Certication CE / IEC62619 / Ul1973 / UN38.3
Heater Specifications
Voltage 56V
Power Consumption 250W
Function sellf-heating starts ≤4l°F
(5°C), ≄53.6°F(5°C)
self-heating stops

Ā

Product Manual

RUiXU RX-LFP48100 100 Ah Lithium Battery User Manual

Product Warranty

RUIXU(ā€œthe Sellerā€) warrants each RUIXU branded battery (ā€œthe Productā€), as listed below, sold by RUIXU or any of its authorized distributors or dealers, to be free of defects for the period as listed in the table below (ā€œthe Warranty Periodā€), from the date of sale as determined by either the customers’ sale receipt, the shipping invoice and/or the battery serial number, with proof of purchase. Within the Warranty Period, subject to the exclusions listed below, the Manufacturer will credit, replace or repair, if serviceable, the Product and/or parts of the Product, if the components in question are determined to be defective in material or workmanship.

The Warranty Period for Physical Goods purchased from RUiXU Battery is 10 Years.

RUiXU Battery will replace or repair the product at no charge, using new or refurbished replacement parts.

The Seller has no obligation under this limited warranty for product subjected to the following conditions (including but not limited to):

*Damage caused during shipping or mishandling of the Product

*Damage due to improper installation:loose terminal connections, under-sized cabling, incorrect series (cannot be used in series) or parallel connections, reverse polarity connections, or insufficient space for airflow

*Environmental damage such as inappropriate storage conditions as defined by the Manufacturer, exposure to extreme hot or cold temperatures, fire or freezing, or water damage, impact, or collision

*Damage due to improper operation or maintenance such as under- or over-charging the Product, cold temperature charging, lack of cleaning resulting in corroded terminal connections or build-up of dirt, debris, organic matter, fossil fuels, or chemicals on the Product casing

*Improper use of CAN cables such as improper connections or not connecting them

*Installing CAN communication devices that do not follow the appropriate CANbus guidelines as defined by the Manufacturer

*Product that has been opened, modified, or tampered with Tampering or removal of manufacture date codes.

*Product that was used for applications other than which it was designed and intended for by the Manufacturer

*Product that was under-sized for the application.

This Limited Warranty does not cover a Product that has reached its normal end of life due to usage which may occur prior to the Warranty Period. A battery can deliver only a fixed amount of Energy over its life which will occur over different periods of time depending on the application. The Manufacturer reserves the right to deny a warranty claim if the Product is determined, upon inspection, to be at its normal end of life even if within the Warranty Period.

Submitting A Warranty Claim

To submit a warranty claim, please contact the original place of purchase. The Product may be required to be shipped back to the Seller for further inspection. The Product must be shipped in compliance with UN38.3. Please note that DOT requires all persons’ shipping batteries to be Hazmat certified.

Technical Support

If you have technical questions about the Product, please contact the place of purchase or RUIXU Battery directly atĀ [email protected]

Product FAQs

N/A

$935.00
