Pioneer® Quantum Ultra™ 18,000 BTU 21 SEER2 230V Ceiling Concealed Ducted Mini-Split Air Conditioner Inverter Heat Pump Full Set

Pioneer® Quantum Ultra™ 18,000 BTU 21 SEER2 230V Ceiling Concealed Ducted Mini-Split Air Conditioner Inverter Heat Pump Full Set

Pioneer® Quantum Ultra™ 18,000 BTU 21 SEER2 230V Ceiling Concealed Ducted Mini-Split Air Conditioner Inverter Heat Pump Full Set

Description

Quantum Ultra™ Ceiling Concealed

Pioneer® concealed duct mini split systems provide hidden heating and cooling for multiple rooms through a single ducted unit. Ideal for separated zones like master suites, one system can condition sub-areas with uniform comfort. Available in six capacities, including ceiling-concealed and slim duct models, these systems suit zones of all sizes.

IMPORTANT
The outdoor unit is pre-charged with R454b Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option unless you are providing one yourself.

What's Included in Your Purchase

Indoor Unit
Outdoor Unit

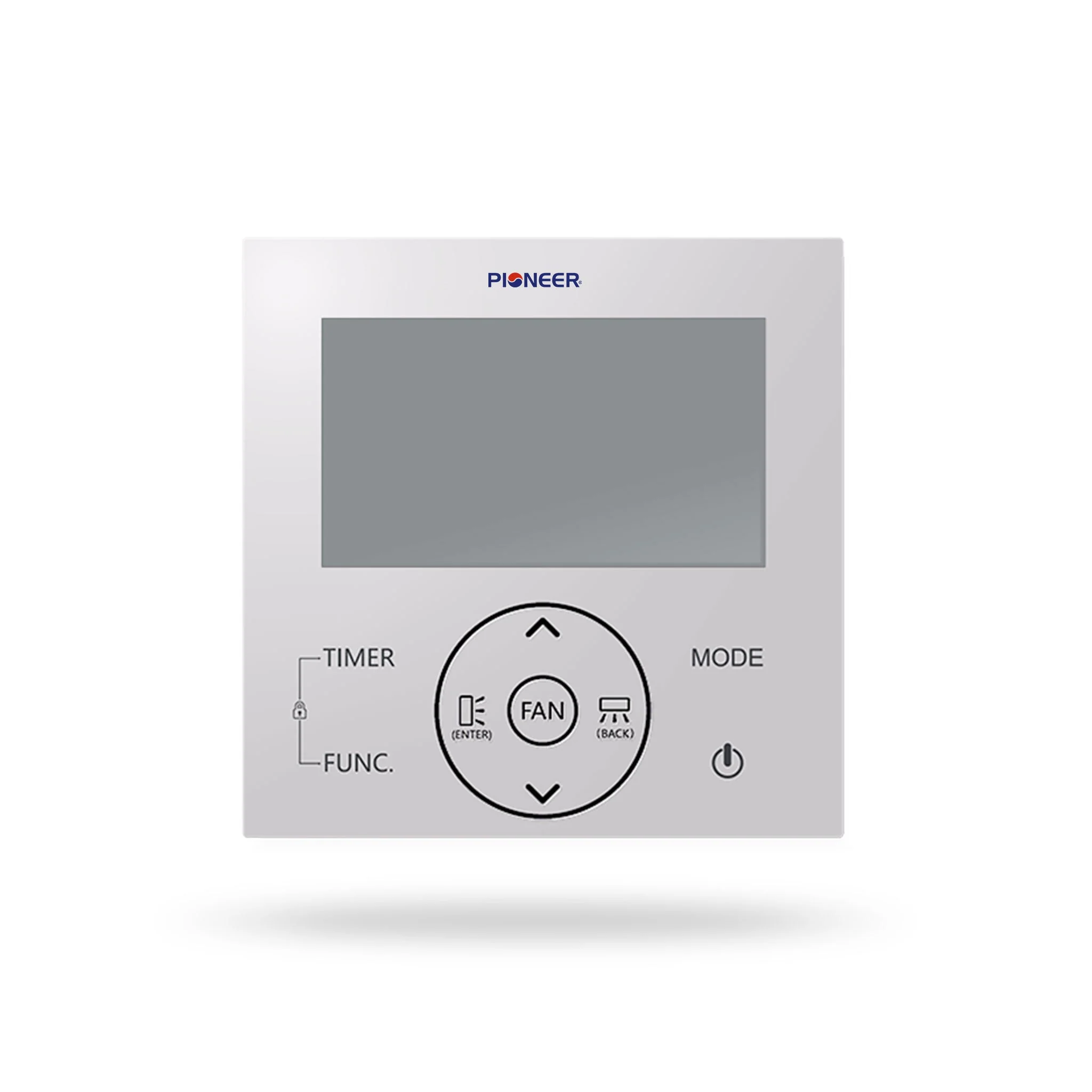

Wire Remote Control
Customizable Length Copper Lines
Customizable Length Electrical Wire
10 Ft. Drain for indoor/outdoor
Wall Passage Sleeve
Putty for Wall Hole
Leak Guard Sealer
Wrapping Tape
Installation Manual
User’s Manual

Summary

High Efficiency Quantum Ultra Ceiling Concealed Ducted Split Heat Pump System
Cooling capacity: 17,000 BTU/H with 21 SEER2 / 11.7 EER2 efficiency
Heating capacity: 18,000 BTU/H with 8.1 HSPF2 / 2.9 COP2 efficiency
Voltage: 208/230V, 60Hz, 1Ph
Ceiling Concealed Mounted Ducted Air Conditioning & Heating System
Variable-Speed DC Inverter Driven Performance
Factory-Precharged with Environmentally Friendly R454b Refrigerant
Standard Ambient Range Operation (As low as 5°F in Heating / As high as 131°F in Cooling)

Features

Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
Dual-Drainage Ports
Washable, Reusable Air Filters
Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers
Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature

Technical Information & Performance

AHRI Certificate
Energy Guide

Product Specifications

Pioneer® Quantum Ultra™ 18,000 BTU 21 SEER2 230V Ceiling Concealed Ducted Mini-Split Air Conditioner Inverter Heat Pump Full Set Product Specifications

System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 17,000 BTU/h
- Cooling Capacity Range: 6,000~19,400 BTU/h
- Cooling SEER2: 21.0 BTU/W.h
- Cooling EER2: 11.7 BTU/W.h
- Heating Rated Capacity: 18,000 BTU/h
- Heating Capacity Range: 4,000~21,400 BTU/h
- Heating HSPF2 (Region IV): 8.1 / 7.2 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 2.9 / 1.8 W/W
- Refrigerant Type: R454b
- Suitable Area: 500~750 Sq.F
- AHRI Reference: 217048764
Indoor Unit
- Part Number: RT018GLSILCFHG
- Air Flow (Turbo/Hi/Med/Lo/Mute): 500/426/370/300/283 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 41/38/36 dB(A)
- Product Dimensions (WDH): 35"-1/2 x 19"-1/4 x 7"-7/8 Inches
- Carton Dimensions (WDH): 44"-1/8 x 21"-7/8 x 9"-7/8 Inches
- Net / Gross Weight: 39.7 / 46.3 lbs.

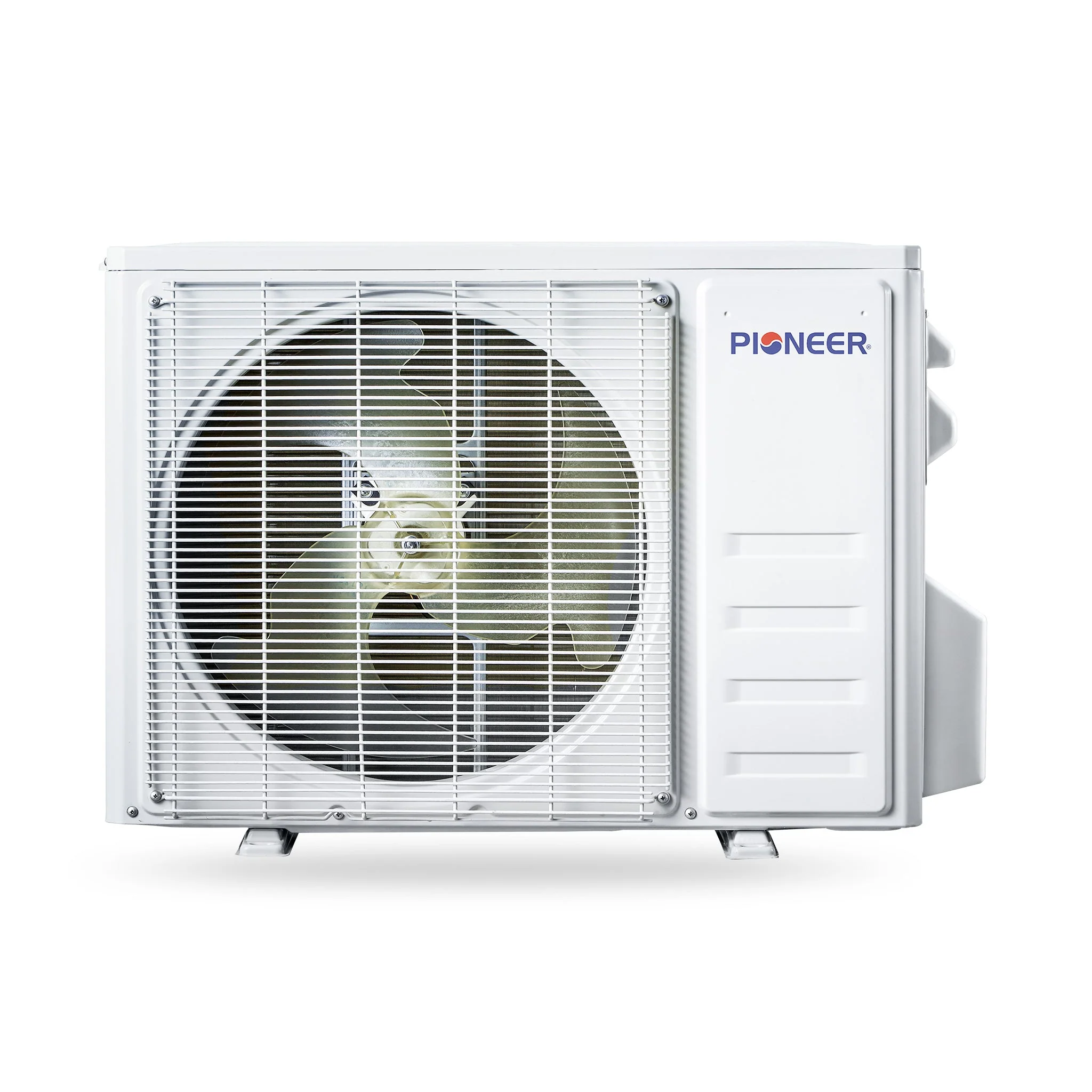

Outdoor Unit
- Part Number: YN018GLSI24RPG
- Breaker Needed: 20A (double-pole)
- Sound Level: 53 dB(A)
- Net Dimensions (WDH): 36"-1/2 x 15" x 27"-1/2 Inches
- Carton Dimensions (WDH): 37"-3/8 x 16"-1/2 x 28"-7/8 Inches
- Net / Gross Weight: 90.4 / 97.0 lbs.

Dimension Chart

Product Manual

Technical Brochure

User & Installation Manual

Service Manual

Disassembly Manual

Product Warranty

Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy

Up to 5 years Warranty for Parts
Up to 5 years Warranty for Compressor

Product FAQ's

N/A
