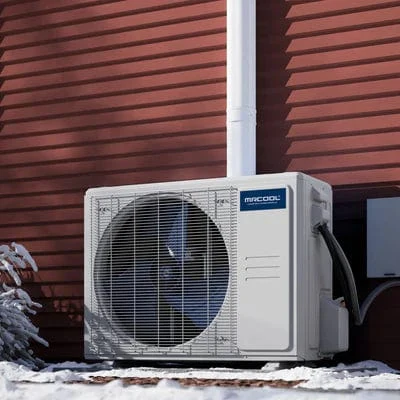

MRCOOL DIY® 5th Gen E Star 18,000 BTU Single Zone Mini Split Condenser 230V (DIY-18-HP-C-230D25-O)

MRCOOL DIY® 5th Gen E Star 18,000 BTU Single Zone Mini Split Condenser 230V (DIY-18-HP-C-230D25-O)

Description

Introducing the new 5th Generation MRCOOL® DIY® 18K BTU 22.5 SEER Ductless Heat Pump Single Zone Mini Split Condenser, a game-changer for home climate control. Designed for straightforward installation, it requires no specialized tools or professional help, making it an excellent choice for spaces ranging from 500-750 sq. ft. The system includes a pre-charged 25-foot QuickConnect® line set filled with R-454B refrigerant, streamlining installation by eliminating the need for vacuuming. The DIYPRO® cable adds extra protection against weather, animals, and yardwork damage, replacing the need for traditional electrical conduit.

Managing your home's temperature has never been easier. You can adjust settings using the included remote, the SmartHVAC app for Apple and Android devices, or voice commands via Amazon Alexa and Google Assistant. The Gold Fin Condenser enhances durability, providing excellent corrosion resistance for coastal environments. Designed for efficiency and comfort, this system offers multiple features. The Timer function helps control energy use, while Auto mode maintains your preferred temperature without manual adjustments. After a power outage, the unit automatically restores previous settings, and the anti-mildew function prevents excess moisture buildup inside the air handler.

Built for long-term reliability, the 5th Generation MRCOOL® DIY® Mini Split comes with an industry-leading warranty, featuring a limited lifetime warranty, plus 7 years on the compressor and 5 years on parts. With its innovative design, simple installation, and dependable performance, this system delivers hassle-free comfort for your home.

Features

• Intertek listed 5031495
• Easy DIY installation
• Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
• Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
• The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.

Product Specifications

MRCOOL DIY® 5th Gen E Star 18,000 BTU Single Zone Mini Split Condenser 230V (DIY-18-HP-C-230D25-O) Product Specifications

Dimensions	13.46" D x 26.5" H x 35.04" w
SEER2	22.5
EER2	13.7
HSPF2-4	11.5
HSPF2-5	8.5
Tonnage	1.5
Cooling Capacity (BTU)	18000
Heating Capacity (BTU)	18000
Voltage (V)	208/230
Phase	1
Cycle	60
Max Fuse Breaker (A)	20
Min Circuit Ampacity (A)	18
Color	White
Zone Capacity	1
Refrigerant Type	R-454B
Refrigerant Volume (Oz)	44.8
Decibel Rating (DBA)	58.5
Inverter	DC
Line Set Length	25
Max Lineset Length (FT)	98.4
Liquid Line Size	1/4
Suction Line Size	1/2
Compressor Motor Type	Rotary
Auxiliary Heater Included	No
Auxiliary Heater Available	No
Fan Only Option	Yes
Quiet Mode	Yes
Auto Cool	Yes
WIFI Compatibility	Yes
APP Compatibility	Yes
Works with IOS	Yes
Works with Android	Yes
UL Listed	Yes
ETL Listed	Yes
Energy Star Certified	Yes
AHRI Certified	Yes
Registered Warranty	Extended Limited Lifetime*
Base Parts Warranty	5
Base Compressor Warranty	7
Has Batteries	Yes
Contains Electronics	Yes
Contains Chemicals	Yes
Contains Aerosol	Yes
Contains Compressed Gas	Yes
Proposition 65 Warning	Yes
Net Weight (Lbs)	93.48
Gross Depth (In)	18.11
Gross Height (In)	29.53
Gross Width (In)	40.55
Gross Weight (Lbs)	114.2

Product Manual

Product Warranty

MRCOOL Limited Lifetime Warranty

LIMITATIONS OF WARRANTIES

Q1 How do I register my warranty?

Answer: Go to here to file your warranty.

Q2 How do I find the AHRI number of my unit?

Answer: You can find links to the AHRI certificates on the documentation page at mrcool.com/documentation.
