Pioneer® Quantum Hyperformance™ 18,000 BTU 23.5 SEER2 230V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Hyper Heat Pump Full Set

Description

Quantum Hyperformance™ High-Wall Series

At Pioneer Mini Split, we offer ductless wall-mounted mini split systems in various capacities and efficiency ratings, making them easy to install and providing reliable single-zone comfort. Each unit features a remote control for cooling, heating, dehumidification, and ventilation, while automatic louvers and variable airflow ensure ideal conditions with minimal energy consumption.

IMPORTANT
The outdoor unit is pre-charged with R454b Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option unless you are providing one yourself.

What's Included in Your Purchase

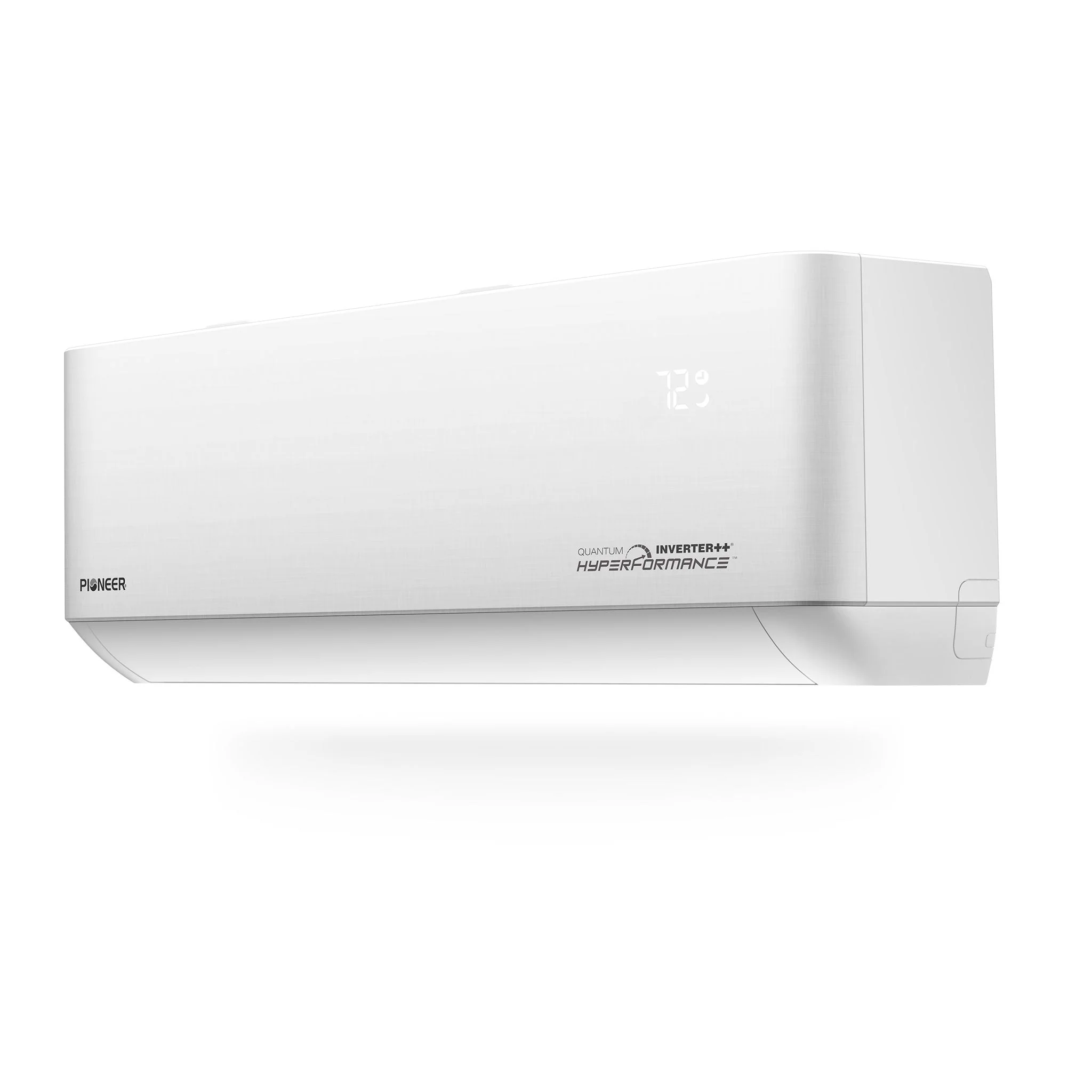

Indoor Unit

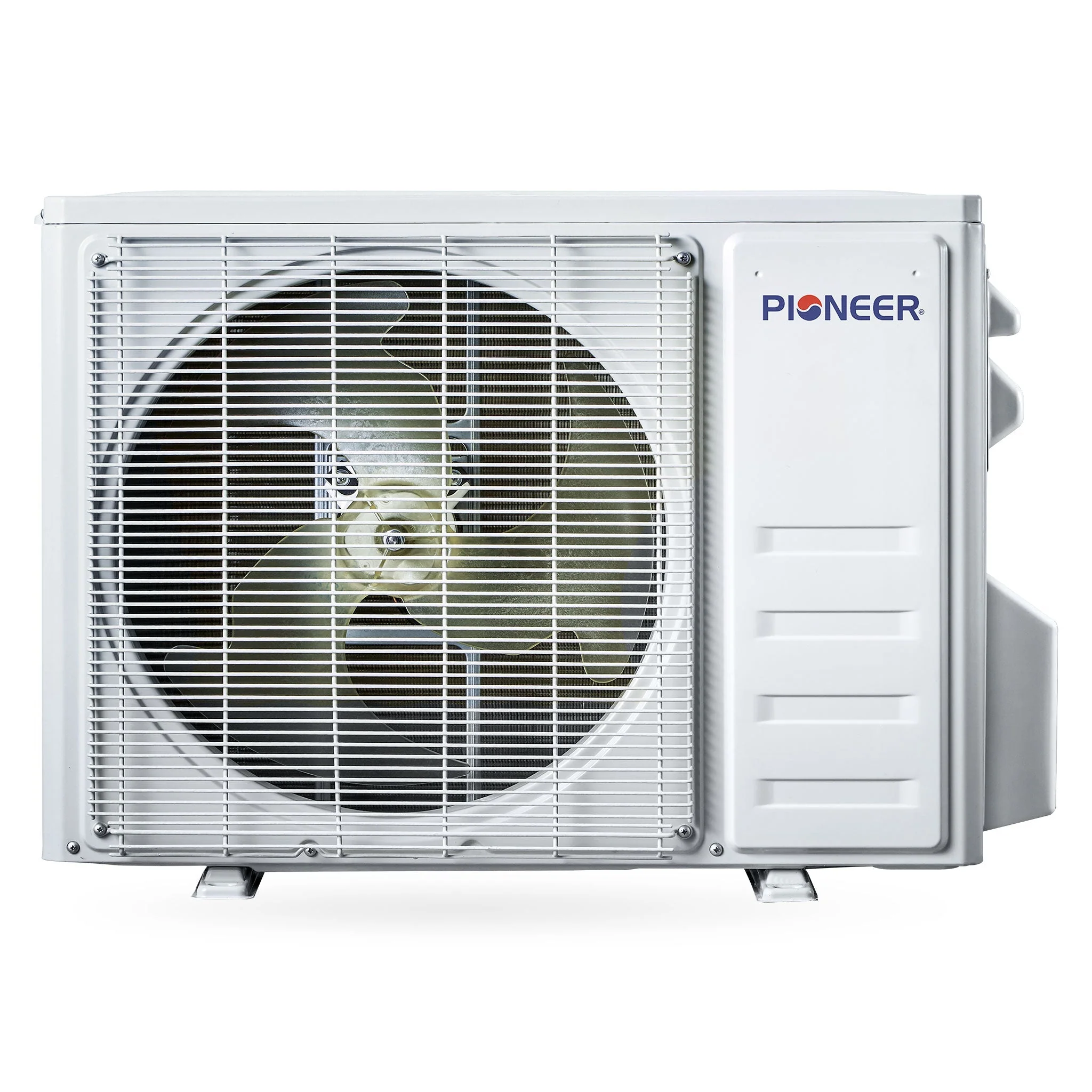

Outdoor Unit

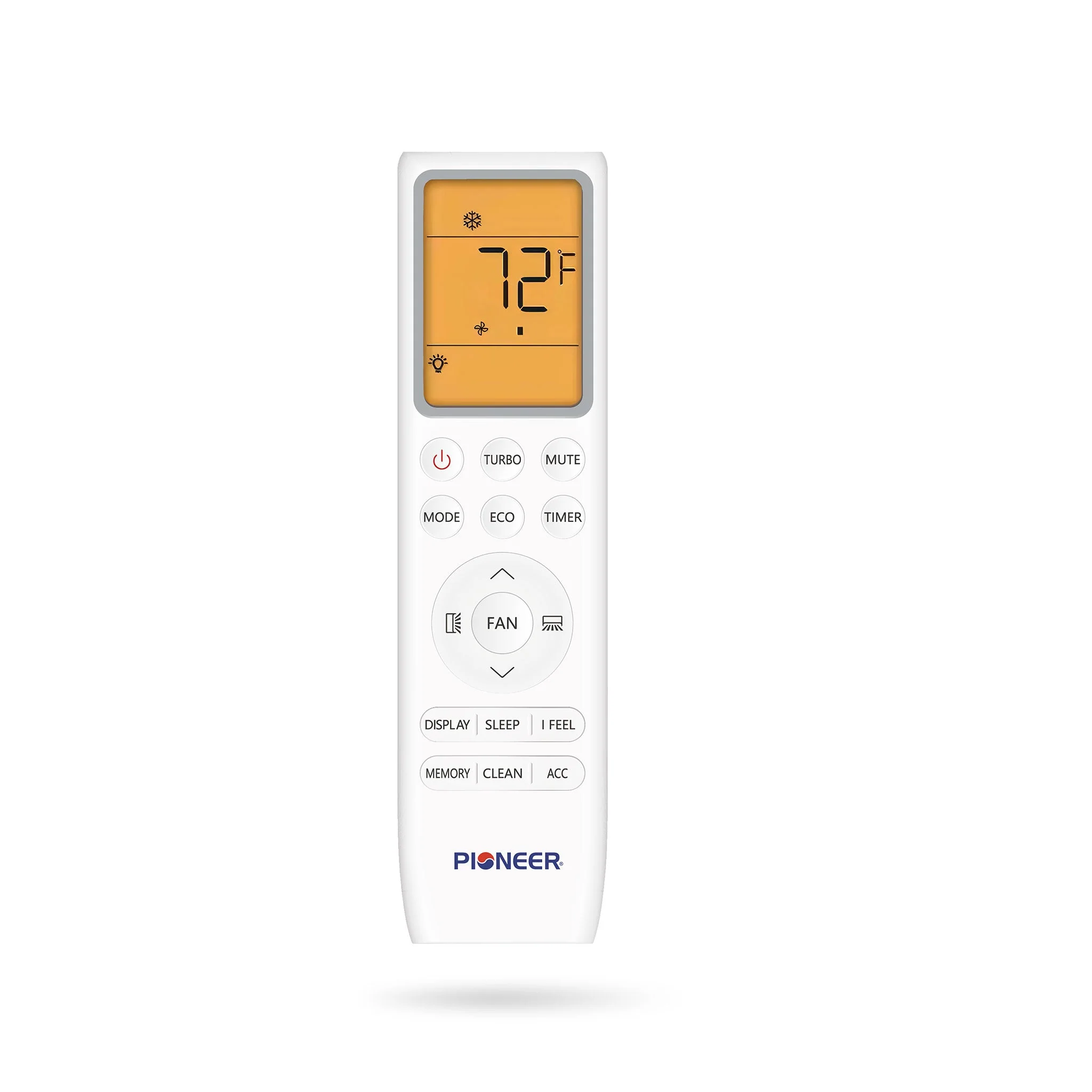

Wireless Remote Control
Remote Control Wall Holder
Remote Control Batteries

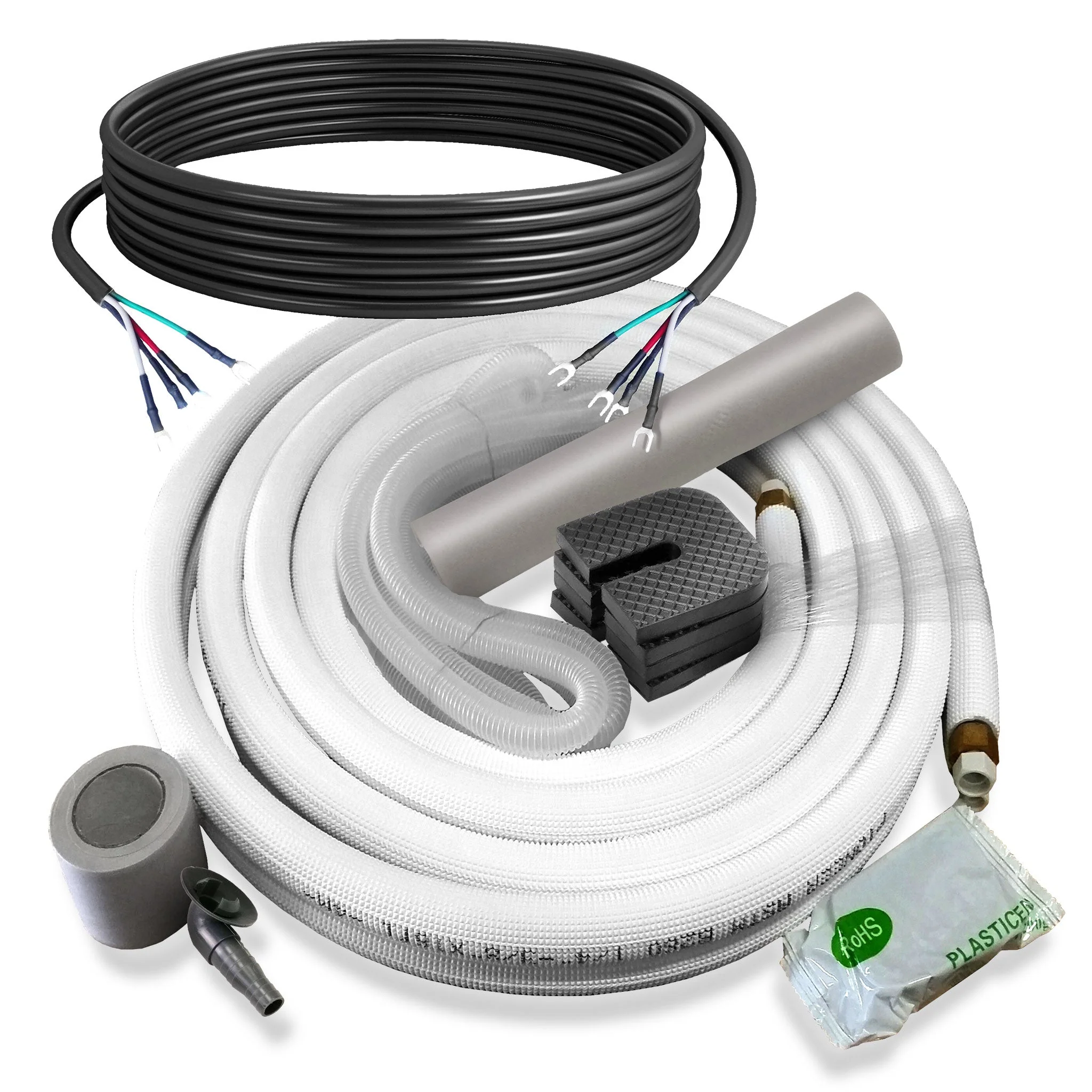

Customizable Length Copper Lines
Customizable Length Electrical Wire
10 Ft. Drain for indoor/outdoor
Wall Passage Sleeve
Putty for Wall Hole
Leak Guard Sealer
Wrapping Tape
Installation Manual
User’s Manual

Summary

Ultimate Efficiency Quantum Hyperformance™ Ductless Mini Split Heat Pump System
Cooling capacity: 18,000 BTU/H with 23.5 SEER2 / 12.5 EER2 efficiency
Heating capacity: 18,000 BTU/H with 10.0 HSPF2 / 3.8 COP2 efficiency
Voltage: 208/230V, 60Hz, 1Ph
High Wall-Mounted Ductless Air Conditioning & Heating System
Wi-Fi Enabled and Controllable By Smartphone via the Free Pioneer Airlink App
Variable-Speed DC Inverter Driven Performance
Factory-Precharged with Environmentally Friendly R454b Refrigerant
Extreme Climate Operation (As low as -22°F in Heating / As high as 131°F in Cooling)

Features

Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
Dual-Drainage Ports
Washable, Reusable Air Filters
Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers
Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature

Technical Information & Performance

AHRI Certificate
Energy Guide

Product Specifications

System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 18,000 BTU/h
- Cooling Capacity Range: 4,100~19,400 BTU/h
- Cooling SEER2: 23.5 BTU/W.h
- Cooling EER2: 12.5 BTU/W.h
- Heating Rated Capacity: 18,000 BTU/h
- Heating Capacity Range: 4,100~21,400 BTU/h
- Heating HSPF2 (Region IV): 10.0 / 9.0 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.8 / 1.8 W/W
- Refrigerant Type: R454b
- Recommended Room Size: 500~750 Sq.F
- Minimum Room Size: 52 sq ft
- Minimum Installation Height: 6 ft
- Piping Diameter: 1/4 x 1/2"
- AHRI Reference: 217048756
Indoor Unit
- Part Number: WT018GLSI25HLH
- Air Flow (Turbo/Hi/Med/Lo/Mute): 735/676/529/423/394 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 48/45/40/37/34 dB(A)
- Product Dimensions (WDH): 43"-1/8 x 8"-3/4 x 13" Inches
- Carton Dimensions (WDH): 45"-7/8 x 11"-5/8 x 16" Inches
- Net / Gross Weight: 30.9 / 35.3 lbs.
Outdoor Unit
- Part Number: YN018GLSI25RPH
- Breaker Needed: 20A (double-pole)
- Sound Level: 58 dB(A)
- Net Dimensions (WDH): 36"-1/2 x 15" x 27"-1/2 Inches
- Carton Dimensions (WDH): 37"-3/8 x 16"-1/2 x 28"-7/8 Inches
- Net / Gross Weight: 93.7 / 102.5 lbs.

Dimension Chart

Product Manual

Technical Brochure

User & Installation Manual

Service Manual

Disassembly Manual

Product Warranty

Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy

Up to 5 years Warranty for Parts
Up to 5 years Warranty for Compressor

Product FAQ's
