Pioneer® Diamante Essenza™ 12,000 BTU 17 SEER2 115V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit

Pioneer® Diamante Essenza™ 12,000 BTU 17 SEER2 115V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit

Pioneer® Diamante Essenza™ 12,000 BTU 17 SEER2 115V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit

Description

Diamante Essenza™ High-Wall Series

Our Pioneer® ductless mini split wall-mounted air conditioners and heat pumps come with a convenient remote controller conveys cooling, heating, dehumidification, and ventilation requests to the wall-mount ductless mini split system, while automatic air-sweeping louvers, automatically varying air flow, and capacity adjustments keep the zone at the ultimate comfort level.

IMPORTANT

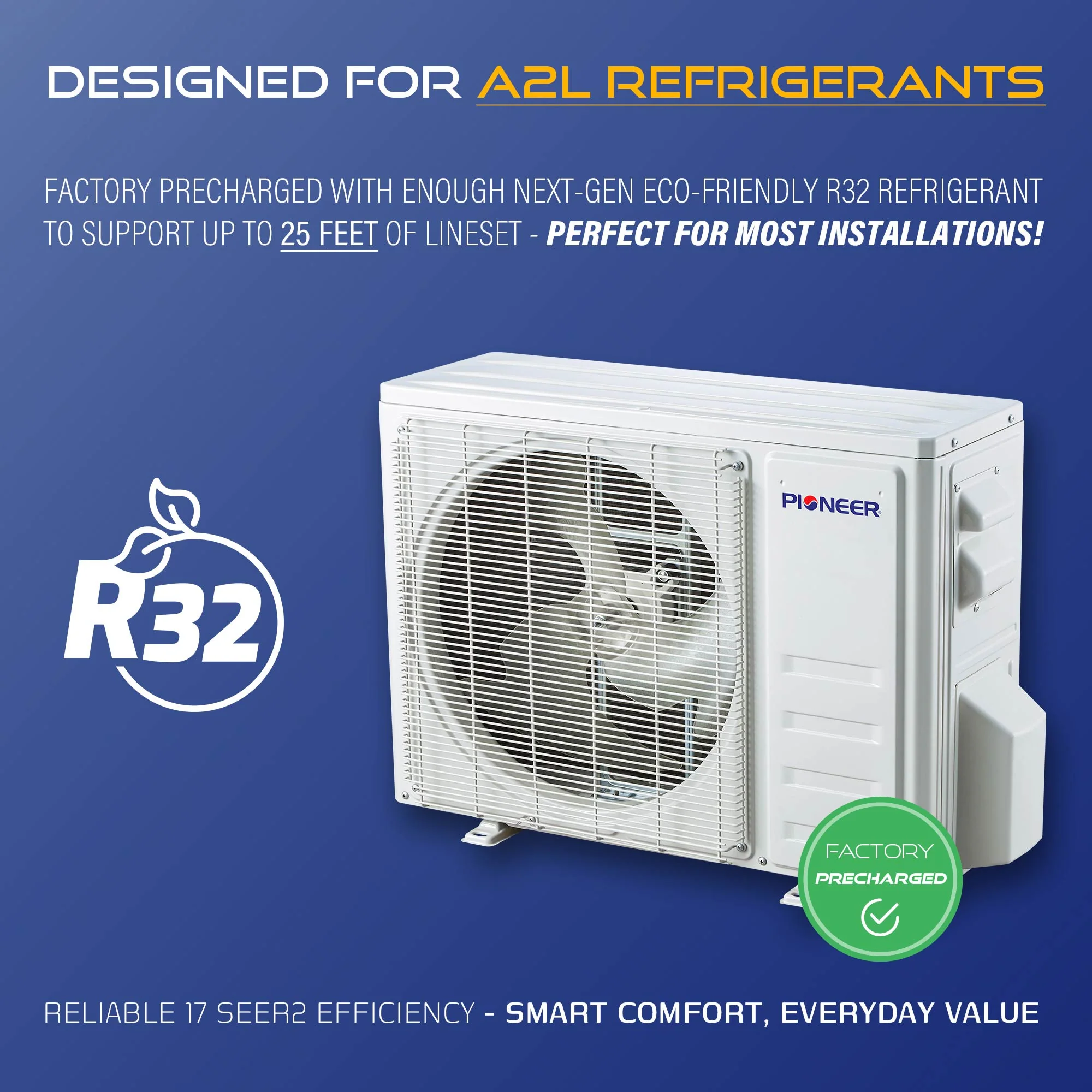

The outdoor unit is pre-charged with R32 Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The copper tubing is included in the outdoor unit box, and the communication wiring kit is included in the indoor unit box. This product set consists of only 2 cartons.

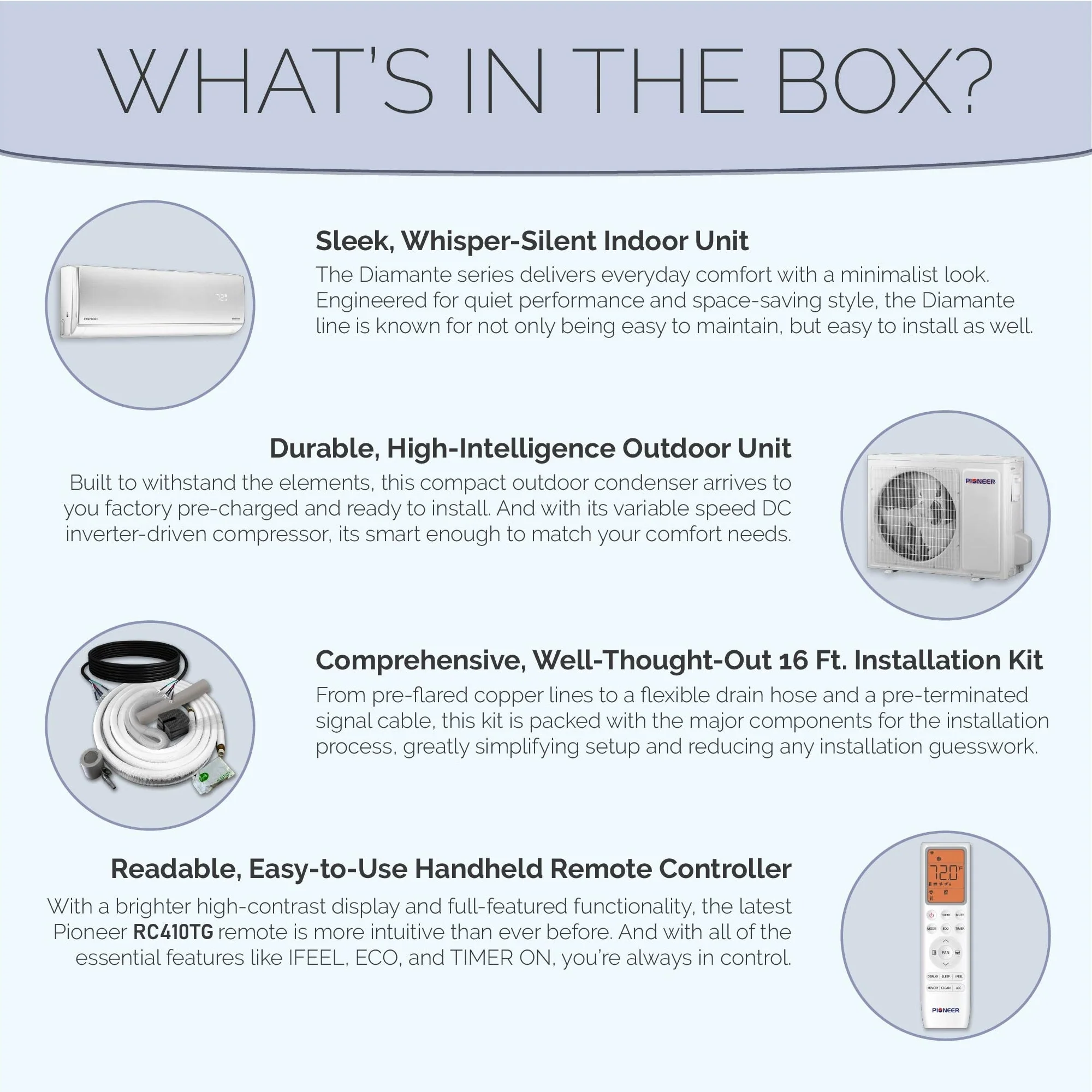

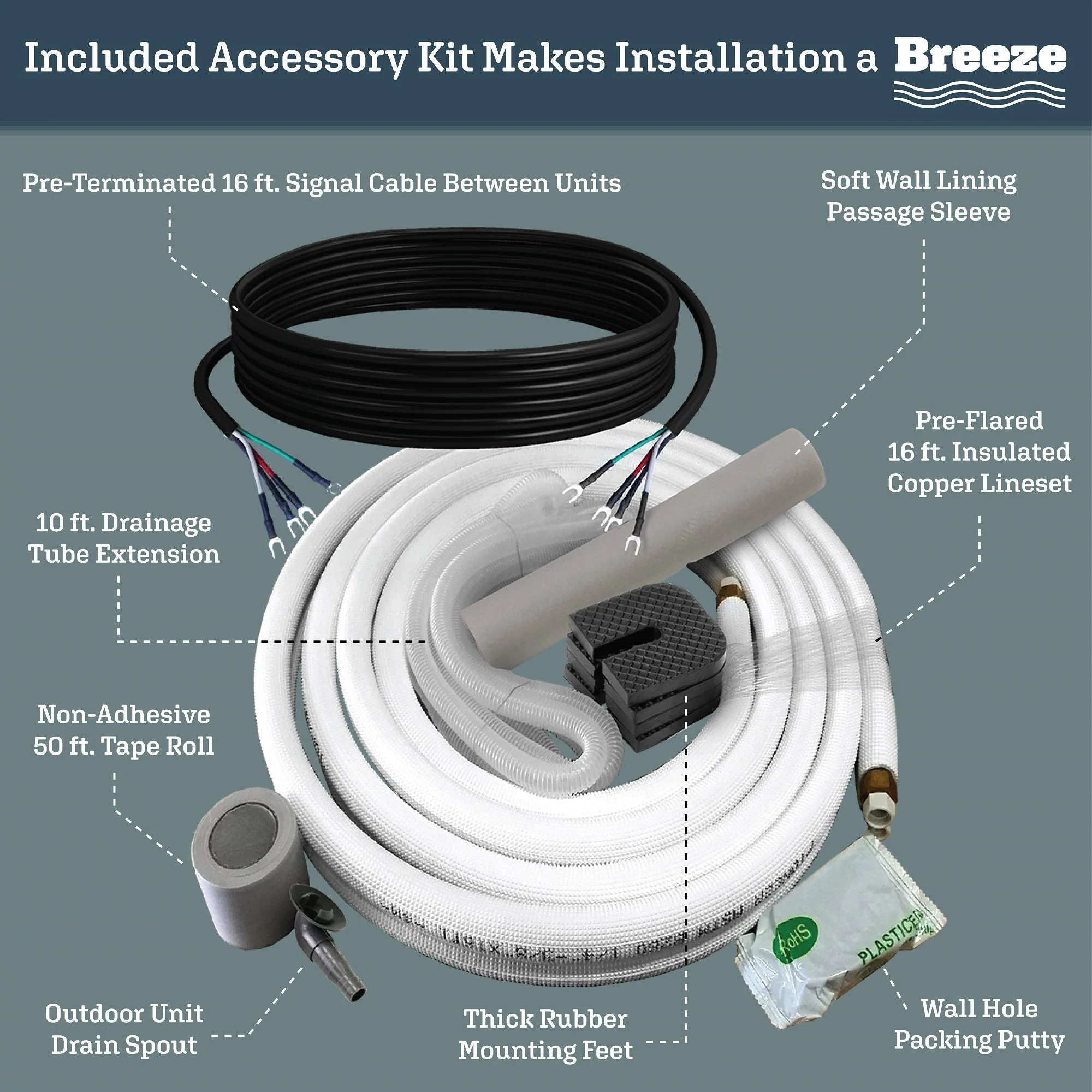

What's Included in Your Purchase

  • Indoor Unit
  • Outdoor Unit
  • Wireless Remote Control
  • Remote Control Wall Holder
  • Remote Control Batteries
  • 16 Ft. Copper Lines
  • 16 Ft. Electrical Wire
  • 10 Ft. Drain for indoor/outdoor
  • Wall Passage Sleeve
  • Putty for Wall Hole
  • Leak Guard Sealer
  • Wrapping Tape
  • Installation Manual
  • User’s Manual

Summary

  • Standard Efficiency Diamante Essenza™ Ductless Mini Split Heat Pump System
  • Cooling capacity: 11,500 BTU/H with 17 SEER2 / 9.5 EER2 efficiency
  • Heating capacity: 11,500 BTU/H with 9.5 HSPF2 / 3.3 COP2 efficiency
  • Voltage: 110/120V, 60Hz, 1Ph
  • High Wall-Mounted Ductless Air Conditioning & Heating System
  • Variable-Speed DC Inverter Driven Performance
  • Factory-Precharged with Environmentally Friendly R-32 Refrigerant
  • Standard Ambient Range Operation (As low as 5°F in Heating / As high as 122°F in Cooling)

Standard Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • IFEEL, to Detect and Adjust to Local Temperature

Technical Information & Performance

  • AHRI Certificate
  • Energy Guide

Product Specifications

Pioneer® Diamante Essenza™ 12,000 BTU 17 SEER2 115V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit Product Specifications

  • System Kit
    • Power Supply: 110~120V, 60Hz, 1Ph
    • Cooling Rated Capacity: 11,500 BTU/h
    • Cooling Capacity Range: 2,050~12,000 BTU/h
    • Cooling SEER2: 17.0 BTU/W.h
    • Cooling EER2: 9.5 BTU/W.h
    • Heating Rated Capacity: 11,500 BTU/h
    • Heating Capacity Range: 2,050~12,500 BTU/h
    • Heating HSPF2 (Region IV): 9.5 / 8.1 BTU/W.h
    • Heating C.O.P.2 (47°F/5°F): 3.3 / 1.9 W/W
    • Refrigerant Type: R-32
    • Recommended Room Size: 200~450 sq ft
    • Minimum Room Size: 20 sq ft
    • Minimum Installation Height: 6 ft
    • Piping Diameter: 1/4-3/8"
    • AHRI Reference: 217048734
  • Indoor Unit
    • Part Number: WT012ALUI17HLD
    • Air Flow (Turbo/Hi/Med/Lo/Mute): 276 / 265 / 241 / 224 / 206 CFM
    • Sound Level (Turbo/Hi/Med/Lo/Mute): 43 / 40 / 36 / 33 / 29 dB(A)
    • Product Dimensions (WDH): 30-1/2 x 7-7/8 x 9-3/4 Inches
    • Carton Dimensions (WDH): 33-1/8 x 10-1/4 x 12-3/8 Inches
    • Net / Gross Weight: 16.5 / 20.9 lbs
  • Outdoor Unit
    • Part Number: YN012ALUI17RPD
    • Breaker Needed: 20A (single-pole)
    • Sound Level: 53 dB(A)
    • Net Dimensions (WDH): 31 x 11-1/2 x 19-3/8 Inches
    • Carton Dimensions (WDH): 33 x 13-1/4 x 22-3/4 Inches
    • Net / Gross Weight: 50.7 / 61.7 lbs

Dimension Chart

30½ 7⅞ 9¾ 31 11½ 19⅜ 2¼ ¾ 8½

Product Manual

Technical Brochure

User & Installation Manual

Service Manual

Disassembly Manual

Product Warranty

Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy

  • Up to 5 years Warranty for Parts
  • Up to 5 years Warranty for Compressor

Product FAQ's

N/A

$768.00
