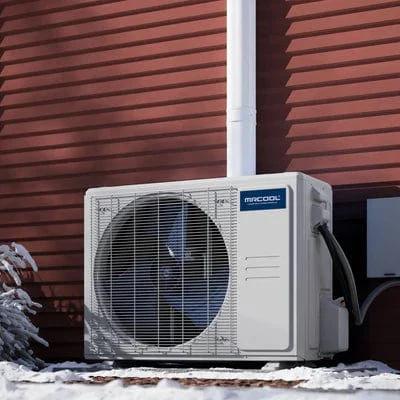

MRCOOL DIY® 5th Gen E Star 12,000 BTU Single Zone Mini Split Condenser 115V (DIY-12-HP-C-115D25-O)

MRCOOL DIY® 5th Gen E Star 12,000 BTU Single Zone Mini Split Condenser 115V (DIY-12-HP-C-115D25-O)

Description

The 5th Generation 5th Generation MRCOOL® DIY® 12k BTU 23.5 SEER Ductless Heat Pump Single Zone Mini Split Condenser makes home climate control easier than ever. Designed for effortless installation, this system requires no special tools or professional experience and is ideal for spaces between 350-500 sq. ft. With a pre-charged 25-foot QuickConnect® line set filled with R-454B refrigerant, setup is simple and eliminates the need for vacuuming. The included DIYPRO® cable enhances durability, replacing traditional electrical conduit to protect against weather, animals, and yardwork damage. Controlling your comfort is seamless with multiple options, including the included remote, the SmartHVAC app for Apple and Android devices, or hands-free commands via Amazon Alexa and Google Assistant.

Additionally, the Gold Fin Condenser provides exceptional corrosion resistance, making it a great choice for coastal environments. Equipped with a variety of features, this system enhances efficiency and comfort. The Timer function helps manage energy use, while Auto mode maintains your desired temperature without constant adjustments. After a power outage, the system automatically resumes previous settings, and the anti-mildew function reduces condensation buildup in the air handler.

Built for longevity, the 5th Generation MRCOOL® DIY® Mini Split offers an industry-leading warranty, including a limited lifetime warranty, plus a 7-year compressor and 5-year parts warranty. Combining advanced technology, user-friendly operation, and long-term reliability, this system is designed for hassle-free home comfort.

Features

• NEEP ccASHP Listed
• Intertek listed 5031495
• Easy DIY installation
• Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
• Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
• The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.

Product Specifications

MRCOOL DIY® 5th Gen E Star 12,000 BTU Single Zone Mini Split Condenser 115V (DIY-12-HP-C-115D25-O) Product Specifications

Dimensions	11.93" D x 21.85" H x 30.12" W
SEER2	23.5
EER2	12.5
HSPF2-4	10.2
HSPF2-5	7.6
Tonnage	1
Cooling Capacity (BTU)	12000
Heating Capacity (BTU)	12000
Voltage (V)	115
Phase	1
Cycle	60
Max Fuse Breaker (A)	20
Min Circuit Ampacity (A)	18
Color	White
Zone Capacity	1
Refrigerant Type	R-454B
Refrigerant Volume (Oz)	30.34
Decibel Rating (DBA)	54
Inverter	DC
Line Set Length	25
Max Lineset Length (FT)	82
Liquid Line Size	1/4
Suction Line Size	3/8
Compressor Motor Type	Rotary
Auxiliary Heater Included	No
Auxiliary Heater Available	No
Fan Only Option	Yes
Quiet Mode	Yes
Auto Cool	Yes
WIFI Compatibility	Yes
APP Compatibility	Yes
Works with IOS	Yes
Workw with Android	Yes
UL Listed	Yes
ETL Listed	Yes
Energy Star Certified	Yes
AHRI Certified	Yes
Registered Warranty	Extended Limited Lifetime*
Base Parts warranty	5
Base Compressor Warranty	7
Has Batteries	Yes
Contains Electronics	Yes
Contains Chemicals	Yes
Contains Aerosol	Yes
Contains Compressed Gas	Yes
Proposition 65 Warning	Yes
Net Weight (Lbs)	83.11
Gross Depth (In)	16.54
Gross Height (In)	27.56
Gross Width (In)	36.22
Gross Weight (Lbs)	65.48

Product Manual

Product Warranty

MRCOOL Limited Lifetime Warranty

LIMITATIONS OF WARRANTIES

Q1 How do I register my warranty?

Answer: Go to here to file your warranty.

Q2 How do I find the AHRI number of my unit?

Answer: You can find links to the AHRI certificates on the documentation page at mrcool.com/documentation.
