MRCOOL VersaPro 2nd Gen 48K BTU, 4 Ton Central Ducted Air Handler (MVP-48-HP-MUAH-230A00-O)

MRCOOL VersaPro 2nd Gen 48K BTU, 4 Ton Central Ducted Air Handler (MVP-48-HP-MUAH-230A00-O)

MRCOOL VersaPro 2nd Gen 48K BTU, 4 Ton Central Ducted Air Handler (MVP-48-HP-MUAH-230A00-O)

Description

This product only includes an air handler.

Experience year-round comfort with the 4 Ton MRCOOL® VersaPro® Central Ducted Air Handler, engineered for efficient and reliable heating and cooling. With an impressive SEER2 rating of up to 16.5, this unit is ideal for spaces up to 2,000 square feet, making it the perfect solution to modernize your older HVAC system. Crafted from durable painted galvanized steel, this air handler is built to last. Its self-diagnostics panel helps quickly identify issues, making maintenance easier and reducing troubleshooting time. Versatility is key with this model, offering flexible installation options, including upflow, downflow, and horizontal configurations left or right configurations, so it can adapt to different layouts.

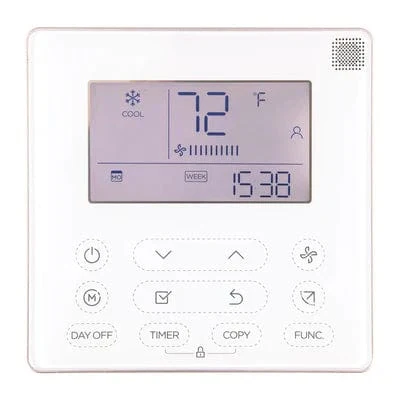

This air handler utilizes R-454B refrigerant, and an optional heat kit is readily available for those seeking additional warmth, enhancing its versatility. Compatible with our Central Ducted Hyper Heat Condenser, this air handler ensures optimal performance and comfort. The included MRCOOL® Smart Thermostat provides easy and precise temperature control for your home. It is also compatible with the MRCOOL® SmartHVAC app, allowing you to adjust settings remotely for added convenience. Backed by a 10-year warranty, the 4 Ton MRCOOL® VersaPro® Central Ducted Air Handler is a reliable and efficient solution for upgrading your home’s HVAC system. It’s an affordable option that enhances comfort while offering energy savings.

Product Specifications

MRCOOL VersaPro 2nd Gen 48K BTU, 4 Ton Central Ducted Air Handler (MVP-48-HP-MUAH-230A00-O) Product Specifications

Dimensions

24.49" D x 52.99" H x 21.02" W

CFM

1600.99/1471.50/1283.15/1094.80

Tonnage

4

Cooling Capacity (BTU)

48000

Heating Capacity (BTU)

48000

Voltage (V)

115/208-230

Phase

1

Cycle

60

Max Fuse Breaker (A)

15

Min Circuit Ampacity (A)

14.5/11.0

Color

gray

Decibel Rating Low (DBA)

44

Decibel Rating High (DBA)

53

Number of Speeds

3

Max Lineset Length (FT)

246 ft

Liquid Line Size

3/8

Suction Line Size

3/4

Filter Type

Replaceable

Filter Size

23x20x1

Auxiliary Heater Included

No

Auxiliary Heater Available

Yes

Auxiliary Heater Sizes

8kW/10kW/15kW/20kW

Adjustable Thermostat

Yes

WIFI Compatibility

Yes

APP Compatibility

Yes

ETL Certified

Yes

Energy Star Certified

Yes

AHRI Certified

Yes

Base Parts Warranty

10 Years

Base Compressor Warranty

10 Years

Contains Electronics

Yes

Contains Chemicals

Yes

Contains Compressed Gas

Yes

Net Weight (Lbs)

162.92

Gross Depth (In)

26.77

Gross Height (In)

56.5

Gross Width (In)

27.95

Gross Weight (Lbs)

190.92

Product Manual

Installation Manual
Warranty

Product Warranty

MRCOOL Limited Lifetime Warranty

MRCOOL distributor (hereinafter “Company”) warrants this product against failure due to defect in materials or workmanship under normal use and maintenance as follows.

All warranty periods begin on the date of original installation. If the date cannot be verified, the warranty period begins one hundred twenty (120) days from date of manufacture. If a part fails due to defect during the applicable warranty period Company will provide a new or remanufactured part, at Company’s option, to replace the failed defective part at no charge for the part.

This limited warranty is subject to all provisions, conditions, limitations and exclusions listed on the right side.

LIMITATIONS OF WARRANTIES

ALL IMPLIED WARRANTIES AND/OR CONDITIONS (INCLUDING IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR USE OR PURPOSE) ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY, SOME STATES OR PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY OR CONDITION LASTS, SO THE ABOVE MAY NOT APPLY TO YOU.

THE EXPRESS WARRANTIES MADE IN THIS WARRANTY ARE EXCLUSIVE AND MAY NOT BE ALTERED, ENLARGED, OR CHANGED BY ANY DISTRIBUTOR, DEALER, OR OTHER PERSON, WHAT SO EVER.

Product FAQs

Q1 How do I register my warranty?

Answer: Go to here to file your warranty.

Q2 How do I find the AHRI number of my unit?

Answer: You can find links to the AHRI certificates on the documentation page at mrcool.com/documentation.
