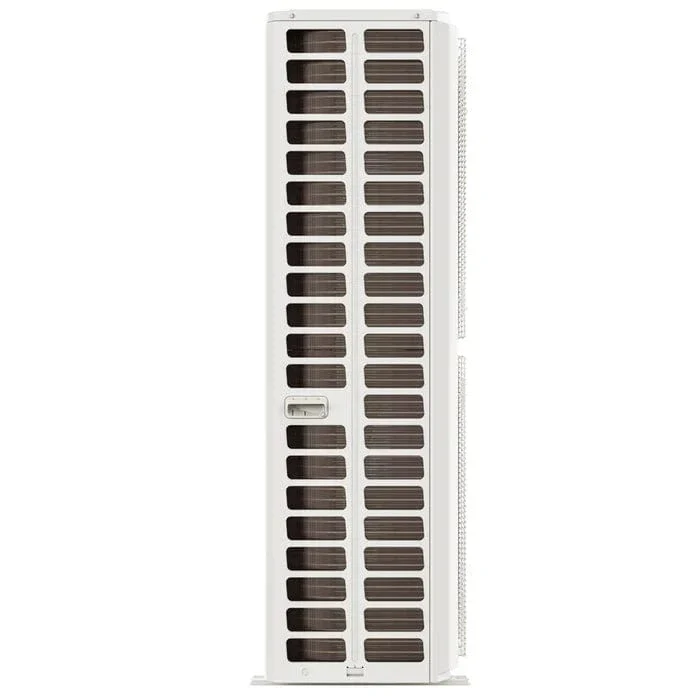

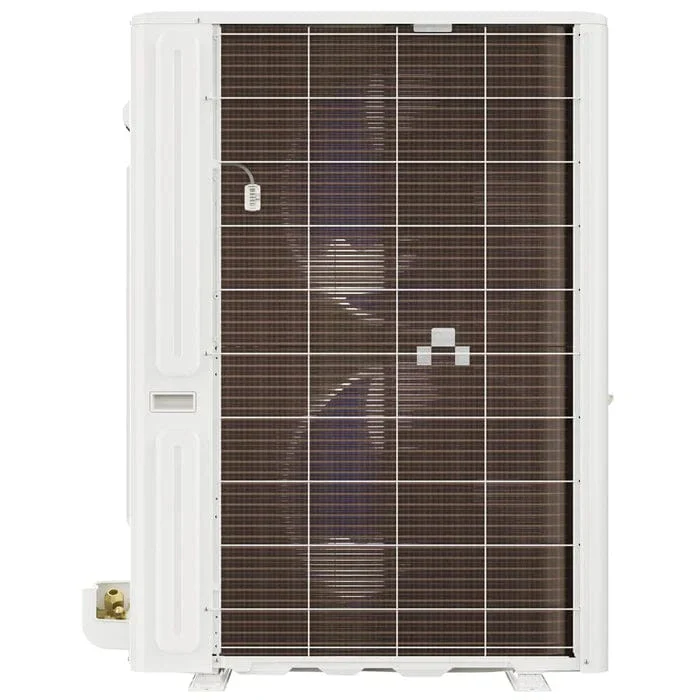

MRCOOL Hyper Heat 2nd Gen 48K BTU, 4 Ton, 16.5 SEER2 Central Ducted Condenser (CENTRAL-48-HP-C-230B00-O)

MRCOOL Hyper Heat 2nd Gen 48K BTU, 4 Ton, 16.5 SEER2 Central Ducted Condenser (CENTRAL-48-HP-C-230B00-O)

MRCOOL Hyper Heat 2nd Gen 48K BTU, 4 Ton, 16.5 SEER2 Central Ducted Condenser (CENTRAL-48-HP-C-230B00-O)

Description

This product only includes a condenser.

The 48K MRCOOL® Hyper Heat Central Ducted Condenser is crafted to provide outstanding performance in even the most extreme climates, from icy winters to scorching summers. This Hyper Heat system utilizes DC Inverter technology and variable speed functionality to deliver consistent, high-quality operation. With a SEER2 rating of up to 16.5 and an HSPF2-4 rating of up to 9.5, it offers powerful heating and cooling while maximizing energy efficiency. A MRCOOL® Smart thermostat is included, giving you complete control over your indoor environment with ease.

The 48K MRCOOL® Hyper Heat Central Ducted Condenser is compatible with the 48K MRCOOL® VersaPro® Central Ducted Air Handler. The air handler is built for flexibility, supports various installation options, and is compatible with an optional heat kit for added capability. The system features R-454B refrigerant, a sustainable choice that minimizes its impact on the environment. Durability is a hallmark of the outdoor heat pump, constructed with a painted galvanized steel exterior for long-term resilience. The air handler is thoughtfully designed with a compact form, slide-out blower, and self-diagnostic panel to streamline maintenance and troubleshooting.

Enjoy peace of mind with the system’s 10-year warranty, covering the compressor, parts, and labor. The labor warranty activates automatically upon installation, so no registration is required. Enhance your home’s comfort with the efficient and reliable 48K MRCOOL® Hyper Heat Central Ducted Condenser today!

Product Specifications

MRCOOL Hyper Heat 2nd Gen 48K BTU, 4 Ton, 16.5 SEER2 Central Ducted Condenser (CENTRAL-48-HP-C-230B00-O) Product Specifications

Dimensions

16.34" D x 38.39" H x 38.58" W

SEER2

16.5

EER2

10.5

HSPF-4

9.5

HSPF-5

8

CFM

3037.1

Tonnage

4

Cooling Capacity (BTU)

48000

Heating Capacity (BTU)

50000

Voltage (V)

208-230

Phase

1

Cycle

60

Max Fuse Breaker (A)

40

Min Circuit Ampacity (A)

38

Color

gray

Refrigerant Type

R454B

Refrigerant Volume (OZ)

134.04

Decibel Rating (DBA)

65

Liquid Line Size

3/8

Suction Line Size

3/4

WIFI Compatibility

Yes

APP Compatibility

Yes

ETL Certified

Yes

Energy Star Certified

Yes

AHRI Certified

Yes

Base Parts Warranty

10 Years

Base Compressor Warranty

10 Years

Base Labor Warranty

10 Years

Contains Electronics

Yes

Contains Chemicals

Yes

Contains Compressed Gas

Yes

Net Weight (Lbs)

201.06

Gross Depth (In)

19.68

Gross Height (In)

42.52

Gross Width (In)

45.08

Gross Weight (Lbs)

232.36

Product Manual

Brochure
Installation Manual
AHRI Cert
Energy Guide

Product Warranty

MRCOOL Limited Lifetime Warranty

MRCOOL distributor (hereinafter “Company”) warrants this product against failure due to defect in materials or workmanship under normal use and maintenance as follows.

All warranty periods begin on the date of original installation. If the date cannot be verified, the warranty period begins one hundred twenty (120) days from date of manufacture. If a part fails due to defect during the applicable warranty period Company will provide a new or remanufactured part, at Company’s option, to replace the failed defective part at no charge for the part.

This limited warranty is subject to all provisions, conditions, limitations and exclusions listed on the right side.

LIMITATIONS OF WARRANTIES

ALL IMPLIED WARRANTIES AND/OR CONDITIONS (INCLUDING IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR USE OR PURPOSE) ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY, SOME STATES OR PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY OR CONDITION LASTS, SO THE ABOVE MAY NOT APPLY TO YOU.

THE EXPRESS WARRANTIES MADE IN THIS WARRANTY ARE EXCLUSIVE AND MAY NOT BE ALTERED, ENLARGED, OR CHANGED BY ANY DISTRIBUTOR, DEALER, OR OTHER PERSON, WHAT SO EVER.

Product FAQs

Q1 How do I register my warranty?

Answer: Go to here to file your warranty.

Q2 How do I find the AHRI number of my unit?

Answer: You can find links to the AHRI certificates on the documentation page at mrcool.com/documentation.
