MRCOOL® GeoCool 60K BTU 5T Split Blower Multi Positional 1400 CFM
MRCOOL® GeoCool 60K BTU 5T Split Blower Multi Positional 1400 CFM
Description

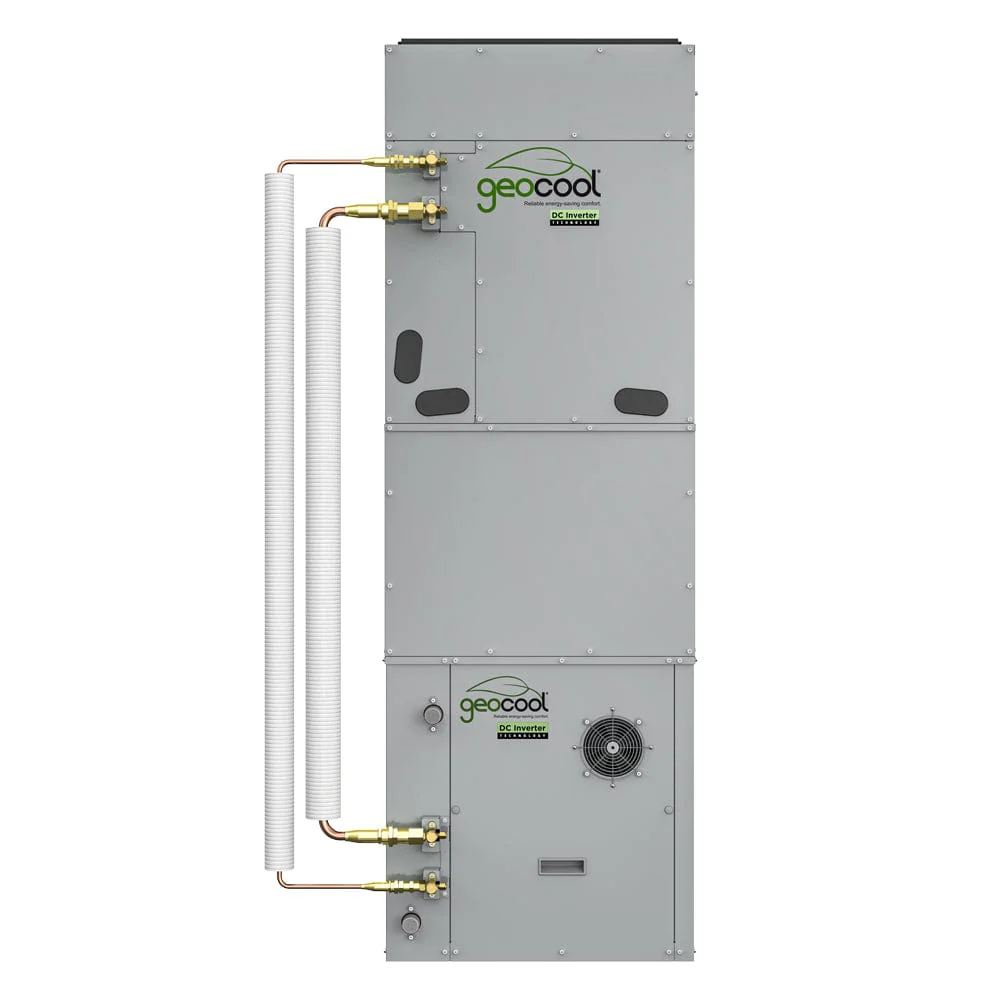

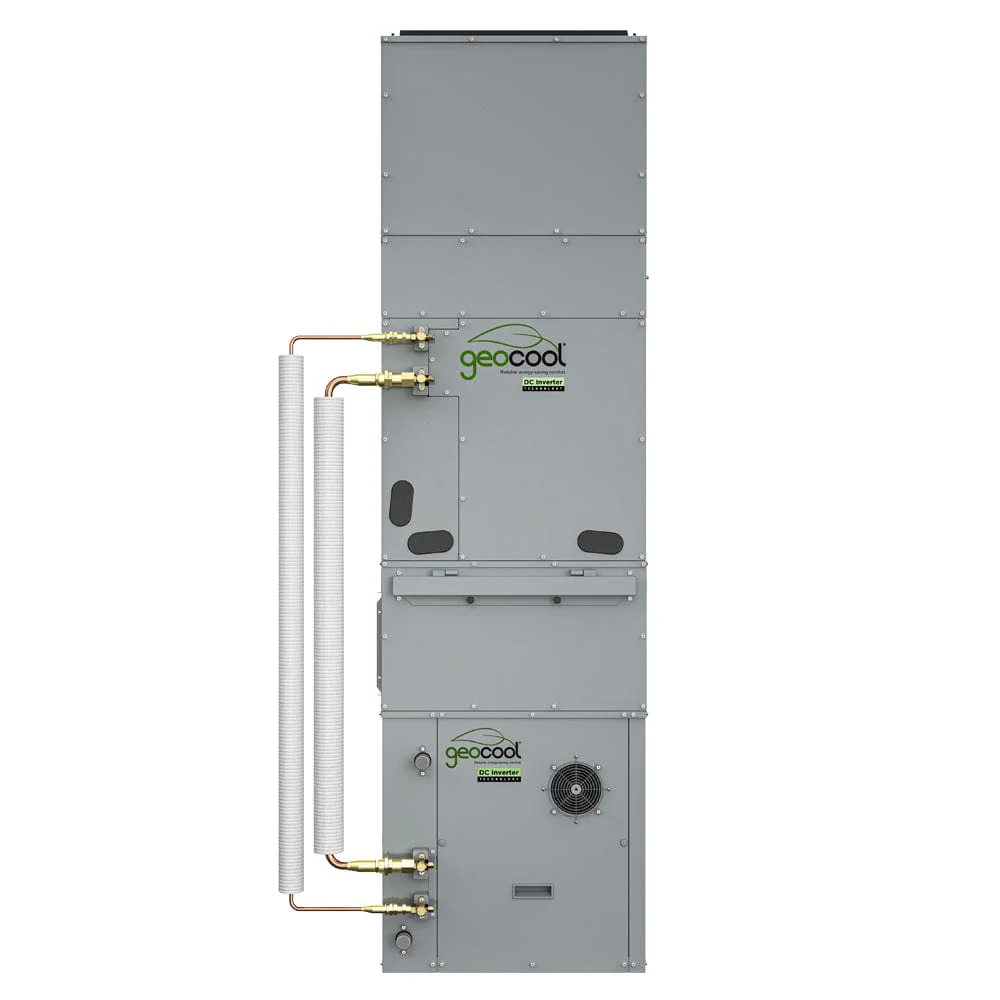

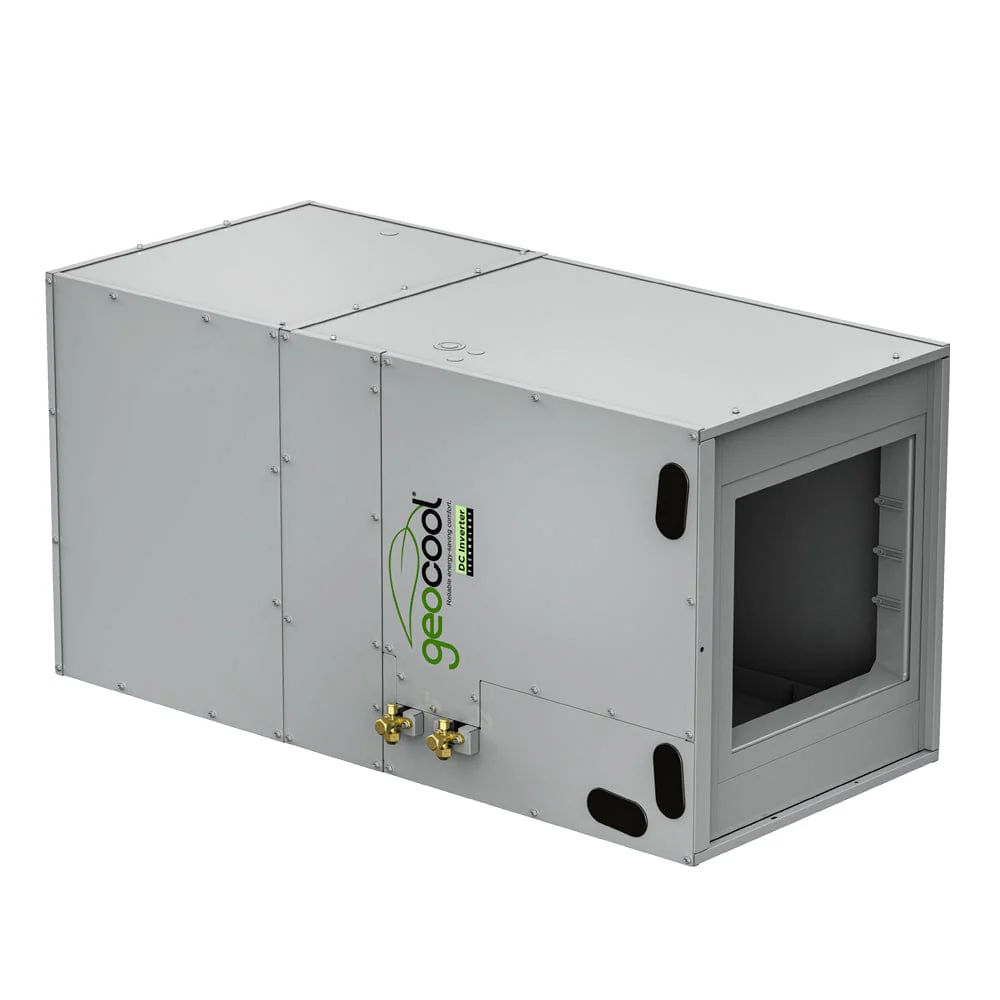

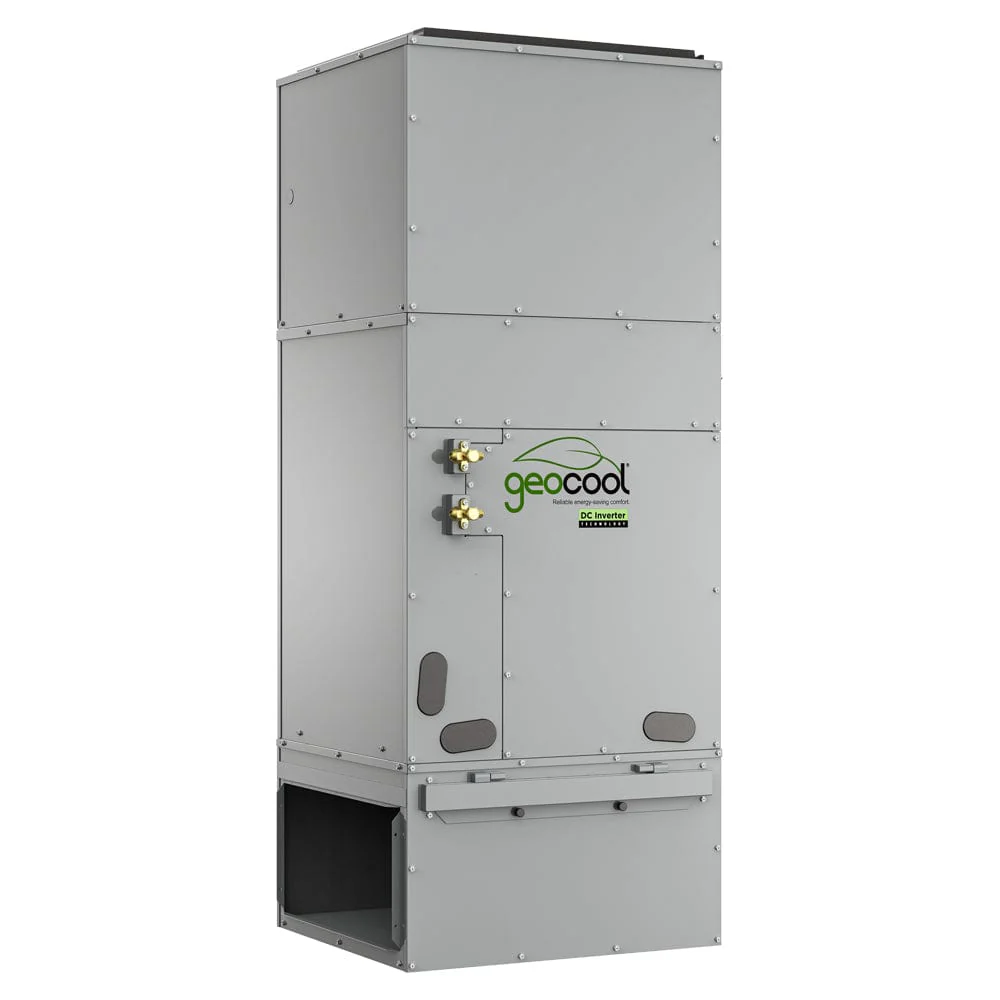

The MRCOOL® Geocool® Geothermal Split System Blower module is part of the exceptionally efficient geothermal heating and cooling system. When combined with the other powerfully performing Geocool® modules, you’ll experience impressive comfort with an EER up to 70. The blower aids in the system’s flexible installation options for areas with spacial constraints, including vertical, horizontal, and split configurations, making it possible to adapt to differing air outlet methods and situations. Not to mention, its durable build and finish aid in the unit’s reliability to last for years to come. Not only is installation easy with a drastic reduction in utility costs, the blower offers more comfort with lower noise emittance. With a cooling noise as low as 58dBA and heating as low as 60dBA, you’ll experience your most comfortable environment without any loud interruptions. You can rest easy knowing the MRCOOL® Geocool® Geothermal Split System Blower module is protected by a 5 year limited labor warranty and a 10 year parts warranty.
Â
Product Specifications
MRCOOL® GeoCool 60K BTU 5T Split Blower Multi Positional 1400 CFM Product Specifications
| Brand Name | GeoCool |
|---|---|
| Series | GeoCool Inverter Series |
| Model | GCSBLM014 |
| GTIN | 00840255577670 |
| UPC | 840255577670 |
| Unit Type | Blower |
| Configuration | Multi Positional |
| CFM | 1400 |
| EER | Up to 70 |
| Voltage (V) | 208 / 230 |
| Phase | 1 |
| Cycle | 60 |
| Color | Gray |
| Color Family | Gray |
| Full Load | 6 |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
| Energy Certified | Yes |
| Blower Motor Type | DC |
| Blower Motor HP | 1 |
| AHRI Certified | Yes |
| UL Listed | Yes |
| Base Parts Warranty | 10 years |
| Base Labor Warranty | 5 Year Limited |
| Has Batteries | No |
| Contains Electronics | Yes |
| Contains Chemicals | No |
| Contains Aerosol | No |
| Contains Compressed Gas | No |
| Proposition 65 Warning | Yes |
| Net Depth (in) | 22.64 |
| Net Height (in) | 19.57 |
| Net Width (in) | 25.00 |
| Net Weight (lbs) | 79.38 |
| Gross Depth (in) | 28.74 |
| Gross Height (in) | 22.24 |
| Gross Width (in) | 28.74 |
| Gross Weight (lbs) | 89 |
Product Manual
MRCOOL® GeoCool 48K BTU 4T Split Blower Multi Positional 1400 CFM Installation Manual
Â
Product Warranty
MRCOOL Limited Lifetime Warranty
LIMITATIONS OF WARRANTIES
Q1Â How do I register my warranty?
Answer: Go to here to file your warranty.
Q2 How do I find the AHRI number of my unit?
Answer: You can find links to the AHRI certificates on the documentation page at mrcool.com/documentation.
Q3 I have not received my free SWAG item yet, has it been shipped?
Answer: Orders typically take 4 to 6 weeks to process and ship. If you have not received your Swag order within 8 weeks – please, contact us via email at [email protected]
