Mr.Steam Super 10kW Steam Shower Generator Package with iSteamX Control in Black, Polished Chrome

Mr.Steam Super 10kW Steam Shower Generator Package with iSteamX Control in Black, Polished Chrome

Description

This all-in-one, ready to install package gives you everything you need to create your own fully functional steam shower system at home, and at a substantial discount. This package features the iSteamX® Control. The elegant design and easy-to-use interface of our classic steam shower control features easy-to-read LED display, precise temperature and SteamShower duration and the ability to control the AromaSteam System also included in this package. It also allows you to program preferred settings for two different users.

Features:

• Designed to save water and energy. Uses less than two gallons of water vs 40 gallons for an ordinary bath
• 60 minute automatic cutoff, low voltage board, designed for easy access safe service
• Installs in areas such as a cabinet, closet, under a sealed bench or in an insulated attic
• Easily install spa therapy accessories or components such as AromaTherapy, ChromaTherapy®, Steamlinx, and more
• Exclusive micro processor operating system is the brains of our intelligent steam generator
• LED indicators to help you troubleshoot any connection and maintenance challenges
• Naturally corrosion resistant, 100 percent recyclable Stainless Steel inside and out
• Reliable, industrial grade, and the industries largest copper heating element heats fast and is easy to remove and service
• US and Canadian UL listed, and CE and NoM certified for unsurpassed quality and safety
• Free from defects in materials and craftsmanship for its lifetime. Mr.Steam® will repair or replace (at its option) a Generator which fails to conform to this warranty

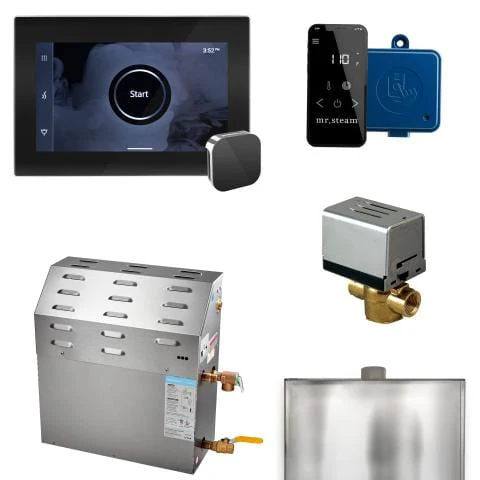

Include:

• Super 10kW Steam Shower Generator
• iSteamX Steam Shower Control
• AutoFlush System
• AromaGlass SteamHead
• SteamLinx Secondary Control Module
• Condensation Pan
• Control Cable (30 ft)
• Tube of Silicone Sealant
• Installation and operation manual
• Limited warranty

Product Specifications

Mr.Steam Super 10kW Steam Shower Generator Package with iSteamX Control in Black, Polished Chrome Product Specifications

Model	10C1ANAA000
Maximum Adjusted Cubic Feet	339 cu. ft.
Kilowatt Rating (KW)	10kW
Shipping Weight	56 lbs
Electrical Specifications	(refer to electrical chart)
Water Supply Connection	3/8" NPT
Generator Steam Line Connection	1/2" NPT
Steam Head Connection	1/2" NPT
Drain Connection	1/2" NPT
Safety Relief Valve Connection	3/4" NPT
Safety Relief Valve PSIG	15 PSIG
Control "Rough In" Cut Out	1"
Generator Control Connection	8-Pin Mini-DIN Connector
Generator Control Cable	30', 8 Conductor, 24 AWG, Shielded Cable
Width	13.50"
Depth	33"
Height	25"
Adjustable Time	No
Maximum time	60 minutes



Product Manual

Mr.Steam Super 10kW Steam Shower Generator Package with iSteamX Control in Black, Polished Chrome Product Manual

N/A

Product Warranty

MrSteam-Residential-Steambaths-Warranty-2023.pdf

Product FAQs

N/A
