Mr.Steam MS400E MS-E Series 9kW Steam Shower Generator
Mr.Steam MS400E MS-E Series 9kW Steam Shower Generator
Description
If you see a lower price on the Mr. Steam MS400E steam generator, call us, and we'll match it, plus 10% of the difference!
The Mr. Steam MS400E is designed for home steam rooms up to 257 adjusted cubic feet (ACF).

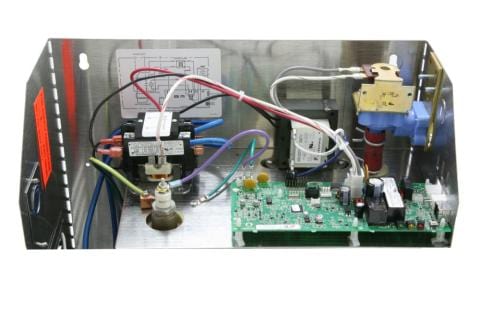

The MS400E steam shower generator is equipped with a stainless-steel tank, industrial-grade heating elements, precision temperature probe, electronic water-level control system, and a variety of other features. LED color indicators which provide visual feedback for diagnostics.
Mr. Steam MS-E Series generators are engineered for years of safe, reliable, clean, and efficient operation. The MS400E steam unit features an advanced microprocessor operating platform and intelligent steam bath technology, making it the perfect choice for residential steam bathing applications.
The compact size of the MS400E allows the generator to be installed conveniently out of sight. The steam shower unit can be installed in vanities, closets, cabinets, and other similar locations.
The MS400E 9kW steam generator is available in 208V (MS400EB1) and 240V (MS400EC1) single-phase (1PH) configurations.
The unit is designed so that steam shower accessories such as aromatherapy and chromotherapy can be easily installed.
The MS400E generator requires a Mr. Steam control or control package for operation. Available in a variety of stylish finishes, controls allow you to adjust steam shower functionality such as duration and temperature. Select the available control with features that best suit your preferences.
We recommend the addition of Mr. Steam's AutoFlush automatic drain system with your MS400E generator. The AutoFlush system drains the generator tank to help prevent lime build-up and ensure the best performance from the unit.
The Mr. Steam MS400E steam bath generator carries a limited lifetime warranty and is fully serviceable. All MS-E Series generators are US and Canadian UL listed and NOM certified for your safety.
Mr. Steam generators are designed, constructed, and crafted in the USA.
Features:
- For steam baths sized from 162 to 257 adjusted cubic feet
- Available in 240V and 208V operation
- Stainless Steel tank
- Industrial-grade, serviceable heating element
- MiniDIN control connections
- Available Auto Drain automatic draining system
- Durable electronic components
- Electronic water-level control system
- Low-voltage safety control circuits
- Solid-state circuitry
- Diagnostic LED Displays
- Full port drain valve
- ASME safety valve
- UL/CUL/NOM/CE Listed
Includes:
- 9kW Steam bath generator, 14-1/2"L x 6-3/4"W x 14-3/4"H
- Installation and operation manual
- Limited warranty
Product Specifications
Mr.Steam MS400E MS-E Series 9kW Steam Shower Generator Product Specifications
| Model | MS 400E |
|---|---|
| Minimum Adjusted Cubic Feet | 162 |
| Maximum Adjusted Cubic Feet | 257 |
| Shipping Weight (Lbs.) | 30 lbs |
| Kilowatt Rating (KW) | 9kW |
| Electrical Specifications | (refer to Electrical chart) |
| Water Supply Connection | 3/8" NPT |
| Generator Steam Line Connection | 1/2" NPT |
| Drain Connection | 1/2" NPT |
| Safety Relief Valve Connection | 3/4" NPT |
| Safety Relief Valve PSIG | 15 PSIG |
| Control "Rough In" Cut Out | 1" |
| Generator Control Connection | 8-Pin Mini-DIN Connector |
| Generator Control Cable | 30', 8 Conductor, 24 AWG, Shielded Cable |
| Width | 14-1/2" |
| Depth | 6-3/4" |
| Height | 14-3/4" |
Product Manual
Mr.Steam MS400E MS-E Series 9kW Steam Shower Generator Product Manual
N/A
Product Warranty
MrSteam Product Warranty
To register a MrSteam product, simply complete the form on this page and you'll receive confirmation of your submission.
To download a copy of a warranty, click on the MrSteam product category you have purchased:
- MrSteam Steambath Generator Warranty
- MrSteam Control & Accessories Warranty
- MrSteam Steam@Home Warranty
- MrSteam Towel Warmer Warranty
- MrSteam Day Spa Steambath CT Series Warranty
- MrSteam Commercial Steambath CU Series Warranty
By completing this form, not only will MrSteam be better able to serve you, but we'll have information that allows us to continue to improve our products and our communications with you.
Please note that all of your information will be treated with the highest confidentiality.
Product FAQs
N/A
