Mr. Steam CT6E (iTempoPlus) 6 kW (6000 W) Steam Shower Generator Package with iTempoPlus Control in Square Polished Chrome

Mr. Steam CT6E (iTempoPlus) 6 kW (6000 W) Steam Shower Generator Package with iTempoPlus Control in Square Polished Chrome

Description

The CT Day Spa System provides space-conscious spa facilities with high performance, low maintenance steam room solutions. This complete system combines performance and aesthetics with reliability. The CT Day Spa steam generators are ideal for smaller steam rooms in resorts, medical facilities, hotels, spas and clubs. They are designed for rooms no larger than 575 cu. ft. that are occupied by no more than two people at a time, and in operation less than six hours a day.

Features

• The compact design is easily installed in most service closets, storage areas, or similar dry, heated locations
• Constructed of 100% stainless steel inside and out, CT Club Therapy generators deliver longevity, functionality and durability
• Equipped with an advanced control that allow the owner/operator to control and customize each user’s steam bathing experience
• The spa visitor can use the CT Steam Stop control inside the room to further control their session
• US and Canada UL listed

Product Specifications

Mr. Steam CT6E (iTempoPlus) 6 kW (6000 W) Steam Shower Generator Package with iTempoPlus Control in Square Polished Chrome Product Specifications

Model	CT6EC1-PC
Kilowatt Rating	6kW
Minimum Adjusted Cubic Feet	40
Maximum Adjusted Cubic Feet	107
Water Supply Connection	3/8" NPT
Generator Steam Line Connection	1/2" NPT
Steam Head Connection	1/2" NPT
Drain Connection	1" NPT
Safety Relief Valve Connection	3/4" NPT
Safety Relief Valve PSIG	15 PSIG
Length	17"
Depth	7 7/8"
Height	18 1/2"
Shipping Weight	60 lbs

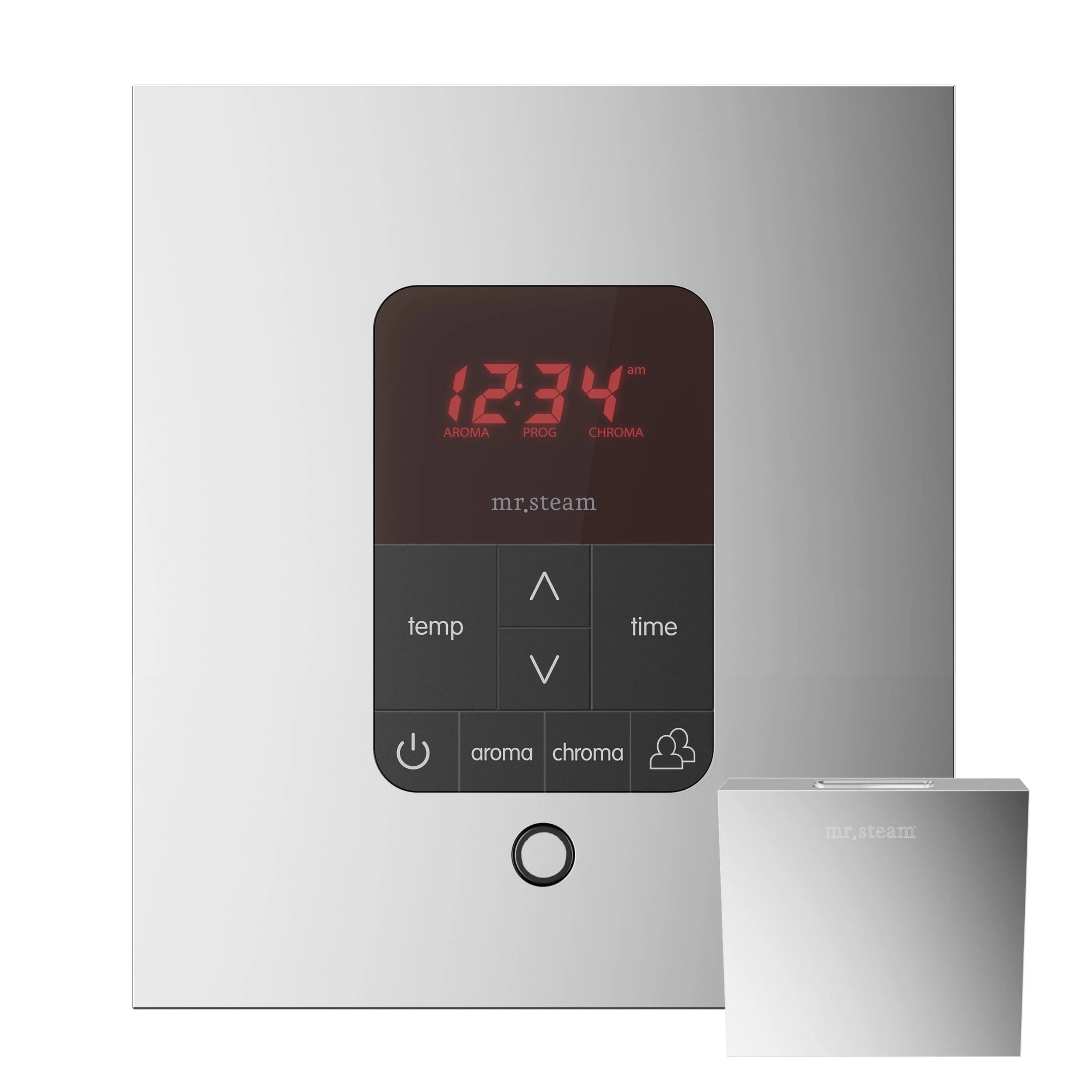

iTempoPlus Control
Length	4 1/2"
Depth	1 1/4"
Height	5"
AromaSteam Steamhead
Length	3"
Depth	7/8"
Height	2 3/4"
CT SteamStop Control
Diameter	1 1/2"
Depth	1 7/8"
AutoFlush System
Length	6 3/8"
Depth	2 3/8"
Height	6 3/8"
Condensation Pan
Length	9"
Depth	1 1/2"
Height	25"

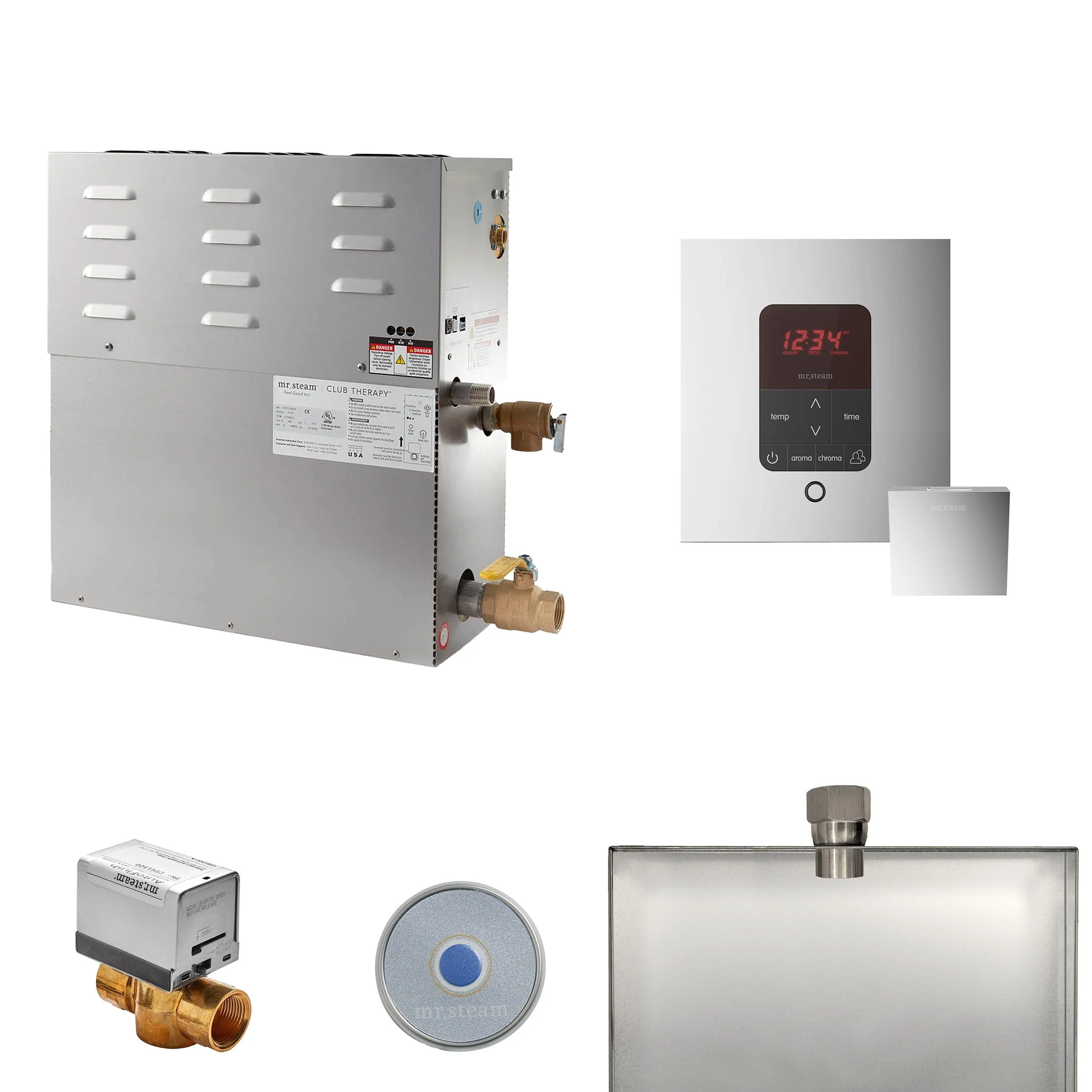

What's in the box?

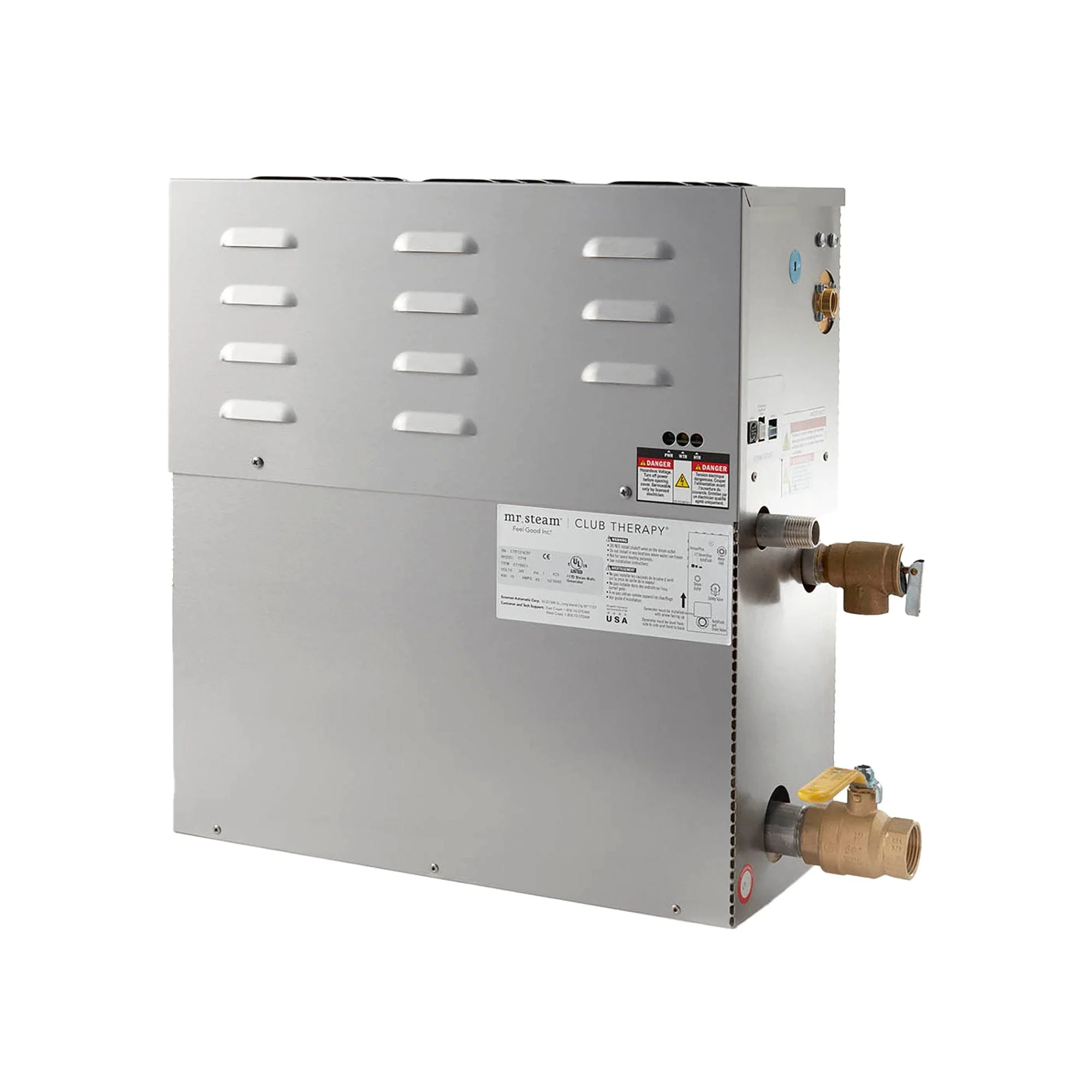

• CT Day Spa 6kW Generator
• iTempoPlus Control in Polished Chrome (Standard)

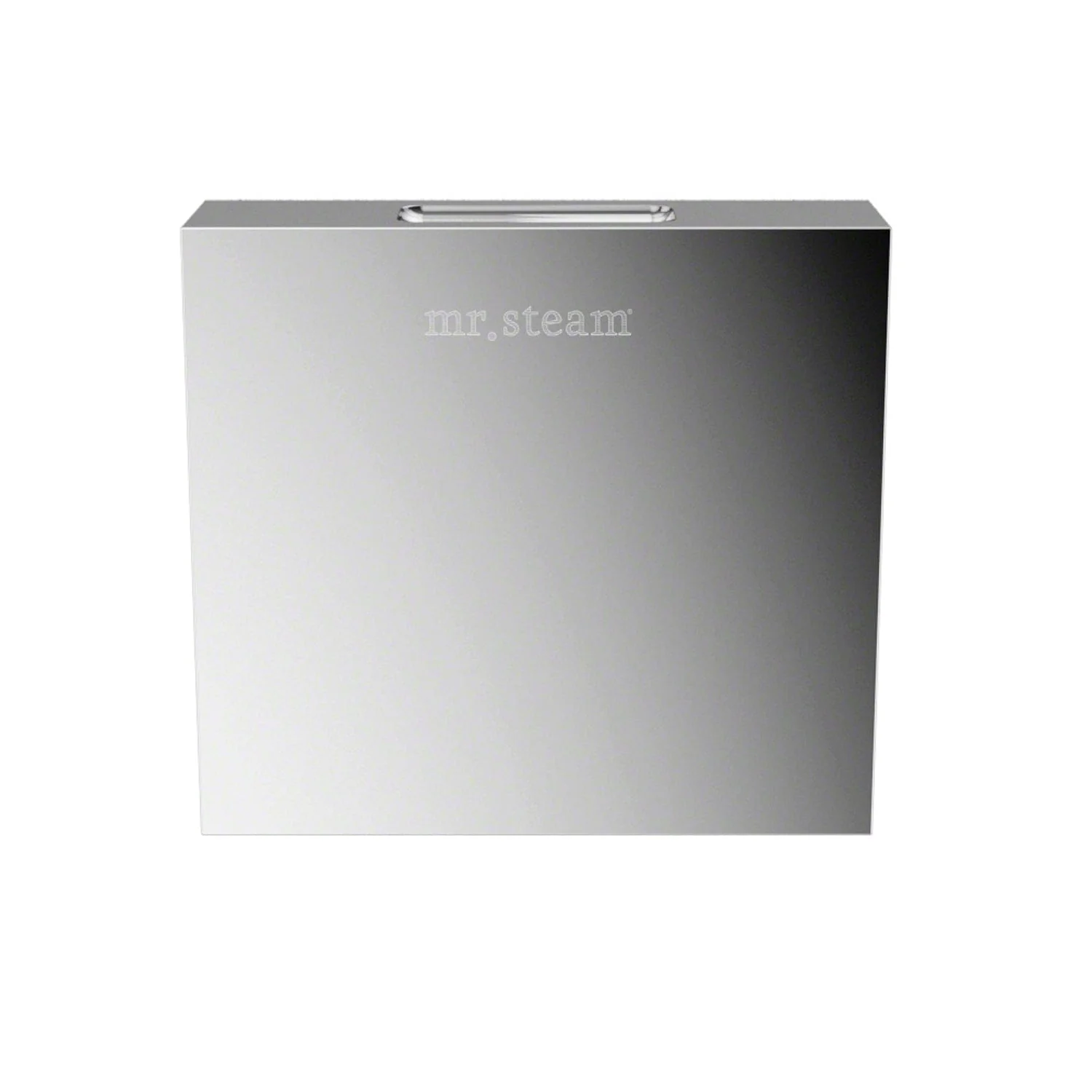

• Aroma Designer Steamhead in Polished Chrome (Standard)
• CT SteamStop On/Off Control (Chrome Trim Only)

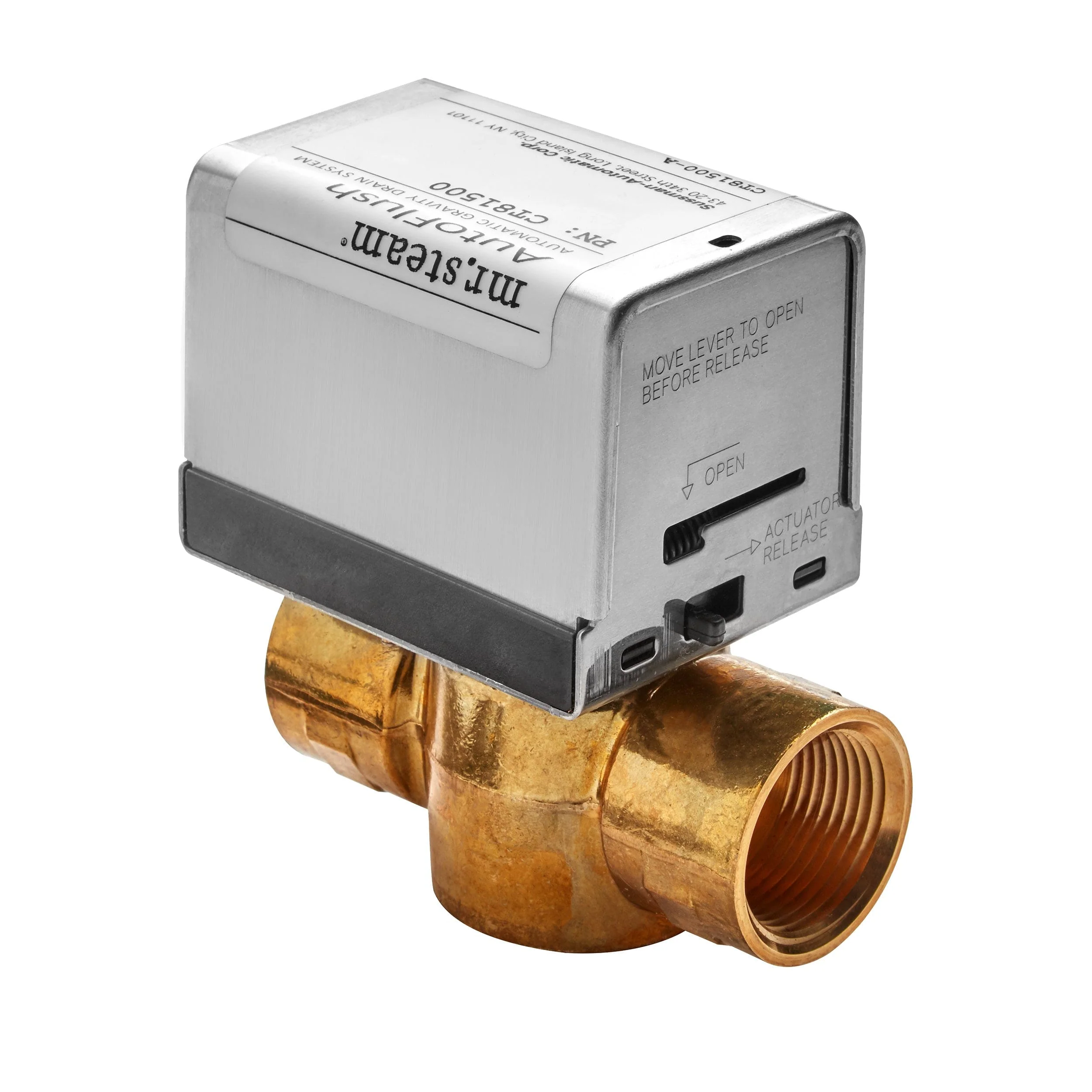

• AutoFlush System
• Condensation Pan
• Express Steam (Factory Installed)
• MSTS In-Room Temperature Sensor, 30' Long
• Mini-DIN Control Cable, 30' Long
• 3-Pin Control Cable, 30' Long
• RTV Silicone Sealant, .5 oz Tube
• Installation and Operation Manual
• UL/cUL Listed and CE Approved
• Limited Warranty
