MRCOOL® E Star DIY 4th Gen 18k BTU 208-230V/60Hz Ductless Mini-Split Heat Pump Complete System

MRCOOL® E Star DIY 4th Gen 18k BTU 208-230V/60Hz Ductless Mini-Split Heat Pump Complete System

Description

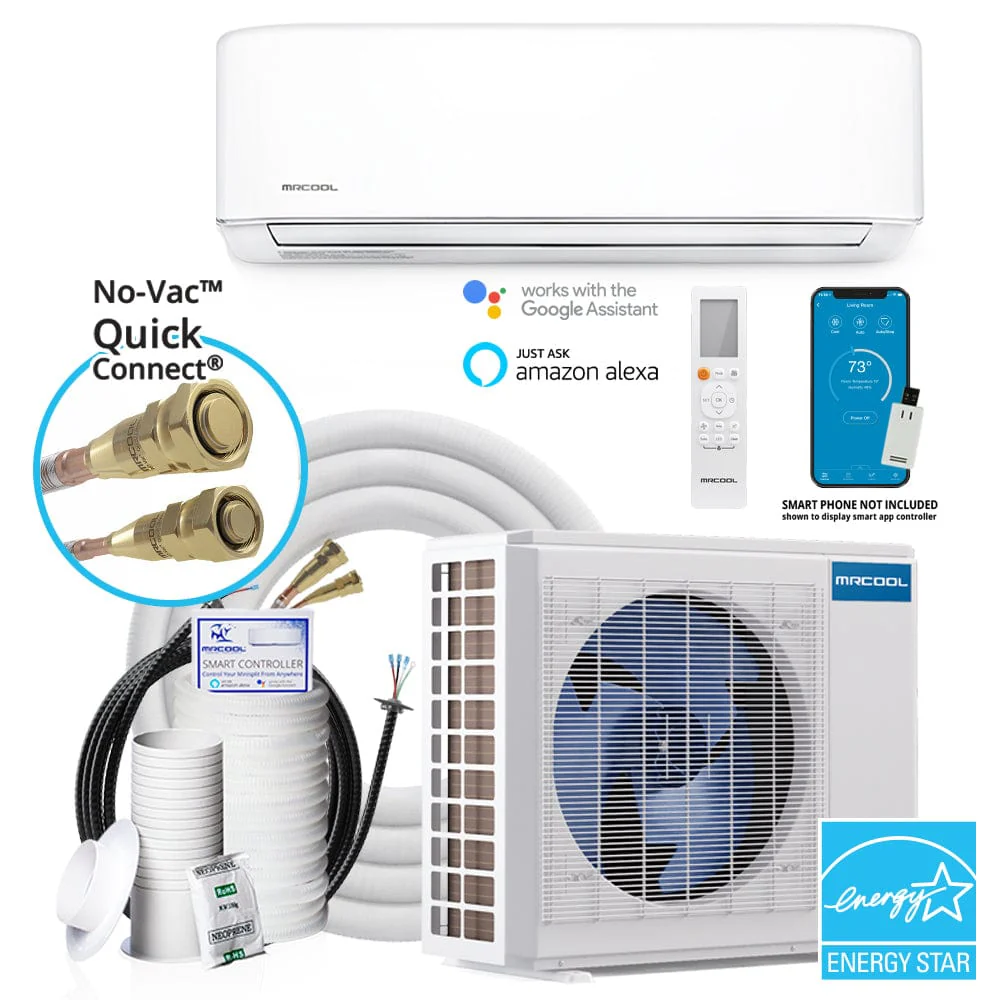

The MRCOOL® 4th Generation DIY 18K BTU, 22 SEER Ductless Heat Pump system offers a complete solution to your home’s heating and cooling needs. This system can heat & cool an area up to 750 sq. ft and is capable of an Energy Star certified, 22 SEER efficiency rating. However, the best feature of this system is the ease of installation it provides to the homeowner. With the included pre-charged 25 ft. line set, some hand tools, and a few hours of time this entire system can be completely installed. This system comes equipped with many functions that separate it from the rest. It has multiple operating modes, which include AUTO, HEAT, COOL, FAN-ONLY, DRY (dehumidification) and SLEEP. It also features the Follow Me function, which allows the system to continually adjust the room temperature based on where the hand-held remote controller is. Need to operate the system when you’re not at home? No problem. The MrCool system also has the capability of being operated with your smartphone with the use of the Smart HVAC app. MrCool stands behind the quality and workmanship of this system by being the only manufacturer to offer a limited lifetime compressor warranty.

• Up to 22.7 SEER2
• Gold Fin® condenser: corrosion-resistant coastal living - don't worry, our condenser is built to resist long term corrosion
• Variable-speed DC inverter compressor technology cuts operating costs
• R-410A environmentally friendly refrigerant
• Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty





Product Specifications

MRCOOL® E Star DIY 4th Gen 18k BTU 208-230V/60Hz Ductless Mini-Split Heat Pump Complete System Product Specifications

SEER	22
SEER2	22.7
EER	12.5
EER2	12.6
COP 47	3.74
HSPF	hspf4/hspf5 : 11.5/9
HSPF2	hspf2-4/hspf2-5 : 9.8/7.2
CFM	465.29/361.76/304.12
TONNAGE	1.5
COOLING CAPACITY	18000 BTU
HEATING CAPACITY	18000 BTU
VOLTAGE	208-230 V
PHASE	1
CYCLE	60 Hz
MAX FUSE BREAKER	30 A
MIN CIRCUIT AMPACITY	18 A
COLOR	White
COLOR FAMILY	White
RATED LOAD	0.25 A
MAX COVERAGE AREA	Up to 750 sqft
ZONE CAPACITY	1
REFRIGERANT TYPE	R-410A
REFRIGERANT VOLUME	56.44 oz
DECIBEL RATING	44.5/37/31
DECIBEL RATING LOW	31 dBA
DECIBEL RATING HIGH	44.5 dBA
OSCILLATION	4-W
INVERTER	Yes
MIN AMBIENT COOL	-13F - 122F
MIN AMBIENT HEAT	-13F - 75F
LINE SET LENGTH	25ft
MAX LINESET LENGTH	75 ft
LIQUID LINE SIZE	1/4 in
SUCTION LINE SIZE	1/2 in
COMPRESSOR MOTOR TYPE	Rotary
CONDENSER FAN MOTOR RPM	810/720
BLOWER MOTOR RPM	1120/950/700
AUXILIARY HEATER INCLUDED	No
AUXILIARY HEATER AVAILABLE	No
FAN ONLY OPTION	Yes
QUIET MODE	Yes
AUTO COOL	Yes
WIFI COMPATIBILITY	Yes
APP COMPATIBILITY	Yes
WORKS WITH IOS	Yes
WORKS WITH ANDROID	Yes
REMOTE CONTROL INCLUDED	Yes
UL LISTED	Yes
ENERGY STAR CERTIFIED	Yes
AHRI CERTIFIED	Yes
REGISTERED WARRANTY	Limited Lifetime Compressor
BASE WARRANTY	5-year Parts/7-year Compressor
BASE PARTS WARRANTY	5-year Parts
REGISTERED COMPRESSOR WARRANTY	Limited Lifetime Compressor
BASE COMPRESSOR WARRANTY	7-year Compressor
HAS BATTERIES	Yes
CONTAINS ELECTRONICS	Yes
CONTAINS CHEMICALS	Yes
CONTAINS AEROSOL	Yes
CONTAINS COMPRESSED GAS	Yes
PROPOSITION 65 WARNING	Yes
RESTRICTED STATES	GU;PR;VI
CONDENSER DEPTH	13.46 in
CONDENSER HEIGHT	26.50 in
CONDENSER WIDTH	35.04 in
CONDENSER WEIGHT	94.36 lbs
AIR HANDLER DEPTH	8.90 in
AIR HANDLER HEIGHT	13.19 in
AIR HANDLER WIDTH	42.52 in
AIR HANDLER WEIGHT	34.61 lbs

Product Manuals

Install Manual

Owner Manual

Remote Manual

Technical Manual

Service Manual

AHRI CERTS

Energy Guide Certs

Product Warranty

Limited Lifetime Warranty

LIMITATIONS OF WARRANTIES
