Humminbird XPTH 14 HW MSI T Plastic Thru Hull Transducer [710294-1]

Humminbird XPTH 14 HW MSI T Plastic Thru Hull Transducer [710294-1]

SOLIX MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP plastic thru hull transducer. This transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design and 30’ cable.

Features:

• This accessory is compatible with the following Humminbird products: SOLIX 10 CHIRP MEGA SI+ GPS G2, SOLIX 12 CHIRP MEGA SI+ GPS G2, SOLIX 15 CHIRP MEGA SI+ GPS G2
• MEGA Side Imaging Frequencies - Max Range (side-to-side): 455kHz: 440-500 kHz - 800ft (244m), 800kHz: 790-850 kHz - 250ft (76m), MEGA SI+: 1075-1150 kHz - 400ft (122m)
• MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 250ft (76m), MEGA DI+: 1075-1150 kHz - 200ft (61m)
• Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
• Dual Spectrum CHIRP Max Depth: 1200ft (365m)

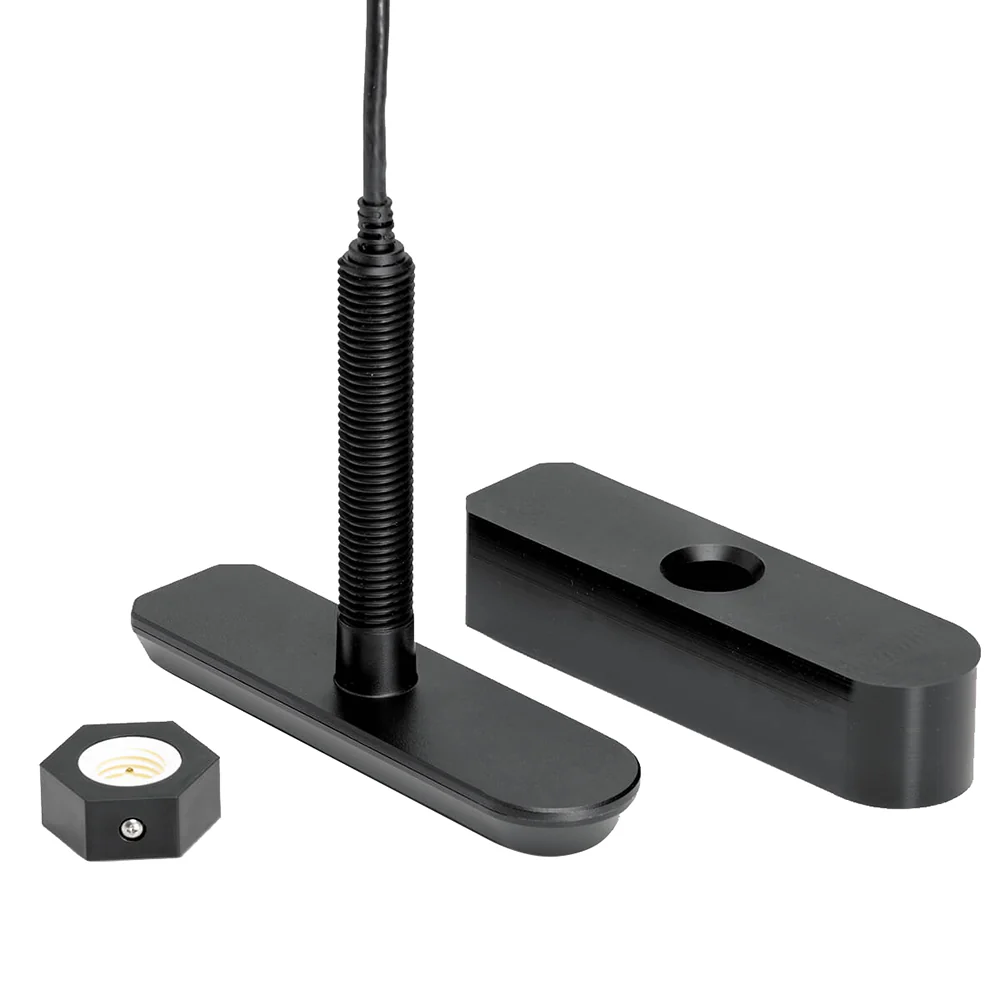

• Dimensions: L 8.4" x W 2.3" x D 1.0" - Stem Length 5", Stem Diameter 1"
• 1-Year Limited Warranty

Product Specifications

Humminbird XPTH 14 HW MSI T Plastic Thru Hull Transducer [710294-1] Product Specifications

Specification	Details
Model	XPTH 14 HW MSI T
Product Code	710294-1
UPC	0082324053283
Mount Type	Thru-Hull
Sonar Type	MEGA Imaging+ / Down Imaging+ / Side Imaging+ / High Wide CHIRP
Compatible Models	SOLIX 10 G3, SOLIX 12 G3, SOLIX 15 G3; APEX 13, 16, 19; XPLORE 9, 10, 12
Imaging Support	MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP
CHIRP Range	High Wide
Temperature Sensor	Yes
Speed Sensor	No
Cable Length	30 ft

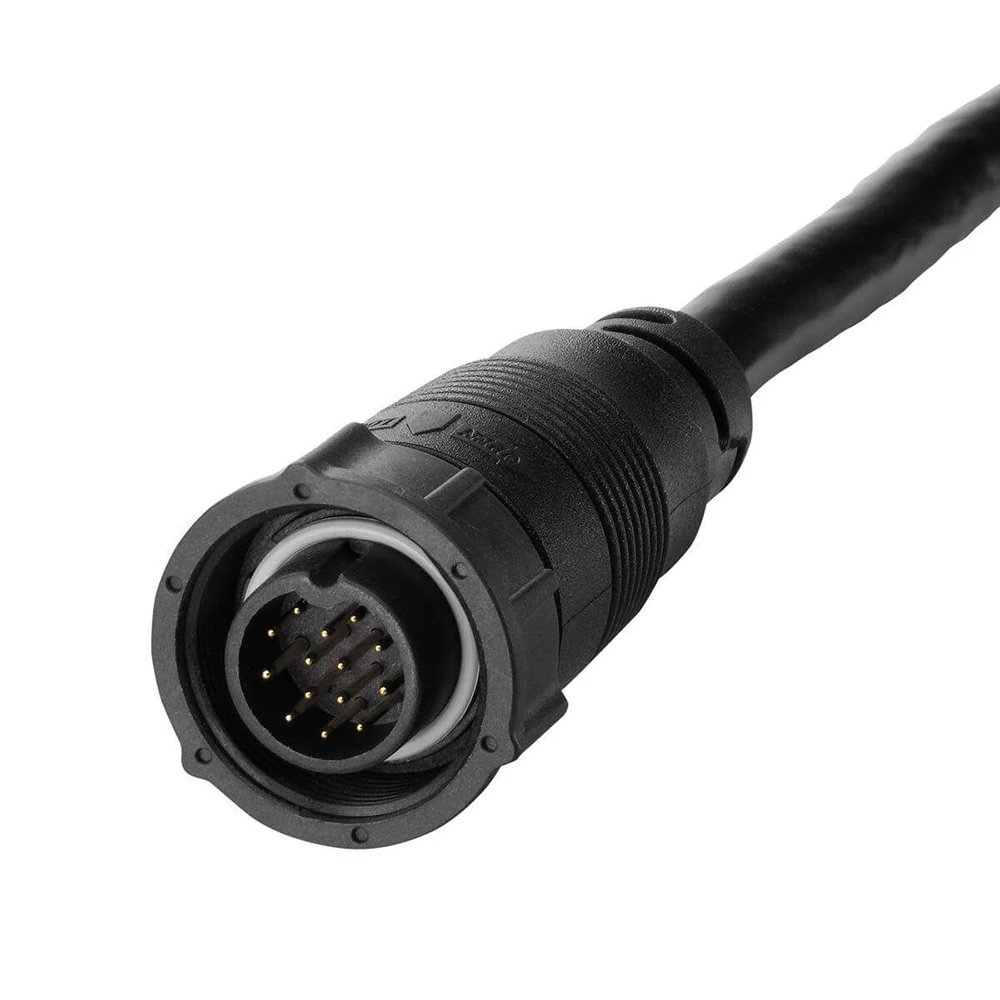

Number of Pins	14
Mounting Style	Thru-Hull
Box Dimensions	4" H × 10" W × 15" L
Box Weight	2.9 lbs
Warranty	One-Year Warranty

Product Manual

English Transducer Resource Guide

Accessory Resource Guide

Transducer Compatibility Guide

Side Imaging Plastic Thru-Hull Transducer Installation Instructions

Product Warranty

Humminbird Warranty

The Humminbird warranty we offer is product-dependent. The warranty begins at the date of purchase. When requiring any service/repairs for your Humminbird product, you will need your original receipt of purchase for warranty coverage. If you do not have your receipt of purchase, we will reference your product's serial number and base your warranty coverage off the date of manufacture. We recommend that you write the serial number down somewhere outside of your boat to have it available for future reference.

Humminbird 2-Year Limited Warranty

This warranty covers the following products:

• All XPLORE models
  • Optional: Additional third year of warranty is available with product registration.*
• All APEX models
• All SOLIX models
• HELIX 8 / 9 / 10 / 12 / 15 models
• ICE HELIX 9 models (with MEGA Live or MEGA 360 Imaging)
• ICE Flasher models (ICE-55, ICE-45, and ICE-35)
• MEGA Live 1 Imaging transducers
• MEGA Live 2 Imaging transducers
• MEGA 360 Imaging transducers

Download Humminbird 2-Year Limited Warranty Terms (PDF)

Humminbird 1-Year Limited Warranty

This warranty covers the following products:

• HELIX 5 / 7 models
• ICE HELIX 5 / 7 models
• All accessories
• All cartography products

Download Humminbird 1-Year Limited Warranty Terms (PDF)

Humminbird Cartography 1-Year Limited Warranty

This warranty covers the following products:

• All cartography products including LakeMaster and CoastMaster charts

Download Humminbird Cartography 1-Year Limited Warranty Terms (PDF)
