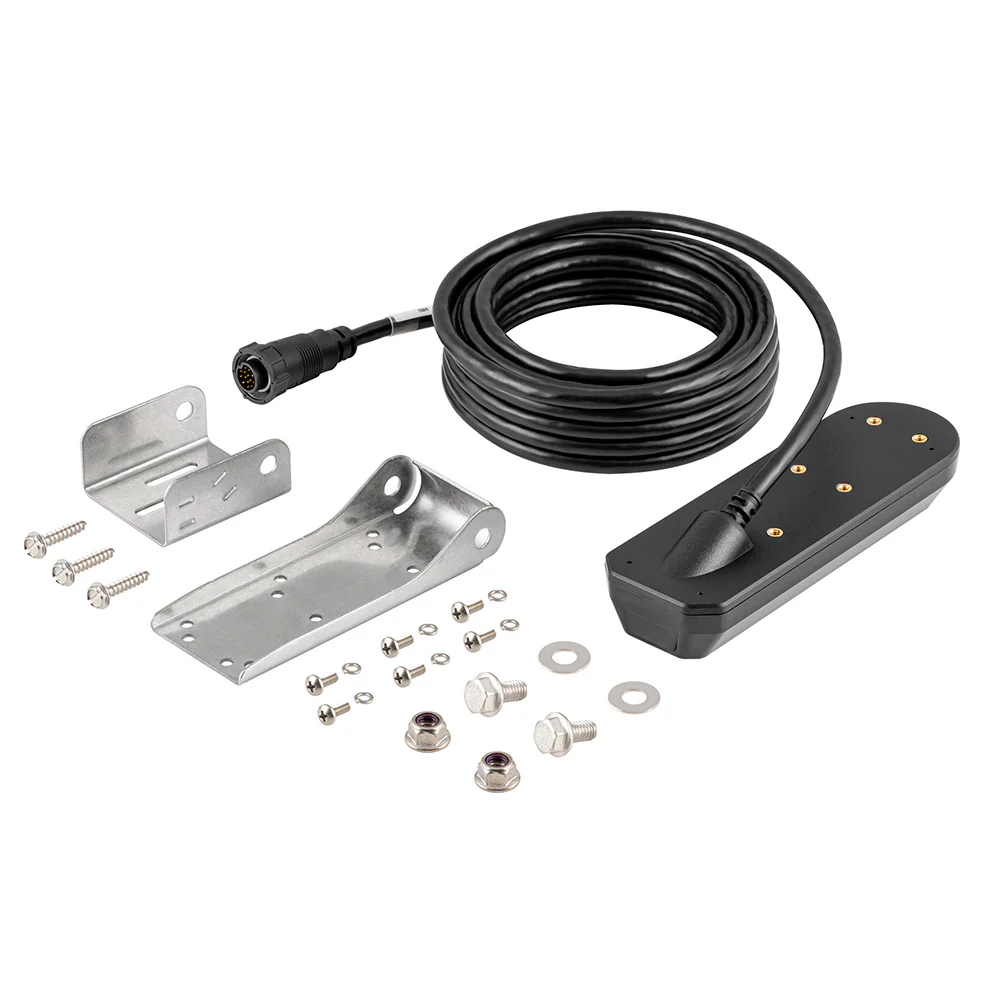

Humminbird XM-14-HW-CMSI-T Compact MEGA Side Imaging+ Transducer [710311-1]
Humminbird XM-14-HW-CMSI-T Compact MEGA Side Imaging+ Transducer [710311-1]
Humminbird Compact MEGA Side Imaging+ transducer is compatible with APEX, XPLORE, and SOLIX G3 models. This transom mount transducer has a built-in temperature sensor, MEGA Side Imaging+, 455kHz and 1.1 MHz; Down Imaging+ frequencies 455kHz and 1.1 MHz, and Dual Spectrum 2D CHIRP with a range of 150- 220kHz.
Features:
- Compatible with APEX, SOLIX G3, and XPLORE fish finder models
- Cable Length: 20 Feet
- Compact MEGA Side Imaging Frequencies - Max Range (side-to-side): 455kHz: 405-505 kHz - 800ft (244m), MEGA: 1.100-1.200 MHz - 400ft (122m)
- Compact MEGA Down Imaging Frequencies - Max Depth: 455 kHz: 420-520 kHz - 400ft (122m) MEGA: 1.125-1.225 MHz - 400ft (122m)
- Dual Spectrum CHIRP Frequencies - Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
- Screw-On Connector
- Built-in temperature sensor
- 1-Year Limited Warranty
Product Specifications
Humminbird XM-14-HW-CMSI-T Compact MEGA Side Imaging+ Transducer [710311-1] Product Specifications
| Specification | Details |
|---|---|
| Model | XM-14-HW-CMSI-T |
| Part Number | 710311-1 |
| UPC | 082324059339 |
| Mounting Style | Transom-mount |
| Sonar Technologies | MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP |
| Frequencies | 455 kHz / 800 kHz / 1.2 MHz |
| Cable Length | 20 ft |
| Temperature Sensor | Yes |
| Speed Sensor | No |
| Compatible Units | APEX, SOLIX, HELIX G4N models (adapter may be required) |
| Construction | Compact design with rugged housing |
Product Manual
N/A
Product Warranty
Humminbird Warranty
The Humminbird warranty we offer is product-dependent. The warranty begins at the date of purchase. When requiring any service/repairs for your Humminbird product, you will need your original receipt of purchase for warranty coverage. If you do not have your receipt of purchase, we will reference your product's serial number and base your warranty coverage off the date of manufacture. We recommend that you write the serial number down somewhere outside of your boat to have it available for future reference.
Humminbird 2-Year Limited Warranty
This warranty covers the following products:
- All XPLORE models
- Optional: Additional third year of warranty is available withĀ product registration.*
- All APEX models
- All SOLIX models
- HELIX 8 / 9 / 10 / 12 / 15 models
- ICE HELIX 9 models (with MEGA Live or MEGA 360 Imaging)
- ICE Flasher models (ICE-55, ICE-45, and ICE-35)
- MEGA Live 1 Imaging transducersĀ
- MEGA Live 2 Imaging transducersĀ
- MEGA 360 Imaging transducers
Download Humminbird 2-Year Limited Warranty Terms (PDF)
Humminbird 1-Year Limited Warranty
This warranty covers the following products:
- HELIX 5 / 7 models
- ICE HELIX 5 / 7 models
- All accessories
- All cartography products
Download Humminbird 1-Year Limited Warranty Terms (PDF)
Humminbird Cartography 1-Year Limited Warranty
This warranty covers the following products:
- All cartography products including LakeMaster and CoastMaster charts
Download Humminbird Cartography 1-Year Limited Warranty Terms (PDF)
Product FAQs
N/A
