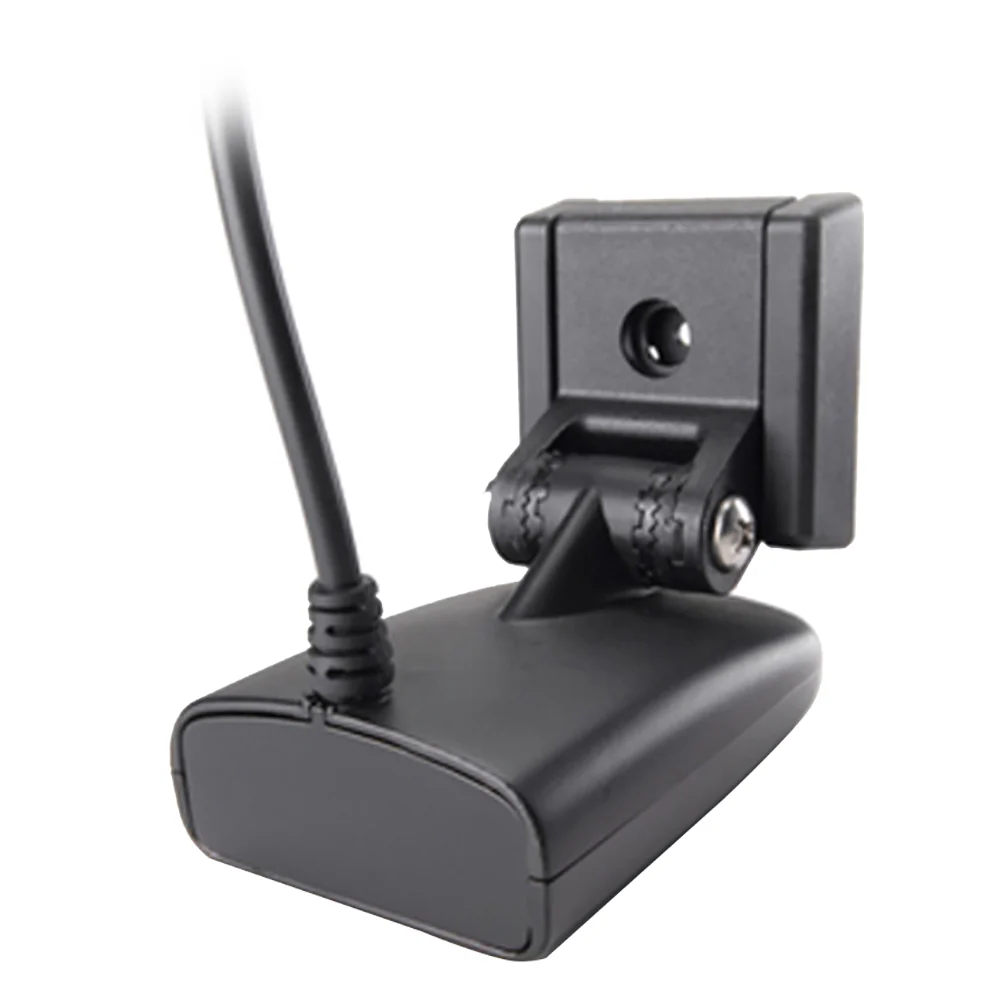

Humminbird XNT-9-SI-180-T TM Transducer [710200-1]

Humminbird XNT-9-SI-180-T TM Transducer [710200-1]

New transom mount transducer design. Compact dual/side imaging. 20/74/84 degree, 200/83/455 kHz with built in temperature. New design is more secure and is not a prone to kick up at high force of waves. It has an improved running angle and a optional lock down screw to override the kick up. Has same hole pattern as some older version transducers
For Use With: 797c

Features:

• Compatible with: HELIX 5 SI GPS, HELIX 5 CHIRP SI GPS G2, HELIX 7 SI GPS, HELIX 7 CHIRP SI GPS G2, HELIX 7 CHIRP SI GPS G2N, HELIX 9 SI GPS, 899CI HD SI, 798ci HD SI, 798ci SI, 698ci HD SI, 598ci HD SI, 398C SI to the maximum capability of the unit.

• Compatible with: HELIX 12 CHIRP SI GPS, HELIX 10/9 SI GPS, HELIX 7 CHIRP MEGA SI GPS G3/G4, 1199ci HD SI, 1198c SI, 1197c SI, 899ci HD SI, 898ci HD SI, 898c SI to the maximum capabilities of the transducer.

• Compatible with: HELIX 15/12/10/9 CHIRP MEGA SI+ GPS G4N, HELIX 12/10/9 CHIRP MEGA SI+ G3N, HELIX 12/10/9 CHIRP MEGA SI GPS G2N to the maximum capabilities of the transducer.

• Cable Length: 20 Feet

• 1-Year Limited Warranty

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Product Specifications

Humminbird XNT-9-SI-180-T TM Transducer [710200-1] Product Specifications

Specifications	Details
Model	XNT 9 SI 180 T - Transom Mount Side Imaging Down Imaging Transducer
Product Code	710200-1
UPC	0082324507502
Mount Type	Transom
Mounting Style	Transom
Sonar Type	Side Imaging, 2D
Imaging	Standard / Down / Side
Chirp	No
Cable Length	20 ft
Pins	7
Temperature	Yes
Speed Included	No
Compatible Models	HELIX 9, HELIX 7, HELIX 5
Discontinued Series	600 Series, 300 Series, 700 Series, 500 Series
Box Dimensions	2"H x 8"W x 9"L
Weight	1.6 lbs
Warranty	One-Year Warranty

Product Manual

Quick Guide (pdf)

Owner's Manual (pdf

English Transducer Resource Guide

Accessory Resource Guide

Transducer Compatibility Guide

Transom Transducer Installation Instructions
