Humminbird XNT-9-HW-T HELIX Dual Spectrum CHIRP Transom Mount Transducer w/Temp [710274-1]

Humminbird XNT-9-HW-T HELIX Dual Spectrum CHIRP Transom Mount Transducer w/Temp [710274-1]

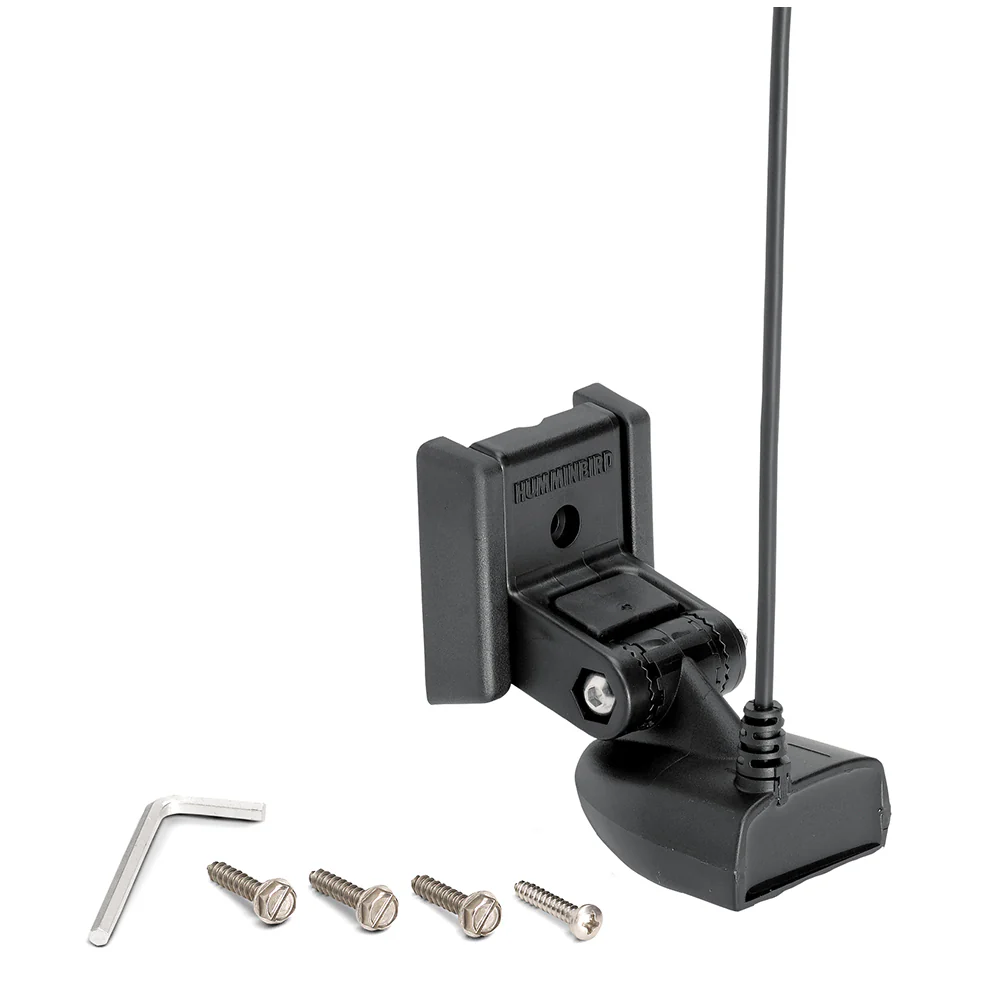

Transom Mount Dual Spectrum CHIRP Transducer supports Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering CHIRP range of 150-220kHz and max depth of 1200ft. Includes built-in temperature sensor, rugged composite design, impact-release mounting bracket and 20' cable.

Features:

• This accessory is compatible with the following Humminbird products: HELIX 5 CHIRP G2 – GPS-equipped models only, HELIX 7 CHIRP G2/G3 – GPS-equipped and CHIRP DI G2 models, HELIX 7 CHIRP G2N/G3N – All models, HELIX 8 CHIRP G3N – All models, HELIX 9 CHIRP G2N/G3N – All models, HELIX 10 CHIRP G2N/G3N – All models, HELIX 12 CHIRP G2N/G3N – All models, ICE HELIX CHIRP G2 – All models (in Open Water Mode) Side Imaging™ and Down Imaging™ units can support the XNT 9 HW T as a 2D sonar only transducer.
• This transducer does not support Side Imaging™ or Down Imaging™.
• Dual Spectrum CHIRP: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
• Dual Spectrum CHIRP- Max Depth: 1200ft (365m)

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Product Specifications

Humminbird XNT-9-HW-T HELIX Dual Spectrum CHIRP Transom Mount Transducer w/Temp [710274-1] Product Specifications

Specification	Details
Model	XNT 9 HW T
Product Code	710274-1
UPC	0082324053061
Mount Type	Transom
Mounting Style	Transom
Sonar Type	Dual Spectrum CHIRP (2D Sonar)
Imaging Support	Standard 2D (No MEGA Imaging)
CHIRP Range	High Wide
Temperature Sensor	Yes
Speed Sensor	No
Pins	7-pin connector
Cable Length	20 ft
Compatible Models	HELIX 5, 7, 8, 9, 10, 12, 15; ICE HELIX
Box Dimensions	4" H × 8" W × 9" L
Box Weight	1 lb
Warranty	One-Year Warranty

Product Manual

Owner's Manual (pdf)

English Transducer Resource Guide

Accessory Resource Guide

Transducer Compatibility Guide

Transom Transducer Installation Instructions

Product Warranty

Humminbird Warranty

The Humminbird warranty we offer is product-dependent. The warranty begins at the date of purchase. When requiring any service/repairs for your Humminbird product, you will need your original receipt of purchase for warranty coverage. If you do not have your receipt of purchase, we will reference your product's serial number and base your warranty coverage off the date of manufacture. We recommend that you write the serial number down somewhere outside of your boat to have it available for future reference.

Humminbird 2-Year Limited Warranty

This warranty covers the following products:

• All XPLORE models
  • Optional: Additional third year of warranty is available with product registration.*
• All APEX models
• All SOLIX models
• HELIX 8 / 9 / 10 / 12 / 15 models
• ICE HELIX 9 models (with MEGA Live or MEGA 360 Imaging)
• ICE Flasher models (ICE-55, ICE-45, and ICE-35)
• MEGA Live 1 Imaging transducers
• MEGA Live 2 Imaging transducers
• MEGA 360 Imaging transducers

Download Humminbird 2-Year Limited Warranty Terms (PDF)

Humminbird 1-Year Limited Warranty

This warranty covers the following products:

• HELIX 5 / 7 models
• ICE HELIX 5 / 7 models
• All accessories
• All cartography products

Download Humminbird 1-Year Limited Warranty Terms (PDF)

Humminbird Cartography 1-Year Limited Warranty

This warranty covers the following products:

• All cartography products including LakeMaster and CoastMaster charts

Download Humminbird Cartography 1-Year Limited Warranty Terms (PDF)
