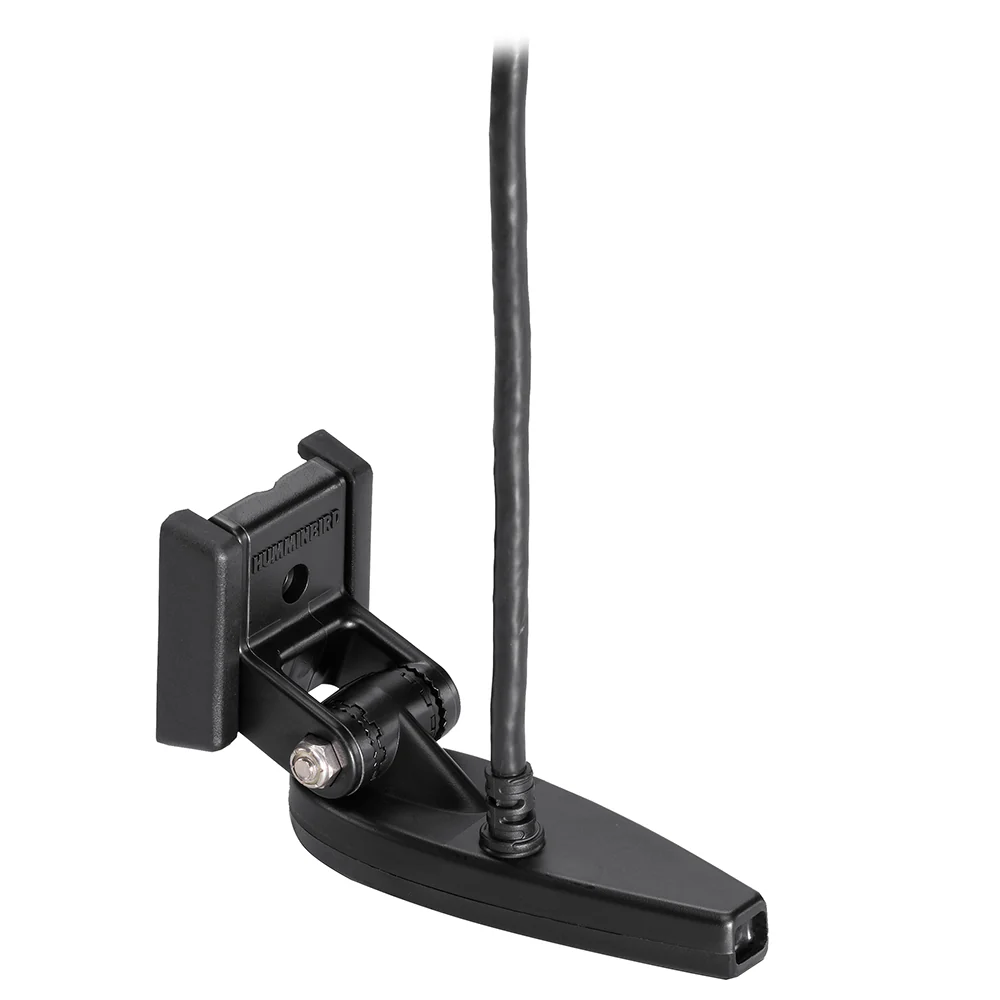

Humminbird XNT 9 DI T TM Transducer [710226-1]

Humminbird XNT 9 DI T TM Transducer [710226-1]

Features:

• Down Imaging/DualBeam Plus

• 75 degrees/ 45 degrees 455/800 kHz (DI)

• 25 degrees/16 degrees 200/455 kHz with built-in temperature

• 20' Cable
• Compatible with: HELIX 12/10/9/7 CHIRP DI GPS G2N, HELIX 7/5 CHIRP DI GPS G2, HELIX 7/5 CHIRP DI G2, HELIX 12 CHIRP DI GPS, HELIX 10/9/7/5 DI GPS, HELIX 7/5 DI, 1159ci HD DI, 1158c DI, 959ci HD DI, 958c HD DI, 958c DI, 858c HD DI, 858c DI, 859ci HD DI, 597ci DI, 596c HD DI, 581i HD DI, 581i DI, 571 HD DI, 570 DI, 561 DI, 386ci DI, 346c DI, 345c Di, 688ci DI, 678 DI, PiranhaMAX 197c DI, PiranhaMAX 4 DI to the maximum capabilities of the unit.

• Compatible with: HELIX 15/12/10/9/8 CHIRP MEGA SI+ GPS G4N, HELIX 15/12/10/9 CHIRP MEGA DI+ GPS G4N, HELIX 8/7 CHIRP MEGA DI GPS G3N/G4N, HELIX 12/10/9/8 CHIRP MEGA SI+ G3N, HELIX 12/10/9 CHIRP MEGA DI+ GPS G3N, HELIX 7 CHIRP MEGA DI GPS G3, HELIX 12/10/9 CHIRP MEGA SI GPS G2N, HELIX 12/10/9 CHIRP MDI GPS G2N, 798ci SI, 798ci HD SI and 899ci HD SI to the maximum capabilities of the transducer.

• Cable Length: 20 Feet

• 1-Year Limited Warranty

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Product Specifications

Humminbird XNT 9 DI T TM Transducer [710226-1] Product Specifications

Specifications	Details
Model	XNT 9 DI T - 200/455 Transom DualBeam Down Imaging Transducer
Product Code	710226-1
UPC	0082324035227
Mount Type	Transom
Mounting Style	Transom
Sonar Type	Down Imaging, 2D
Imagining	Standard / Down
Chirp	No
Cable Length	20 ft
Temperature	Yes
Speed Included	No
Pins	7
Compatible Models	HELIX 10, HELIX 9, HELIX 7, HELIX 12, PiranhaMAX, HELIX 5
Discontinued Series	800 Series, 600 Series, 300 Series, 700 Series, 1100 Series, 500 Series, 900 Series
Box Dimensions	3"H x 7"W x 8"L
Weight	1.25 lbs
Warranty	One-Year Warranty

Product Manual

Quick Guide (pdf)

Product Warranty

Humminbird Warranty

The Humminbird warranty we offer is product-dependent. The warranty begins at the date of purchase. When requiring any service/repairs for your Humminbird product, you will need your original receipt of purchase for warranty coverage. If you do not have your receipt of purchase, we will reference your product's serial number and base your warranty coverage off the date of manufacture. We recommend that you write the serial number down somewhere outside of your boat to have it available for future reference.

Humminbird 2-Year Limited Warranty

This warranty covers the following products:

• All XPLORE models
  • Optional: Additional third year of warranty is available with product registration.*
• All APEX models
• All SOLIX models
• HELIX 8 / 9 / 10 / 12 / 15 models
• ICE HELIX 9 models (with MEGA Live or MEGA 360 Imaging)
• ICE Flasher models (ICE-55, ICE-45, and ICE-35)
• MEGA Live 1 Imaging transducers
• MEGA Live 2 Imaging transducers
• MEGA 360 Imaging transducers

Download Humminbird 2-Year Limited Warranty Terms (PDF)

Humminbird 1-Year Limited Warranty

This warranty covers the following products:

• HELIX 5 / 7 models
• ICE HELIX 5 / 7 models
• All accessories
• All cartography products

Download Humminbird 1-Year Limited Warranty Terms (PDF)

Humminbird Cartography 1-Year Limited Warranty

This warranty covers the following products:

• All cartography products including LakeMaster and CoastMaster charts

Download Humminbird Cartography 1-Year Limited Warranty Terms (PDF)

Product FAQs

N/A
