Humminbird XNT-14-HW-T Dual Spectrum CHRIP TM Transducer w/Temp f/SOLIX [710285-1]

Humminbird XNT-14-HW-T Dual Spectrum CHRIP TM Transducer w/Temp f/SOLIX [710285-1]

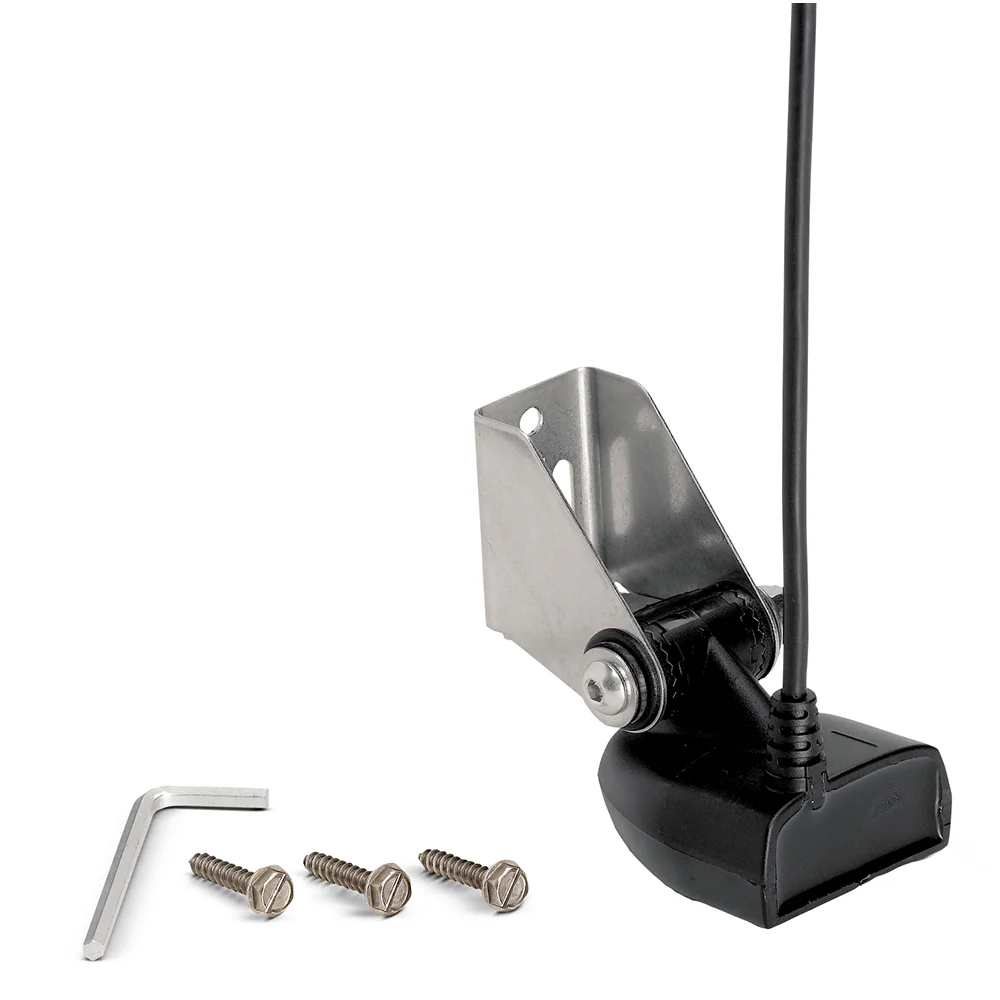

Transom Mount Dual Spectrum CHIRP Transducer supports Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering CHIRP range of 150-220kHz and max depth of 1200ft. Includes built-in temperature sensor, all metal bracket and 20’ cable.

Features:

• This accessory is compatible with the following Humminbird products: SOLIX 10, 12, 15 – All Models.
• Side Imaging™ and Down Imaging™ units can support the XNT 14 HW T as a 2D sonar only transducer. This transducer does not support Side Imaging or Down Imaging.
• Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
• Dual Spectrum CHIRP Max Depth: 1200ft (365m)

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Product Specifications

Humminbird XNT-14-HW-T Dual Spectrum CHRIP TM Transducer w/Temp f/SOLIX [710285-1] Product Specifications

Specification	Details
Model	XNT 14 HW T
Product Code	710285-1
UPC	0082324053054
Mount Type	Transom
Mounting Style	Transom
Sonar Type	Dual Spectrum CHIRP (2D Sonar)
Imaging Support	Standard 2D (No MEGA Imaging)
CHIRP Range	High Wide
Temperature Sensor	Yes
Speed Sensor	No

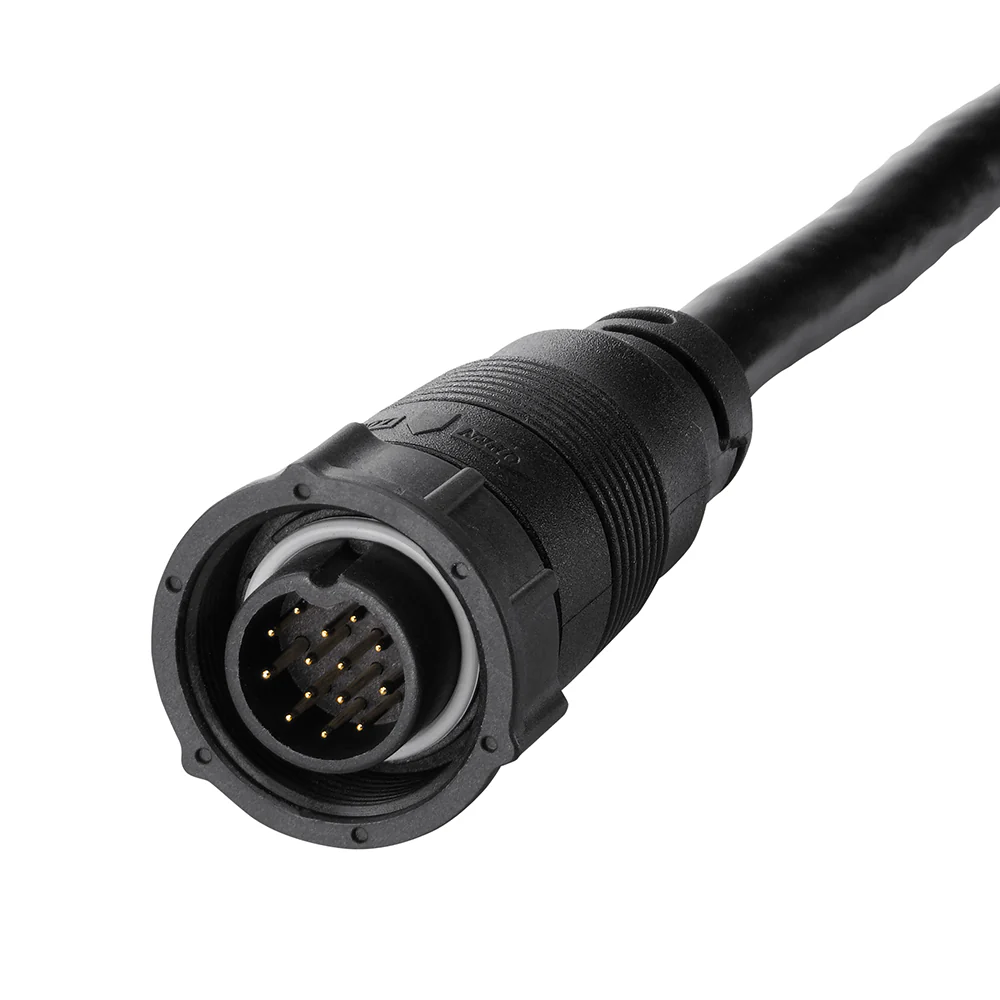

Pins	14-pin connector
Cable Length	20 ft
Compatible Models	SOLIX 10 G3, 12 G3, 15 G3; APEX 13, 16, 19; XPLORE 9, 10, 12
Discontinued Series	ONIX
Box Dimensions	7" H × 8" W × 10" L
Box Weight	1.35 lbs
Warranty	One-Year Warranty

Product Manual

Owner's Manual (pdf)

English Transducer Resource Guide

Accessory Resource Guide

Transducer Compatibility Guide

XNT Metal Bracket & Transducer Installation Instructions

Product Warranty

Humminbird Warranty

The Humminbird warranty we offer is product-dependent. The warranty begins at the date of purchase. When requiring any service/repairs for your Humminbird product, you will need your original receipt of purchase for warranty coverage. If you do not have your receipt of purchase, we will reference your product's serial number and base your warranty coverage off the date of manufacture. We recommend that you write the serial number down somewhere outside of your boat to have it available for future reference.

Humminbird 2-Year Limited Warranty

This warranty covers the following products:

• All XPLORE models
  • Optional: Additional third year of warranty is available with product registration.*
• All APEX models
• All SOLIX models
• HELIX 8 / 9 / 10 / 12 / 15 models
• ICE HELIX 9 models (with MEGA Live or MEGA 360 Imaging)
• ICE Flasher models (ICE-55, ICE-45, and ICE-35)
• MEGA Live 1 Imaging transducers
• MEGA Live 2 Imaging transducers
• MEGA 360 Imaging transducers

Download Humminbird 2-Year Limited Warranty Terms (PDF)

Humminbird 1-Year Limited Warranty

This warranty covers the following products:

• HELIX 5 / 7 models
• ICE HELIX 5 / 7 models
• All accessories
• All cartography products

Download Humminbird 1-Year Limited Warranty Terms (PDF)

Humminbird Cartography 1-Year Limited Warranty

This warranty covers the following products:

• All cartography products including LakeMaster and CoastMaster charts

Download Humminbird Cartography 1-Year Limited Warranty Terms (PDF)

Product FAQs

N/A
